A Comprehensive Guide to Understanding IP Code Ratings for Electrical Equipment

You depend on electrical equipment every day, but how do you know if it stays safe when exposed to dust or water? IP code explanation helps you understand the level of protection each device offers.

• IP Code ratings give you a clear way to see how well equipment shields itself from dust and water.

• Higher ratings mean you can trust equipment in tough environments.

• Lower ratings show you should only use the equipment indoors, where conditions stay controlled.
  By understanding these codes, you make better choices for safety and reliability.

Key Takeaways

• IP codes show how well electrical devices protect against dust and water. Higher numbers mean better protection.

• Understanding IP ratings helps you choose the right equipment for different environments, ensuring safety and reliability.

• Always check the IP code before using a device outdoors. Low ratings can lead to damage from dust and moisture.

• Use the IP code to compare products easily. This helps you make informed decisions when purchasing electrical equipment.

• Following safety standards like IEC 60529 ensures your equipment meets legal requirements and keeps users safe.

IP Code Explanation and Importance

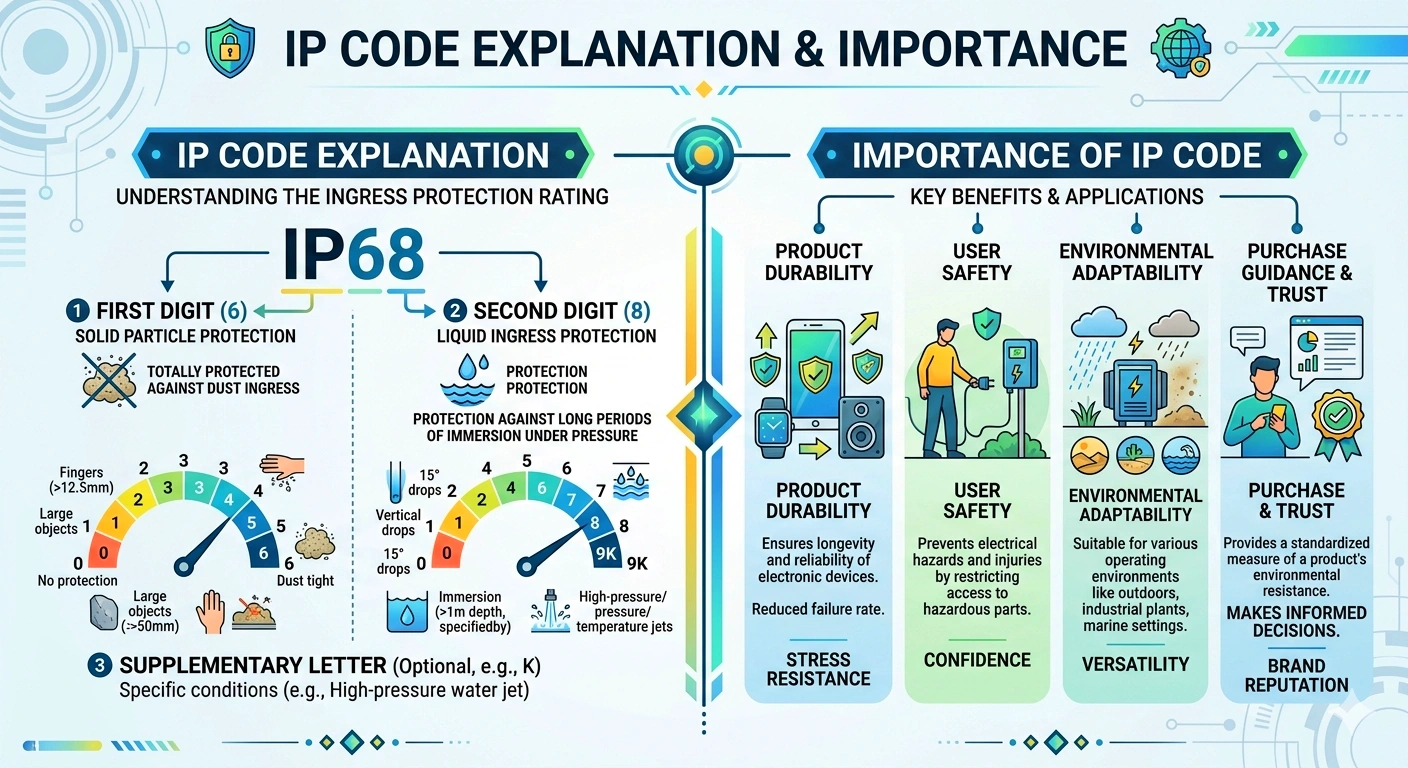

What Are IP Codes

You may see IP codes on many electrical devices, but what do they mean? IP code explanation helps you understand how well a device protects itself from things like dust and water. The International Electrotechnical Commission (IEC) created these codes under the IEC 60529 standard. This standard gives you a clear way to compare the safety of different devices.

Note: IP stands for “Ingress Protection.” It tells you how much protection an enclosure gives against solid objects, accidental contact, and liquids.

Here is what you need to know about IP codes:

• The IP code, or Ingress Protection code, shows the level of protection a device has against water and dust.

• The IEC defines these codes in the international standard IEC 60529.

• This standard explains how much protection mechanical casings and electrical enclosures offer against intrusion, dust, accidental contact, and water.

You can use IP code explanation to make smart choices when you buy or use electrical equipment. It helps you know if a device will stay safe in your home, outside, or in a factory.

Why IP Codes Matter

You need to know about IP codes because they keep you and your equipment safe. These codes do more than just show numbers on a label. They solve real problems in electrical safety and performance.

Here is a table that shows what problems IP codes address:

Problem Addressed	Description
Protection Against Dust and Moisture	IP codes provide standardized levels of protection against dust and moisture, enhancing reliability.
Risk Minimization	Enclosures reduce the risk of short circuits and contain hazards, improving safety.
Human Safety	They prevent accidental contact with live parts, reducing electrical accident risks.

You can trust IP codes because people use them all over the world. They help you in many ways:

• You get legal protection and safety in many countries.

• You see fair competition and stable trade because everyone follows the same rules.

• You benefit from global teamwork and new ideas because IP codes make it easy to work together.

When you use IP code explanation, you make sure you pick the right equipment for your needs. You avoid accidents and keep your devices working longer. IP codes give you a simple, universal way to understand and compare protection levels, no matter where you live or work.

IP Code Origin and Development

Historical Background

You may wonder how IP codes began. In 1976, the International Electrotechnical Commission (IEC) created the IP code ratings. Before this, many countries and industries had their own ways to measure how well electrical devices resisted dust and water. These different standards made it hard for you to compare products from different places. The IEC wanted to solve this problem. They introduced a single, unified system. This new standard helped everyone speak the same language about equipment protection. Now, you can look at an IP code and know exactly what it means, no matter where the device comes from.

The IP code system replaced many older, fragmented standards. It made it easier for you to choose safe and reliable equipment for your needs.

The development of IP codes did not happen overnight. Over the years, several important milestones shaped the way we understand and use these ratings today.

Year	Milestone Description
1893	Merger of Paris and Berne Conventions to form BIRPI, laying groundwork for modern IP system.
1967	Formation of the World Intellectual Property Organization (WIPO) from BIRPI, enhancing international IP protections.
1970	Transformation of BIRPI into WIPO to manage international treaties and promote IP protection.
1976	IEC establishes IP code ratings for electrical equipment protection.
1989	Standardization of SDI by SMPTE, marking a shift from analog to digital video infrastructure.

Standardization Process

You can trust IP codes because respected organizations manage and update them. The International Electrotechnical Commission (IEC) leads the way in setting these standards. The IEC works closely with the International Organization for Standardization (ISO). Together, they review and improve the IP code system. When new technology or risks appear, these groups update the standards. This process keeps the ratings useful and reliable for you. You always get the most current protection information when you check an IP code.

When you see an IP code, you know it follows strict international rules. This gives you confidence in your equipment’s safety and performance.

IP Code Structure Overview

Format and Components

You see IP codes written as “IP” followed by two numbers and sometimes extra letters. Each part tells you something important about the device’s protection. The first number shows how well the device keeps out solid objects and dust. The second number shows how well it keeps out water. Extra letters give you more details about special features.

Here is a table that breaks down the main parts of an IP code:

Component	Description
First Digit	Shows protection against solid objects and dust. Range: 0 (none) to 6 (completely dustproof).
Second Digit	Shows protection against water. Range: 0 (none) to 9 (high-pressure, high-temperature water jets).
Additional Letters	Optional. Give extra information about special protection or testing conditions.
Supplementary Letters	Optional. Show special features for unique environments or testing situations.

First Digit: Solid Protection

You use the first digit to see how well a device keeps out solid objects, like dust or fingers. This digit ranges from 0 to 6. Each number means a different level of protection.

• 0: No protection against contact or objects.

• 1: Protected against objects larger than 50 mm, like your hand.

• 2: Protected against objects larger than 12.5 mm, like your finger.

• 3: Protected against objects larger than 2.5 mm, such as tools.

• 4: Protected against objects larger than 1 mm, like wires.

• 5: Limited protection against dust. No harmful deposits.

• 6: Complete protection against dust.

You check this digit to make sure the device stays safe from solid particles and accidental contact.

Second Digit: Liquid Protection

The second digit tells you how well the device keeps out water. You see numbers from 0 to 9. Higher numbers mean better protection.

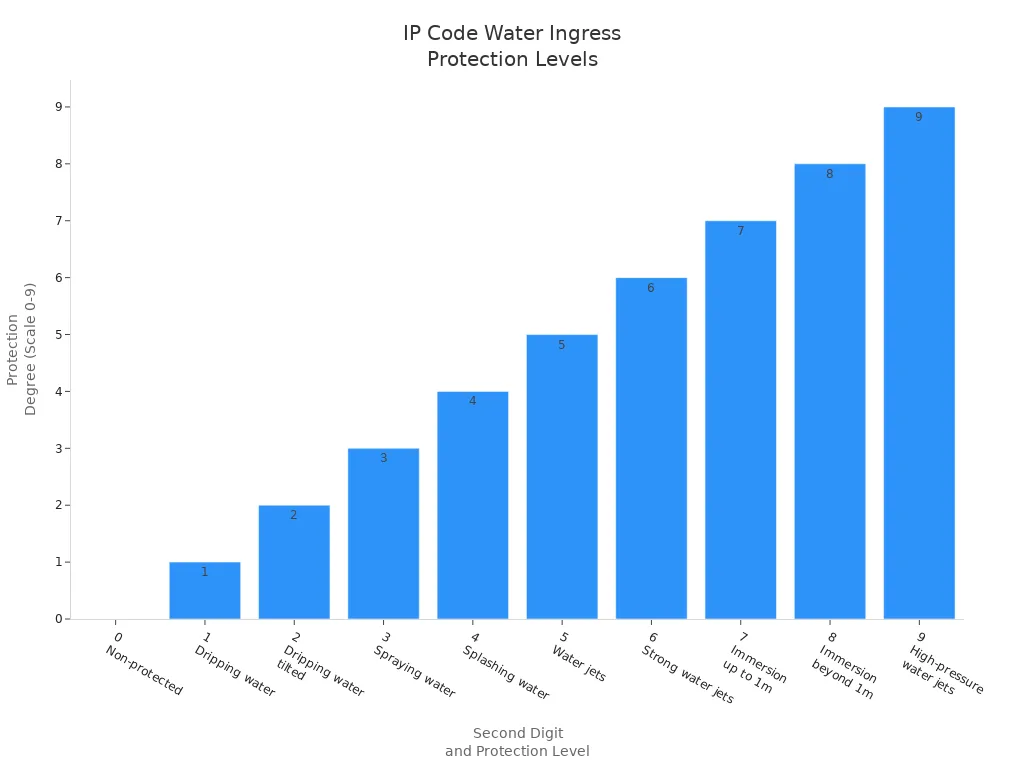

Second Digit	Protection Level	Description
0	Non-protected	No protection against water.
1	Dripping water	Protected from vertical drops.
2	Dripping water tilted	Protected when tilted up to 15°.
3	Spraying water	Protected from water spray at angles.
4	Splashing water	Protected from splashes from any direction.
5	Water jets	Protected from water jets.
6	Strong water jets	Protected from powerful jets.
7	Immersion up to 1m	Protected from temporary immersion.
8	Immersion beyond 1m	Protected from continuous immersion.
9	High-pressure jets	Protected from high-pressure, high-temperature jets.

Additional Letters

Sometimes you see extra letters after the numbers. These letters tell you about special protection or testing. For example:

Letter	Meaning	What It Tells You
A	Back of hand	Protected against contact with back of hand
B	Finger	Protected against finger contact
C	Tool	Protected against tool access
D	Wire	Protected against wire access
F	Oil resistant	Seals resist oil absorption
H	High voltage	Rated for voltage surges over 50 kV
M	Motion	Device was moving during water test
S	Standing still	Device was stationary during water test
W	Weather	Tested for extra weather protection

Supplementary Letters

You may also see supplementary letters. These letters show special features for unique environments or testing situations.

Supplementary Letter	Meaning
H	High-voltage apparatus
M	Tested with movable parts in motion
S	Tested with movable parts stationary
W	Suitable for specific weather conditions

You use these letters to find devices that meet special needs or work in tough conditions.

IP Code Explanation: Interpretation Guide

How to Read IP Codes

You can read an IP code by following a few simple steps. Each part of the code tells you something important about the device’s protection. Here is a step-by-step guide to help you understand any IP code you find on electrical equipment:

1. Find the IP code on the equipment label or in the manual.

2. Look at the first digit after “IP”. This number shows how well the device protects against solid objects. The scale goes from 0, which means no protection, up to 6, which means the device is dust-tight.

3. Check the second digit. This number tells you how well the device protects against water. The scale starts at 0, which means no protection, and goes up to 9, which means the device can handle high-pressure water.

4. If you see an “X” instead of a number, it means the manufacturer did not test or does not rate the device for that type of protection.

Tip: Always check both digits. A high number in one spot does not mean the device is safe from everything.

You can use this IP code explanation to make smart choices. When you know how to read the code, you can pick equipment that fits your needs and keeps you safe.

Example Codes (IP67, IP69)

You may see codes like IP67 or IP69 on products. These codes give you quick information about how tough the device is.

• IP67

  • The “6” means the device is completely dust-tight. No dust can get inside.

  • The “7” means the device can handle being under water up to 1 meter for a short time.

  • You can use equipment with this rating outdoors or in wet places. It will not let in dust or water during normal use.

• IP69

  • The “6” again means dust cannot enter the device.

  • The “9” means the device can handle high-pressure, high-temperature water jets.

  • This rating is common for equipment in car washes or food factories. You can clean these devices with strong water jets, and they will keep working.

Note: The higher the numbers, the better the protection. Always match the code to your environment.

You can use IP code explanation to compare these ratings. This helps you choose the right device for your job.

Common IP Ratings Table

You may want to see how different IP codes compare. Here is a table with some common ratings and what they mean:

IP Code	Solid Protection	Water Protection	Typical Use Case
IP20	Fingers, no dust	None	Indoor electronics
IP44	Small tools, wires	Splashing water	Bathroom fixtures, outdoor lights
IP54	Limited dust	Water spray	Industrial controls
IP65	Dust-tight	Water jets	Outdoor enclosures
IP67	Dust-tight	Immersion up to 1m	Outdoor cameras, smartphones
IP68	Dust-tight	Continuous immersion	Submersible pumps, wearables
IP69	Dust-tight	High-pressure water jets	Food processing, car washes

You can use this table as a quick reference. It helps you match the right IP code explanation to your needs. Always check the code before you buy or install equipment. This way, you keep your devices safe and working longer.

IP Code Testing Methods

Testing Procedures

You need to know how experts test electrical equipment for IP code ratings. These tests make sure devices can handle dust and water as promised. Each test matches a specific part of the IP code.

• Dust Chamber Test: This test checks how well a device keeps out dust. The equipment goes inside a sealed chamber filled with fine dust. After a set time, testers look for dust inside the device. This test helps decide the first digit of the IP code.

• Water Spray Test: This test checks how well a device resists water. Testers spray water at the device from different angles and pressures. They look for leaks or signs of water getting inside. This test helps decide the second digit of the IP code.

• Immersion Test: For higher water protection ratings, testers put the device under water. They check if water gets inside after a certain time and depth. This test is important for devices with ratings like IPX7 or IPX8.

Here is a table that shows the main testing methods and their purposes:

Testing Method	Purpose
Dust Chamber Test	Determines the first digit of the IP Code by assessing dust ingress.
Water Spray Test	Evaluates the enclosure’s ability to prevent water ingress at various angles and pressures.
Immersion Test	Assesses protection against water ingress for higher ratings (e.g., IPX7, IPX8) by submerging the enclosure.

These tests follow strict rules to make sure every product gets a fair and accurate rating.

Verification Tools

You might wonder what tools experts use for these tests. Manufacturers use special equipment to check if products meet IP code standards. Environmental test chambers create different conditions, such as changes in temperature and humidity. Rain test chambers mimic real rainfall to see if water leaks into the device. Dust test chambers fill the air with fine particles to check if dust can get inside. These tools help testers see how well a product stands up to tough environments.

When you see an IP code on a product, you know it passed careful tests with advanced tools. This gives you confidence that the device will work safely where you need it.

Practical Implications for Equipment

Choosing the Right IP Code

You need to pick the right IP code for your equipment to keep it safe and working well. Start by thinking about where you will use the device. Dust, water, and temperature all affect how much protection you need. Some industries, like food processing or outdoor construction, require higher IP ratings. You also need to balance protection with cost. Higher ratings can cost more, so choose what fits your budget and needs.

Here is a table to help you see what to consider:

Factor	Description
Environmental Conditions	Check for dust, water, and temperature in the device’s location.
Industry Standards	Some jobs need special IP ratings. Always check your industry’s rules.
Protection vs. Cost	Higher protection means higher cost. Choose what you need for safety and your budget.

Tip: Always read the equipment label and compare the IP code to your environment before you buy.

Safety and Compliance

You must follow safety rules and legal standards when you choose electrical equipment. Many countries use IEC 60529 as the main standard for IP codes. This standard gives clear rules for testing and rating devices. When you pick equipment that meets these rules, you help keep people safe and avoid problems.

• IEC 60529 sets the guidelines for testing and classifying protection levels.

• Following this standard makes sure IP ratings are the same across brands and products.

• Meeting these rules helps you avoid legal trouble and product recalls.

• Certified products show that manufacturers care about safety and quality.

• Accurate ratings help you make smart choices and keep your workplace safe.

Note: Always check for certification marks and ask for test reports if you need proof of safety.

You can use IP code explanation to make sure your equipment meets all safety and legal needs. This helps you protect people, property, and your business.

You now know why IP code explanation matters for safe equipment choices. When you understand these ratings, you protect yourself and your devices.

• You get a clear way to compare equipment safety.

• You make smart decisions about where to use each device.

• You help keep your work and home safe from dust and water.

Use this knowledge every time you select electrical equipment. Your choices will be safer and more reliable.

FAQ

What does “IP” stand for?

“IP” means Ingress Protection. You use this code to see how well a device keeps out dust and water. It helps you know if your equipment will stay safe in different places.

Can you use a device with a low IP rating outdoors?

No, you should not use devices with low IP ratings outside. These devices do not protect well against rain or dust. You risk damaging your equipment if you use it outdoors.

How do you find the IP code on your device?

You can check the product label, user manual, or packaging. Manufacturers usually print the IP code near the model number. If you cannot find it, ask the seller or check the company’s website.

What is the difference between IP67 and IP68?

IP Code	Dust Protection	Water Protection
IP67	Dust-tight	Immersion up to 1 meter
IP68	Dust-tight	Immersion beyond 1 meter

Tip: Choose IP68 for longer or deeper water use.
