IPX4 Splash Water Test Chamber | IEC 60529 IPX4 Splash Waterproof Test Chamber

Professional Construction & Technical Precision

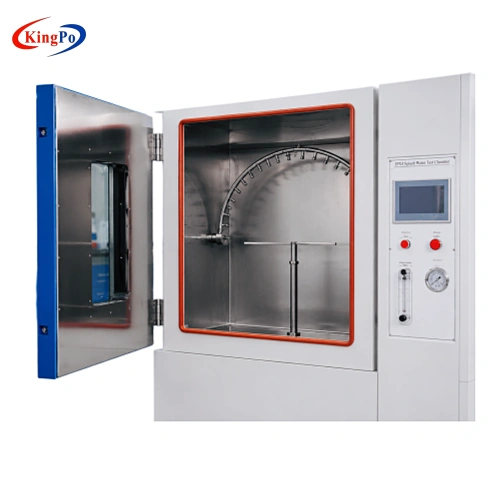

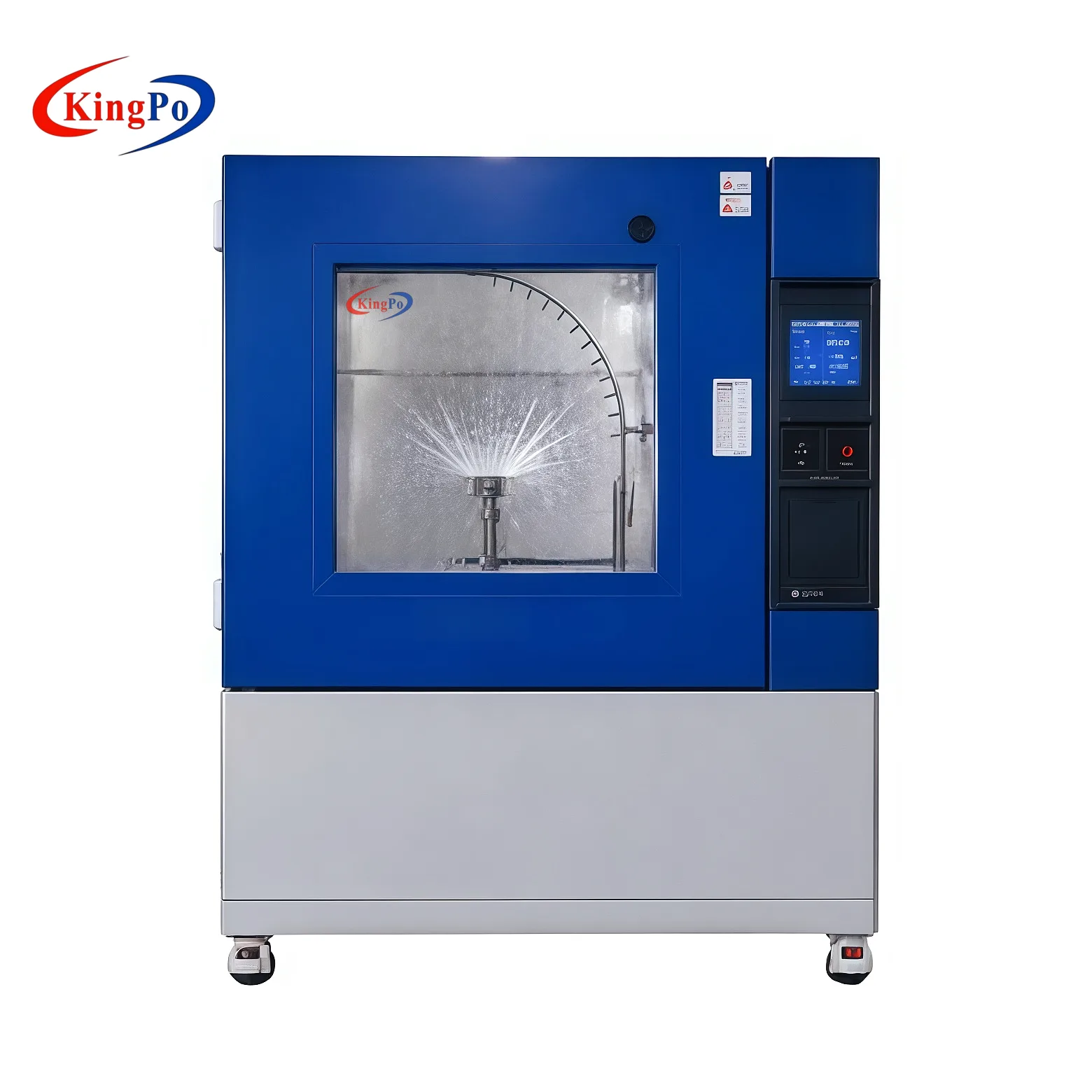

The IPX4 Splash Water Test Chamber is constructed with premium SUS304 stainless steel throughout, delivering superior corrosion resistance even under prolonged exposure to high-volume water splash testing. It features an array of high-flow splash nozzles strategically positioned to simulate intense water splashing from all directions, accurately replicating harsh real-world conditions. A heavy-duty rotating turntable combined with motorized 15° tilt capability ensures comprehensive and uniform exposure across the entire specimen surface.

The chamber incorporates an advanced water circulation and multi-stage filtration system that maintains stable flow rates and pressure while significantly reducing water consumption. This design not only enhances operational efficiency but also supports continuous laboratory use with minimal maintenance requirements.

Testing Principle

The IPX4 Splash Water Test Chamber assesses the ability of an enclosure to withstand water splashing from any direction as specified in IEC 60529 IPX4. Unlike oscillating tube methods used in IPX3 testing, IPX4 employs higher flow rate nozzles to generate more aggressive splashing conditions from multiple angles.

The test specimen is mounted on a rotating turntable and evaluated while tilted at 15° in four mutually perpendicular positions. Each position is exposed for 2.5 minutes, resulting in a total test duration of 10 minutes. This standardized procedure effectively replicates severe splash exposure scenarios encountered in outdoor or wet environments, enabling precise evaluation of whether water ingress could compromise the equipment’s functionality or safety.

Common Error Mitigation

To ensure accurate, repeatable, and standards-compliant IPX4 test results, the following best practices are strongly recommended:

• Verify water flow rate, pressure, and nozzle condition before each test series.
• Confirm the specimen is securely mounted and properly centered on the turntable.
• Accurately set and verify the 15° tilt angle for all four test positions.
• Perform regular inspection and cleaning of splash nozzles to maintain consistent spray intensity.
• Record all critical test parameters, including flow rate, duration, and visual observations, for complete traceability and regulatory compliance.

Primary Use Cases & Business Value

The IPX4 Splash Water Test Chamber is an essential testing asset for manufacturers whose products are exposed to intense splashing water in real-world applications. It enables early identification of sealing vulnerabilities during the design phase, supports efficient compliance with international standards, and significantly reduces the risk of costly field failures and warranty claims. By delivering reliable and repeatable test results, this chamber helps companies accelerate product development, strengthen quality assurance processes, and enhance market confidence in outdoor and wet-environment applications.

Industrial Applications & Lab Scenarios

• Household Appliance Manufacturers — IPX4 splash testing for external components and control panels
• Lighting and Luminaire Producers — Comprehensive waterproof validation for outdoor and architectural lighting
• Electrical Equipment Manufacturers — Ingress protection testing for control cabinets and power distribution systems
• Third-Party Certification Laboratories — IEC 60529 IPX4 formal compliance and type approval testing
• Quality Control and R&D Departments — Severe splash condition validation during new product development and batch inspection

Strategic Procurement Advantages & Global Support

• Reliable and repeatable IPX4 splash water testing with uniform exposure from all directions
• Flexible turntable system with adjustable speed and 15° tilt for diverse product testing needs
• Robust SUS304 stainless steel construction and efficient water circulation for long-term reliability
• Manufactured under an ISO 9001 certified quality management system with comprehensive technical support and customization capabilities
