Screw Terminal Strength Tester โ IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine
Screw Terminal Strength Tester performs IEC 62196-1 Clause 13.3.1 mechanical durability testing for screw terminals in vehicle plugs and socket-outlets.
- Single test station with robust fixture for precise terminal clamping and rotation
- Load weight range: 0.4โ70.3 kg (adjustable per IEC Table 3)
- Rotating diameter: 75 mm for consistent mechanical stress application
- Test rate: (10 ยฑ 2) r/min with precise speed control
- Test cycles: 1โ999999 programmable with automatic stop and alarm
- Test height: 260โ660 mm adjustable to accommodate different terminal sizes
- Bushing hole diameters: full set from 6.5 mm to 44.5 mm per IEC Table 3
- MOQ: 1
- Delivery Period: 30 working days
Screw Terminal Strength Tester Description
Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine
The Screw Terminal Strength Tester is a specialized mechanical durability testing system designed to evaluate the clamping strength and long-term reliability of screw terminals in vehicle plugs, socket-outlets and connectors. Manufactured in full compliance with IEC 62196-1:2022 Clause 13.3.1 (Figure 12 & Table 3), the tester applies controlled rotating mechanical loads to simulate repeated flexing stress under normal operating conditions, ensuring terminals maintain secure wire retention throughout their service life.
Testing Principle
The tester mounts the terminal specimen on a rotating fixture and applies a preset weight while performing continuous rotation at (10 ยฑ 2) r/min. The system records the number of cycles and automatically stops when the preset count is reached or when a fault condition is detected, providing accurate assessment of terminal clamping strength and wire damage resistance as required by the standard.

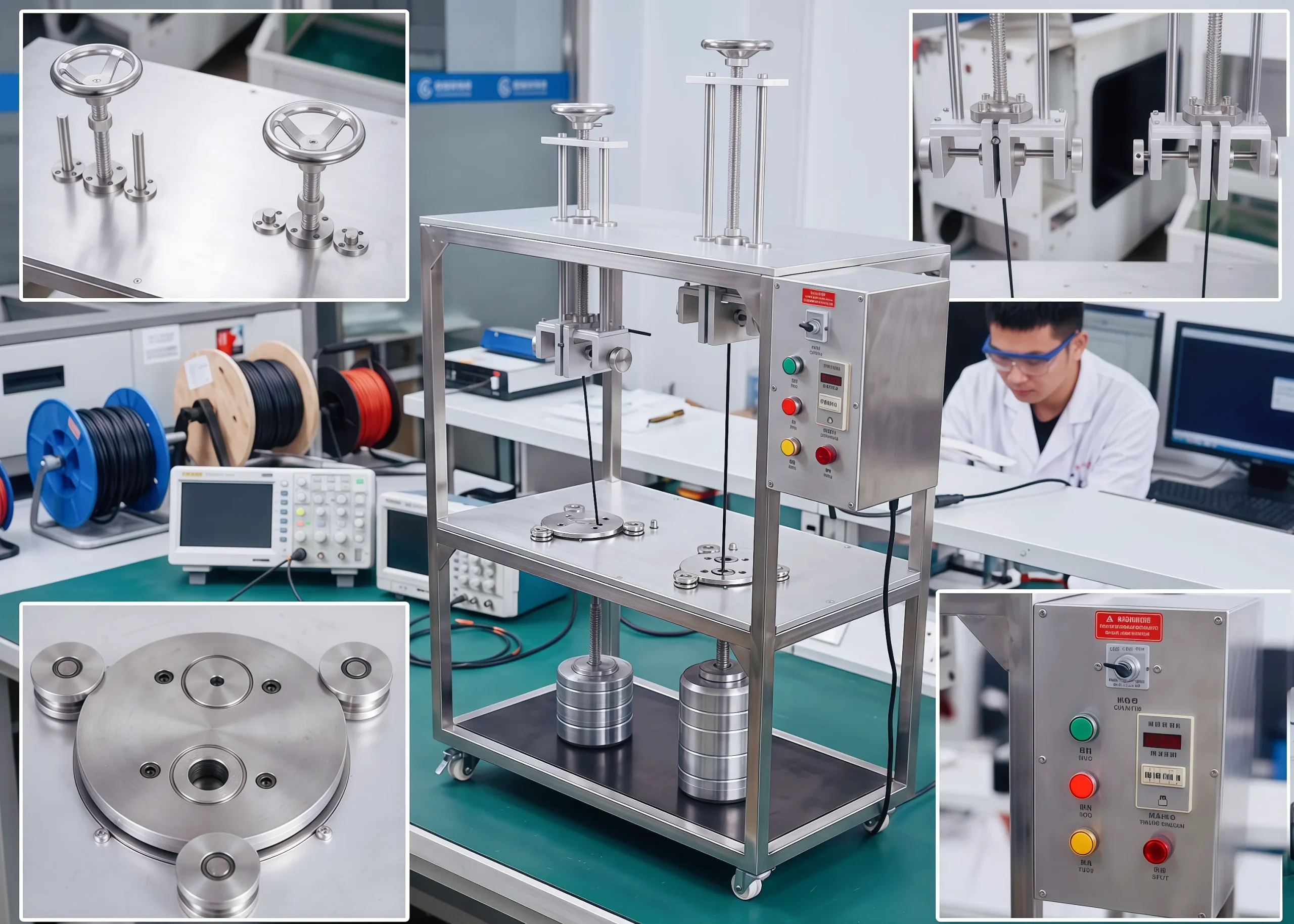

IEC 62196-1 Screw Terminal Strength Tester
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001, ISO 45001 and CE certified manufacturer, also holding SGS, PSE and RoHS certifications. We specialize in EV charging connector and terminal testing equipment and have supplied IEC 62196-1 screw terminal strength testers to leading EV manufacturers and certification laboratories worldwide. Each unit undergoes rigorous calibration and is delivered with complete documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.

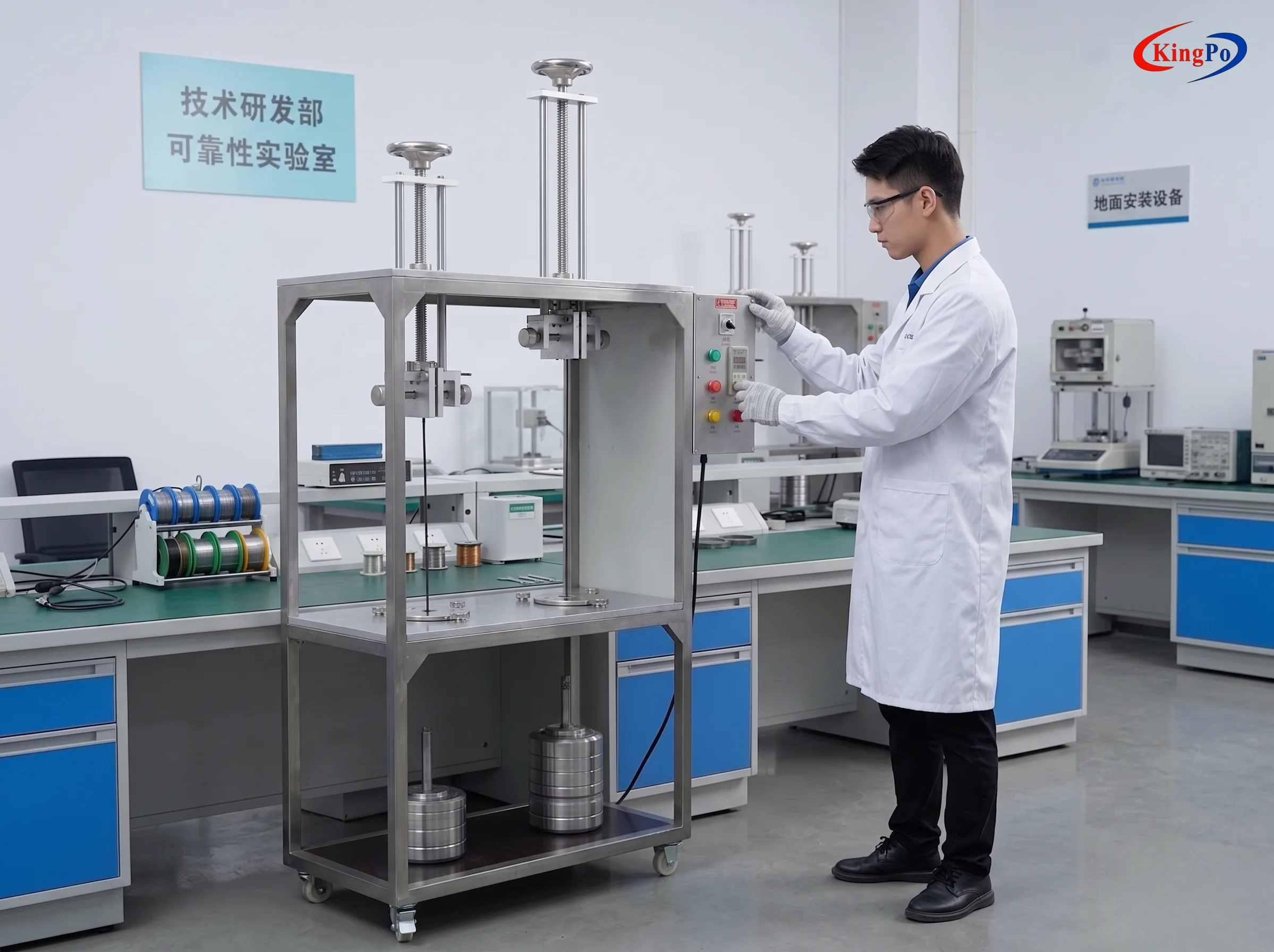

Professional Construction & Technical Precision
Key features include:
- Motor-driven rotating mechanism with precise speed control of (10 ยฑ 2) r/min

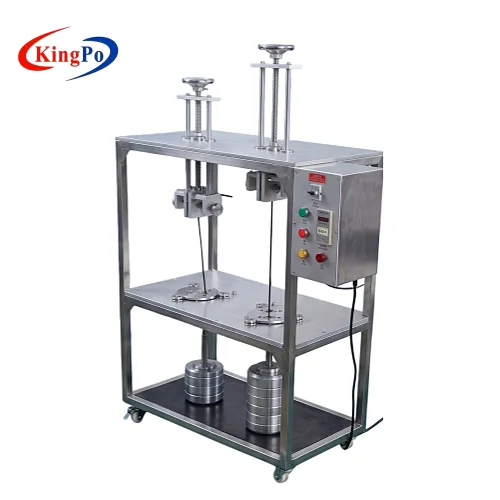

- Adjustable rotating weight from 0.4 to 70.3 kg matching IEC Table 3 requirements
- Wide range of bushing hole diameters from 6.5 mm to 44.5 mm for different wire sizes
- Adjustable test height from 260 to 660 mm to accommodate various terminal types

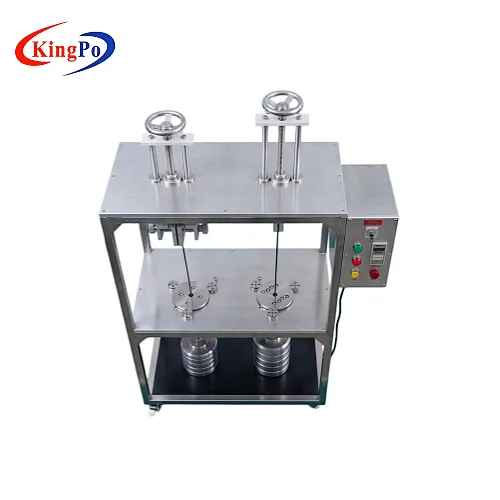

- Programmable cycle counting from 1 to 999999 with automatic stop and alarm function
- Robust construction (790 ร 400 ร 1500 mm) for stable, long-term laboratory operation
These elements ensure high accuracy, excellent repeatability and full compliance with IEC 62196-1 requirements.
Technical Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Test Station | Single station | Dedicated fixture for precise clamping |
| Load Weight | 0.4โ70.3 kg | Adjustable per IEC Table 3 |
| Rotating Diameter | 75 mm | Consistent mechanical stress application |
| Test Rate | (10 ยฑ 2) r/min | Precise speed control |
| Test Cycles | 1โ999999 | Programmable with automatic stop |
| Test Height | 260โ660 mm | Adjustable for different terminal sizes |
| Bushing Hole Diameters | 6.5 mm to 44.5 mm | Full set per IEC Table 3 |
| Power Supply | AC 220 V, 50/60 Hz | Stable industrial power |
The Screw Terminal Strength Tester supports critical stages across the product lifecycle, including product development validation of clamping strength, certification testing for IEC 62196-1 compliance, production quality control batch verification and failure analysis of terminal loosening or wire damage. It improves product reliability, reduces field failures and accelerates certification for EV charging accessories and connectors.
Procurement Benefits
The tester offers adjustable weights, programmable cycles and precise speed control in a robust, easy-to-operate design. It delivers consistent, repeatable test results with minimal maintenance, making it a practical solution for screw terminal mechanical durability testing.

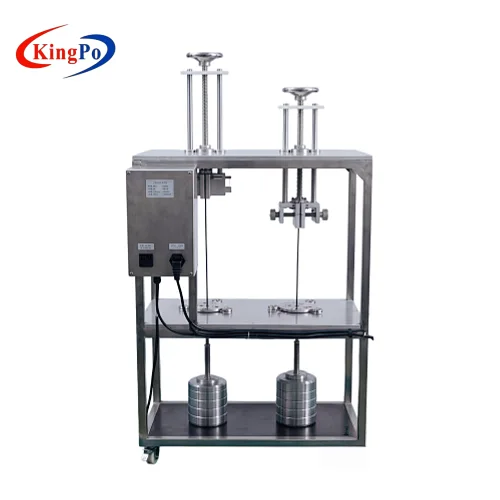

Screw Terminal Strength Tester Applications
- Vehicle plugs, socket-outlets and connectors โ screw terminal strength and durability testing per IEC 62196-1 Clause 13.3.1
- Electrical accessories โ clamping terminal mechanical performance evaluation
- Production quality assurance โ batch testing of terminal retention strength
- Certification laboratories โ compliance verification for conductive charging components
- R&D departments โ optimization of screw terminal design and wire protection
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with IEC 62196-1:2022 Clause 13.3.1 for screw terminal strength testing. It provides a standardized method to evaluate clamping strength and durability under repeated mechanical stress, ensuring terminals meet the required safety and performance levels for electric vehicle conductive charging systems.
For detailed information on screw terminal testing, please refer to the latest edition of IEC 62196-1.
Regular verification of rotating speed, weight accuracy and fixture alignment is recommended to maintain traceability.
Technical Inquiry for Screw Terminal Strength Tester
KingPo specializes in EV charging connector and terminal testing equipment. If you require precise IEC 62196-1 screw terminal strength testing, our engineering team can provide technical support and configuration recommendations.
The Core Value We Deliver to You
- Adjustable load weight 0.4โ70.3 kg per IEC Table 3
- Precise rotating speed of (10 ยฑ 2) r/min
- Wide bushing hole range for different wire sizes
- Programmable cycle counting with automatic stop
- Robust construction for long-term laboratory use
Tell us your connector type or test requirements โ our engineering team will reply with tailored recommendations within 24 hours.
Conductor Specification Parameters
| Conductor AWG/kcmil | Conductor Area (mmยฒ) | Diameter of bushing hole mm(in) | Height mm(in) | Mass (Copper) kg(lb) | Mass (Aluminum/Copper-clad aluminum) kg(lb) |
|---|---|---|---|---|---|
| 18 | 0.82 | 6.4(1/4) | 260(10-1/4) | 0.9(2) | — |
| 6 | 1.3 | 6.4(1/4) | 260(10-1/4) | 0.9(2) | — |
| 14 | 2.1 | 9.5(3/8) | 279(11) | 1.4(3) | — |
| 12 | 3.3 | 9.5(3/8) | 279(11) | 2.3(5) | 0.7(1.5) |
| 10 | 5.3 | 9.5(3/8) | 279(11) | 2.3(5) | 0.7(1.5) |
| 8 | 8.4 | 9.5(3/8) | 279(11) | 3.6(8) | 1.4(3) |
| 6 | 13.3 | 12.7(1/2) | 298(11-3/4) | 8.2(18) | 4.5(10) |
| 4 | 21.2 | 12.7(1/2) | 298(11-3/4) | 13.6(30) | 6.8(15) |
| 3 | 26.7 | 14.3(9/16) | 318(12-1/2) | 13.6(30) | 6.8(15) |
| 2 | 33.6 | 14.3(9/16) | 318(12-1/2) | 13.6(30) | 6.8(15) |
| 1 | 42.4 | 15.8(5/8) | 343(13-1/2) | 22.7(50) | 11.4(25) |
| 1/0 | 53.5 | 15.8(5/8) | 343(13-1/2) | 22.7(50) | 11.4(25) |
| 2/0 | 67.4 | 19.1(3/4) | 368(14-1/2) | 22.7(50) | 11.4(25) |
| 3/0 | 85.0 | 19.1(3/4) | 368(14-1/2) | 27.2(60) | 13.6(30) |
| 4/0 | 107 | 19.1(3/4) | 368(14-1/2) | 27.2(60) | 13.6(30) |
| 250 | 127 | 22.2(7/8) | 406(16) | 27.2(60) | 13.6(30) |
| 300 | 156 | 22.2(7/8) | 406(16) | 36.3(80) | 18.2(40) |
| 350 | 177 | 25.4(1) | 432(17) | 36.3(80) | 18.2(40) |
| 400 | 203 | 25.4(1) | 432(17) | 36.3(80) | 18.2(40) |
| 500 | 253 | 28.6(1-1/8) | 464(18-1/4) | 45.4(100) | 22.7(50) |
| 600 | 304 | 28.6(1-1/8) | 464(18-1/4) | 45.4(100) | 22.7(50) |
| 700 | 354 | 31.8(1-1/4) | 495(19-1/2) | 45.4(100) | 22.7(50) |
| 750 | 380 | 31.8(1-1/4) | 495(19-1/2) | 49.9(110) | 25.0(55) |
| 800 | 406 | 34.9(1-3/8) | 540(21-1/4) | 49.9(110) | 25.0(55) |
| 900 | 456 | 34.9(1-3/8) | 540(21-1/4) | 49.9(110) | 25.0(55) |
| 1000 | 508 | 38.1(1-1/2) | 565(22-1/4) | 49.9(110) | 25.0(55) |
| 1250 | 635 | 44.5(1-3/4) | 660(26) | 70.4(155) | 34.1(75) |
| 1500 | 759 | 50.8(2) | 711(28) | 81.7(180) | 40.9(90) |
| 1750 | 886 | 54.0(2-1/8) | 762(30) | 93.1(205) | 45.4(100) |
| 2000 | 1010 | 54.0(2-1/8) | 762(30) | 109.0(240) | 54.5(120) |
Notes
a. If a hole with the diameter given is insufficient to accommodate the conductor without binding, a bushing having a hole of slightly large diameter shall be allowed to be used.
b. For 12 – 4 AWG (3.3 – 21.2 mmยฒ) aluminum conductor, use 318 mm (12-1/2 in).
