AC Vehicle Charging Gun Test System โ UL/GB/EU Comprehensive EV Charging Plug Tester
EV Charger Test System โ UL/GB/EU compliant fully automated single-station system for comprehensive testing of AC vehicle charging guns, covering wire continuity, resistance, current carrying capacity, voltage drop, insulation resistance and dielectric withstand with full traceability.
Standard Compliance: GB, EU, UL standards โ EV charger test system for AC vehicle charging guns Testing Mode: Fully automated one-stop testing Control System: PLC + Industrial PC with dedicated software Traceability: Unique QR code scanning and automatic report saving Resistance Accuracy: 1โ2% for built-in and CC/PE resistance Current Carrying Capacity: Supports 3.3 kW (16A), 7.4 kW (32A), 11 kW (16A 3-phase), 22 kW (32A 3-phase) Insulation & Hi-Pot Test: Adjustable DC 100โ1000 V and AC 0โ5 kV / DC 0โ6 kV Test Station: Single station with multi-standard plug holders (EU, GB, US) MES Interface: Optional integration for data upload MOQ: 1 Delivery Period: 40 days
EV Charger Test System Description

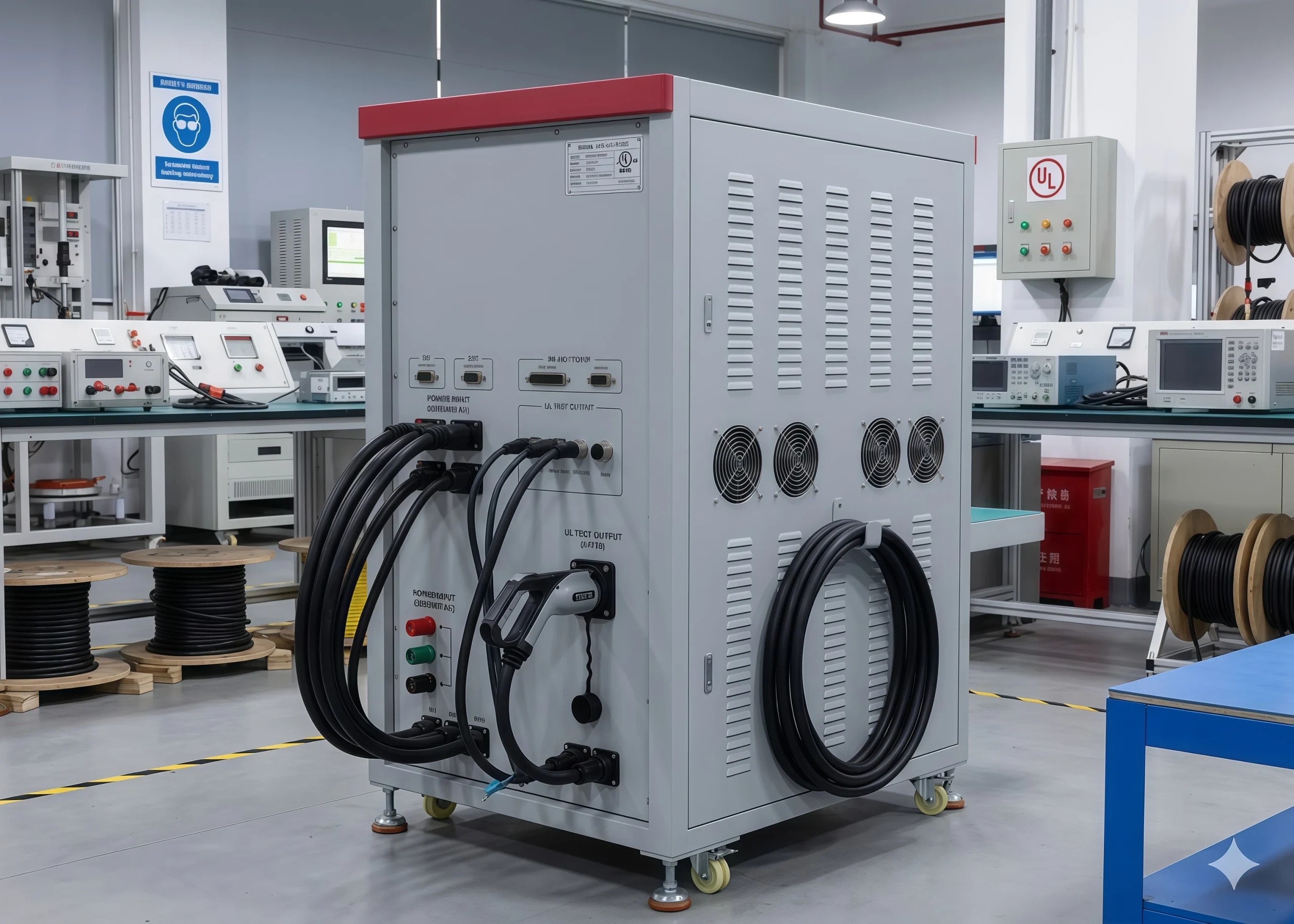

UL Standard AC Vehicle Charging Gun Comprehensive Test System
The EV Charger Test System is a fully automated testing platform manufactured by KingPo for comprehensive functional inspection of AC vehicle charging guns and plugs according to Chinese (GB), European (EU), and American (UL) standards. This EV charger test system performs all required tests in a single automated run, significantly improving efficiency for mass production full inspection of AC vehicle charging guns.
Each AC vehicle charging gun receives a unique QR code. After scanning, test results (including continuity, resistance, current carrying capacity, voltage drop, insulation resistance and dielectric withstand) are automatically saved and can be printed for qualified products, ensuring complete traceability.
KingPo Factory Advantages
KingPo is an ISO9001 and CE certified manufacturer specializing in EV charging interface testing equipment. We have delivered multiple UL/GB/EU compliant EV charger test systems to leading EV manufacturers and accredited laboratories worldwide. All units include calibration certificates (additional cost), on-site installation guidance, 1-year warranty and 48-hour technical response from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- PLC + Industrial PC control with user-friendly software supporting Win 7/10
- Built-in barcode/QR code scanner for automatic test record association
- Multi-standard plug holders (EU, GB, US AC vehicle charging gun holders) with ergonomic height (750โ1000 mm)
- Programmable three-phase adjustable transformer for current carrying capacity and voltage drop testing of AC vehicle charging guns
- Comprehensive safety features including overload protection
- Mobile casters with locking function for easy movement
These elements ensure stable, repeatable and highly efficient testing for AC vehicle charging guns compliant with international standards.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | SNJ8163 EV Charger Test System |
| Applicable Standards | GB, EU, UL standards for AC vehicle charging guns |
| Control System | PLC + Industrial PC |
| Testing Mode | Fully automated one-stop testing |
| Barcode/QR Code | Built-in scanner with automatic data association |
| Continuity Tests | Break, continuity, short circuit, wiring sequence (PLC I/O scanning) |
| Built-in Resistance | 1โ5000 ฮฉ, accuracy 1%, upper/lower limits settable |
| CC & PE Resistance | 16A/32A/63A plugs (pressed/not pressed states), accuracy 1โ2% |
| Thermistor Testing | 100โ50,000 ฮฉ, accuracy 2% |
| Current Carrying Capacity | 3.3 kW (16A 1-phase), 7.4 kW (32A 1-phase), 11 kW (16A 3-phase), 22 kW (32A 3-phase) |
| Voltage Drop | Measured under rated and overload current |
| Insulation Resistance | DC 100โ1000 V adjustable, 1 Mฮฉโ1 Gฮฉ lower limit, accuracy ยฑ5% |
| Dielectric Withstand (Hi-Pot) | AC 0โ5 kV / DC 0โ6 kV, leakage current AC 0.1โ20 mA / DC 0.01โ5 mA, accuracy ยฑ1.5% + 3 digits |
| Test Station | Single station |
| Power Supply | Single-phase AC 220 V / 50 Hz |
| Air Supply | 0.6 MPa |
| Dimensions (WรDรH) | Approx. 900 ร 800 ร 1800 mm |
| Weight | Approx. 300 kg |
The EV charger test system supports critical stages:
- Mass Production Full Inspection โ Automated one-stop testing for high-volume AC vehicle charging gun manufacturing
- Product Development โ Verify wiring, resistance, current carrying capacity and insulation performance of AC vehicle charging guns
- Certification Testing โ Generate traceable reports for GB/EU/UL compliance
- Quality Assurance โ Ensure safety and reliability of EV charging plugs
It shortens inspection time, reduces labor costs and provides complete data traceability for regulatory compliance of AC vehicle charging guns.
Procurement Benefits
Fully automated operation with QR code traceability and optional MES integration minimizes human error and enhances production efficiency. Multi-standard compatibility and programmable parameters offer excellent flexibility for testing AC vehicle charging guns. Comprehensive safety features and robust construction ensure long-term reliability. This EV charger test system improves quality control of AC vehicle charging guns, supports multi-market compliance and reduces overall testing costs. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
EV Charger Test System Applications
- AC EV Charging Plugs & Vehicle Charging Guns โ Full functional testing per GB/EU/UL standards
- Production Quality Control โ Automated inspection with traceability for mass manufacturing of AC vehicle charging guns
- Certification Laboratories โ Comprehensive report generation for regulatory approval
- R&D Validation โ Detailed analysis of wiring sequence, insulation and voltage drop performance of EV charging plugs
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with GB, EU and UL standards for AC vehicle charging guns and connectors. It performs comprehensive testing of wire continuity, resistance, current carrying capacity, voltage drop, insulation resistance and dielectric withstand to ensure product safety, electrical integrity and compliance with international requirements for conductive charging of electric vehicles. Calibration certificates are available at additional cost. Regular verification of resistance measurement, voltage output and insulation/Hi-Pot functions is recommended to maintain traceability.
Technical Inquiry for UL EV Charger Test System
KingPo specializes in automated testing solutions for EV charging interfaces according to GB/EU/UL standards. If you require efficient one-stop comprehensive testing for AC vehicle charging guns with full traceability and MES readiness, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- Fully automated one-stop testing with QR code traceability for AC vehicle charging guns
- Multi-standard compatibility (GB/EU/UL) and high-accuracy measurements
- Programmable current carrying capacity and dielectric withstand testing
- Optional MES integration for production data management
- Ergonomic design and robust construction for factory use
Take Action Now Tell us your plug types (16A/32A/63A), required standards or production volume โ our engineering team will reply with tailored recommendations and pricing within 24 hours.

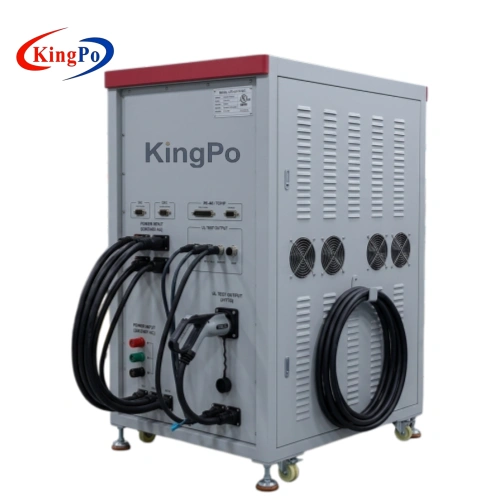

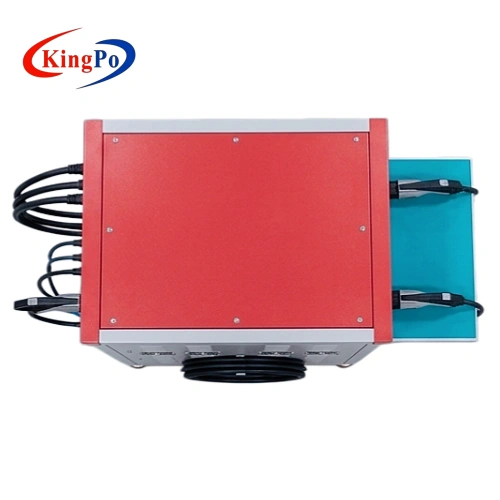

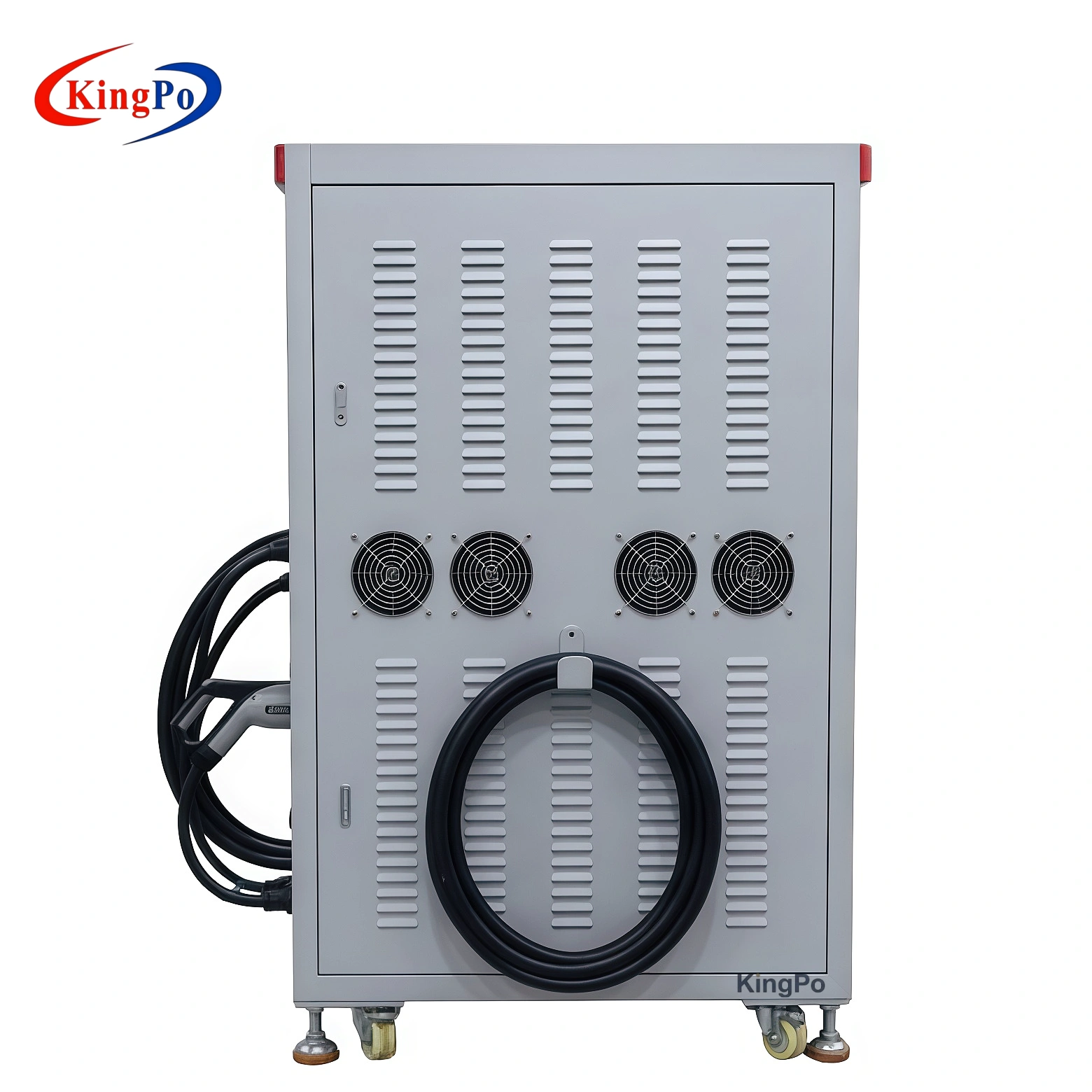

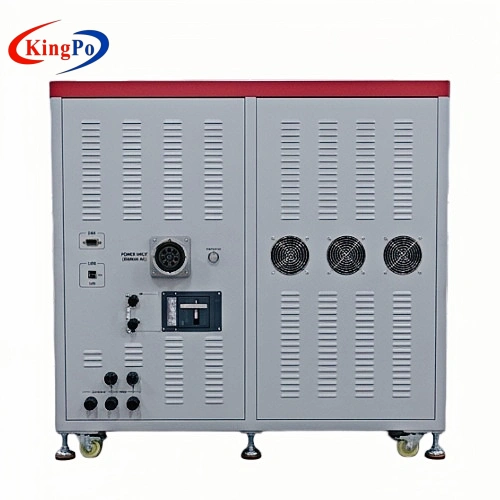

EV Charger Test System Detail Display
