Electric Motor Test Stand โ Power Tool Life Test System for Electric Chain Saw Motors
Electric Motor Test Stand delivers precise 5-station endurance validation for power tool motors and electric chain saws.
- 5 Independent Stations: Each station operates separately without interference
- Rated Voltage: DC58V
- Maximum Output: 1800W
- Maximum Current: 50A
- Maximum Torque: 6Nm
- Maximum Speed: 15000rpm
- Motor Start-Stop Control: Max DC24V 2A output
- Hysteresis Brake: High-precision load simulation
- Control System: Industrial computer + PLC with custom software
- MOQ: 1
- Delivery Period: 20 working days
Electric Motor Test Stand Description
Power Tool Life Electric Motor Testing System , Electric Chain Saw Life Test Bench

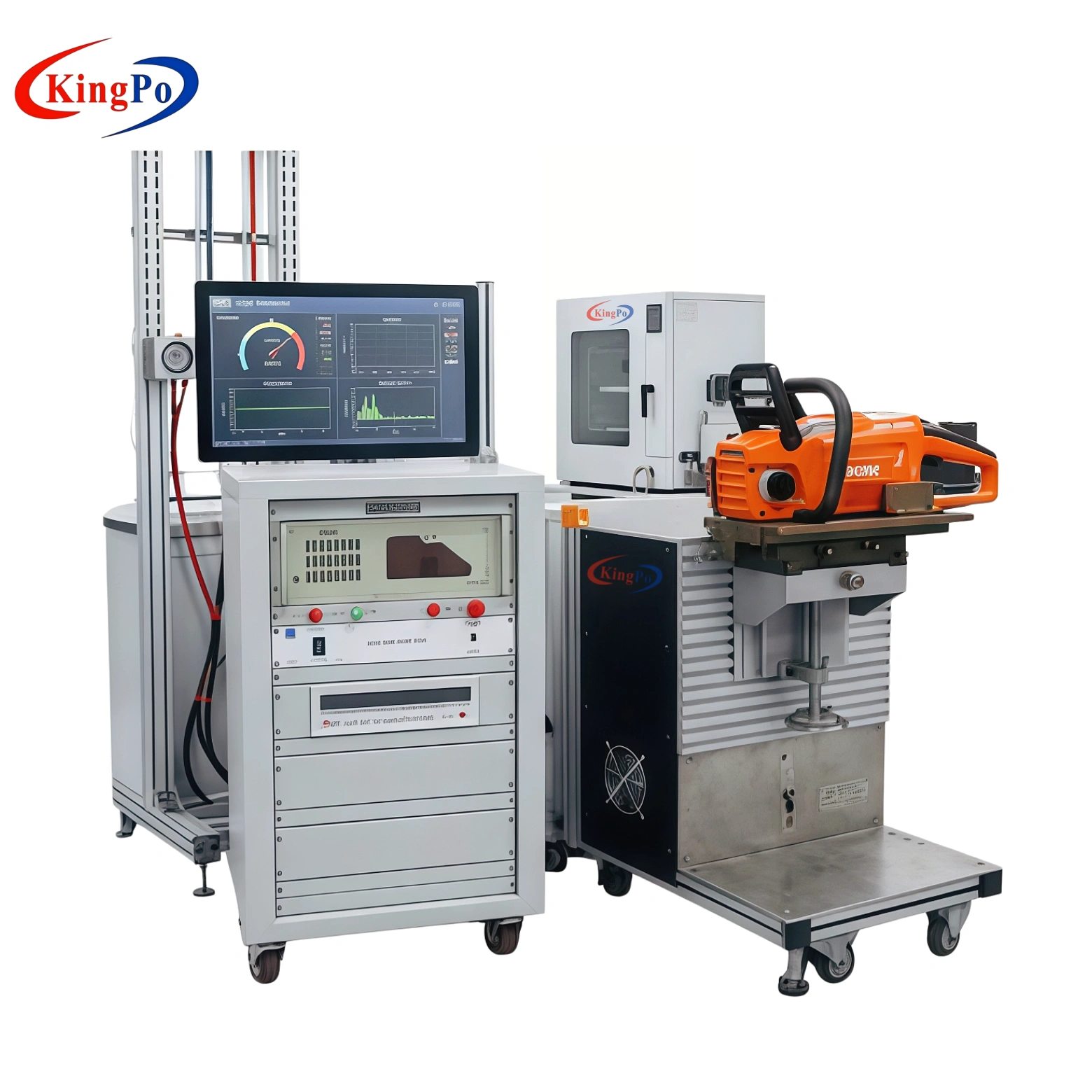

The Electric Motor Test Stand is a professional 5-station motor endurance test bench manufactured by KingPo. It is specifically designed for life cycle testing of DC motors used in electric chain saws and other power tools under simulated real-world load conditions.
Why This Electric Motor Test Stand Meets the Needs of OEMs and Certification Laboratories
- For large-scale power tool manufacturers and accredited testing laboratories, the biggest challenge is achieving high-throughput, repeatable and fully traceable motor endurance testing while meeting strict international standards. This Electric Motor Test Stand addresses these needs with its 5 completely independent stations, precise hysteresis brake loading, real-time multi-parameter monitoring and industrial-grade PLC control. It enables simultaneous testing of different motor models, significantly increasing testing capacity without compromising accuracy or data integrity. Whether for R&D validation, production quality assurance or third-party certification, this system provides the reliability, flexibility and documentation required by professional organizations.
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer specializing in power tool and electric motor testing equipment. With many years of experience serving global power tool manufacturers and testing laboratories, we have delivered numerous Electric Motor Test Stands worldwide. Every system undergoes rigorous factory calibration and is supplied with comprehensive documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- 5 completely independent test stations with individual power inputs

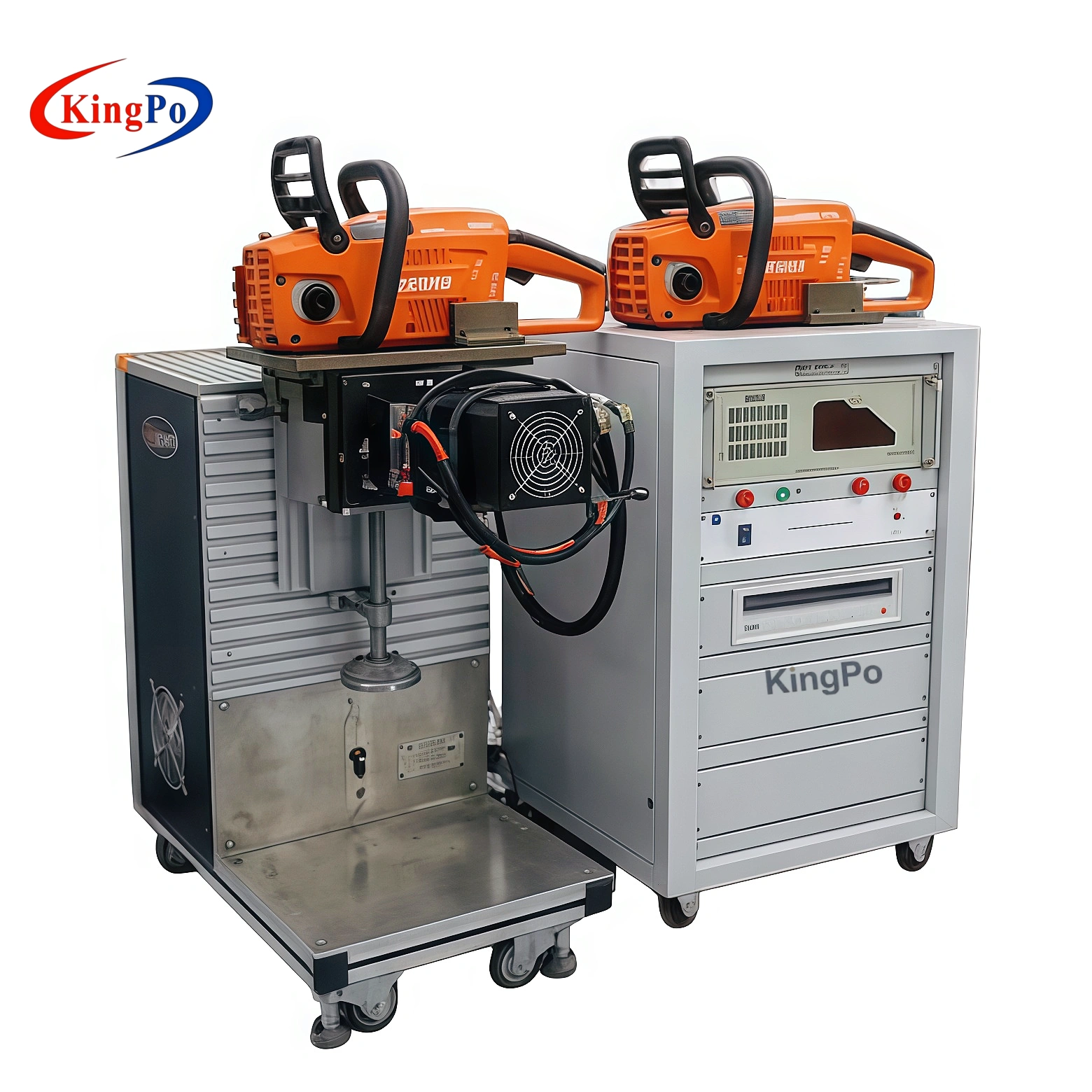

- High-precision hysteresis brake for accurate torque loading (max 6Nm)
-

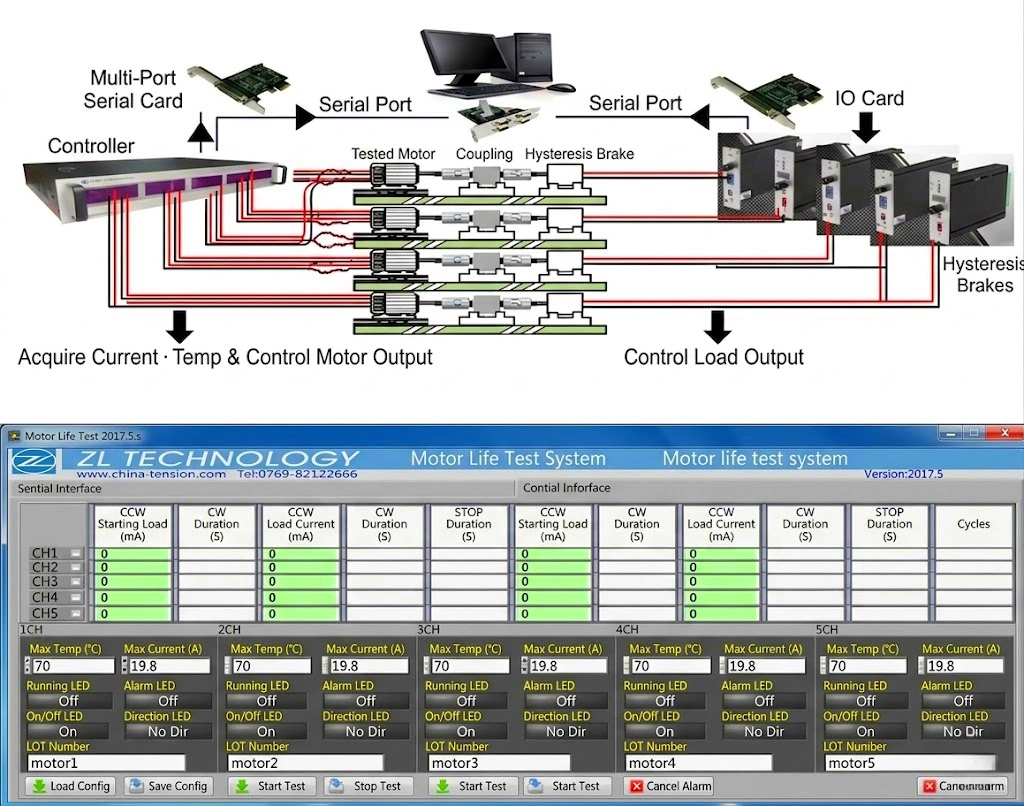

Electric Motor Test Stand Selection reference & Software introduction - Constant current source with excellent stability (ยฑ2% set value + 5 words)
- Servo-level control for start/stop and slope loading/unloading

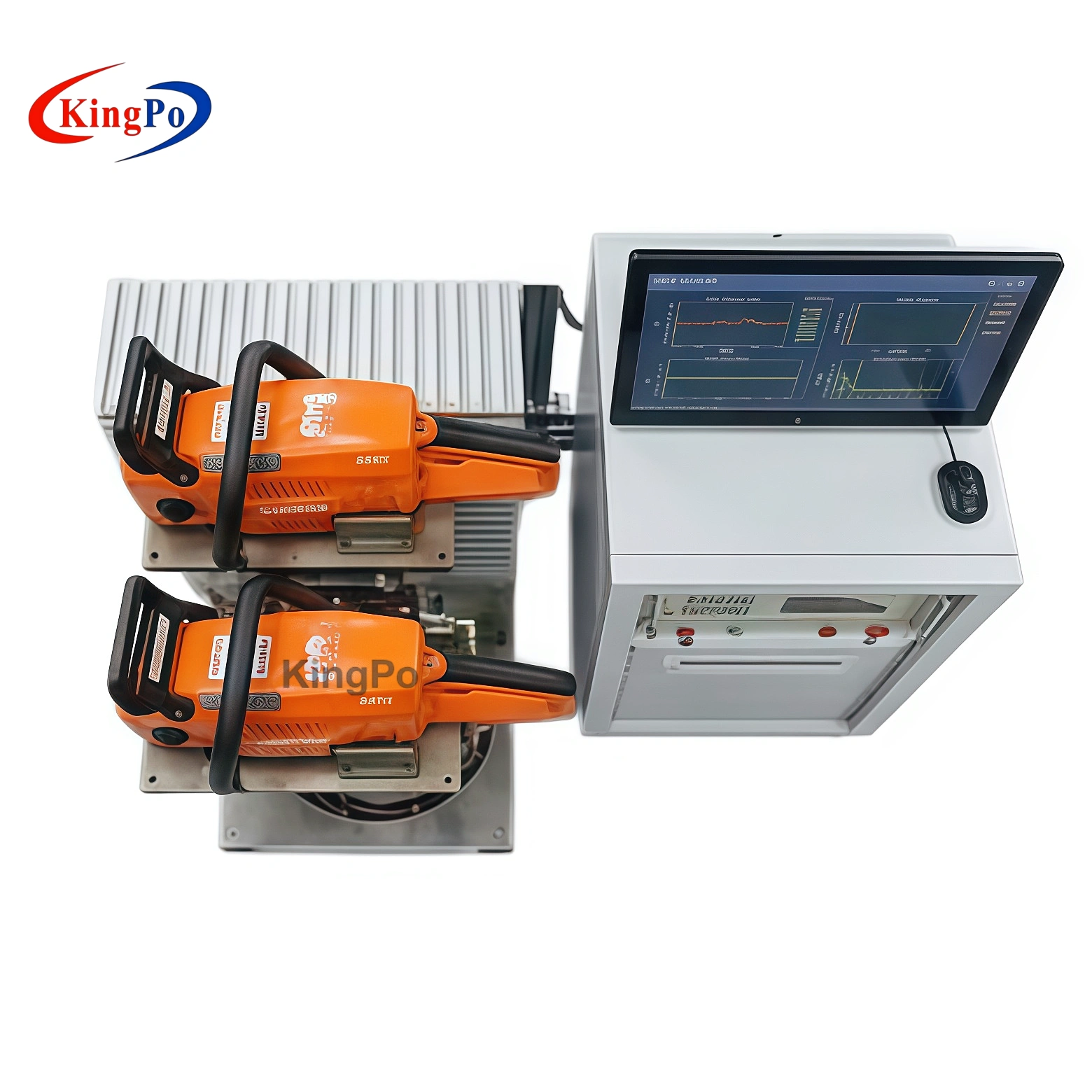

- Industrial computer + PLC intelligent control with user-friendly software
- Real-time current sampling, alarm function and power-off memory

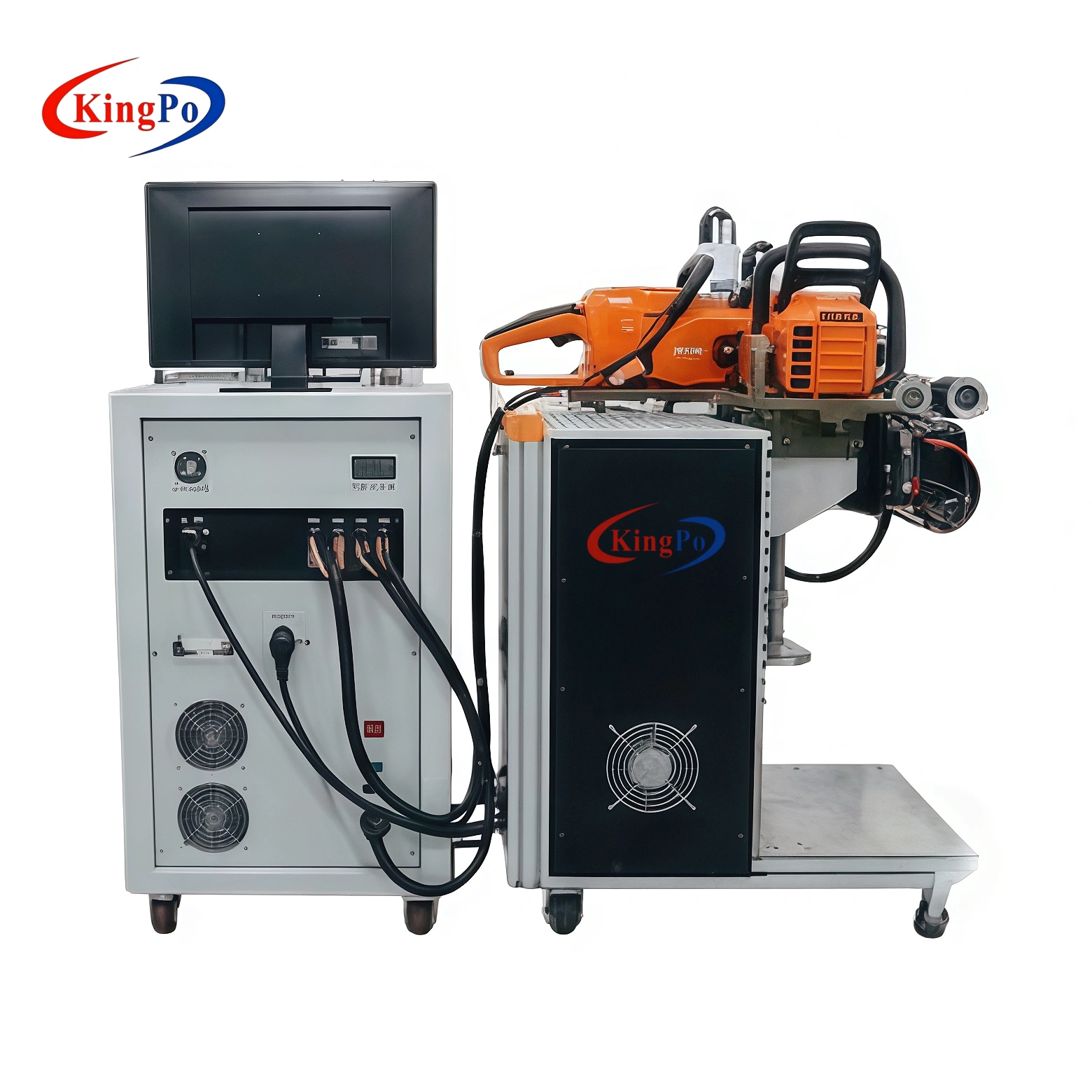

- Adjustable fixtures suitable for various power tool motor sizes
These technical elements ensure high accuracy, excellent repeatability and reliable long-term operation for endurance testing.
Technical Parameters
Core Test Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Rated Voltage | DC58V | Suitable for most cordless power tool motors |
| Maximum Output Power | 1800W | Full power endurance testing capability |
| Maximum Current | 50A | High-current load simulation |
| Maximum Torque | 6Nm | Hysteresis brake provides precise torque control |
| Maximum Speed | 15000rpm | Covers high-speed power tool applications |
| Test Stations | 5 independent stations | Each station can run different test programs |
| Test Cycles | 0~999,999 times | Freely set with power-off memory |
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Control System | Industrial computer + PLC | Windows-based software with rights management |
| Motor Start-Stop Control | Max DC24V 2A output | Software-controlled start/stop |
| Data Acquisition | Real-time current, voltage, speed, torque | Automatic data saving and curve display |
| Equipment Dimensions | Custom (based on configuration) | Robust welded frame construction |
| Power Supply | AC220Vยฑ10%, 50Hz | Stable industrial power requirement |
The Electric Motor Test Stand supports critical stages: product development validation of new electric chain saw motors, endurance testing under simulated load, production quality control of batch motors, and failure analysis of motor degradation. It helps power tool manufacturers ensure long-term reliability, reduce field failures and accelerate product certification.
Procurement Benefits
5-station independent design with precise hysteresis brake and PLC control delivers consistent, repeatable results with minimal operator intervention. Robust industrial-grade construction ensures long-term reliability. This Electric Motor Test Stand strengthens motor endurance validation and minimizes quality risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
Electric Motor Test Stand Applications
- Electric Chain Saws โ Motor life and endurance testing
- Cordless Power Tools โ Battery-powered motor validation
- Garden Tools โ Brushless motor durability testing
- Certification Laboratories โ Compliance testing for power tool safety
- R&D Departments โ Optimization of motor performance under load
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured for electric motor endurance and life testing of power tools. It provides a controlled environment to simulate real-world start/stop, load and high-speed conditions for accurate evaluation of motor durability, thereby ensuring long-term reliability and safety in power tool applications.
Calibration certificates are available at additional cost. Regular verification of current stability, torque accuracy and cycle counting is recommended to maintain traceability.
Technical Inquiry for Electric Motor Test Stand
KingPo specializes in power tool and electric motor testing equipment. If you require precise endurance and life testing for electric chain saw motors or other power tools, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- 5 independent test stations for high throughput
- Precise hysteresis brake and constant current control
- Industrial computer + PLC intelligent system
- Real-time data acquisition and curve display
- Power-off memory and automatic alarm functions
- Robust and expandable design for future needs
Tell us your motor specifications, required test cycles or load conditions โ our engineering team will reply with tailored recommendations within 24 hours.
