Connector Temperature Rise Test System โ EIA-364-70 Electrical Connector and Accessory Temperature Rise Tester
Connector Temperature Rise Test System โ EIA-364-70 compliant high-precision system evaluates surface heating and electrode temperature rise of electrical connectors and accessories under load current, supporting multiple standards including UL 310, UL 486, IEC 60669, IEC 62196 and others.
- Standard Compliance: EIA-364-70, UL 310, UL 486, UL 498, UL 817, IEC 60309, IEC 60669, IEC 61058, IEC 62196 โ connector temperature rise test system
- Test Current: Two independent outputs โ DC 5~100A and DC 100~1500A, continuously adjustable
- Temperature Measurement: 16 channels, 0~260โ, resolution 0.1โ, accuracy ยฑ(0.3% of reading +1โ)
- Voltage Drop Monitoring: 2 channels, 1~300.00 mV
- Control Mode: Computer programmable with continuous / on-off / automatic temperature control modes
- Data Functions: Real-time curves for temperature rise, voltage, current, voltage drop (impedance) vs. time
- Test Box: Acrylic windproof chamber (approx. 800ร350ร400 mm)
- MOQ: 1
- Delivery Period: 30 days
Connector Temperature Rise Test System Description

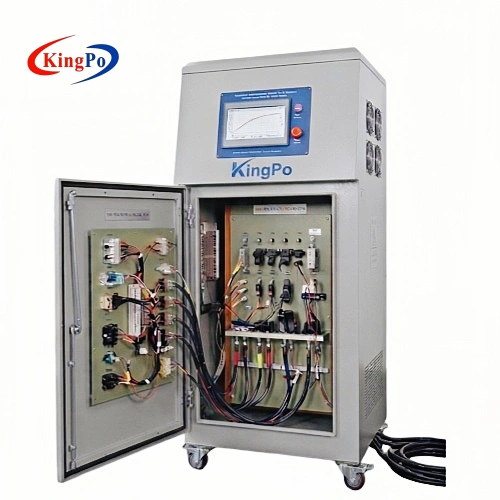

EIA-364-70 Connector Temperature Rise Test System For Test Electrical Accessories
The Connector Temperature Rise Test System is a high-precision testing platform manufactured by KingPo for evaluating surface heating and electrode temperature rise of electrical connectors, plugs, socket-outlets and other accessories under specified load currents. The system fully complies with EIA-364-70 and related standards including UL 310, UL 486, UL 498, UL 817, IEC 60309, IEC 60669, IEC 61058, IEC 62196 and others.
It assesses whether the temperature rise of electrodes and surfaces meets standard requirements when accessories are energized with load current, providing accurate data for product development, certification and quality control.
KingPo Factory Advantages
KingPo is an ISO9001 and CE certified manufacturer with extensive experience in electrical connector and accessory performance testing equipment. We have delivered multiple EIA-364-70 compliant temperature rise test systems to leading manufacturers and accredited laboratories. All units include calibration certificates (additional cost), on-site installation guidance, 1-year warranty and 48-hour technical response from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- Dual-range programmable current source (5~100A and 100~1500A) with high stability

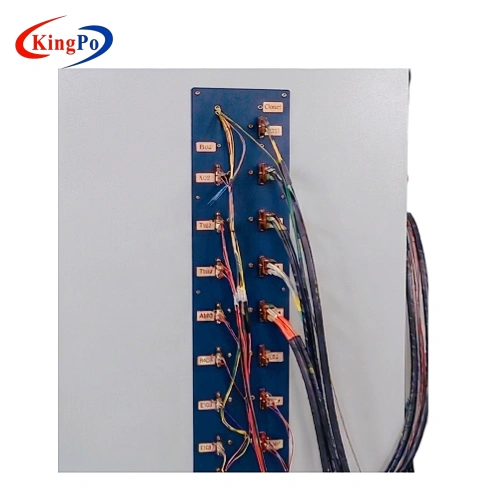

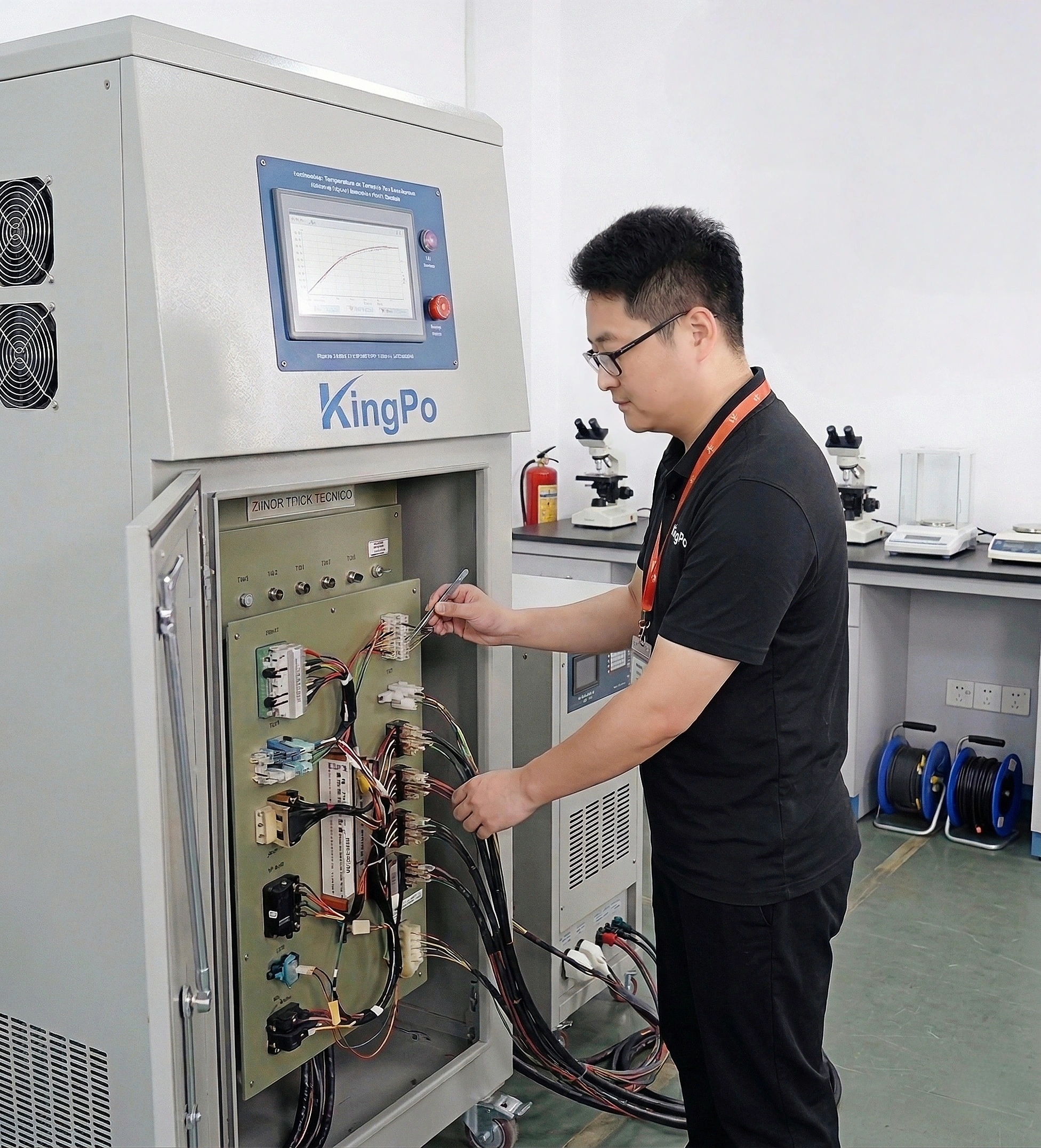

- 16-channel temperature measurement using American ฮฉ T-type 30AWG thermocouples
- 2-channel voltage drop monitoring and automatic impedance calculation
- Computer-controlled operation with independent programming software
- Real-time data recording and curve generation for temperature rise, voltage, current and impedance
- Overload and overcurrent protection with automatic current cutoff on stop
These elements ensure stable, repeatable and highly accurate test results.
Technical Parameters
| Parameter | Specification |
|---|---|

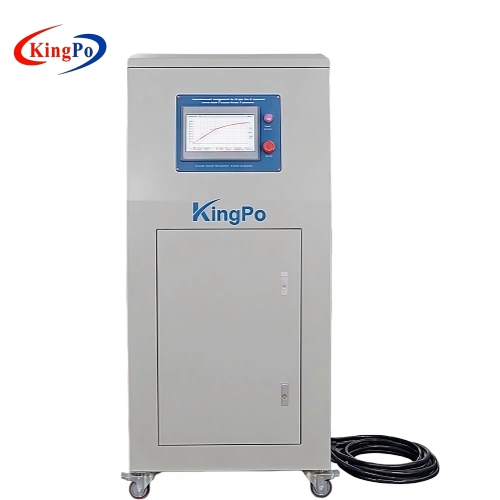

| Model Number | SNQC1006A Connector Temperature Rise Test System |
| Applicable Standards | EIA-364-70, UL 310, UL 486, UL 498, IEC 60669, IEC 62196 etc. |
| Test Current (Channel 1) | DC 5~100.0 A, continuously adjustable |
| Test Current (Channel 2) | DC 100~1500 A, continuously adjustable |
| Output Voltage | โค DC 5 V |
| Current / Voltage Display Accuracy | ยฑ (0.25% reading + 0.25% range) |
| Voltage Drop Monitoring | 2 channels, 1~300.00 mV, ยฑ (0.25% reading + 0.25% range) |
| Temperature Range | 0~260โ, accuracy ยฑ(0.3% of reading +1โ), resolution 0.1โ |
| Temperature Channels | 16 channels (including 1 ambient temperature channel) |
| Thermocouples | 16 pcs American ฮฉ T-type 30AWG, 2 m length |
| Control Mode | Continuous / On-Off / Automatic temperature control, programmable |
| Power Supply | AC 220 V ยฑ10%, 50/60 Hz, 10 kVA |
| Test Chamber | Acrylic windproof box approx. 800ร350ร400 mm |
| Dimensions (WรDรH) | Approx. 800 ร 800 ร 1800 mm |
| Weight | Approx. 450 kg |
The connector temperature rise test system supports key stages:
- Product Development โ Optimize connector design for lower temperature rise and better heat dissipation
- Certification Testing โ Generate data for UL, IEC and EIA-364-70 compliance
- Quality Control โ Batch verification of temperature rise performance under load
- Failure Analysis โ Identify overheating risks in electrical accessories
It improves product safety, reduces field failure risks and accelerates certification timelines.
Procurement Benefits
Programmable computer control and automatic data recording significantly reduce manual effort. High-accuracy measurement and comprehensive protection functions ensure reliable long-term operation. This connector temperature rise test system enhances electrical accessory validation, supports multi-standard compliance and minimizes quality risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
Connector Temperature Rise Test System Applications
- Electrical Connectors & Plugs โ Temperature rise testing per EIA-364-70 and IEC 60669
- Socket-Outlets & Switches โ Surface heating evaluation under load current
- EV Charging Interfaces & Industrial Accessories โ Compliance with IEC 62196
- Certification Labs & Quality Assurance โ Multi-standard temperature rise verification
- R&D Validation โ Heat dissipation optimization for high-current connectors
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with EIA-364-70 and related standards including UL 310, UL 486, IEC 60669, IEC 62196 and others. It evaluates the temperature rise of electrodes and surfaces of electrical accessories when connected to load current, thereby ensuring product safety, thermal performance and compliance with international requirements for electrical connectors and accessories. Calibration certificates are available at additional cost. Regular verification of current output, voltage drop and temperature measurement channels is recommended to maintain traceability.
Technical Inquiry for EIA-364-70 Connector Temperature Rise Test System
KingPo specializes in precision temperature rise and electrical performance test equipment for connectors and accessories. If you require EIA-364-70 compliant testing with programmable high-current output and 16-channel temperature monitoring, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- Dual-range current output up to 1500 A with high stability
- 16-channel high-accuracy temperature measurement (0.1โ resolution)
- Automatic data recording and multi-parameter curve generation
- Programmable continuous / on-off test modes with power-off memory
- Comprehensive overload and overcurrent protection
Take Action Now Tell us your connector type, required current range or specific test standards โ our engineering team will reply with tailored recommendations within 24 hours.
