KINGPO Standard Test Equipment Guide

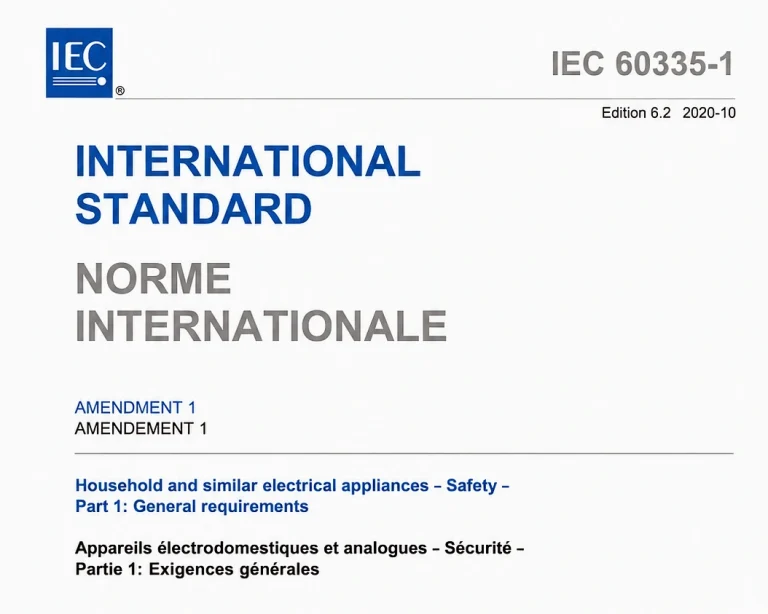

IEC 60335-1 defines general safety requirements for household and similar electrical appliances. Testing laboratories use a combination of measurement instruments, access probes, mechanical fixtures, electrical safety equipment, environmental systems and fire-test apparatus to evaluate the relevant requirements.
This guide organizes the principal equipment and materials associated with IEC 60335-1 clauses and annexes, then connects them to relevant KINGPO product pages and categories. It also covers supporting instruments, accessories and appliance-specific fixtures that may be required by the applicable Part 2 standard.
Scope note: The reference file supplied for this guide is titled as an interim IECEE equipment list. This guide supports equipment selection but does not replace the official IEC publication or the certification body’s current requirements. Confirm the currently accepted list, applicable edition, Part 2 standard, test method and laboratory scope before final selection.
IEC 60335-1 Test Equipment Standard Information
| Standard Reference | IEC 60335-1:2020 + AMD1:2025 CSV (Edition 6.0; corrected version 2025-08). Equipment-list reference: supplied IECEE OD-5003-F1:2025 Ed.1.4 (Interim). |
| Page Type | Clause-by-clause test equipment checklist and equipment selection guide |
| Testing Focus | Electrical measurements, access to live parts, heating, battery charging, moisture resistance, abnormal operation, stability, mechanical strength, construction, wiring, cords, earthing, insulation distances, heat and fire, and relevant annex tests |
| Typical Applications | Household appliances, personal-care appliances, kitchen appliances, battery-operated appliances and similar electrical products; the applicable Part 2 defines additional product-specific tests |
| Equipment Classification | The source IECEE equipment list includes R, S and SP classifications. These symbols are not appended to the Standard / Clause column, so clause references remain unambiguous. |
General Measuring Equipment (Not Clause-Specific)
The supplied IECEE OD-5003-F1:2025 Ed.1.4 equipment list also identifies general-purpose measurement tools. These entries are not numbered clauses in IEC 60335-1, so they are listed separately from the clause-by-clause checklist.
| General Equipment Category | Measurement / Testing | Testing / Measuring Equipment or Material Needed | Recommended KINGPO Equipment |
|---|---|---|---|
| Dimensional measurement | Measurement of mechanical dimensions, including size, length and thickness. | Electronic and/or mechanical measuring device suitable for the required dimension. | Micrometer; Digital Caliper; Electronic Scale |
| Time measurement | Test specifications requiring measurement of time. | Timer / chronometer. | Digital Stopwatch |
IEC 60335-1 Equipment Checklist by Clause
Numbered clauses and annex references follow the supplied IECEE OD-5003-F1:2025 Ed.1.4 interim equipment-list document. General-purpose measuring tools are listed separately above. The Recommended KINGPO Equipment column contains concise equipment names; matching product links are included where available.
| Standard / Clause | Measurement / Testing | Testing / Measuring Equipment or Material Needed | Recommended KINGPO Equipment |
|---|---|---|---|
| 5 | General conditions for tests | Resistive-capacitive low-pass filter with a −3 dB roll-off frequency of 5 kHz ± 0.5 kHz. | RC Low-Pass Filter (KP-LP3) |
| 7 | Marking and instructions | Petroleum spirit. | Petroleum Spirit |
| 8 | Protection against access to live parts | IEC 61032 Test Probes B, 13, 18 and 41; voltmeter; milliammeter; oscilloscope; force gauges; 2,000 Ω non-inductive resistor. | IEC 61032 Test Probe Set; Voltmeter; Milliammeter; Oscilloscope; Force Gauge; 2,000 Ω Non-Inductive Resistor |
| 8 | Protection against access to live parts | Coulometer; energy meter. | Coulometer; Energy Meter |
| 9 | Starting of motor-operated appliances | No separate equipment item is specified in the supplied IECEE equipment list; determine the setup from the applicable test method and appliance-specific Part 2. | |
| 10 | Power input and current | Chronometer; voltmeter; ammeter; wattmeter. | Power HiTester; AC Power Source; Electronic Load; Multimeter; Digital Stopwatch |
| 11 | Heating | Temperature-controlled room; temperature recorder; thermocouples ≤ 0.3 mm; blackened copper/brass disks (15 mm diameter × 1 mm thick); test corners; winding-resistance measurement system; surface-temperature probe. | Temperature Recorder; Thermocouples ≤ 0.3 mm; Blackened Copper/Brass Disks; Temperature Measurement Test Corner; Hot Winding Resistance Meter; Surface Temperature Probe |
| 12 | Charging of metal-ion batteries | Heating/cooling cabinet; temperature recorder; thermocouples ≤ 0.3 mm; DC charging source; multimeter; current measurement/monitoring with 1–5 s averaging; variable discharge loads for different C-rates. | Battery Test Equipment; Environmental Test Chambers; Temperature Recorder; Thermocouples ≤ 0.3 mm; DC Power Source; Multimeter; Current Monitor; Variable Load |
| 13 | Leakage current and electric strength at operating temperature | Metal foil; voltmeter; leakage-current meter; isolation transformer; high-voltage tester; measuring network (IEC 60990, Figure 4). | Leakage Current & Touch Current Testers; Metal Foil; Isolation Transformer; High-Voltage Tester; IEC 60990 Measuring Network |
| 14 | Transient overvoltages | Impulse voltage test generator and monitor. | Impulse Voltage Test Generator (KP1951S) |
| 15 | Moisture resistance — water exposure | IP test equipment; measurement beaker; spray nozzle where required by the applicable Part 2. | IPX1–IPX8 Waterproof Test Chamber; Measurement Beaker; Spray Nozzle |
| 15 | Moisture resistance — rinse materials | Sodium chloride (NaCl); rinsing agent. | Sodium Chloride (NaCl); Rinsing Agent |
| 15 | Moisture resistance — humidity conditioning | Humidity cabinet capable of (93 ± 3)% RH at the selected temperature; high-voltage tester. | Environmental Test Chambers; High-Voltage Tester |
| 16 | Leakage current and electric strength | Metal foil; low-impedance ammeter; high-voltage test supply. | Leakage Current & Touch Current Testers; Metal Foil; Low-Impedance Ammeter; High-Voltage Test Supply |
| 17 | Overload protection of transformers and associated circuits | Equipment included in the Clause 11 heating setup. | Temperature Recorder; Hot Winding Resistance Meter |
| 18 | Endurance | No separate equipment item is specified in the supplied IECEE equipment list; equipment depends on the applicable endurance test method and appliance-specific Part 2. | |
| 19 | Abnormal operation / electromagnetic phenomena, where applicable | ESD (IEC 61000-4-2); radiated field (IEC 61000-4-3); EFT/burst (IEC 61000-4-4); surge (IEC 61000-4-5); injected current (IEC 61000-4-6); voltage dips/interruptions (IEC 61000-4-11); mains signalling (IEC 61000-4-13); other equipment referenced in Clauses 11 and 16. | ESD Test System; Radiated Immunity Test System; EFT/Burst Generator; Surge Generator; Conducted Immunity Test System; Voltage Dips and Interruptions Tester; Mains Signalling Test System |
| 19 | Abnormal operation — battery short-circuit testing | Shorting means with resistance not exceeding 10 mΩ ± 2 mΩ; DC source for charging Li-ion cells or battery packs to a predetermined state of charge. | Battery Short Circuit Tester; DC Power Source; Battery Test Equipment |
| 20 | Stability and mechanical hazards | Inclined plane; inclinometer; masses; force gauges; probe similar to IEC 61032 Probe B with 50 mm circular stop face; Probe 18; other equipment specified under Clause 11. | Stability Test Equipment; Inclined Plane; Inclinometer; Force Gauge; IEC 61032 Test Probe Set |
| 21 | Mechanical strength | Spring hammer; hardened steel pin; force gauges; free-fall test apparatus (IEC 60068-2-31, Procedure 2). | Spring Hammer; Hardened Steel Pin; Force Gauge; Free-Fall Test Apparatus |
| 22 | Construction — torque, temperature and access checks | Torque test rig for pin-supported appliances; heating cabinet (70 °C ± 2 °C); IEC 61032 Test Probe 11; test fingernail (Figure 7); force gauge; plug-discharge voltage-decay instrument (input impedance ≥ 100 MΩ, capacitance ≤ 25 pF). | Torque Test Rig for Pin-Supported Appliances; Heating Cabinet; IEC 61032 Test Probe Set; Test Fingernail (Figure 7); Force Gauge; Plug Discharge Voltage Tester (KP-1060) |
| 22 | Construction — pressure test apparatus | Pressure test apparatus. | Pressure Test Apparatus |
| 22.32 | Tightly sintered ceramic material (test in case of doubt) | Fuchsine solution (1 g per 100 g methylated spirit); pressure apparatus at not less than 15 MPa; test duration × pressure approximately 180 MPa·h. | Ceramic Material Pressure Test Apparatus (KP-Y3501) |
| 22 | Construction — automatic cord reel | Automatic cord reel test apparatus. | Automatic Cord Reel Endurance Tester |
| 22 | Construction — oxygen bomb | Oxygen bomb with pressure apparatus. | Oxygen Bomb with Pressure Apparatus |
| 22 | Construction — cleaning / penetration material | Methylated spirits. | Methylated Spirits |
| 22 | Construction — small parts | Small parts cylinder shown in Figure 13. | Small Parts Cylinder (Figure 13) |
| 22.47 | Water pressure resistance for appliances connected to water mains | Water supply and pressure setup; pressure gauge. Test pressure: twice the maximum inlet pressure or 1.2 MPa, whichever is higher, for 5 min. | |
| 22.48 | Back-siphonage prevention | Back-siphonage test apparatus according to IEC 61770. | IEC 61770 Back-Siphonage Tester |
| 23 | Internal wiring | Flexing test apparatus; high-voltage tester; metal foil. | Internal Wiring Flexing Tester (KP-8821); High-Voltage Tester; Metal Foil |
| 24 | Components | Facilities for testing to component standards; certification by specialist laboratories may be accepted where applicable. | Component Test Equipment |
| 25 | Supply connection and external flexible cords | Flexing test apparatus; cord anchorage force and torque tester. | External Cord Flexing Tester; Cord Anchorage Force and Torque Tester; Cable Testing Equipment |
| 26 | Terminals for external conductors | Torque screwdriver. | Torque Screwdriver |
| 27 | Provision for earthing | Earth continuity tester; access to ISO 2178 and ISO 1463 testing. | Earth Continuity Tester; Coating-Thickness Test Equipment |
| 28 | Screws and connections | Torque gauge. | Torque Gauge |
| 29 | Clearances, creepage distances and solid insulation | Mechanical measurement tools; force gauges; rod or ball gauges; proof-tracking test apparatus. | Mechanical Measurement Tools; Force Gauge; Rod / Ball Gauges; Comparative Tracking Index Tester (KP-FT03) |
| 30 | Resistance to heat and fire | Ball-pressure test apparatus; glow-wire and needle-flame test apparatus; apparatus for low-power circuit determination. | Ball Pressure Test Apparatus; Glow-Wire Test Apparatus (KP-FT01); Needle Flame Test Apparatus; Low-Power Circuit Determination Apparatus |
| 30 | Resistance to heat and fire — horizontal and vertical burning | Horizontal and vertical burning test apparatus for ISO 9772 and ISO 9773 testing. | Horizontal and Vertical Burning Test Apparatus |
| 31 | Resistance to rusting | Part 2 requirements. | |
| 32 | Radiation, toxicity and similar hazards | Optical radiation test equipment. | Optical Radiation Test Equipment |
Annex B — Battery-Operated Appliances and Batteries
Equipment and materials are listed under Annex B as shown in the supplied IECEE equipment list. The recommended column uses concise equipment names and links only where a relevant KINGPO page is available.
| Standard / Clause | Measurement / Testing | Testing / Measuring Equipment or Material Needed | Recommended KINGPO Equipment |
|---|---|---|---|
| Annex B | Free-fall testing for battery-operated appliances | Free-fall test apparatus (IEC 60068-2-31, Procedure 1). | Free-Fall Test Apparatus |
| Annex B | Charging Li-ion cells and battery packs | DC power source for charging to a predetermined state of charge for Li-ion cells or battery packs. | DC Power Source; Battery Test Equipment |
| Annex B | Temperature monitoring | Temperature recorder; thermocouples ≤ 0.3 mm. | Temperature Recorder; Thermocouples ≤ 0.3 mm |
| Annex B | Battery discharge and shorting | Variable discharge loads for different C-rates; shorting means with resistance not exceeding 10 mΩ ± 2 mΩ. | Variable Load; Battery Short Circuit Tester; Battery Test Equipment |
| Annex B | Battery pressure / air-delivery test | Apparatus delivering 20, 30, 50 or 100 ml ± 10% of air at an initial pressure of 2,070 kPa ± 10% through a (2.85 ± 0.05) mm orifice; pressure gauge. | IEC 60335-1 Annex B Pressure Tester (KP-35B3) |
| Annex B | Battery vibration and mechanical shock | Vibration tester and mechanical shock tester for IEC 62133-2:2017, 7.3.8.1 and 7.3.8.2; explosion-proof chamber. | Battery Vibration Tester; Mechanical Shock Tester; Explosion-Proof Chamber; Battery Test Equipment |
| Annex B | Rigid top plate | Flat rigid top plate (approximately 100 mm × 250 mm). | Flat Rigid Top Plate |
| Annex B | Counterclockwise torque | Torque gauge (counterclockwise). | Torque Gauge |
Other Annex Equipment and Laboratory Capabilities
Annex references follow the supplied IECEE equipment list. Some annexes require test capability or referenced equipment rather than one standalone instrument.
| Standard / Clause | Measurement / Testing | Testing / Measuring Equipment or Material Needed | Recommended KINGPO Equipment |
|---|---|---|---|
| Annex C | Ageing test on motors | See referenced clauses. | Electric Motor Testing Systems |
| Annex D | Thermal motor protectors | See referenced clauses. | Thermal Motor Protector Test Equipment |
| Annex E | Needle-flame test | Needle-flame test apparatus (IEC 60695-11-5). | Needle Flame Test Apparatus |
| Annex F | Capacitors | Impulse-voltage test apparatus and endurance test apparatus (IEC 60384-14). | Impulse Voltage Test Generator; Capacitor Endurance Test Apparatus |
| Annex G | Safety isolating transformers | Part 2 requirements. | Safety Isolating Transformer Test Equipment |
| Annex H | Switches | Endurance test apparatus (IEC 61058-1). | Switch Endurance Test Apparatus |
| Annex I | Motors with basic insulation inadequate for the rated voltage of the appliance | See referenced clauses. | Electric Motor Testing Systems |
| Annex J | Coated printed circuit boards | Coated printed circuit board test apparatus (IEC 60664-3). | Coated Printed Circuit Board Test Apparatus |
| Annex N | Proof tracking test | Proof-tracking test apparatus (IEC 60112). | Comparative Tracking Index Tester (KP-FT03) |
| Annex R | Software evaluation | Capability for software evaluation. | Software Evaluation Capability |
| Annex T | UV-C radiation effects on non-metallic materials | Testing apparatus related to UV-C radiation. | UV-C Radiation Test Apparatus |
| Annex U | Remote communication through public networks | Capability for evaluation of remote communication through public networks. | Remote Communication Evaluation Capability |
Additional and Appliance-Specific Equipment
These quotation-derived items are separated from the core IECEE checklist. Where the source list does not specify a subclause, the table does not invent one. Part 2 and related-standard equipment is identified by its own standard.
Important distinction: A related test method or accessory is not automatically a universal IEC 60335-1 requirement. For example, dust ingress testing is separate from Clause 15 moisture resistance, and a tumbling barrel is not a substitute for the specified free-fall apparatus.
| Standard / Clause | Measurement / Testing | Testing / Measuring Equipment or Material Needed | Recommended KINGPO Equipment |
|---|---|---|---|
| 7.14 (quotation label) | Marking durability / abrasion | Label marking abrasion test machine; rubbing material and fixture depend on the specified method. | Label Marking Abrasion Tester |
| IEC 61032 — as required by test method | Additional accessibility probes | IEC 61032 Test Probes A, C and D; Test Sphere Probe 2. | IEC 61032 Test Probe Set |
| 21.2 (quotation label) | Surface scratching / accessible solid insulation | Automatic scratch tester; electric safety tester for accessible solid insulation; hardened steel pin. | Automatic Scratch Tester; Electric Safety Tester for Accessible Solid Insulation; Hardened Steel Pin |
| IEC 60335-2-15 / IEC 60335-2-3 | Kettle and electric iron insertion-withdrawal endurance | Kettle and electric iron insertion-withdrawal tester. Appliance-specific test; no universal Part 1 clause assigned. | Kettle and Electric Iron Insertion-Withdrawal Tester |
| IEC 60335-2-25 | Microwave oven door endurance | Microwave oven door endurance tester. | Microwave Oven Door Endurance Tester |
| IEC 60335-2-7 | Washing machine door endurance | Washing machine door endurance tester. | Washing Machine Door Endurance Tester |
| IEC 60529 / applicable Part 2 | Dust ingress protection | IP5X / IP6X dust test chamber. Applicability depends on the appliance and relevant Part 2. | Dust Test Chamber (IP5X/IP6X) |
| ISO 868 / ISO 7619 / ASTM D2240 | Shore D hardness measurement | Shore D hardness measurement device. Supplementary material characterization, not a universal Part 1 equipment item. | Shore D Hardness Tester |
| IEC 60068-2-31:2008 | Repeated free-fall testing using a tumbling barrel | Tumbling barrel apparatus. Quotation records cite IEC 60068-2-32:1975, which has been withdrawn and replaced by IEC 60068-2-31:2008. | Tumbling Barrel |
| ISO 2178 / ISO 1463 | Coating-thickness measurement | Coating-thickness measurement apparatus for the applicable material and coating method. | Coating-Thickness Measurement Equipment |
| IEC 60695-11-4 / IEC 60695-11-3 | 50 W / 500 W test flames | 50 W or 500 W flame test apparatus and method-specific calibration accessories. | Flame Test Equipment |
| IEC 60695-11-10 / IEC 60695-11-20 | UL 94 horizontal and vertical flammability testing | Horizontal and vertical flame test chamber for the applicable UL 94 / IEC 60695 methods. | UL 94 Horizontal Vertical Flame Test Chamber |
| General test instrumentation | Power, current and load measurement | Power HiTester; multimeter; AC power source; electronic load; electronic scale. Select each instrument for the relevant test range. | Power HiTester; Multimeter; AC Power Source; Electronic Load; Electronic Scale |
| 22.3 (quotation label) | Plug-pin and socket-outlet torque / pull fixtures | Socket-outlet torque tester; plug-pin pull device; plug-pin torque device. | Socket-Outlet Torque Tester; Plug-Pin Pull Device; Plug-Pin Torque Device |
Main IEC 60335-1 Test Categories
| Electrical measurements and access protection | RC low-pass filter, test probes, force gauges, voltage/current/power instruments, leakage-current network and high-voltage test supply |
| Heating and battery testing | Temperature-controlled room or chamber, test corners, thermocouples, temperature recorder, winding-resistance measurement, battery charging source, variable loads and short-circuit means |
| Moisture and environmental testing | IP water-exposure equipment, humidity cabinet, measurement beaker, spray nozzle, NaCl and rinsing agent where required |
| Mechanical strength and construction | Inclined plane, spring hammer, hardened steel pin, force gauges, free-fall apparatus, torque fixtures, test probes, fingernail and small-parts cylinder |
| Wiring, cords and connections | Internal-wiring flexing tester, external-cord flexing tester, cord anchorage force/torque tester, torque screwdriver and torque gauge |
| Insulation and fire hazards | Clearance/creepage measurement tools, proof-tracking tester, ball-pressure apparatus, glow-wire tester, needle-flame apparatus and relevant burning-test equipment |
| Battery-operated appliances and annexes | Battery charge/discharge equipment, short-circuit means, air-delivery/pressure apparatus, vibration and shock systems, motor-related test capabilities and relevant annex equipment |
Engineering Selection Tips for IEC 60335-1 Test Equipment
Start with the appliance type and the exact clause or figure to be tested. IEC 60335-1 sets general requirements, while the relevant IEC 60335-2 standard can add, replace or modify test conditions. A fixture that looks similar may not have the required probe geometry, force range, cycle profile, temperature capability or measurement input characteristics.
Before procurement, confirm the standard edition, test clause, specimen dimensions, rated voltage/current, required force or torque, temperature and humidity conditions, test duration, fixture geometry, data recording needs and calibration documentation. For battery-operated products, also review the battery chemistry, state-of-charge requirements, shorting resistance, pressure/air delivery setup and safety containment.
For tests marked as subcontractable or requiring a specialized facility, the laboratory should confirm whether the work will be performed in-house or through an accepted external laboratory. The selection should follow the certification programme and the laboratory’s intended accreditation scope.
