IEC 60601-2-2 Test Equipment for High Frequency Surgical Equipment Compliance
This IEC 60601-2-2 test equipment list helps laboratories, medical device manufacturers and certification teams
identify typical instruments, fixtures and materials used for high frequency surgical equipment and high frequency
surgical accessory safety testing.
KingPo structures this page as a practical equipment selection guide for electrosurgical equipment testing.
The checklist maps IEC 60601-2-2 clauses to test items, required testing equipment and recommended equipment
categories for procurement review and laboratory planning.
This page is an equipment selection framework and website navigation guide. It is not a replacement for the
official IEC 60601-2-2 standard or IECEE documentation. Final compliance decisions should be based on official
publications and certification body requirements.
As of now, not all available test equipment and customized configurations are listed on our website. If you cannot find the equipment you need, KingPo can provide a complete IEC 62368-1 testing solution tailored to your specific requirements. Contact our technical team for a professional equipment proposal and quotation.
Standard Information

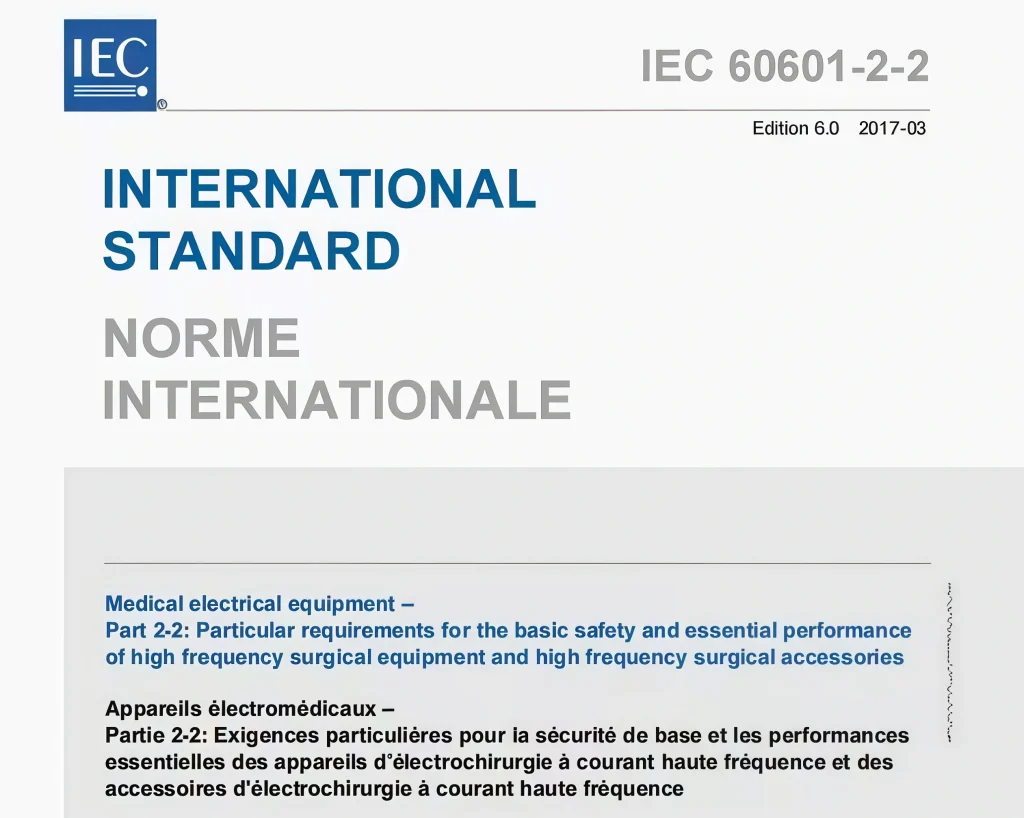

| Standard | IEC 60601-2-2:2017+AMD1:2023, Edition 6.1 |
| Document Basis | IECEE OD-5003-F1 Template Equipment List, Ed.1.3 |
| Product Scope | High frequency surgical equipment and high frequency surgical accessories |
| Testing Focus | Basic safety, essential performance, HF output, active accessories and neutral electrode testing |
| KingPo Page Purpose | Clause-based IEC 60601-2-2 test equipment selection and product mapping |
IEC 60601-2-2 Testing and Measuring Equipment Checklist
Use this checklist to identify typical instruments, fixtures and materials for each IEC 60601-2-2 test item.
The final column is reserved for equipment mapping. Replace the placeholder equipment text with actual
KingPo product URLs when the corresponding product page is available.
| Clause | Measurement / Testing | Testing / Measuring Equipment or Material Needed | Recommended KingPo Equipment |
|---|---|---|---|
| 201.8.4.101 | Neutral electrode monitoring circuit | Test setup as per Figure 201.103, sound level meter | KP-8850 / KP2021 Electrosurgical Unit Analyzer |
| 201.8.4.102 | Neuromuscular stimulation | Capacitance meter, dc resistance meter |
Capacitance and DC resistance measurement tools |
| 201.8.5.1.2 | MOPP | Caliper, high voltage tester |
KP-1230S Dielectric Strength Test Equipment |
| 201.8.5.2.3 | Patient leads | Caliper, high voltage tester |
KP-1230S Dielectric Strength test setup |
| 201.8.7.3.101 | Thermal effect of HF leakage current | RF ammeter, load and measuring resistors, tape measure, setup according to figures 201.104 – 201.107 |
KP-8850 / KP2021 Electrosurgical Unit Analyzer |
| 201.8.8.3.101 | Active accessory insulation | saline solution, caliper, timer |
Active accessory insulation test setup |
| 201.8.8.3.102 | Active accessory HF leakage | saline solution, caliper, HF voltage source, RF ammeter, HF capacitance meter, tape measure |
Active accessory HF leakage test system |
| 201.8.8.3.103 | Active accessory HF dielectric strength | saline solution, HF voltage source , caliper, porous cloth, metal foil, timer |
Active accessory HF dielectric strength test system |
| 201.8.8.3.104 | Active accessory mains frequency dielectric strength | saline solution, HF voltage source , caliper, porous cloth, metal foil, timer |
KP-1230S Dielectric Strength Tester |
| 201.8.10.4.2 | Connection cords | Cord anchorage test apparatus as per Figure 201.108, aperture, weights, tape measure, dc source, ammeter | Cord anchorage test apparatus |
| 201.8.10.4.101.4 | Footswitch | Force gauge (force ≥ 10N) applied over an area of 625 mm2 | Footswitch force test fixture |
| 201.11.6.3 | Spillage | Measuring cup (1liter), timer, high voltage tester | KP-1230S Dielectric Strength Tester |
| 201.11.6.5 | Ingress of water or particulate matter | saline solution, caliper, timer, impedance analyser or other suitable devices for measuring ac impedance | IPX1 to IPX8 Waterproof Test Chamber |
| 201.11.8 | Interruption of the power supply | Electrosurgical analyser or other suitable devices to measure output power | Electrosurgical output power analyser |
| 201.12.1.101 | Accuracy of output control setting | Electrosurgical analyser or other suitable devices to measure output power, oscilloscope, various load resistances, setup as per Figures 201.109 and 201.110 | Output control accuracy test system |
| 201.12.1.102 | Monotonicity of output control setting | Electrosurgical analyser or other suitable devices to measure output power, oscilloscope, various resistances, setup as per Figures 201.109 and 201.110 | Output control monotonicity test system |
| 201.12.1.103 | Accuracy of maximum output voltage | Oscilloscope | Maximum output voltage measurement setup |
| 201.12.4.2 | Indication of parameters relevant to safety | Electrosurgical analyser or other suitable devices to measure output power | Output power safety indication test equipment |
| 201.12.4.2.101 | Output indicator | Frequency analyser, sound level meter, tape measure | Output indicator frequency and sound test setup |
| 201.12.4.3.101 | Output reduction means | Electrosurgical analyser or other suitable devices to measure output power | Output reduction means test setup |
| 201.12.4.4.101 | Maximum allowed output power in single fault condition | Electrosurgical analyser or other suitable devices to measure output power | Single fault output power test setup |
| 201.12.4.4.102 | Output power during simultaneous activation | Electrosurgical analyser, RF ammeter or other suitable devices to measure output power and HF current, test setup as per Figure 201.111 | Simultaneous activation output power test setup |
| 201.13.2.13.101 | Protection against the effects of short-circuiting of the electrodes | Timer | Electrode short-circuit protection timing setup |
| 201.15.4.1.102 | Retention of detachable active electrodes | Pull tester, timer | Active electrode retention pull tester |
| 201.15.101.2 | NE cord attachment | DC or mains frequency, ammeter | Neutral electrode cord attachment test setup |
| 201.15.101.3 | NE cord connector, no conductive parts on patient | Test finger as per Figure 6 of general standard | Neutral electrode cord connector accessibility test tools |
| 201.15.101.4 | NE cord insulation | Tests as per 201.8.8.3.102a), 201.8.8.3.103, 201.8.8.3.104 | Neutral electrode cord insulation test setup |
| 201.15.101.5 | NE thermal performance | HF voltage source, RF Ammeter, temperature scanning apparatus, caliper, environmental chamber (23±2°C), human subjects or surrogate medium or test device as defined in this clause, timer |
Neutral electrode thermal performance test system |
| 201.15.101.6 | NE contact impedance | HF voltage source, 20cm x 30 cm flat metallic plate, true r.m.s., suitable true r.m.s. a.c. ammeter, HF LCR meter |
Neutral electrode contact impedance test system |
| 201.15.101.7 | NE adhesion | Timer, pull tester, caliper, 0.9% saline solution | Neutral electrode adhesion test setup |
Engineering Selection Tips by KingPo for IEC 60601-2-2 Test Equipment
IEC 60601-2-2 test equipment selection should not be based only on a clause number. High frequency surgical
equipment testing often requires a coordinated setup covering electrosurgical output power, HF current, active
accessory insulation, footswitch operation, connection cords and neutral electrode performance.
KingPo recommends matching the test configuration with the electrosurgical generator type, accessory structure,
neutral electrode design, laboratory throughput and required measurement workflow. Output power testing requires
electrosurgical analysers and suitable load resistances, while neutral electrode thermal performance requires HF
voltage, RF current measurement, temperature scanning and a defined test medium or surrogate setup.
A common procurement mistake is selecting generic electrical safety equipment without considering HF-specific
measurement conditions. KingPo supports clause-based equipment planning so that laboratories can combine
electrosurgical analysers, RF ammeters, HF voltage sources, impedance measurement equipment, environmental chambers
and neutral electrode test fixtures into a practical IEC 60601-2-2 test setup.
Related KingPo Standard Pages
Link this page to related KingPo standard pages after they are created. These links should point to other KingPo
standard pages, not product pages. Product links should be placed in the Recommended KingPo Equipment column above.
| Related Standard | Application | Link |
|---|---|---|
| IEC 60601-1 | General requirements for medical electrical equipment basic safety and essential performance | |
| IEC 60601-2-4 | Defibrillator and defibrillation-related testing | |
| IEC 60601-1-8 | Medical electrical equipment alarm signal testing | |
| IEC 60529 | Ingress protection testing for water and particulate matter | |
| IEC 60695 Series | Fire enclosure, flammability and ignition risk testing |
Related Applications
Electrosurgical Analyser Test Setup
Neutral Electrode Thermal Performance Testing
HF Leakage Current Testing
Active Accessory Insulation Testing
Output Power Accuracy Testing
RF Current Measurement
Footswitch Force Testing
Neutral Electrode Contact Impedance Testing
FAQ: IEC 60601-2-2 Test Equipment
What is IEC 60601-2-2 test equipment used for?
IEC 60601-2-2 test equipment is used to evaluate high frequency surgical equipment and high frequency surgical
accessories, including output power, HF leakage, dielectric strength, active accessories and neutral electrodes.
What equipment is commonly required for electrosurgical output power testing?
Output power testing commonly uses an electrosurgical analyser or suitable output power measuring device,
oscilloscope, RF ammeter where required, and various load resistances. KingPo can map these instruments to
IEC 60601-2-2 output control and simultaneous activation test workflows.
What is needed for neutral electrode thermal performance testing?
Neutral electrode thermal performance testing may require an HF voltage source, RF ammeter, temperature scanning
apparatus, caliper, environmental chamber and a suitable test medium or surrogate setup defined by the test clause.
Can KingPo support customized neutral electrode test fixtures?
Yes. KingPo can support fixture configuration for neutral electrode cord attachment, contact impedance, adhesion,
insulation and thermal performance testing according to the device design and laboratory workflow.
What is the difference between HF leakage current testing and general leakage current testing?
HF leakage current testing involves high frequency surgical energy and RF measurement conditions, while general
leakage current testing focuses on mains-frequency electrical safety measurements. IEC 60601-2-2 test setups often
require RF ammeters, HF voltage sources, load resistors and accessory-specific fixtures.
Can the Recommended KingPo Equipment column be customized?
Yes. The final column is designed for product anchors. You can replace the placeholder equipment names with actual
KingPo product links according to the product pages available on your website.
Which related standards should be linked from this page?
This page should link to related KingPo standard pages such as IEC 60601-1, IEC 60601-2-4, IEC 60601-1-8,
IEC 60529 and IEC 60695 where relevant standard pages are available.
Is this page a replacement for the official IEC 60601-2-2 standard?
No. This page is an equipment selection guide. Users should refer to the official IEC standard, IECEE documents and
certification body requirements for final compliance interpretation.
Need Help Building an IEC 60601-2-2 Test Equipment Setup?
KingPo supports laboratories and manufacturers with IEC 60601-2-2 test equipment selection, neutral electrode
fixture configuration and customized high frequency surgical equipment test systems according to project requirements.
