Power Cord Flex Test โ IEC 60884-1 Figure 21 Power Cord Flexing Testing Machine
Power Cord Flex Test โ IEC 60884-1 Figure 21 compliant apparatus simultaneously tests 6 power cords for 10,000 flexes at adjustable angles (45ยฐ/60ยฐ/90ยฐ or 180ยฐ) and rates (10โ60 cycles/min) with 10N/20N weights to evaluate cord durability and detect internal wiring or accessory faults.
- Standard Compliance: IEC 60884-1 Figure 21 and Clause 23.4 โ power cord flex test
- Test Stations: 6 independent stations with individual counters and clamp devices
- Flexing Angle: Swivel on either side of vertical: 45ยฐ, 60ยฐ, 90ยฐ (or 180ยฐ) selectable
- Flexing Rate: 10~60 times/min (selectable, standard 60)
- Weight Loading: 10N/20N per station (UL 113g/284g customizable)
- Test Cycles: 1โ999999 (presettable)
- Fault Detection: Automatic stop and indicator when break or fault occurs
- Power Supply: AC220V 50Hz or 115V 60Hz
- MOQ: 1
- Delivery Period: 25 working days
Power Cord Flex Test Description
IEC60884-1 Figure 21 Plug Cord Flexing Testing Machine / Apparatus For Flexing Test
The Power Cord Flex Test is a professional durability testing system manufactured by KingPo for evaluating the mechanical strength and long-term reliability of power cords and flexible cables. Designed in full compliance with IEC 60884-1 Figure 21, this tester simultaneously tests up to 6 power cords for 10,000 flexes at adjustable angles and speeds while detecting internal wiring faults or accessory connection failures.
KingPo Factory Advantages
KingPo is an ISO9001 and CE certified manufacturer specializing in cable and flexing testing equipment. We have delivered multiple IEC 60884-1 compliant power cord flex test systems to leading cable manufacturers and accredited laboratories worldwide. All units include calibration certificates (additional cost), on-site installation guidance, 1-year warranty and 48-hour technical response from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- 6 independent stations with individual counters for simultaneous multi-sample testing
- Crank mechanism driven by motor for reliable reciprocating flexing action
- Adjustable flexing angles (45ยฐ/60ยฐ/90ยฐ or 180ยฐ) on either side of vertical
- Selectable flexing rate from 10 to 60 times per minute

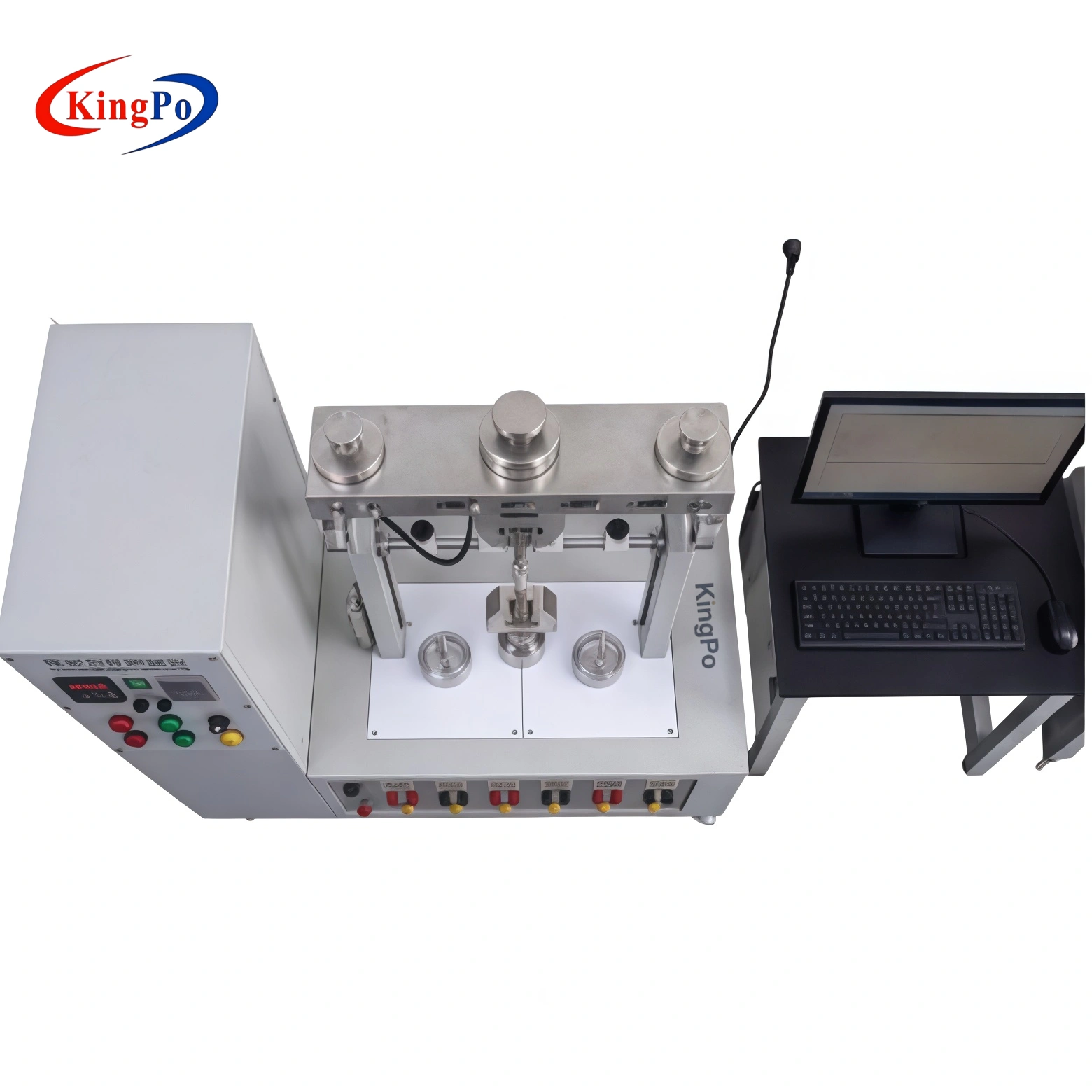

- 10N/20N weights per station (UL 113g/284g customizable) for proper force application
- Automatic stop and indicator when break or fault occurs, with real-time cycle display
These elements ensure high accuracy, excellent repeatability and full compliance with IEC 60884-1 requirements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | KP-PC06 Power Cord Flex Test |
| Applicable Standard | IEC 60884-1 Figure 21 and Clause 23.4 |
| Number of Test Stations | with 6 sets of clamp devices |
| Flexing Angle | 45ยฐ, 60ยฐ, 90ยฐ (or 180ยฐ) selectable on either side of vertical |
| Flexing Rate | 10~60 times/min (selectable) |
| Weight Loading | 10N/20N per station (UL 113g/284g customizable) |
| Test Cycles | 1โ999999 (presettable) |
| Power Supply | AC220V 50Hz or 115V 60Hz |
| Dimensions (WรLรH) | 500 ร 1000 ร 1100 mm |
Using Method

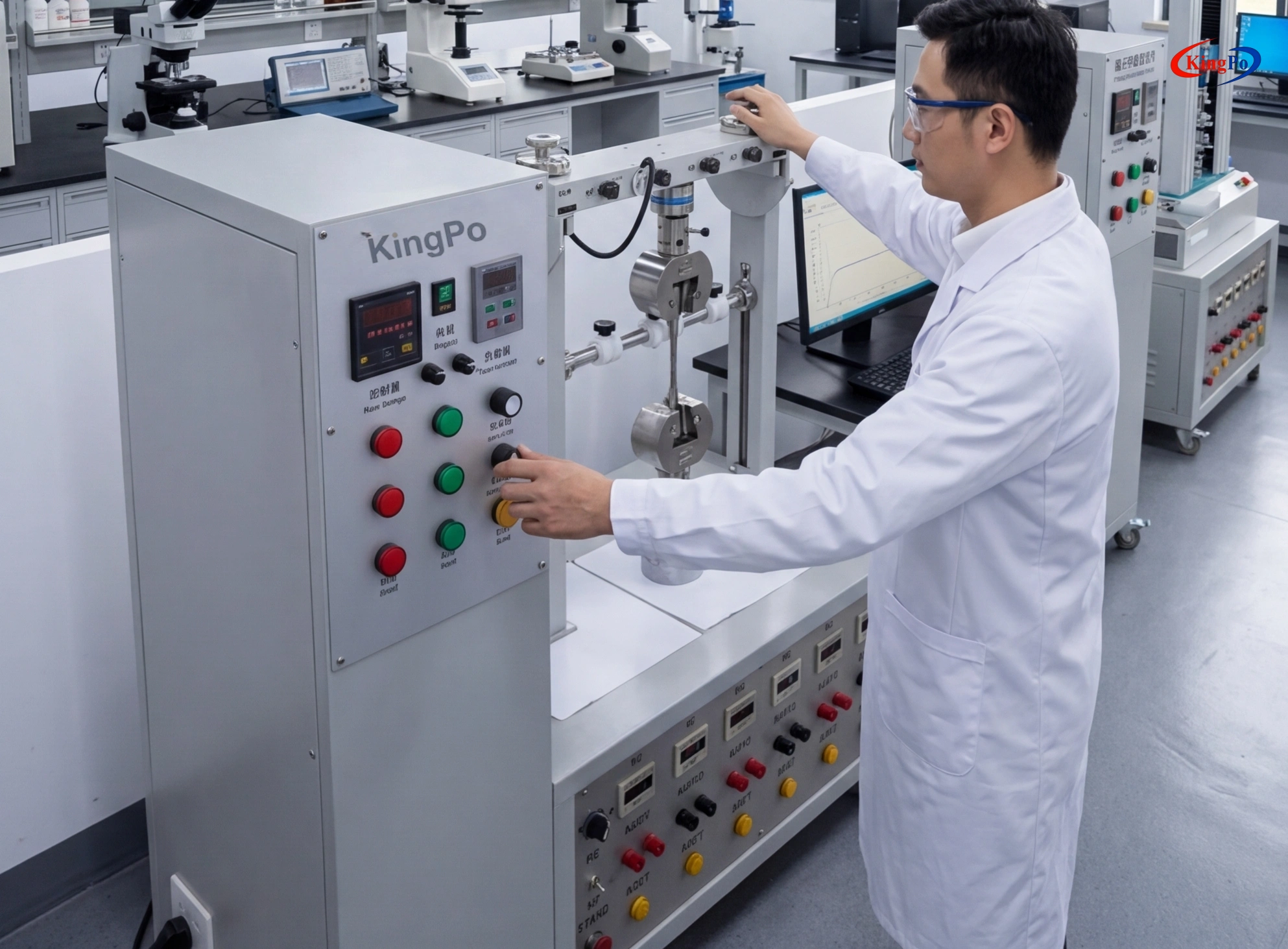

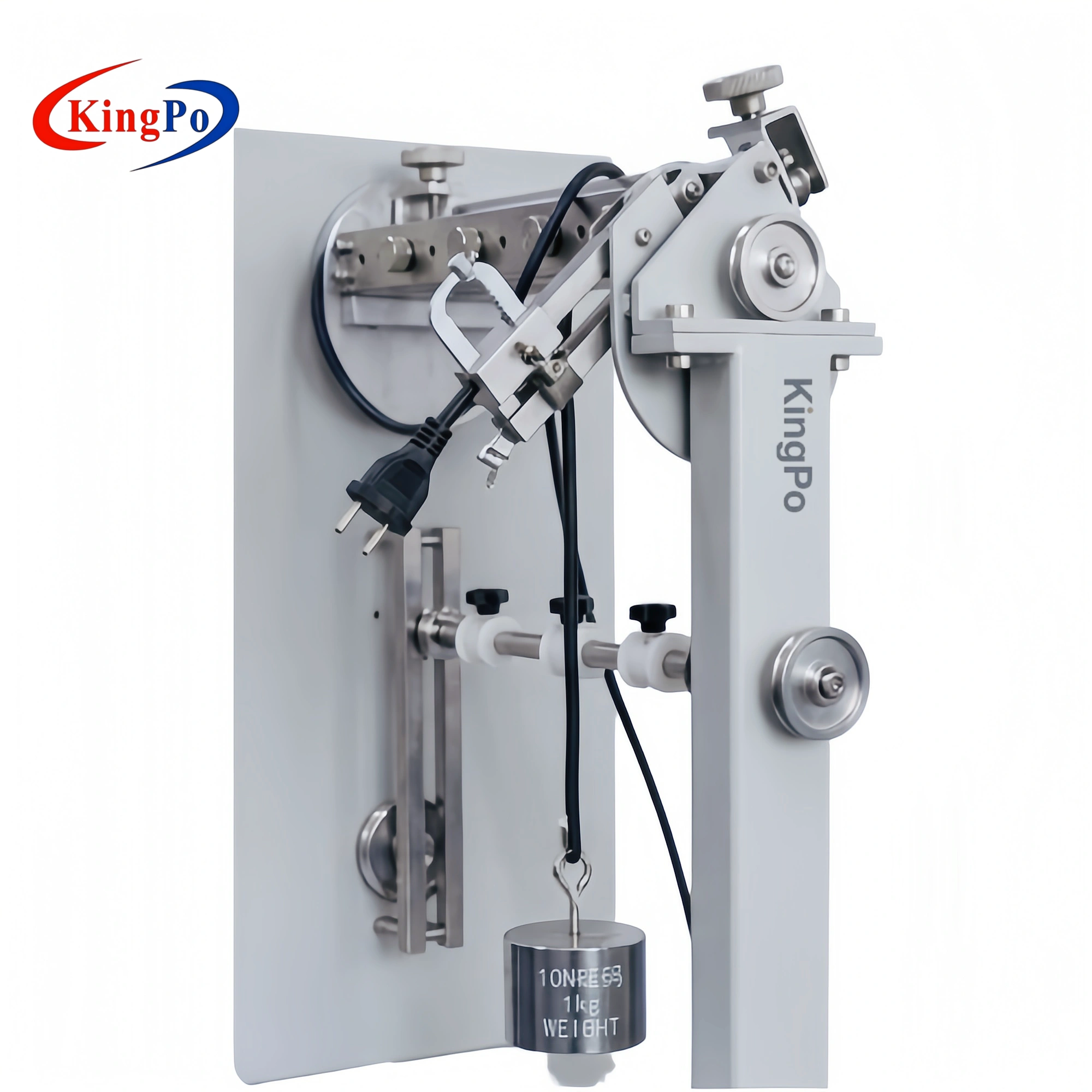

Set up the testing sample on the swing fixture and conduct the circuit. In the other side, the according weight is used, then set the flexing angle and testing times as well as the required speed. Then start the equipment. When the sample is broken off, the corresponding counter stops working and the indicator light off. At that time, the counter displayed is the testing times of the samples. When the total testing times are reached, the equipment will stop working.
This testing machine can be connected with Load of power line tester for the load test.
Primary Use Cases & Business Value
The power cord flex test supports critical stages:
- Product Development โ Validate flex life and durability of new power cord designs
- Certification Testing โ Generate data for IEC 60884-1 compliance of flexible cables
- Quality Control โ Batch verification of cord mechanical performance in production
- Failure Analysis โ Identify risks of internal wiring breakage or connection faults
It improves cord reliability, reduces field failures and accelerates certification for power cords and flexible cables.
Procurement Benefits
6-station simultaneous testing and adjustable parameters deliver high-efficiency, repeatable results with minimal operator intervention. Robust crank mechanism ensures long-term reliability. This power cord flex test strengthens durability validation of power cords, supports IEC 60884-1 compliance and minimizes quality risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
Power Cord Flex Test Applications
- Power Cords and Flexible Cables โ Flexing durability testing per IEC 60884-1 Figure 21
- Appliance Cords and Extension Cords โ Mechanical strength and fault detection
- Production Quality Assurance โ Batch testing of cord flex life
- Certification Laboratories โ Compliance verification for electrical accessories
- R&D Validation โ Optimization of cord construction and connection reliability
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with IEC 60884-1 Figure 21 for flexing testing of power cords. It evaluates the ability of the cord to withstand repeated bending without damage to internal wiring or accessory connections, thereby ensuring long-term reliability and safety in electrical applications.
For a comprehensive technical overview of the IEC 60884 series, including detailed flexing test requirements and Figure 21, refer to the IEC 60884 series overview published as a technical reference.
Technical Inquiry for IEC 60884-1 Power Cord Flex Test
KingPo specializes in cable and flexing testing equipment. If you require precise power cord durability testing according to IEC 60884-1 Figure 21, our engineering team can provide customized fixture solutions and technical support.
The Core Value We Deliver to You
- 6 independent stations for simultaneous multi-cord testing
- Adjustable flexing angles and rates to meet exact standard requirements
- Reliable fault detection with automatic stop and individual counters
- Robust motor-driven crank mechanism for consistent reciprocating action
- Factory-direct precision with fast delivery and calibration support
Take Action Now
Tell us your cord types, required flexing angles or test volume โ our engineering team will reply with tailored recommendations within 24 hours.

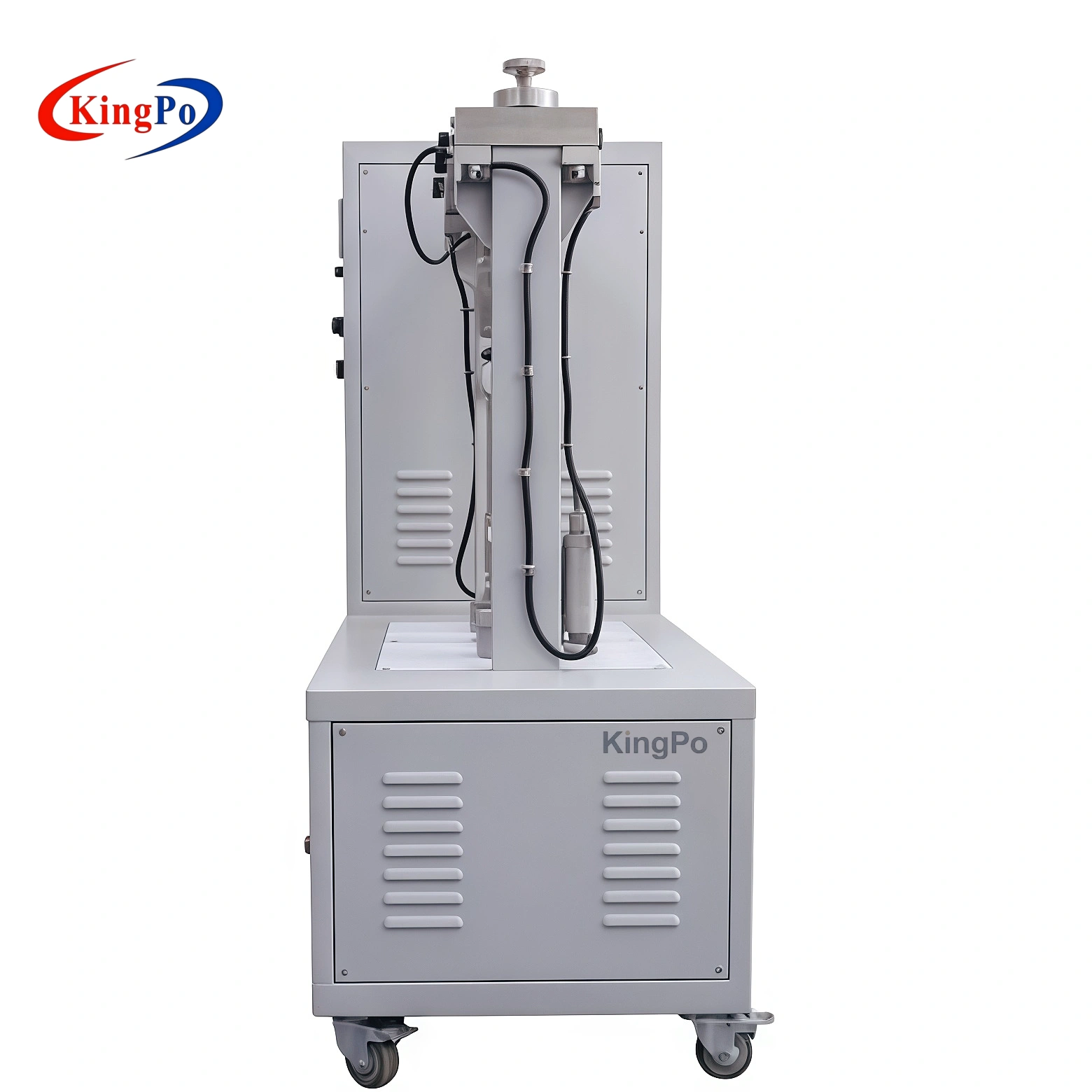

Detail Display - IEC60884-1 Figure 21 Plug Cord Flexing Testing Machine / Apparatus For Flexing Test
