Lock Drilling Proof Testing Machine – Mechanical Anti-Theft Door Lock Detection Equipment

Instrument lock drilling proof testing machine mechanical anti-theft door lock detection plug door lock detection

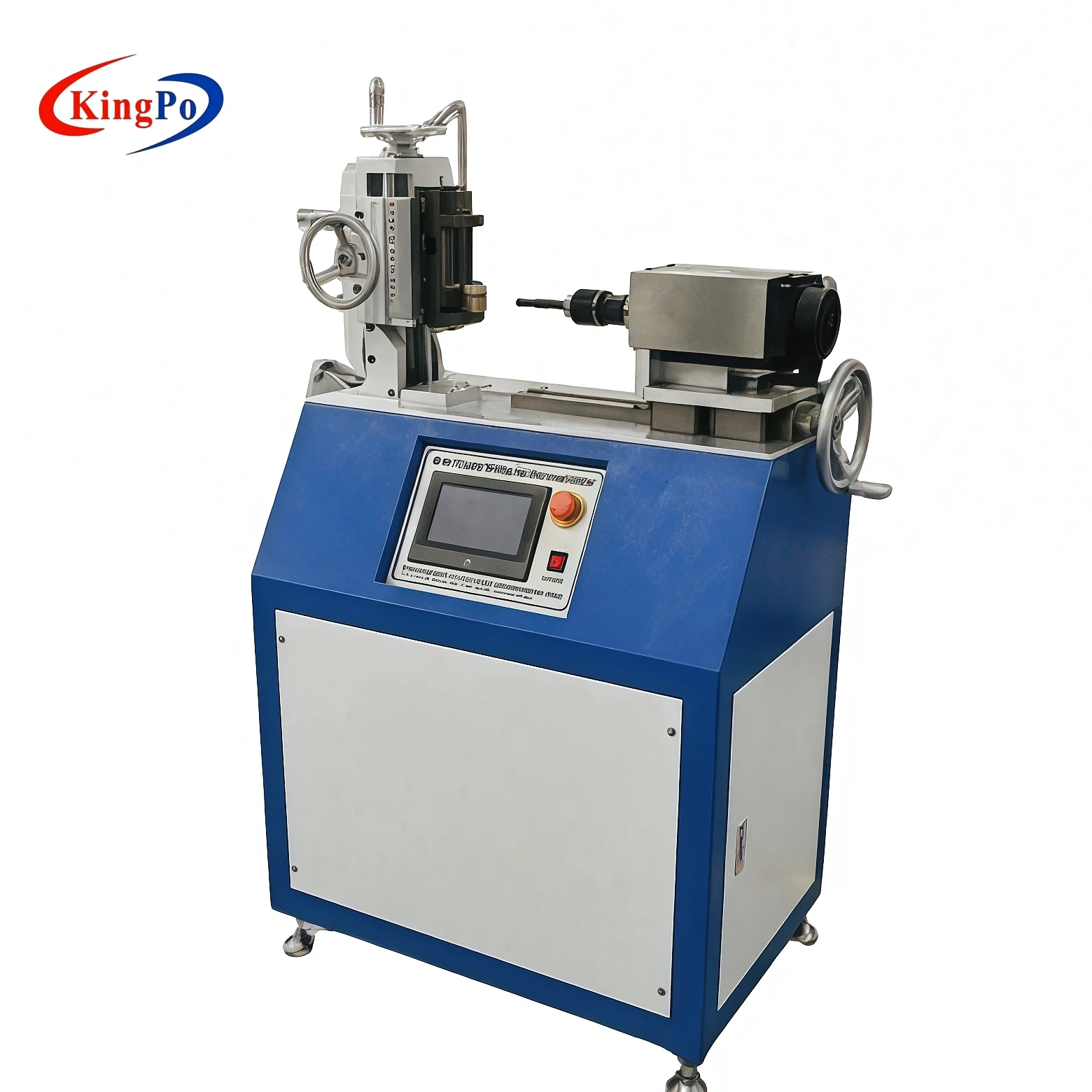

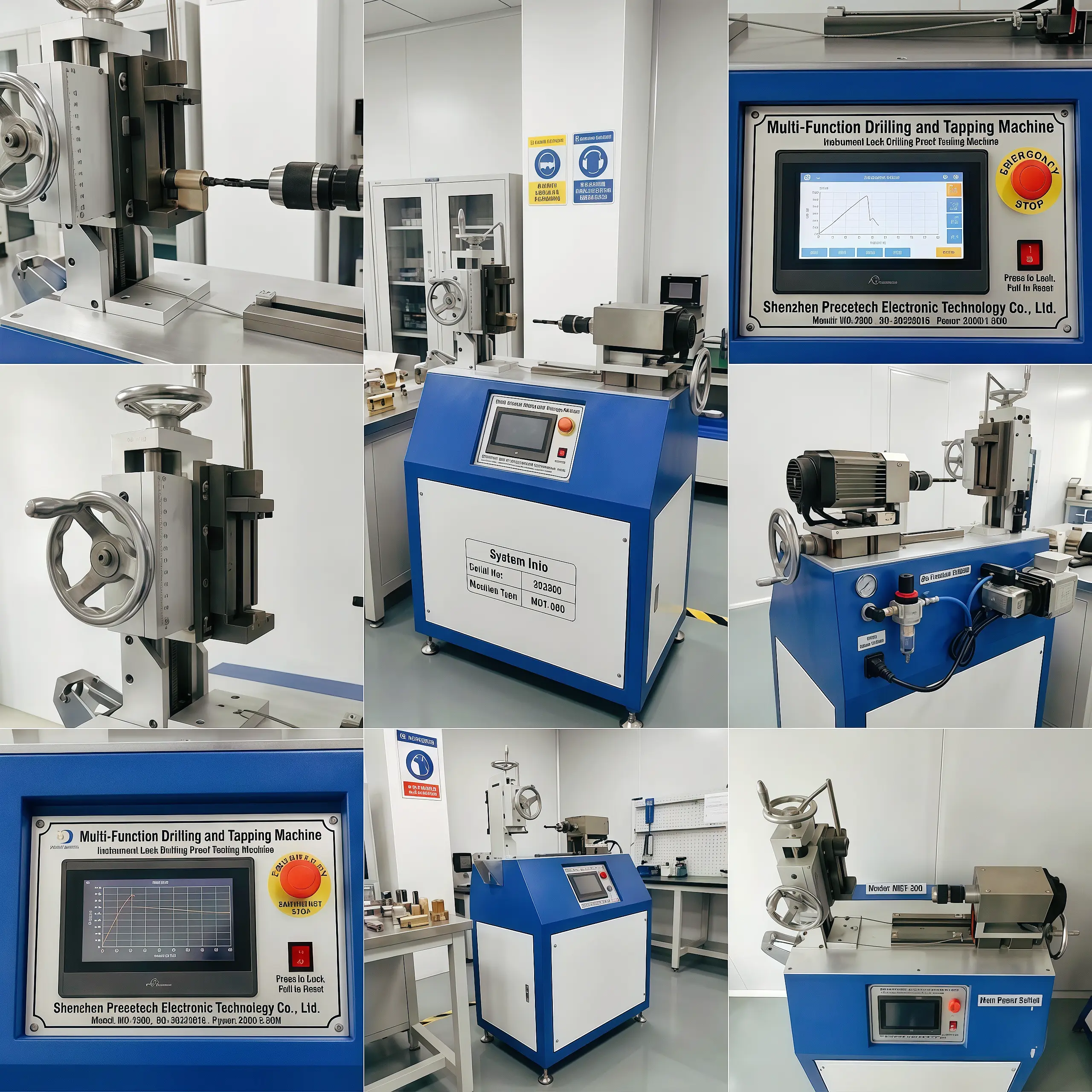

The Lock Drilling Proof Testing Machine is a high-precision destructive testing system developed by KingPo specifically for evaluating drilling resistance of mechanical anti-theft door locks, intelligent electronic locks, and plug-in cylinder locks. It applies controlled high-speed drilling (≤12 mm bit) from the key position under adjustable spindle speed (0–800 rpm) and pressure (0–300 N ±5%), delivering accurate, repeatable assessment of lock security performance against simulated burglary attacks.

Why This Lock Drilling Proof Testing Machine is Ideal for OEMs and Labs

• Large-scale lock manufacturers and accredited laboratories need precise, repeatable drilling resistance testing to verify anti-theft performance. This machine applies controlled high-speed drilling (≤12 mm bit) from the key position with adjustable pressure up to 300 N and spindle speed up to 800 rpm, simulating real burglary attempts. With PLC control, multi-axis movement (X ≥200 mm, Z ≥100 mm, A 360°) and automatic timing, it delivers the accuracy and automation demanded by professional security product certification.

KingPo Factory Advantages

KingPo is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer, also holding CE, SGS, PSE and RoHS certifications, specializing in mechanical security and safety testing equipment. We have delivered numerous Lock Drilling Proof Testing Machines to leading door lock manufacturers, certification laboratories and testing organizations worldwide. Every system undergoes rigorous factory calibration and is supplied with comprehensive documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.

Professional Construction & Technical Precision

Key features include:

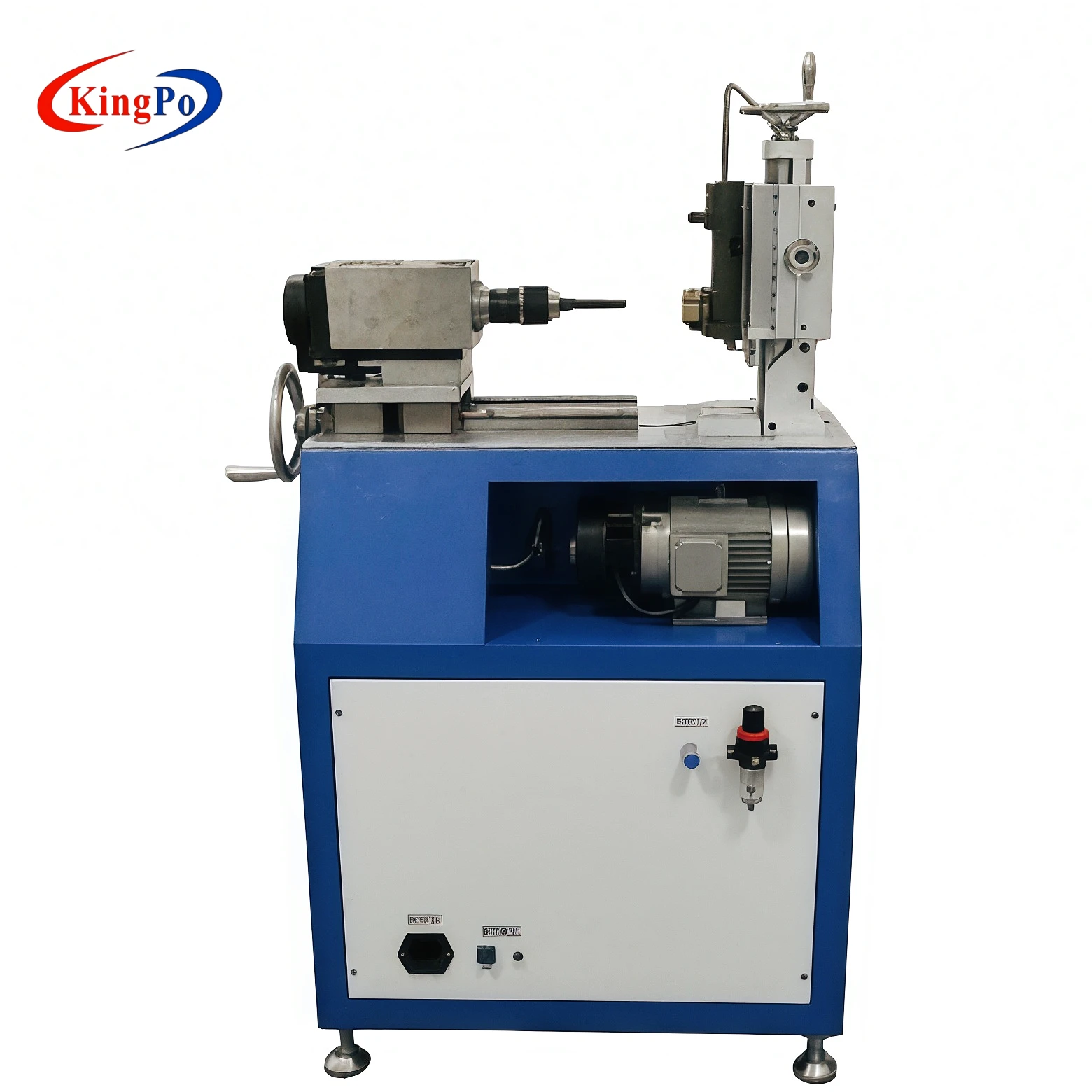

• High-rigidity industrial frame with overall dimensions 1300 × 800 × 1700 mm and weight approximately 420 kg

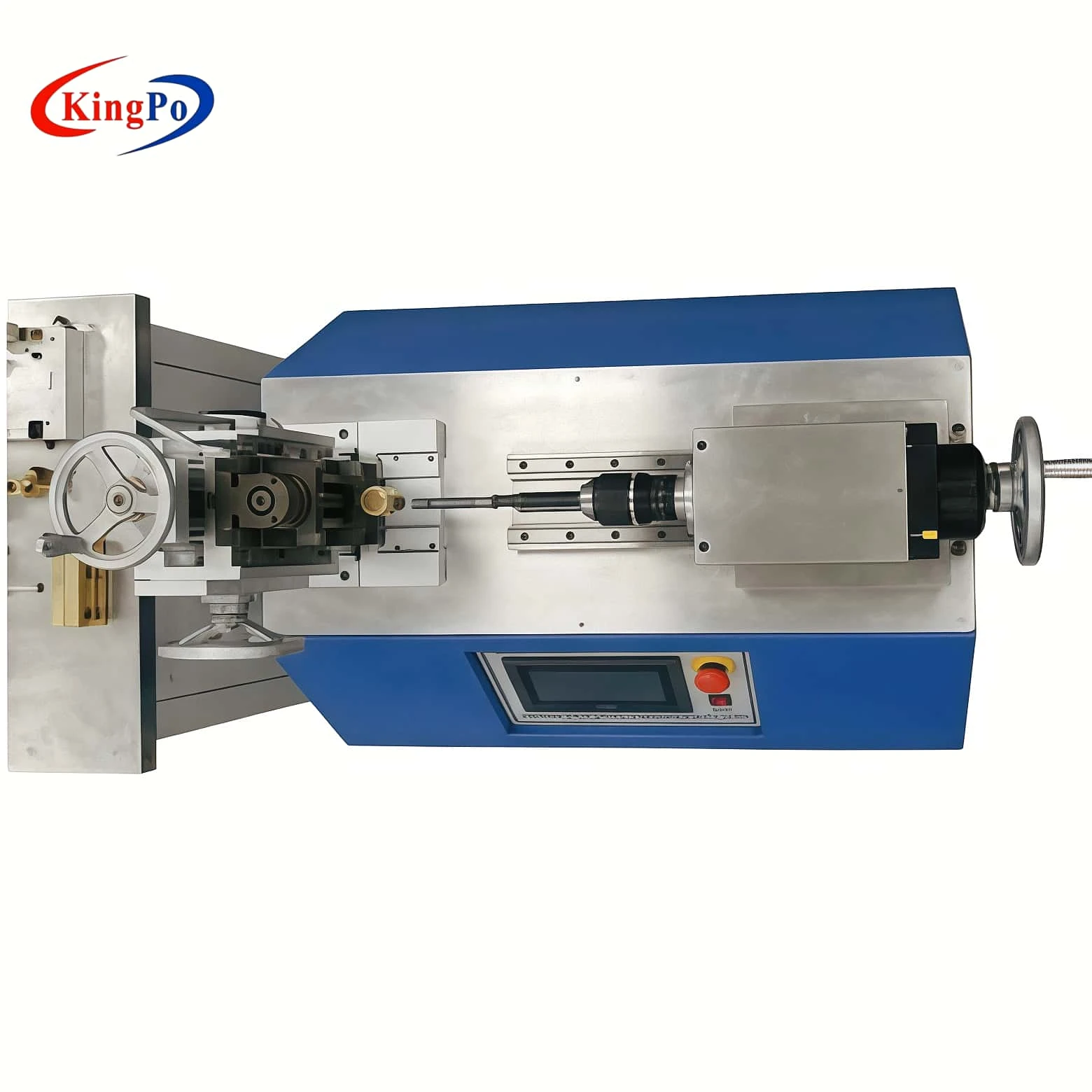

• Precision multi-axis motion system (X ≥200 mm, Z ≥100 mm, A-axis 360°) for accurate drill positioning
• Spindle speed 0–800 rpm and motor speed 0–1800 rpm with stable performance
• Adjustable drill pressure 0–300 N (±5%) via pneumatic control
• PLC + touch screen control for programmable test sequences and automatic data recording
• Robust fixture platform (300 × 280 mm, max load 20 kg)

These engineering features ensure high accuracy, excellent repeatability and reliable long-term operation for anti-theft lock drilling resistance testing.

Technical Parameters

Core Test Parameters

The Lock Drilling Proof Testing Machine supports critical stages: product development validation of new anti-theft lock designs, certification testing for mechanical security performance, production quality control of batch locks, and failure analysis of drilling resistance. It helps lock manufacturers ensure product security, reduce vulnerability risks and accelerate certification.

Procurement Benefits

Integrated multi-axis motion and PLC control delivers consistent, repeatable results with minimal operator intervention. Robust industrial-grade construction ensures long-term reliability. This Lock Drilling Proof Testing Machine strengthens mechanical anti-theft validation and minimizes quality risks. Contact us today for your quote – we will respond within 24 hours with detailed technical specifications and pricing.

Lock Drilling Proof Testing Machine Applications

• Mechanical Anti-Theft Door Locks: Validating drilling resistance of high-security mechanical locks under simulated burglary conditions.
• Intelligent Electronic Locks: Testing security performance of smart lock cylinders against drilling attacks.
• Plug-In and Cylinder Locks: Performing destructive drill testing to evaluate lock body strength and anti-theft capability.
• Door Lock Manufacturers: Production quality assurance through repeatable drilling resistance validation.
• Certification Laboratories: Compliance testing for mechanical security products per industry standards.
