IEC 62368-1 Annex Y.5.5 Dust Test Apparatus

Ip 5x / 6x Dust Test Apparatus Iec 62368-1 Annex Y.5.5 Protection From Excessive Dust

The IEC 62368 Annex Y.5.5 Dust Test Apparatus enables manufacturers and testing laboratories to assess the dust protection level of enclosures used in AV/IT equipment. It creates a controlled dusty environment using talcum powder circulation to verify IP5X and IP6X performance as specified in IEC 62368-1 Annex Y.5.5.

This equipment is essential for ensuring that dust does not compromise the safety or functionality of internal electrical components in audio, video, and information technology products.

Technical Parameters

Professional Construction & Technical Precision

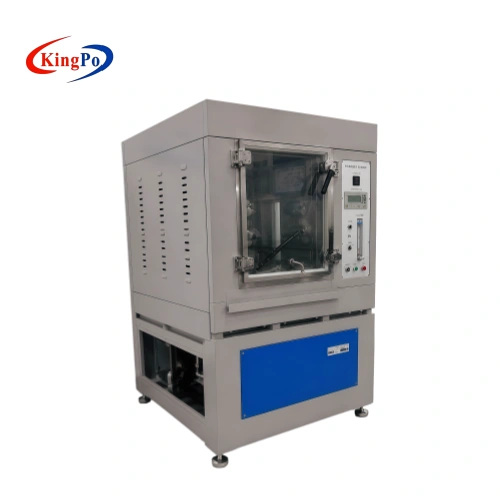

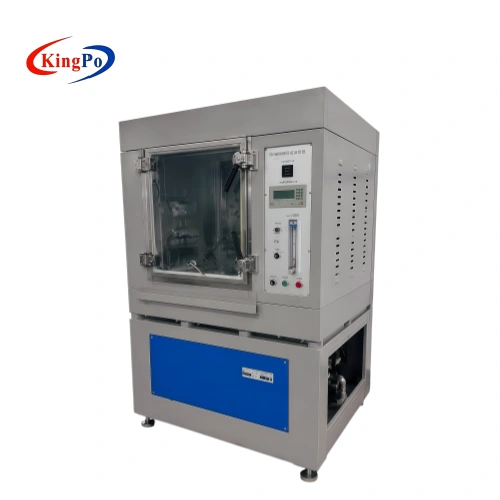

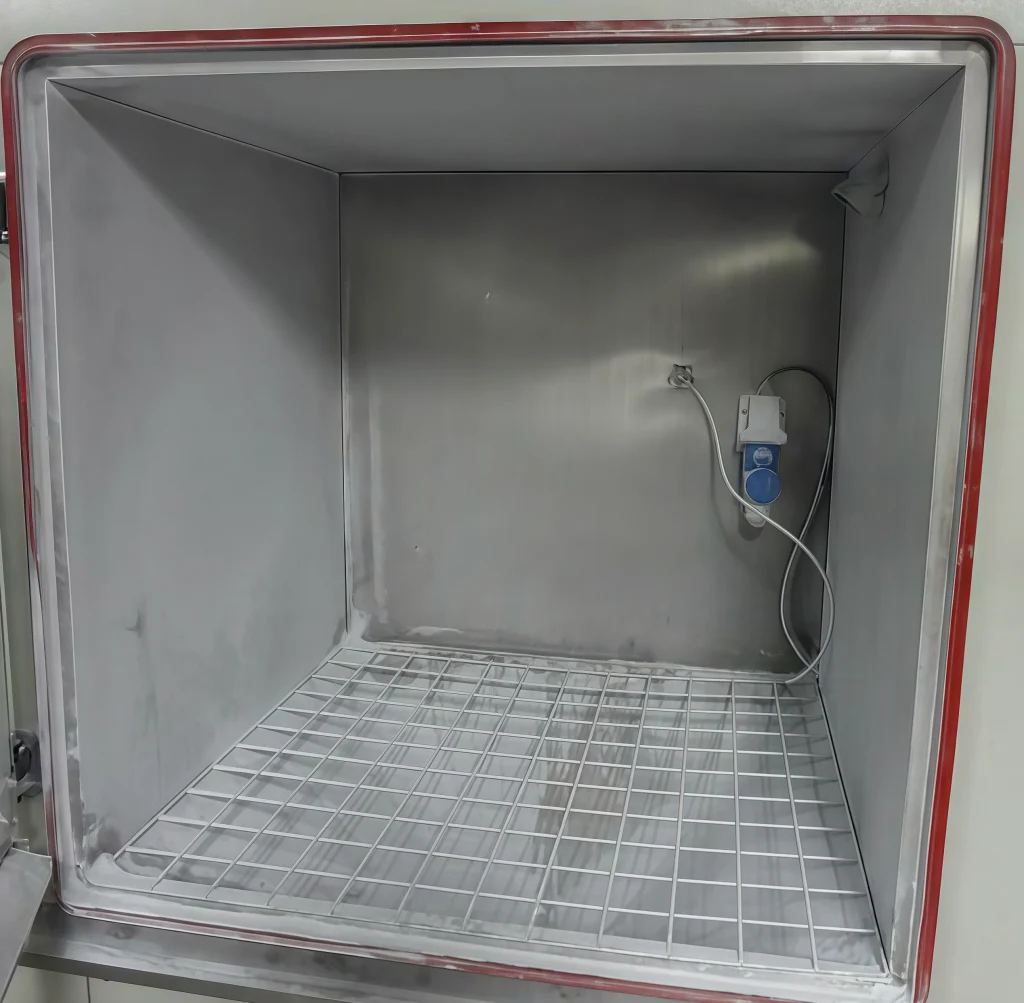

The IEC 62368 Annex Y.5.5 Dust Test Apparatus is built with a robust SUS304 stainless steel inner chamber and a large tempered glass observation door, allowing operators to safely monitor the test process in real time. The system features a precise talcum powder circulation mechanism with adjustable airflow control, ensuring stable dust concentration and uniform distribution throughout the full 1 m³ test volume.

Its sturdy construction, reliable sealing design, and advanced control system work together to deliver consistent test conditions. This makes the apparatus highly suitable for accurate and repeatable dust ingress evaluation of AV/IT equipment enclosures, meeting the strict requirements of IEC 62368-1 Annex Y.5.5.

Testing Principle

The test exposes the equipment under test to a circulating talcum powder environment at a controlled concentration and air velocity. According to IEC 62368-1 Annex Y.5.5, the enclosure is evaluated to determine whether dust enters the device and affects its safety or performance.

IP5X allows limited dust ingress that does not interfere with operation or safety, while IP6X requires complete dust tightness with no visible ingress permitted. This standardized method helps manufacturers verify that sensitive internal components in AV/IT equipment are adequately protected from excessive dust in real-world operating conditions.

Common Error Mitigation

To obtain accurate and consistent test results, the following practices are recommended:

• Use dry talcum powder and verify concentration before each test.
• Maintain stable air velocity and uniform dust distribution during testing.
• Properly position and seal the test specimen according to the standard.
• Clean the chamber and filters regularly to prevent powder buildup.
• Record all test parameters including duration, concentration, and velocity.

Applications & Use Cases

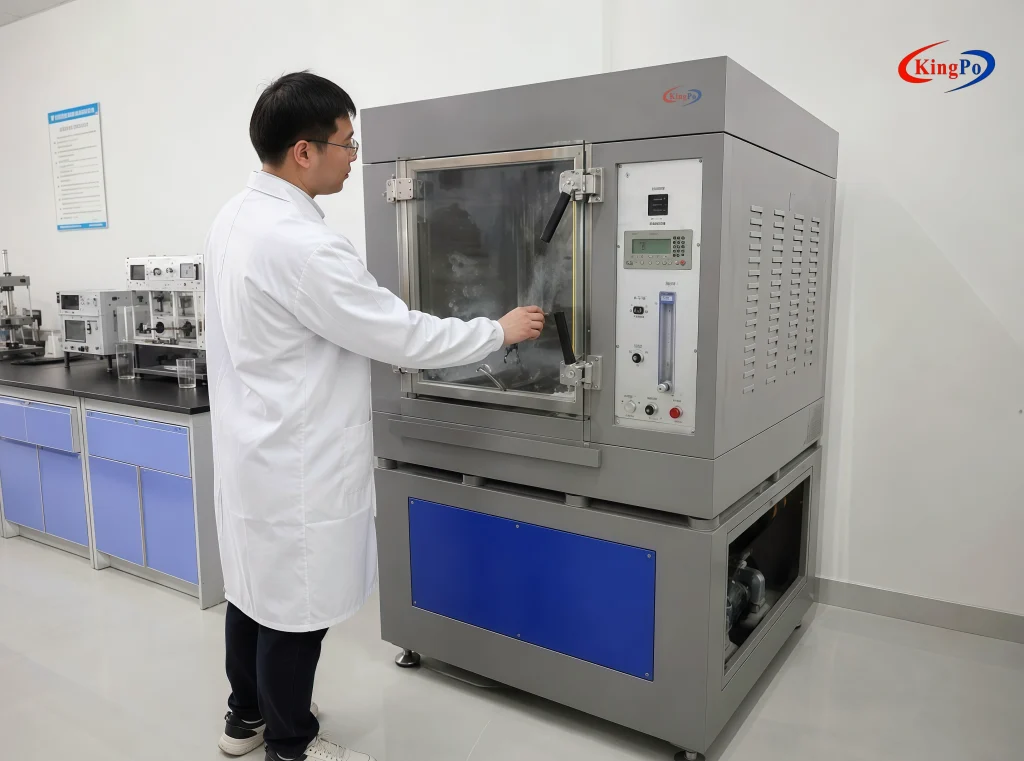

The IEC 62368 Annex Y.5.5 Dust Test Apparatus is primarily used by AV and IT equipment manufacturers, electronic component suppliers, testing laboratories, certification bodies, and research institutions to verify enclosure dust protection according to IEC 62368-1 Annex Y.5.5. It supports material evaluation, design validation, quality control, and compliance testing for products intended for dusty environments, including dust protection testing of enclosures and housings, IP5X/IP6X verification of critical parts, and studies on enclosure sealing effectiveness.

Key Advantages

This IEC 62368 Annex Y.5.5 Dust Test Apparatus is specifically designed for dust protection testing under IEC 62368-1 Annex Y.5.5, offering a large chamber volume suitable for testing various sizes of AV/IT equipment and enclosures. It provides precise control of talcum powder concentration and air velocity to deliver reliable and repeatable results. Technical support is available to assist with proper test setup, parameter configuration, and full compliance with the standard.
