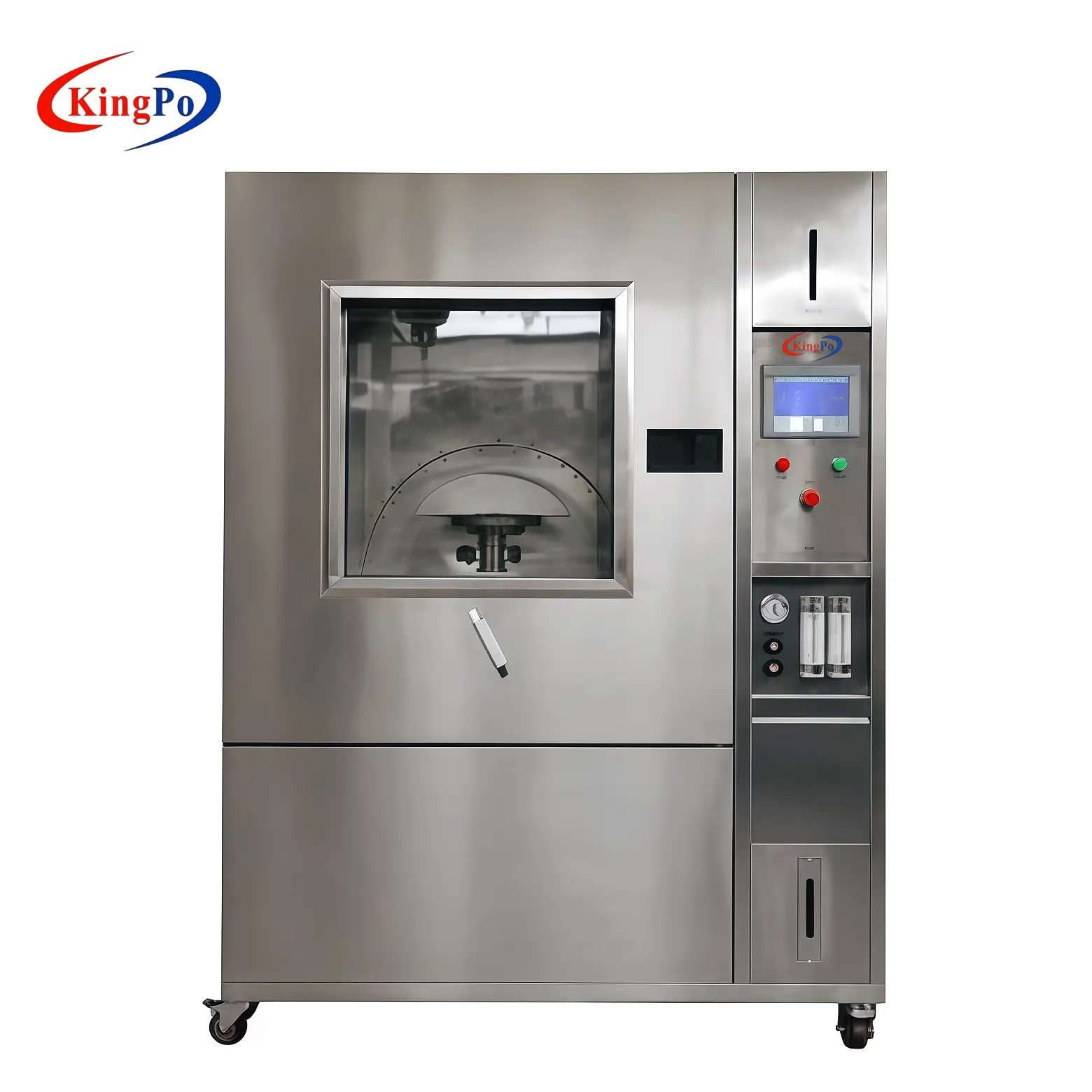

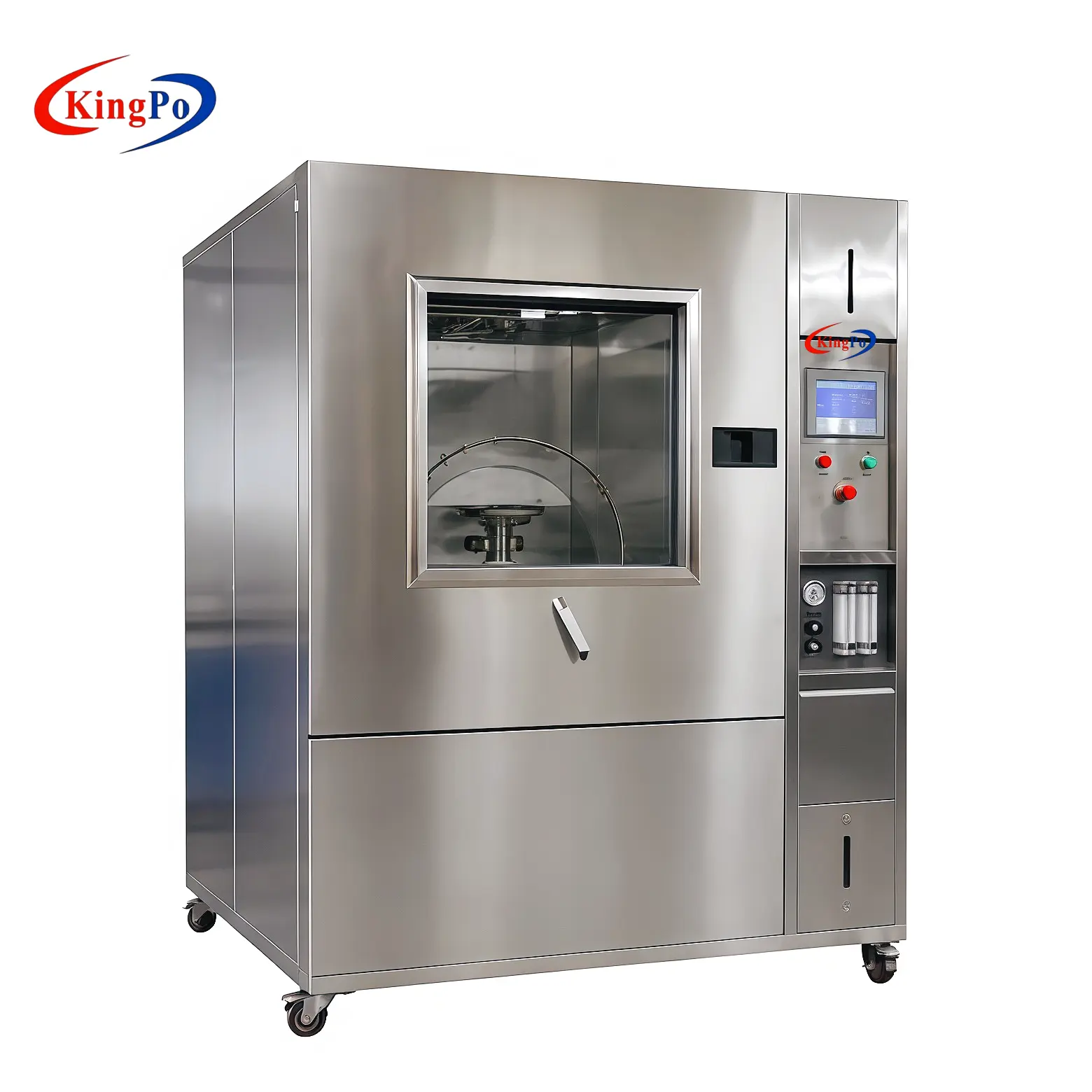

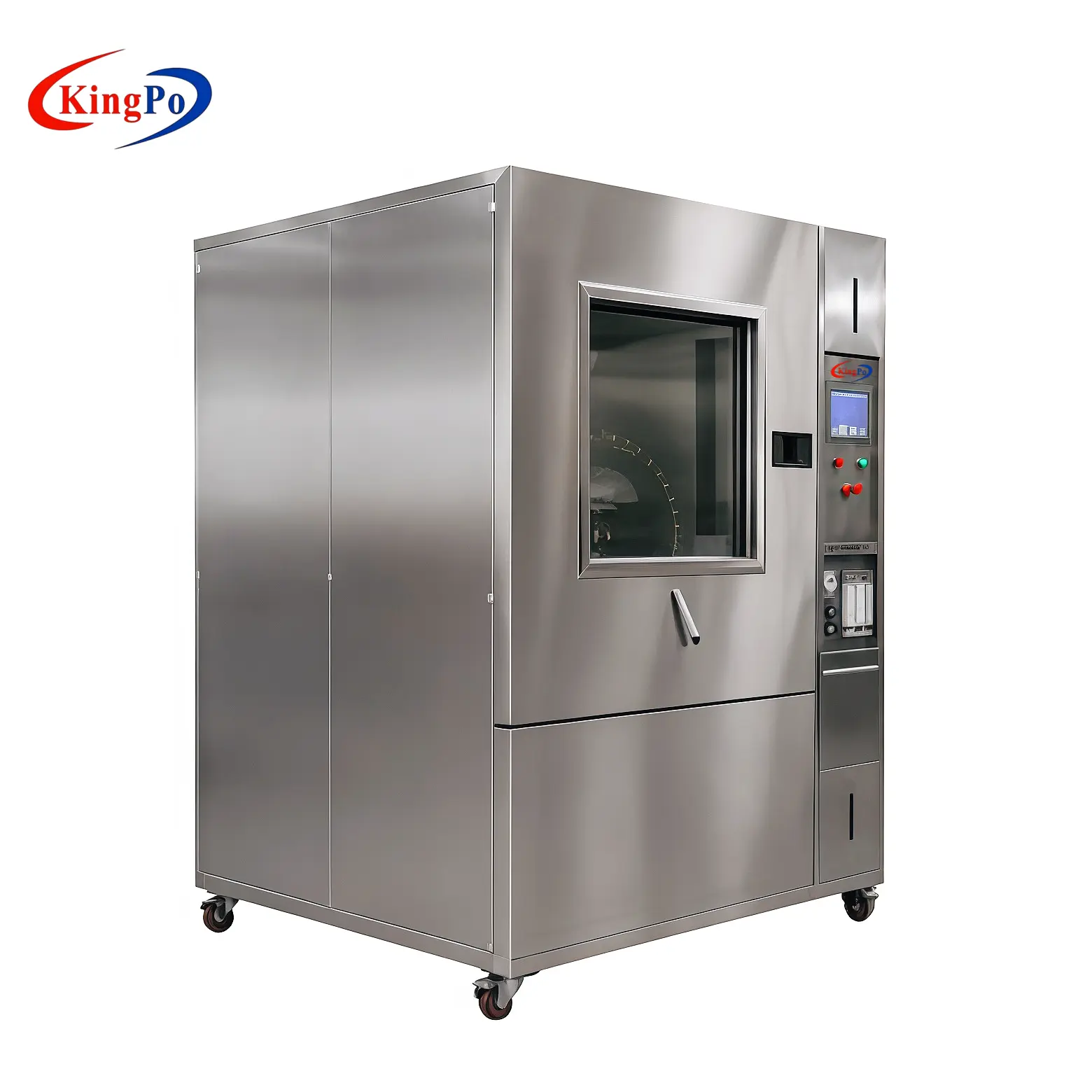

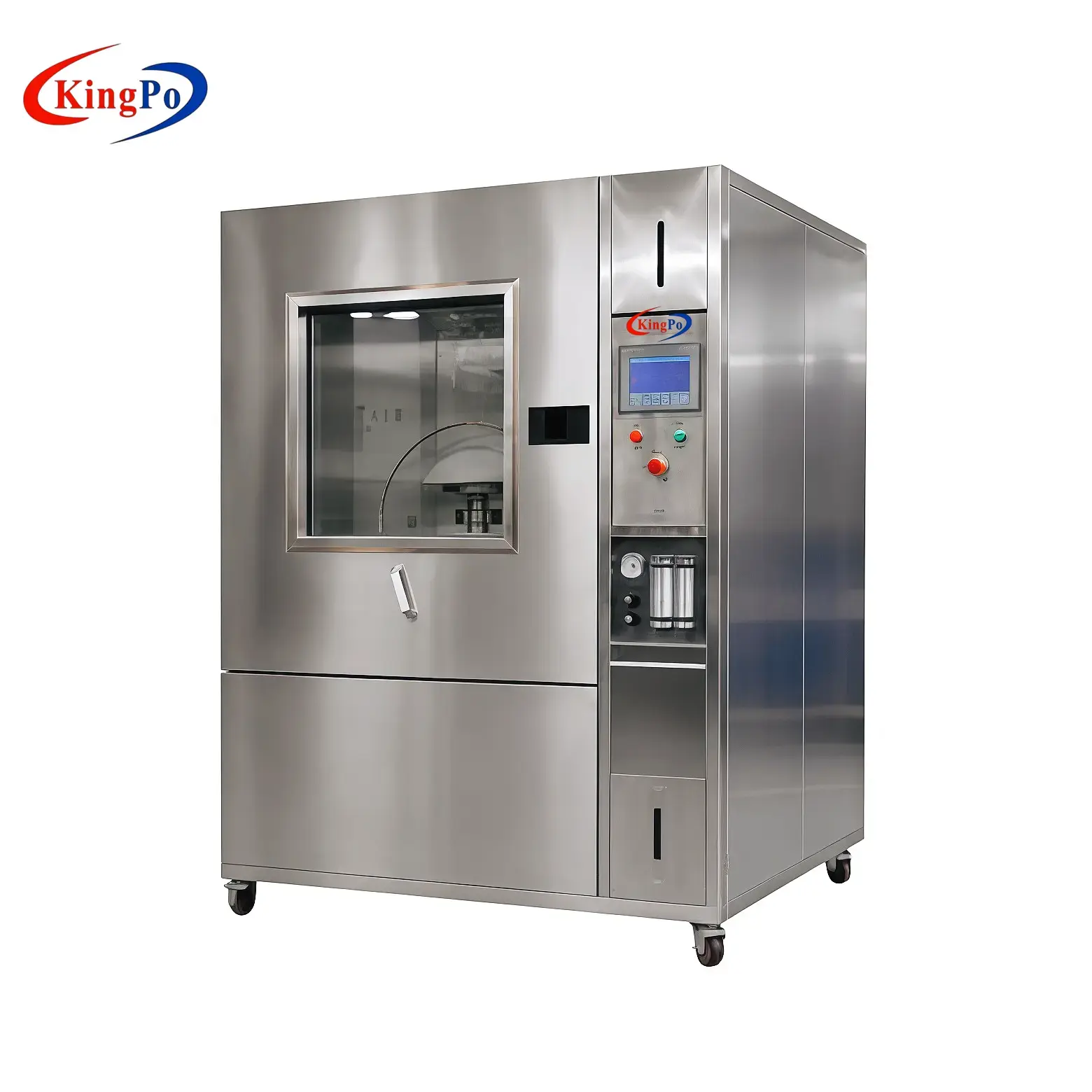

IPX3 Oscillating Tube Test Chamber | IEC 60529 IPX3 Rain Spray Test Chamber

Professional Construction & Technical Precision

The IPX3 Oscillating Tube Test Chamber is constructed with high-quality SUS304 stainless steel for excellent corrosion resistance. The oscillating tube is precision-engineered with uniformly spaced nozzles to deliver consistent water spray across the test specimen. A servo-driven system ensures smooth and accurate oscillation at the required angles and speeds.

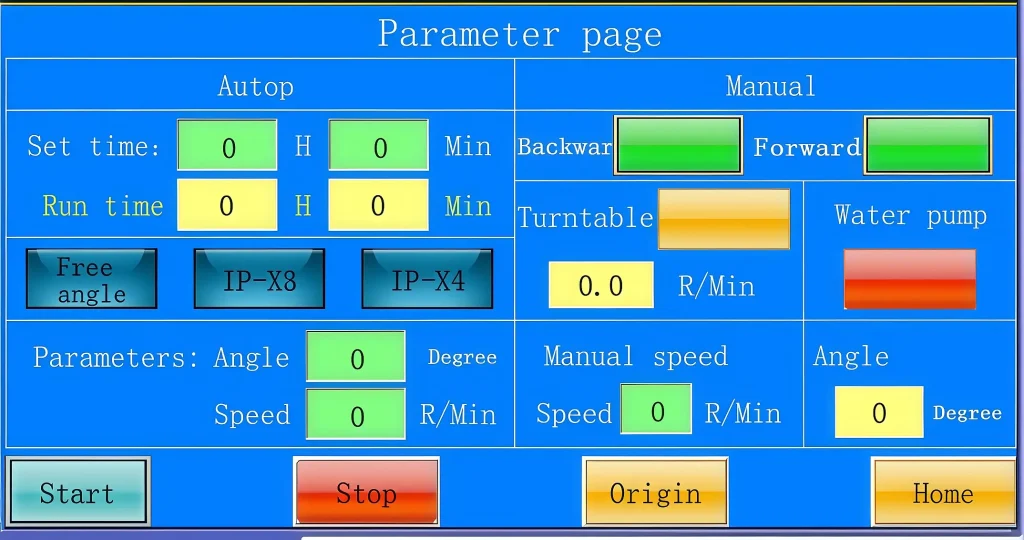

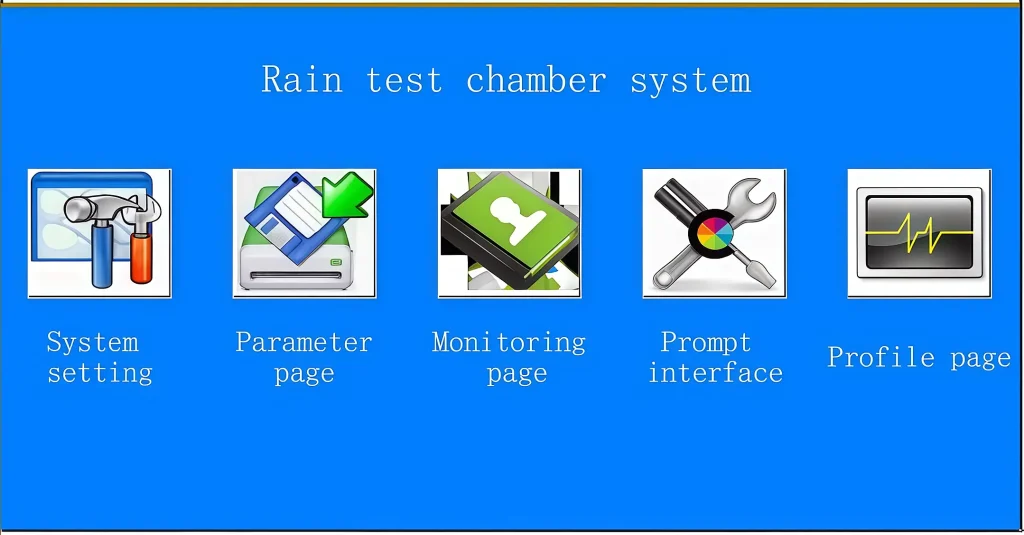

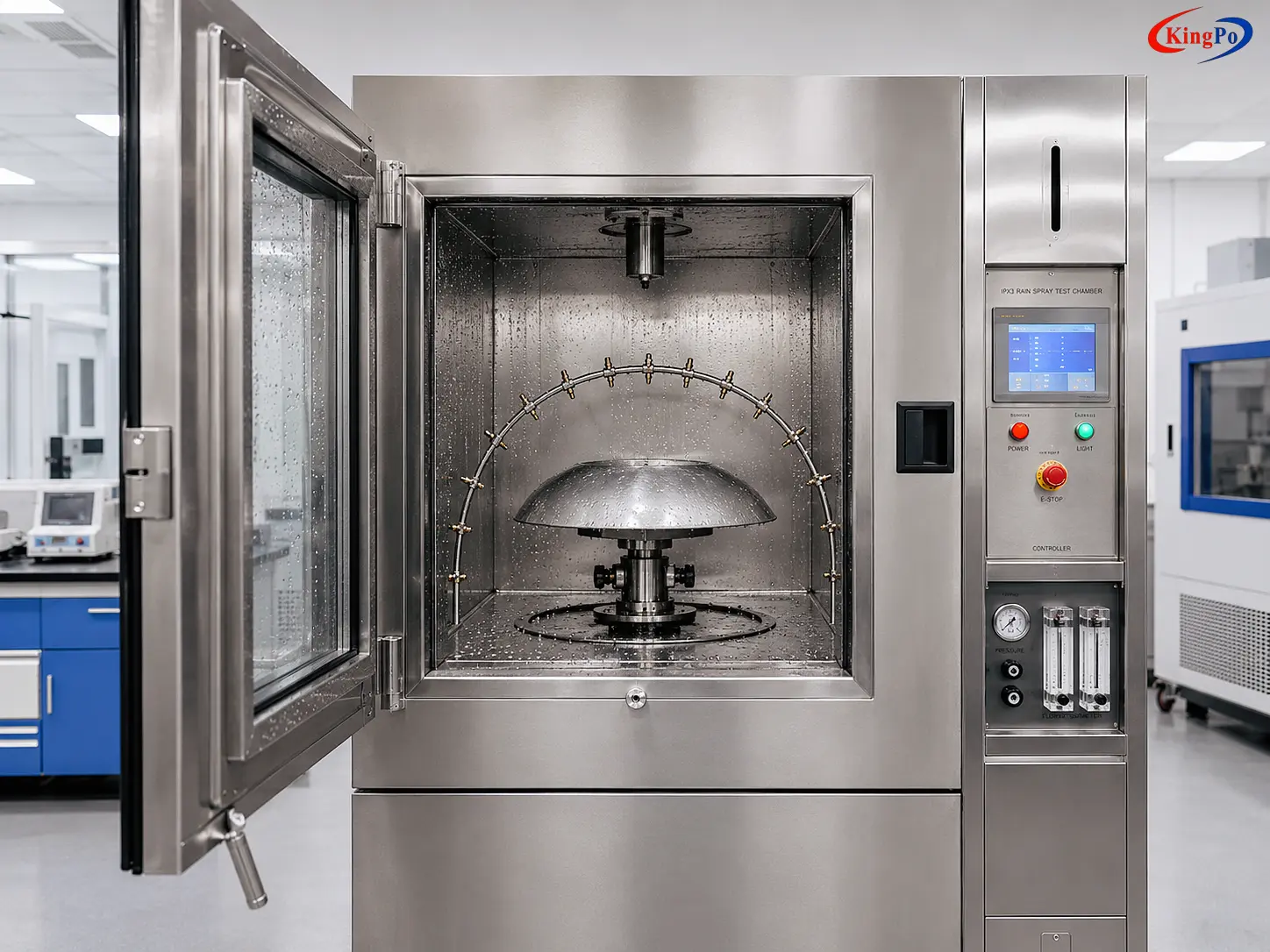

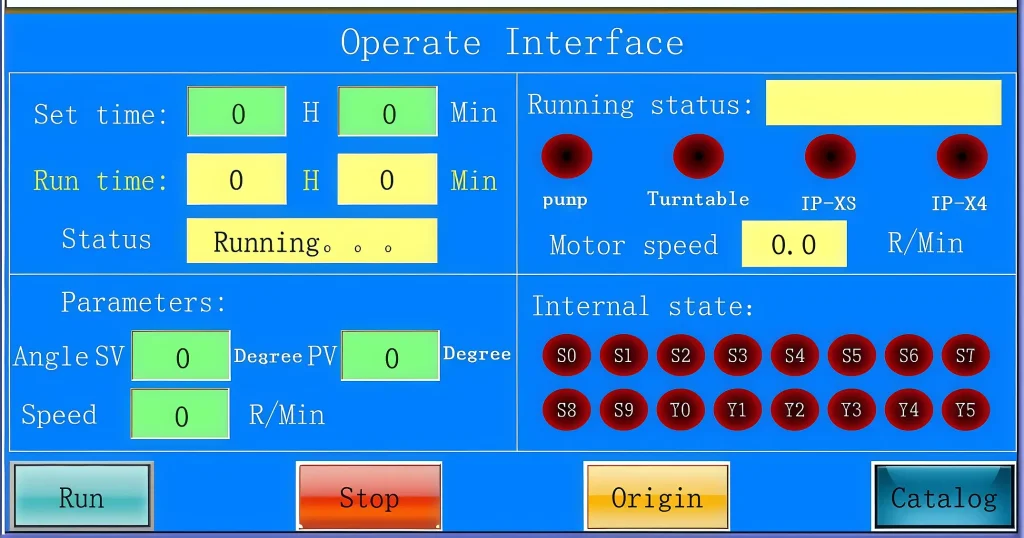

The equipment features an adjustable rotating turntable that can optionally tilt at 15°, providing flexible test configurations. An integrated water circulation and filtration system maintains stable flow and pressure while reducing water consumption, making the chamber efficient for continuous laboratory use.

Testing Principle

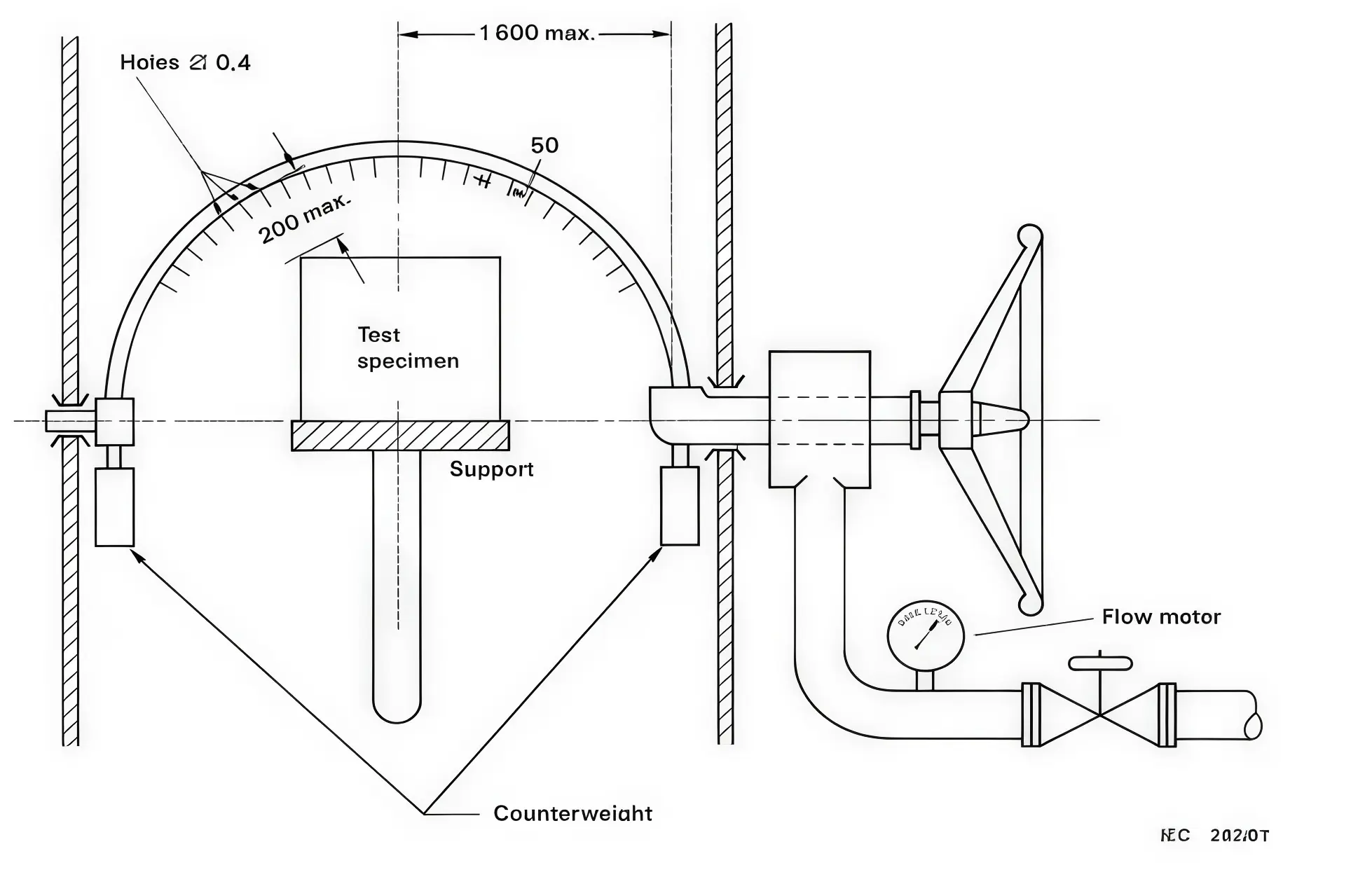

The IPX3 Oscillating Tube Test Chamber evaluates the ability of an enclosure to protect against water sprayed from an oscillating tube, as defined in IEC 60529 IPX3. During the test, water is supplied to the oscillating tube, which swings back and forth over the specimen at a specified angle (typically ±60° from vertical, totaling 120°).

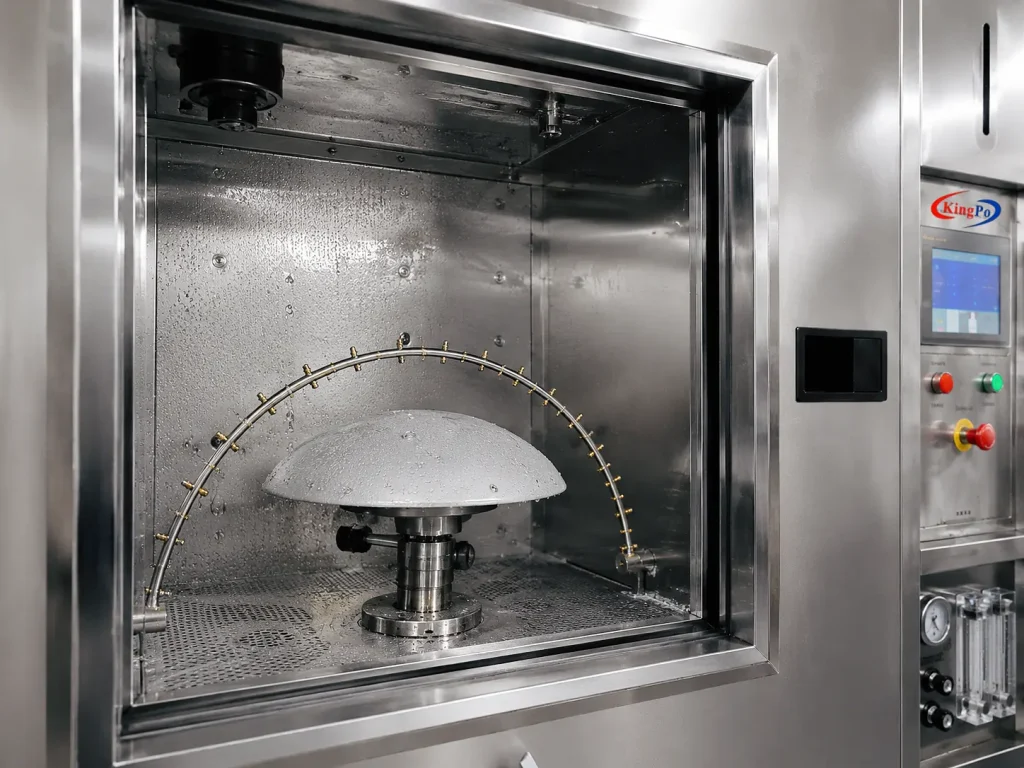

The specimen is mounted on a rotating turntable to ensure uniform exposure from all directions. Water is sprayed through precision nozzles on the tube at a controlled flow rate of 0.07 L/min per nozzle. The combination of precise tube oscillation and turntable rotation accurately simulates real-world rain spray conditions, allowing reliable evaluation of whether water ingress could compromise the safe operation or safety of the equipment.

Common Error Mitigation

To achieve accurate, repeatable, and standards-compliant IPX3 test results, the following best practices are strongly recommended:

• Verify the correct oscillating angle, flow rate per nozzle, and tube radius before each test series using calibrated instruments.
• Ensure the specimen is properly centered and securely fixed on the turntable in the correct orientation.
• Confirm that water pressure and flow rate remain stable throughout the entire test duration.
• Regularly inspect and clean the nozzles to prevent blockage and maintain consistent spray performance.
• Record all critical test parameters, including oscillation angle, flow rate, duration, and observations, for complete traceability and audit compliance.

Primary Use Cases & Business Value

The IPX3 Oscillating Tube Test Chamber is an essential testing solution for manufacturers seeking to validate the waterproof performance of their products against rain spray conditions. It enables early identification of sealing weaknesses during the development phase, supports compliance with international standards, and helps reduce costly field failures caused by water ingress. By delivering reliable and repeatable test results, this chamber assists companies in improving product quality, shortening development cycles, and strengthening their competitive position in the market.

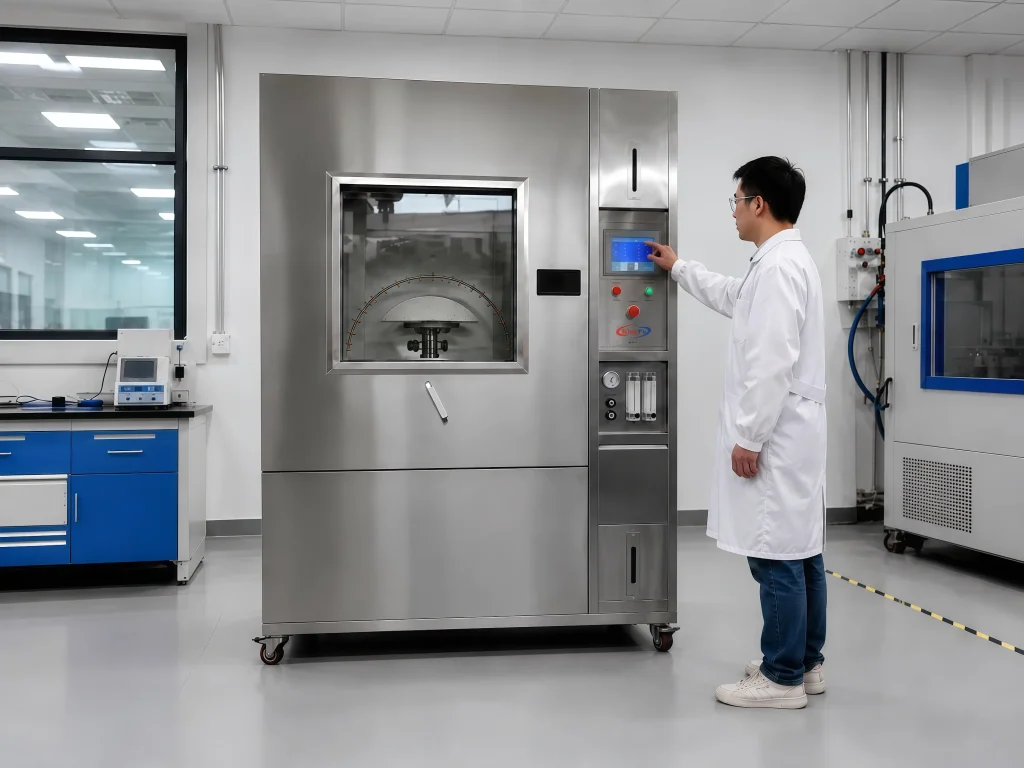

Industrial Applications & Lab Scenarios

• Household Appliance Manufacturers — IPX3 rain spray testing for enclosures, control panels, and external components
• Lighting and Luminaire Producers — Waterproof performance verification for outdoor and architectural lighting products
• Electrical Equipment Manufacturers — Ingress protection testing for industrial control cabinets and power distribution equipment
• Third-Party Certification Laboratories — IEC 60529 IPX3 formal compliance testing and type approval support
• Quality Control and R&D Departments — Rain spray validation during new product development and batch inspection

Strategic Procurement Advantages & Global Support

• Achieve precise and repeatable IPX3 oscillating tube rain spray testing with uniform exposure across the specimen
• Benefit from flexible swing angle control and adjustable turntable configuration to meet diverse testing requirements
• Ensure long-term reliability through robust SUS304 stainless steel construction and efficient water circulation system
• Receive responsive technical support and customization services from our experienced engineering team
• Manufactured under an ISO 9001 certified quality management system with comprehensive one-year warranty and lifetime technical assistance
