IPX9K Water Spray Test Chamber，8Mpa-10Mpa IPX9K Test Equipment
IPX9K Water Spray Test Chamber IEC 60529 performs high pressure high temperature water spray testing for IPX9K protection rating verification.
- High pressure spray system: 8–10 MPa adjustable pressure with 14–16 L/min flow rate
- High temperature water control: 80±5 °C test water temperature
- Four-angle nozzle configuration: 0°, 30°, 60°, 90° nozzles for comprehensive coverage
- Adjustable spray distance: 100–150 mm to match actual installation conditions
- Large test chamber: 1000 × 1000 × 1000 mm internal volume with φ400 mm turntable (90 kg load)

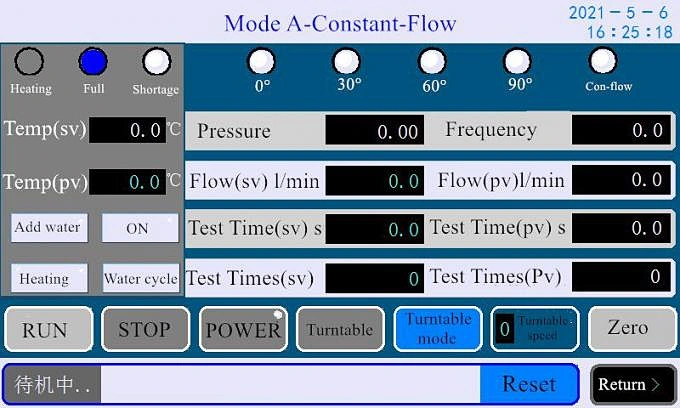

- PLC + touchscreen control: inverter-adjusted pressure and automatic test sequence
- MOQ: 1
- Delivery Period: 30 working days
IPX9K Water Spray Test Chamber IEC 60529 Description
IPX9K Water Spray Test Chamber IEC 60529 for High Pressure High Temperature Testing
The IPX9K Water Spray Test Chamber IEC 60529 for High Pressure High Temperature Testing is a professional ingress protection test system manufactured by KingPo. It is designed to evaluate the waterproof performance of enclosures and equipment under extremely high pressure and high temperature water spray conditions as required by IEC 60529 IPX9K.
Testing Principle
The test chamber sprays 80±5 °C water at 8–10 MPa pressure through four nozzles (0°, 30°, 60°, 90°) at a flow rate of 14–16 L/min onto the rotating test sample for a preset duration. The turntable rotates at 5 r/min while the spray distance is adjustable from 100–150 mm, simulating the most severe high-pressure, high-temperature water jet exposure defined in IEC 60529 for IPX9K rating verification.
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001, ISO 45001 and CE certified manufacturer, also holding SGS, PSE and RoHS certifications. We specialize in IP testing equipment and have supplied IPX9K Water Spray Test Chambers to leading automotive, electronics and certification laboratories worldwide. Each unit undergoes rigorous calibration and is delivered with complete documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- High pressure spray system adjustable from 8 MPa to 10 MPa with precise inverter control
- High temperature water control maintained at 80±5 °C for realistic harsh environment simulation
- Four fixed-angle nozzles (0°, 30°, 60°, 90°) ensuring full coverage of the test sample
- PLC + 7-inch color touchscreen for automatic spray sequence and real-time parameter monitoring
- Robust chamber construction with large 1000 × 1000 × 1000 mm volume and 90 kg load capacity
These elements ensure accurate, repeatable and fully compliant IPX9K high pressure high temperature water spray testing.
Technical Parameters
Core Environmental Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Test Water Temperature | 80 ±5 °C | High temperature water spray simulation |
| Spray Pressure | 8 MPa – 10 MPa (adjustable) | Inverter controlled for precise pressure |
| Spray Flow Rate | 14 L/min – 16 L/min | Automatically changes with pressure |
| Nozzle Quantity & Angles | 4 nozzles (0°, 30°, 60°, 90°) | Full directional coverage per IEC 60529 |
| Spray Duration | 0–99.9 s (preset) | Programmable per standard requirement |
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Internal Dimensions | 1000 × 1000 × 1000 mm | Large volume suitable for various equipment sizes |
| Turntable Diameter | φ400 mm | 5 r/min ±1 r/min rotation speed |
| Turntable Load Capacity | 90 kg (max) | Supports heavy test samples |
| Spray Distance | 100–150 mm (adjustable) | Matches actual installation conditions |
| Control System | PLC + 7-inch color touchscreen | Automatic sequence and real-time monitoring |
| Power Supply | AC 380 V 50 Hz, 25 kW | Three-phase industrial power |
The IPX9K Water Spray Test Chamber IEC 60529 for High Pressure High Temperature Testing is used to verify the highest level of water ingress protection for automotive components, outdoor electrical enclosures, military equipment and consumer electronics. It supports product development, design validation, production quality assurance and third-party certification, helping manufacturers ensure equipment can withstand extreme high-pressure, high-temperature water jet exposure.
Procurement Benefits
The chamber offers adjustable high pressure (8–10 MPa), precise high temperature water control, four-angle nozzle coverage and PLC touchscreen operation in a robust, large-volume design. It delivers consistent, repeatable IPX9K test results with minimal maintenance, making it a practical solution for high-level ingress protection testing.
IPX9K Water Spray Test Chamber Applications
- Automotive components – high pressure water spray testing for ECUs, sensors and lamps
- Outdoor electrical enclosures – IPX9K protection rating verification
- Military and industrial equipment – extreme environment durability testing
- Certification laboratories – compliance testing according to IEC 60529 IPX9K
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with IEC 60529 for IPX9K high pressure and high temperature water spray testing. It provides a standardized method to evaluate the highest level of water ingress protection, ensuring equipment meets the required safety and reliability levels for harsh environmental conditions.
For detailed information on IPX9K testing, please refer to the latest edition of IEC 60529.

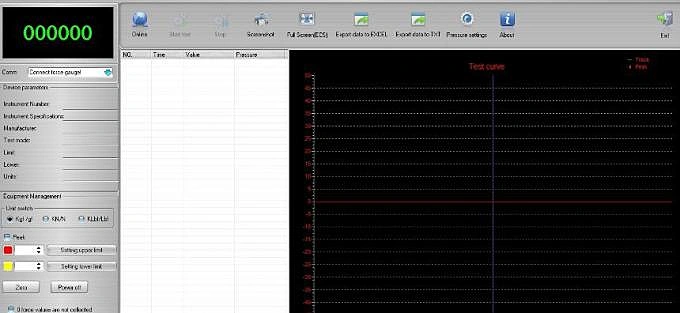

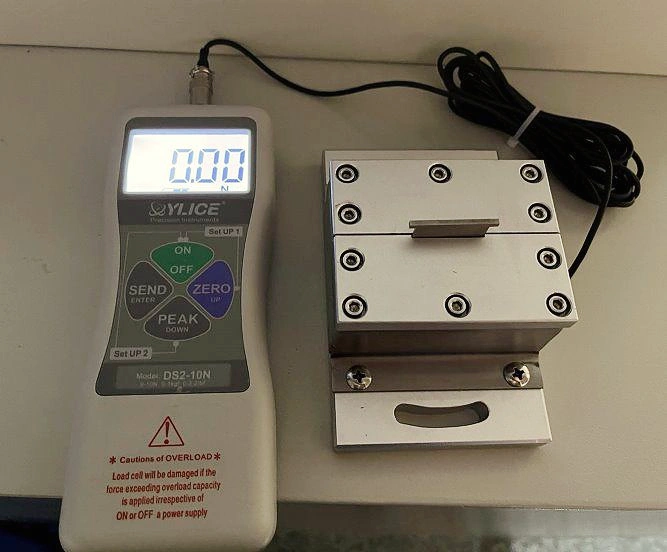

Regular verification of spray pressure, water temperature and flow rate is recommended to maintain traceability.
Technical Inquiry for IPX9K Water Spray Test Chamber
KingPo specializes in IP testing equipment. If you require precise IEC 60529 IPX9K high pressure high temperature water spray testing, our engineering team can provide technical support and configuration recommendations.
The Core Value We Deliver to You
- Adjustable spray pressure 8–10 MPa with precise control
- High temperature water at 80±5 °C for realistic harsh testing
- Four-angle nozzle system with 14–16 L/min flow
- Large 1000 × 1000 × 1000 mm chamber with 90 kg load capacity
- PLC touchscreen control for automatic test sequences
Tell us your sample size or test requirements — our engineering team will reply with tailored recommendations within 24 hours.
