IP Testing Equipment: Complete Ingress Protection Solutions (IPX1 - IPX9K）

“Looking for reliable IP testing chambers? Kingpo offers high-precision IP Testing Equipment compliant with IEC 60529 and ISO 20653. Our systems provide accurate simulation for dust and water ingress, helping global manufacturers secure safety certifications for electronics, automotive components, and outdoor lighting.”

Feature	Technical Specification & Benefit
Standard Compliance	Fully meets IEC 60529 (IPX1-IPX8) and ISO 20653 (IPX9K) requirements.
Durability	Constructed with SUS304 Stainless Steel for superior corrosion resistance and longevity.
Precision Control	Integrated PLC Touch Screen for automated flow rate and pressure adjustments.
Customization	Tailored chamber sizes and turntable speeds to fit specific product dimensions.

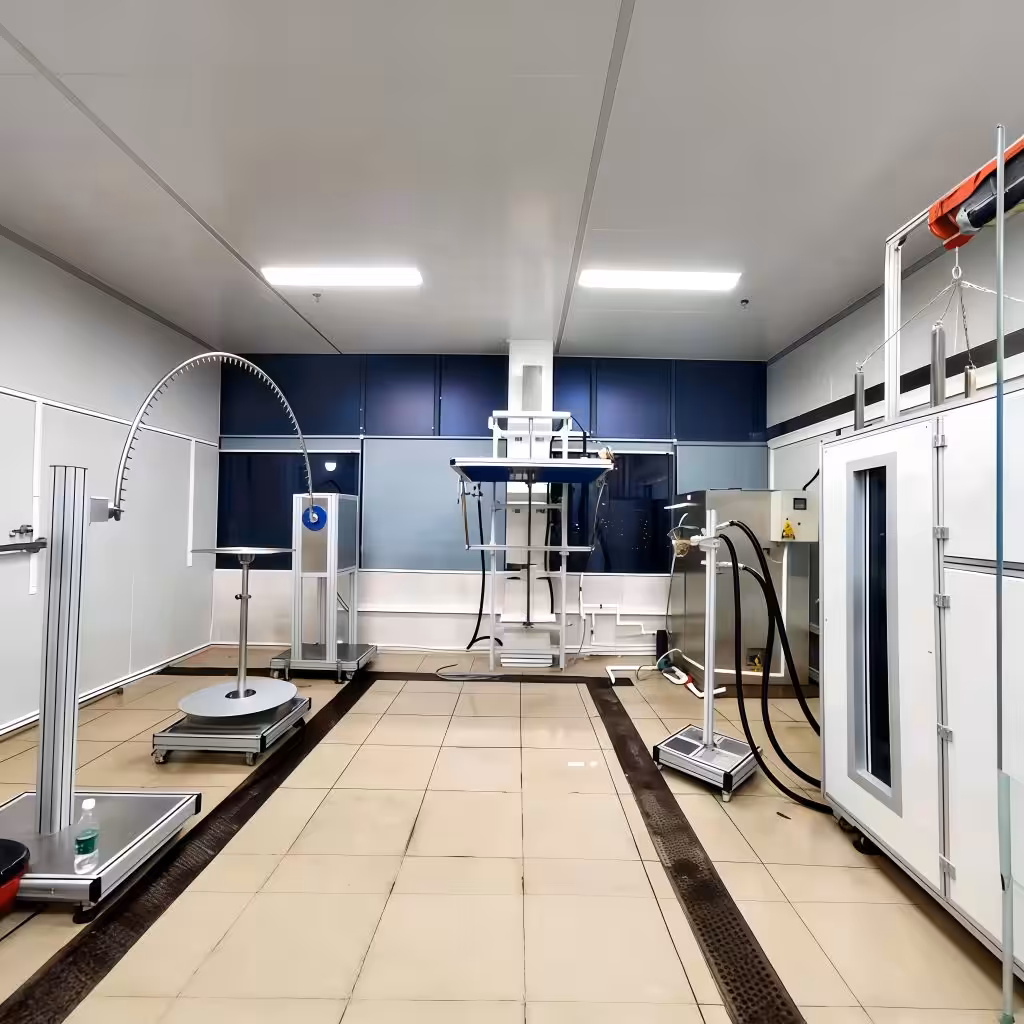

IP Testing Equipment is short for ingress protection testing equipment. They consist of a series of devices used to assess the extent of protection of persons against access to hazardous parts inside the enclosure and protection of the equipment inside the enclosure against ingress of solid foreign objects and (or) against ingress of water.

The IP code indicates the degree of protection provided by an enclosure. Different letters and numerals following the “IP” represent different protection levels. The access probes, object probes, dust chamber and waterproof test equipment, constitute the IP testing equipment. The probes are used to test the protection ability of persons or equipment indicated by the numerals and additional letters in the first and third positions after the “IP”. The dust chamber is suitable for testing the dust-proof ability of the enclosure indicated by the first numeral. The waterproof test equipment is used to test the waterproof performance of the enclosure indicated by the second numeral.

KingPo is an Ingress protection test equipment manufacturer and supplier in China. We are available to supply a complete set of IP test equipment in compliance with IEC 60529, ISO 20653 and DIN 40050-9. The following content will help you learn more about test equipment and IP testing.

IP1X Access Probe A – Test Sphere

The rigid sphere of 50 mm in diameter is made of metal.
The handle of 100 mm in length and 10 mm in diameter is made of insulating material.
Fitted with a guard of 45 mm in diameter and 4 mm in thickness.
Configured with a self-measuring scale for the test force of 50 N if required.

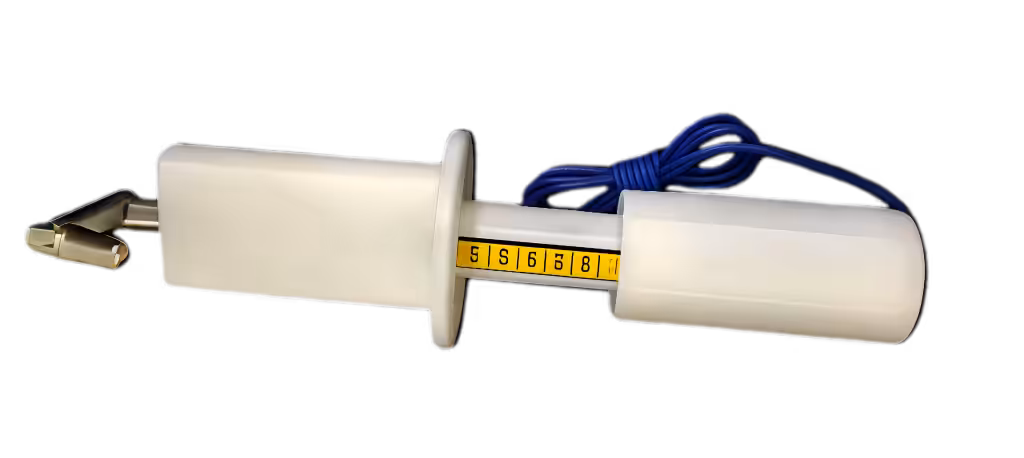

IP2X Access Probe B – Jointed Test Finger

Made of metal and insulating material.
Simulation of a human finger with 2 joints.
Finger length of 80 mm and diameter of 12 mm.
Both joints can move in the same plane and in the same direction through an angle of 90°.
100 mm from the stop face to the guard of 75 mm in diameter and (5±0.5) mm in thickness.
Configured with a self-measuring scale for the test force of 10 N if required.

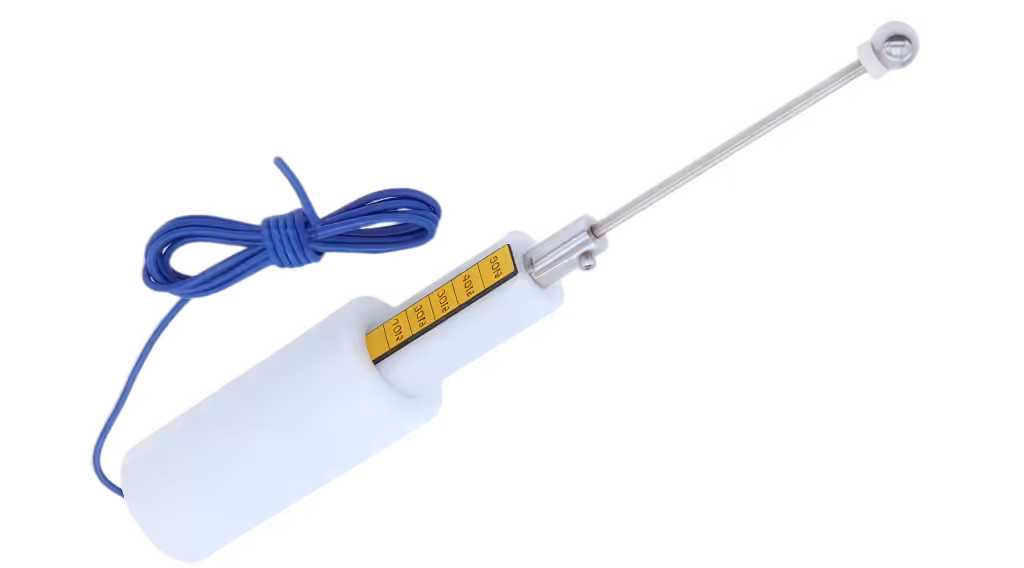

IP2X Object Probe Sphere

Made of metal (for sphere) and insulating material (for handle and guard).
Rigid sphere of 12.5 mm in diameter, handle of 100 mm in length and 4 mm in diameter.
Guard of 10 mm in diameter and 4 mm in thickness.
Configured with a self-measuring scale for the test force of 30 N if required.
Complies with DIN 40050-9.

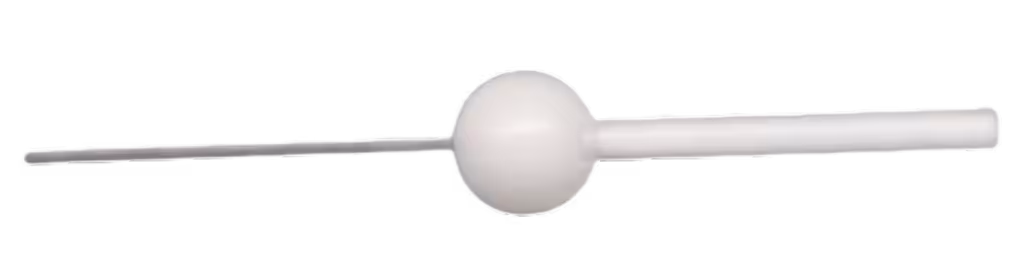

IP3X Access Probe C – Test Rod

Made up of the rigid test rod, sphere and handle in a straight line.
The metal rod is 100 mm in length and 2.5 mm in diameter, and the rod edges are without burrs.
The material of the sphere of 35 mm in diameter and the handle of 100 mm in length and 10 mm in diameter is the insulating material.
Configured with a self-measuring scale for the test force of 3 N if required.

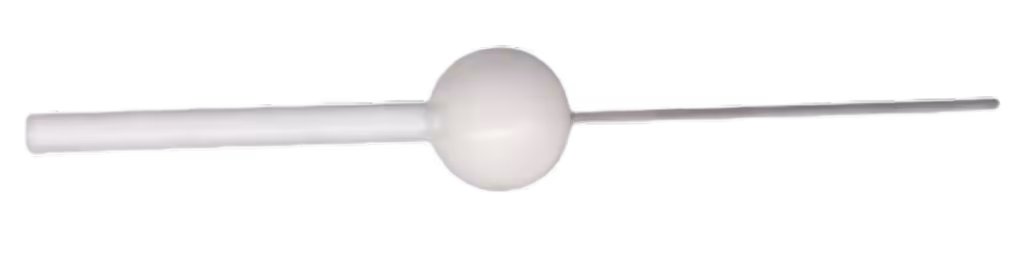

IP4X Access Probe D – Test Wire

A rigid test wire and a handle are arranged on either side of the 35 mm diameter sphere to form a straight line.
The wire edges are free from burrs.
The rigid wire of 1.0 mm in diameter and 100 mm in length.
The handle of 10 mm in diameter and 100 mm in length is an insulating material.
Configured with a self-measuring scale for the test force of 1 N if required.

IP5X/IP6X & IP5KX/IP6KX Dust Chamber

Used for dust-protected and dust-tight testing.
The inner chamber surface is mirror stainless steel to prevent dust adhesion.
A funnel-shaped bottom inside the chamber to facilitate collecting the falling dust for reuse.
A powder circulation pump keeps the powder in suspension throughout the test.
A piece of glass and dust wiper is equipped for better observation from the outside during the test.
Fitted with a heating apparatus to heat the chamber to prevent dust from caking during testing.
The temperature and humidity in the chamber are collected in real-time.
Test temperature and airflow rate are adjustable to achieve uniform distribution of the dust.
Configured with a set of the vacuum system for the sample if required.
The sample is allowed to be energized if required.
Fitted with a PLC and 7” touch screen for automatic control, parameter settings and real-time data presentation.
The chamber size is tailored to practical requirements.

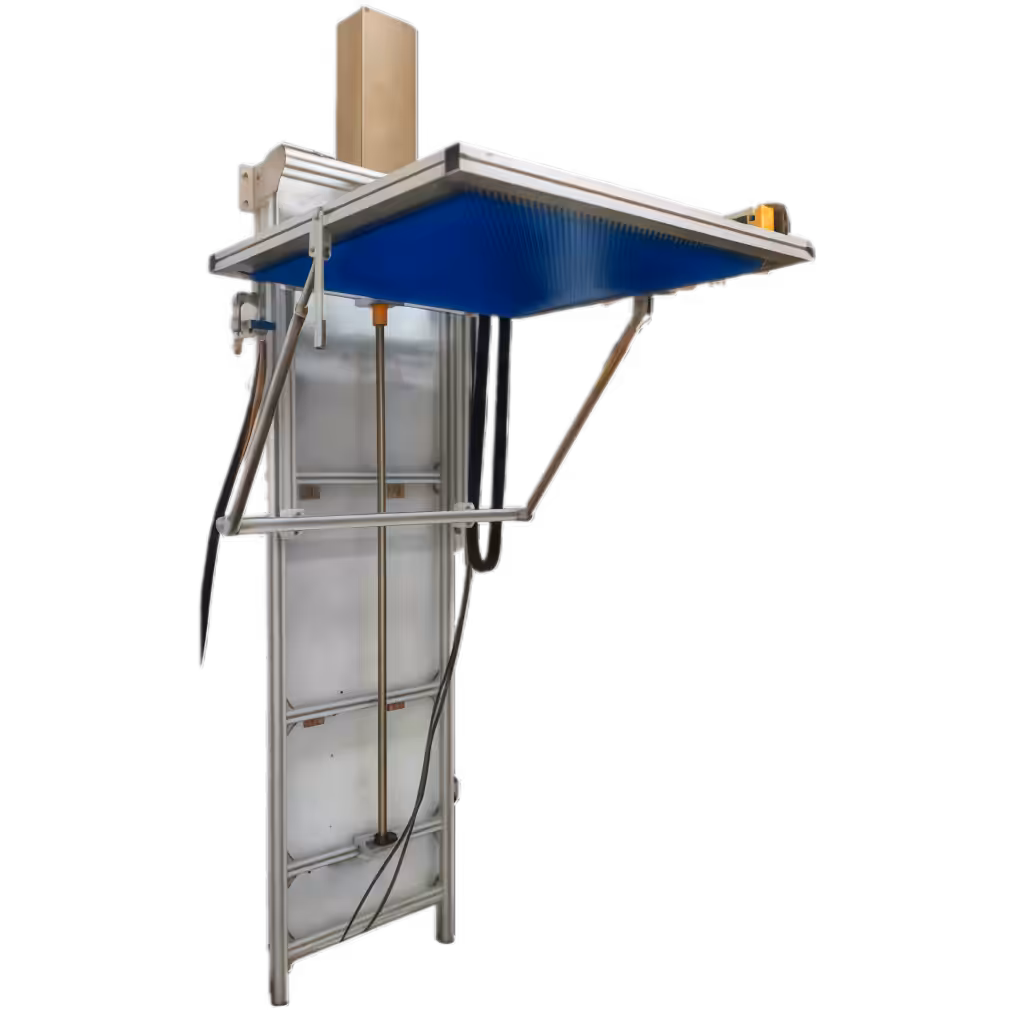

IPX1 & IPX2 Drip Test Equipment

For assessing the protection against vertically falling water drops.
Box-type drip test chamber & open-type drip apparatus available.
Artificial raindrops are provided over the specimen by dripping needles spaced 20 mm apart from each other.
Water flow rate of (1 + 0.5) mm/min for IPX1 & (3 + 0.5) mm/min for IPX2.
The turntable is rotatable and inclinable by 15 degrees.
Fitted with a touch screen and PLC for data input, display, and automatic control

.

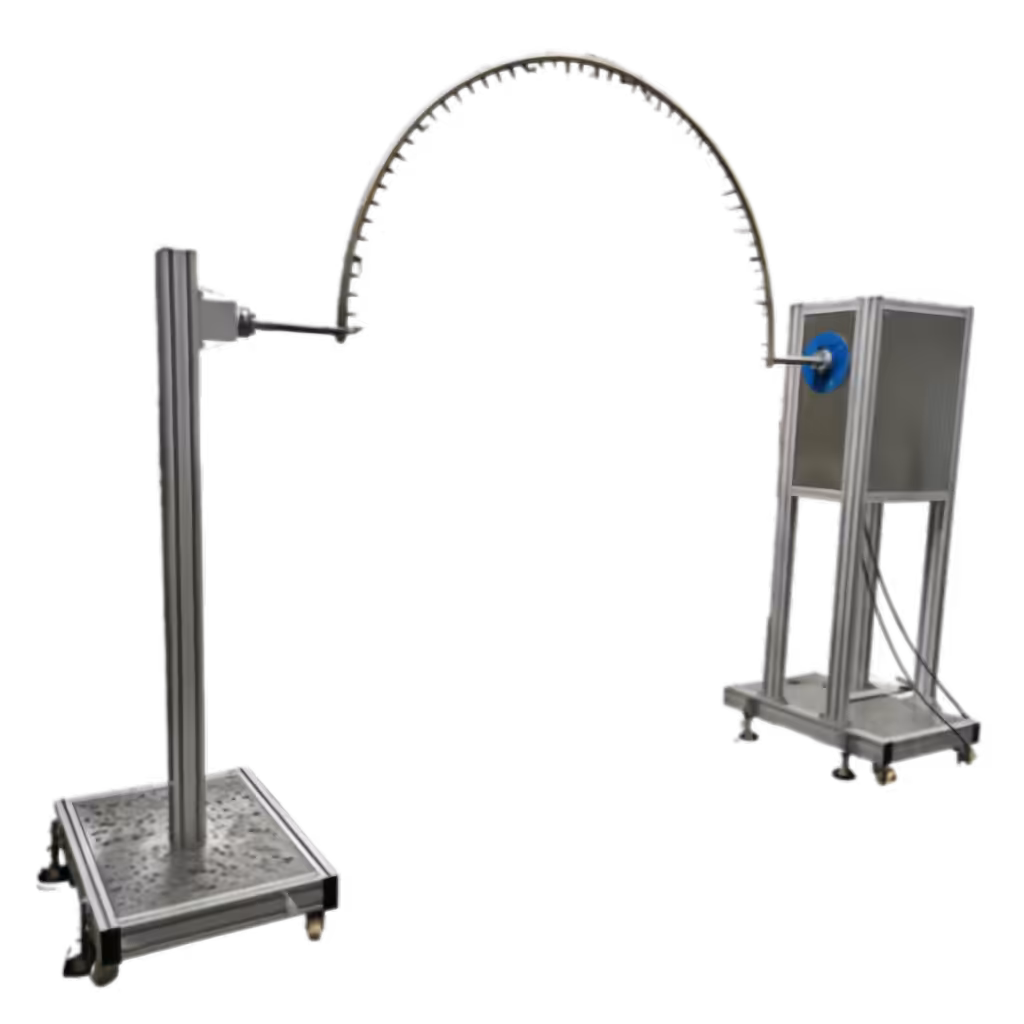

IPX3/4/4K Water Spraying & Splashing Test Equipment

For determining the protection against splash water and water spray.
Box-type spray/splash test chamber & open-type spray/splash test apparatus available.
Allows configuration of oscillating tubes of different radii.
The oscillating tube can spray ±60° from vertical for IPX3 testing and spray ± 180° from vertical for IPX4 testing.
The water flow rate is adjustable.
The turntable is rotatable.
Fitted with a touch screen and PLC for data input, display, and automatic control.

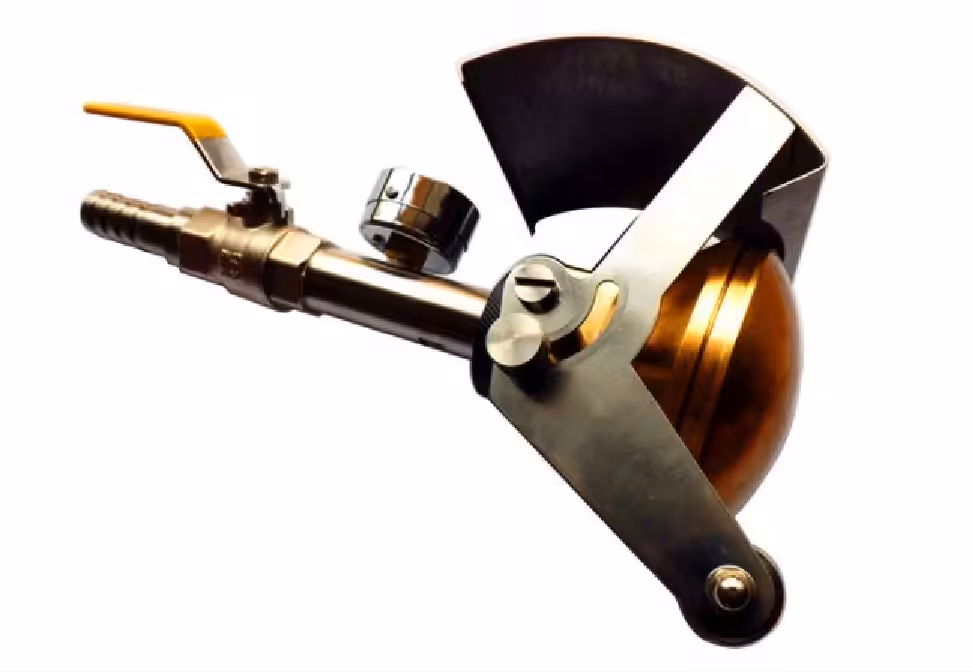

IPX3/IPX4 Hand-held Spray Nozzle

Used for carrying out the IPX/4 water ingress protection test on specimens which can’t be thoroughly wet using the swivel tube.
The spray nozzle is made of brass and 304 stainless steel.
Full manual control enables you to wet every part of the enclosure under test.
The nozzle contains 121 holes with a diameter of 0.5 mm.
The required pressure is from 50 kPa to 150 kPa.
Comes with a pressure gauge and ball valve, and an electronic flowmeter is allowed to be added if required.
The shield shall be in place for the IPX3 test and be removed from the spherical area for the IPX4 test.

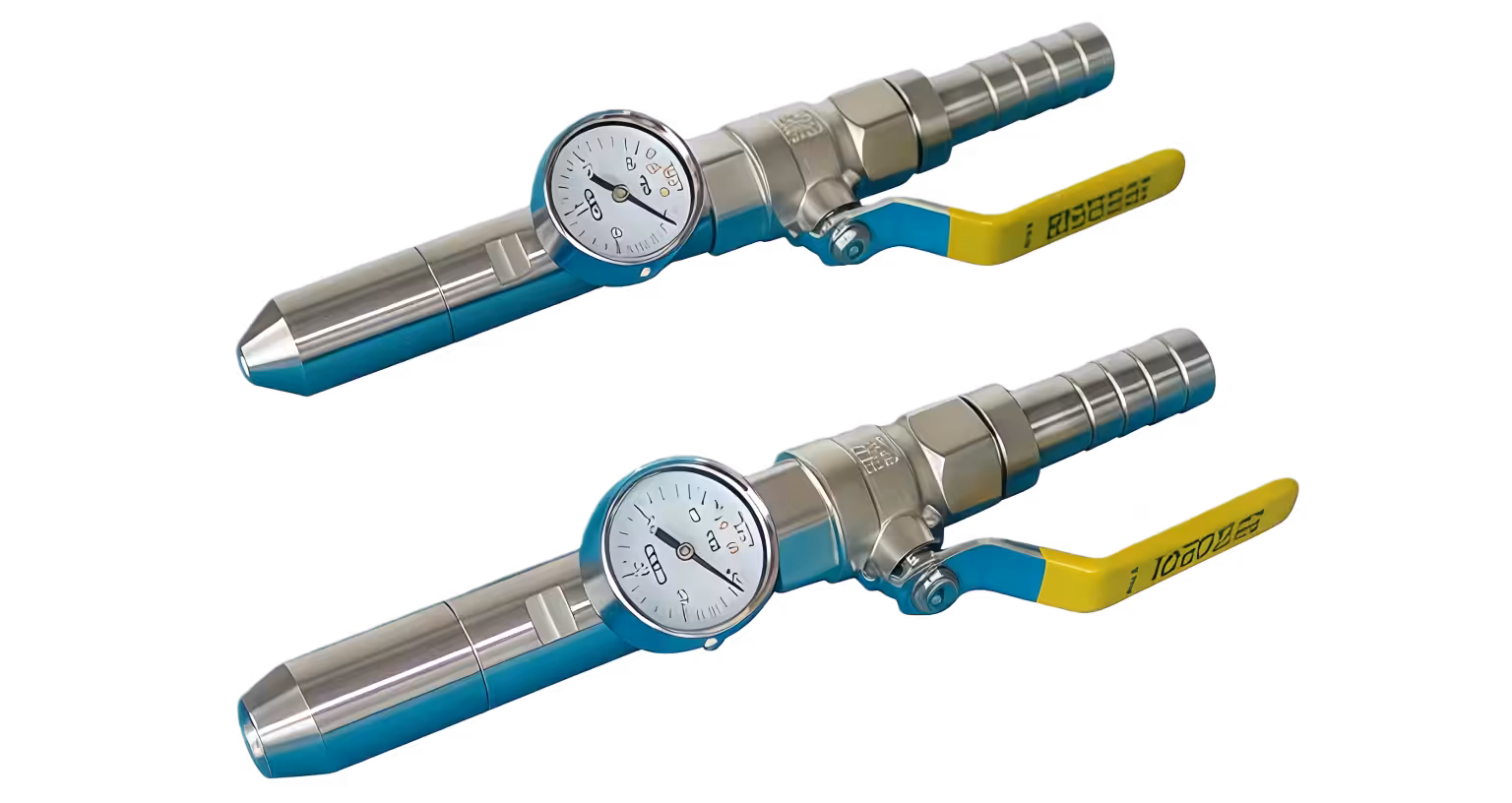

IPX5/6/6K Water Jetting Test Equipment

For determining the protection against high-velocity water jets.
Box-type water jet test chamber & open-type water jet test device available.
Fitted with 2 nozzles of 6.3 mm diameter for IPX5/6K, and 12.5 mm diameter for IPX6.
The turntable is rotatable at a set speed.
The nozzle can swing up and down automatically as needed.
PLC and touch screen as control unit to enable easier control and automatic operation.

IPX1 ~ IPX7 Combined Test Chamber

6-in-1 comprehensive waterproof test equipment.
IPX1-IPX2-IPX3-IPX4-IPX5-IPX6 test apparatues are integrated into the one chamber.
Allows for flexible configurations of different test items.
The chamber size can be customized in accordance with your samples.
The turntable is rotatable at a set speed.
The nozzle can swing up and down automatically as needed.
PLC and touch screen as control unit to enable easier control and automatic operation.

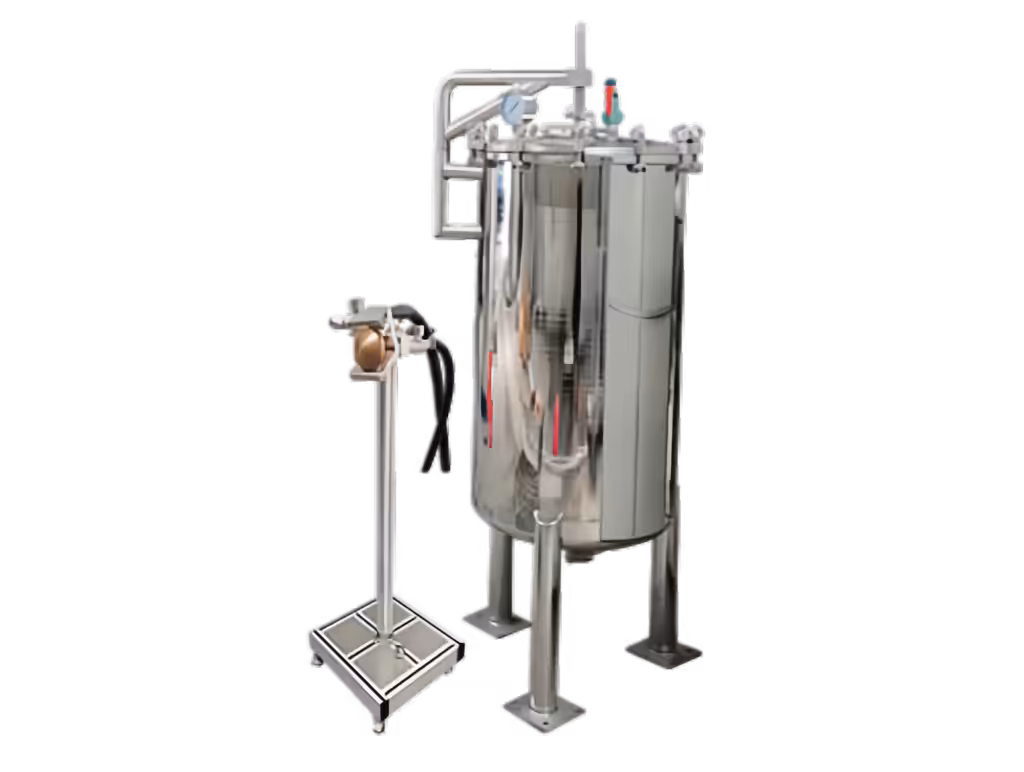

IPX7/IPX8 Water Immersion Test Equipment

Suitable for IPX7 temporary and IPX8 continuous immersion testing in water under a specified pressure.
IPX7 test equipment is provided with an electric hoist to allow the sample to move up and down in the water under control.
Part of the shell of the IPX7 tank is made of thickened tempered glass, facilitating you to observe the specimen’s position, height, and state during testing.
IPX8 tank features a sealed container with a pressurization function, which can simulate a pressure environment with a maximum water depth of 50 meters.

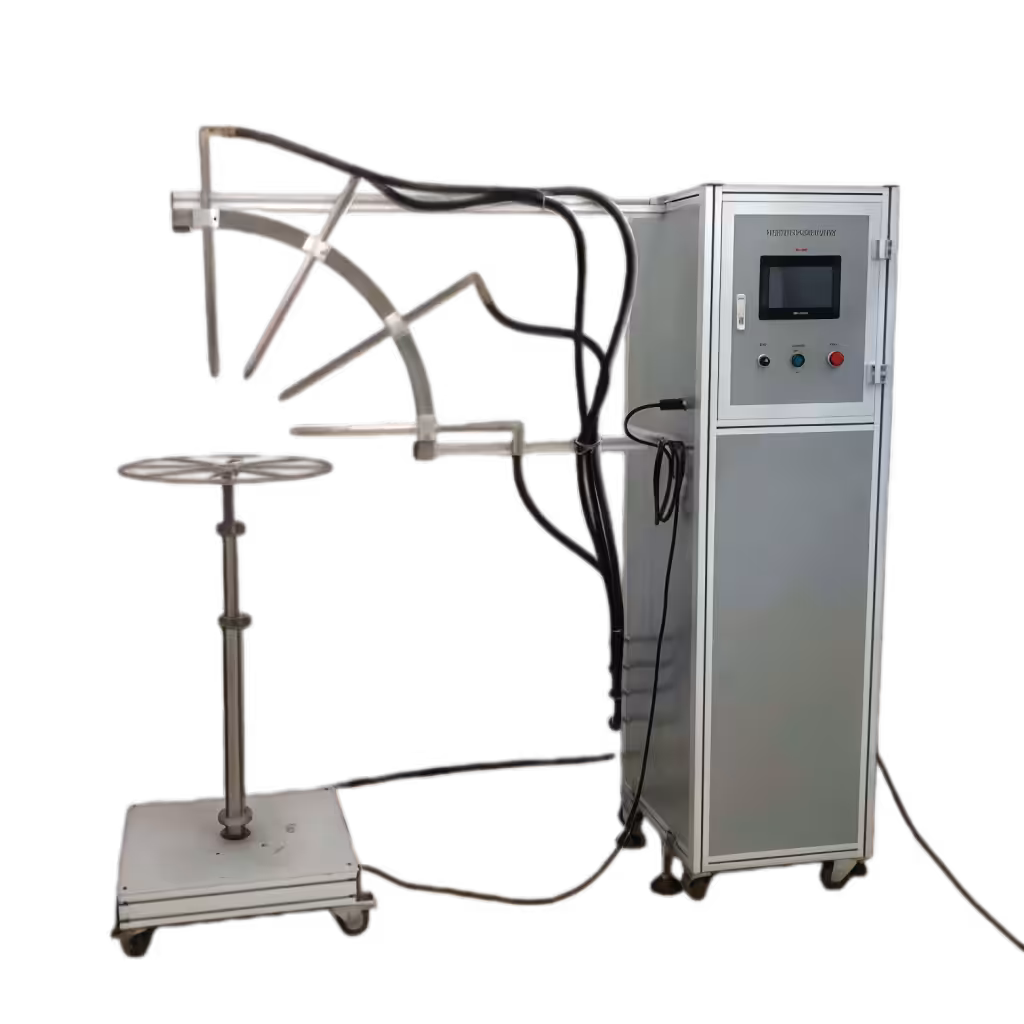

IPX9/IPX9K Water Spray Test Chamber

Used for determining the protection against high pressure and temperature water jets.
Fitted with 4 fan jet nozzles inside the chamber to spray the sample at 0°, 30°, 60°, and 90°.
The water flow rate of 14 ~ 16 L/min under the pressure of 8000 ~ 10000 kPa is provided.
The water can be heated and remain at (80 ± 5) degrees centigrade.
The turntable is rotatable.
Fitted with a PLC and 7” touch screen for parameter settings, intelligent control, and real-time data presentation.
The chamber specification can be tailored to different specimens.

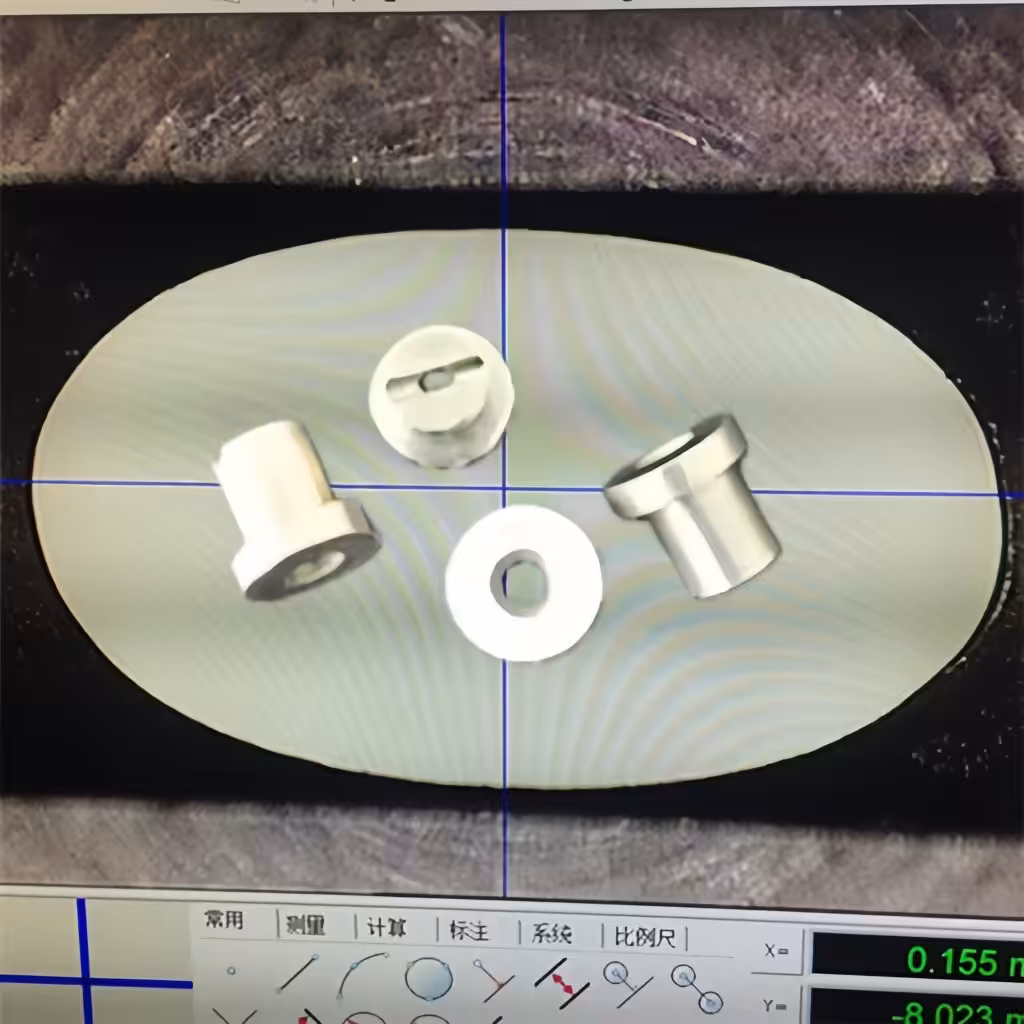

IPX9K-Nozzle according to IEC60529

IEC 60529 Figure 7 – Fan jet nozzle dimensions

Nozzle size details

According to Figure 7–Fan jet nozzle dimension and Figure 8–Fan jet nozzle resulting dimensions of spraying hole for checking purpose in the IEC 60529 standard, the specific size requirements of the nozzle are as follows:

Nozzle radius:
- R0.75±0.01 mm
- R1.5±0.005 mm
Other nozzle sizes:
- 8±0.01 mm
- 9.69±0.01 mm
Nozzle diameter:
- 3±0.01 mm
- 2.34±0.06 mm
Total nozzle length:
- 13.33±0.04 mm

ISO 16750-4 Figure 4 Stainless Steel Test Set – Up For Splash Water Test Jet

Purpose:

This test simulates the exposure of the component to splash water as it occurs when driving through puddles.

The test is intended to verify the function of the component when exposed to abrupt cooling by means of water.

Test:

Operating mode of DUT:

If the component is not operated with operating load in driving mode:

II.a during the entire test

If the component is operated with operating load in driving mode:

Intermitting II.a and II.c during working condition driving

Test procedure:

Heating of DUT to test temperature.

This is followed by the cyclic splashing of the DUT as per Figure 35.

The DUT shall be splashed over its entire width.

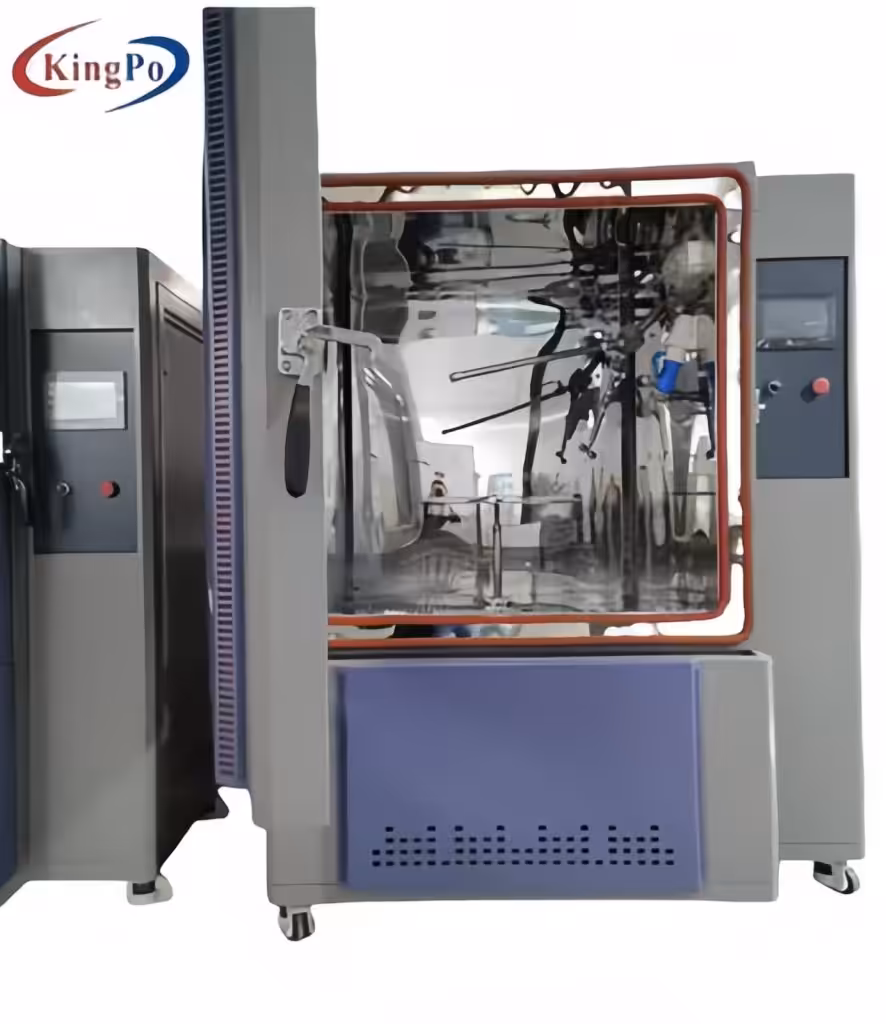

JIS D 0203 Rain Test Equipment

Product Description

The JIS D 0203 R1 R2 S1 S2 rain test equipment is engineered to comply with JIS D 0203-1994 standards, specifically designed for conducting four distinct test types (R1, R2, S1, S2) as specified in “Test Methods for Moisture and Water Resistance of Automotive Parts.” This precision instrument ensures automotive components meet rigorous moisture and water resistance standards.

Technical Specifications

Test water temperature: room temperature
Working chamber dimensions: 1000×1000×1000mm
Perforated steel turntable with 50 kg load capacity
Construction: SUS304 stainless steel inner chamber with powder-coated exterior
Glass observation window for test monitoring
40 water spray nozzles compliant with S1/S2 requirements
Water supply pipe shaft angle: 45° from horizontal
Rotational speeds: water pipe shaft (23r/min), sample stage (17r/min)
Water spray flow rates: R1 (1.9L/min), R2 (3.2L/min), S1 (24.5L/min), S2 (39.2L/min)
Water spray pressures: R1 (0.01Mpa), R2 (0.03Mpa), S1 (0.10Mpa), S2 (0.30Mpa)
Programmable test duration: 0-9999 minutes 99 seconds
Nozzle-to-sample distance: 400mm
Control system: PLC with 7-inch color touchscreen interface
Protection features: earth leakage, overload, and short-circuit protection

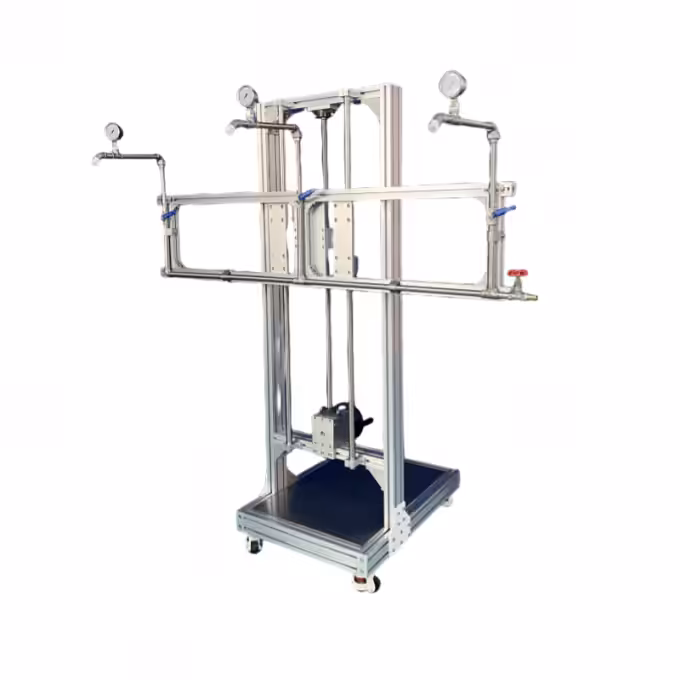

UL Waterproof Test Apparatuses

Conforms to UL waterproof standards.
Consists of rain test apparatus and sprinkler test apparatus.
The frame is made of aluminum alloy.
3 spray heads are arranged at 45 degrees from the vertical.
The spray heads are original from UL.

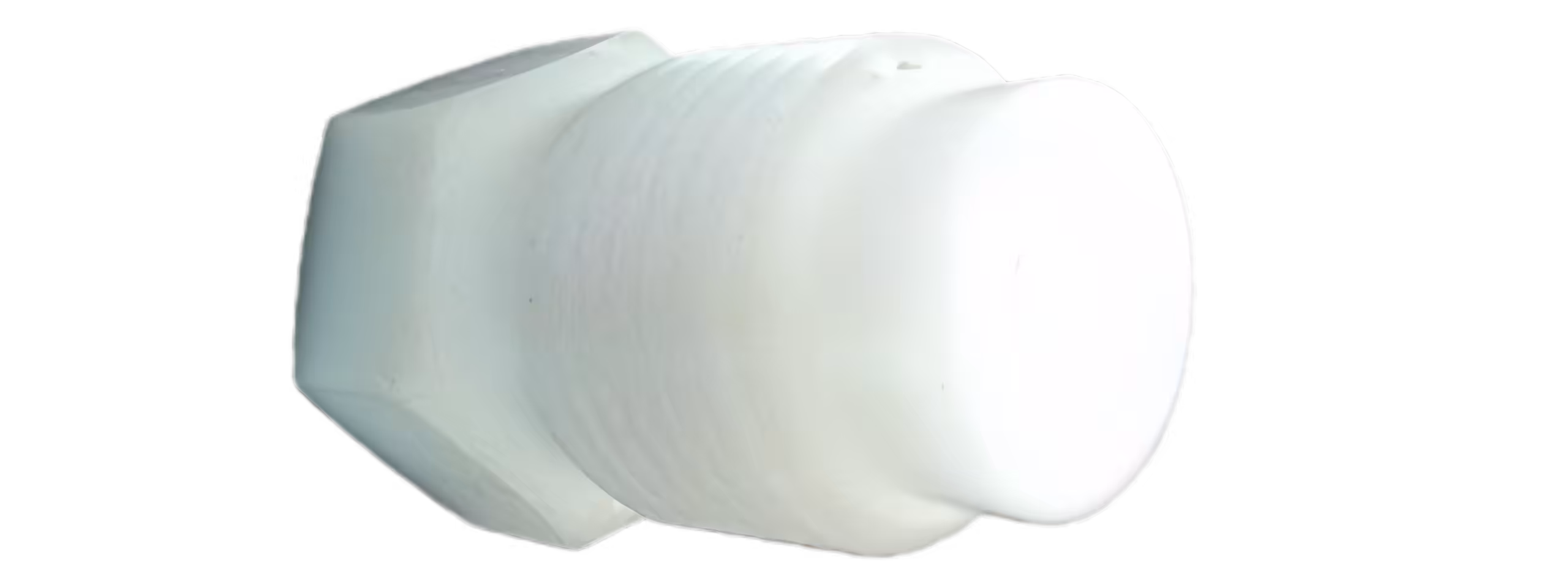

UL Rain Test Water Spray Nozzle

How to choose the right IP Test Chamber for your laboratory?

When selecting an IP waterproof testing system, consider the specific ingress protection level required. For instance, our IPX5/6 Jet Nozzle testers are ideal for simulating heavy seas or powerful water jets, while the IPX7/8 Immersion Tanks are essential for products designed for continuous underwater use. Kingpo’s modular design allows labs to scale from basic drip boxes (IPX1/2) to high-pressure steam jet chambers (IPX9K) within one integrated ecosystem.

What Is the IPX Waterproof Rating Chart?

The IPX Waterproof rating chart summarizes the waterproof protection ability of the casing to its internal equipment under different waterproof grades from IPX1 to IPX9K. The larger the value, the more severe the requirements for the waterproof level. Specific IPX rating descriptions are described in the table below. You can choose the corresponding test items according to the waterproof requirements you want to achieve.

The IPX rating table are as below:

IPX Code	Degree of Protection
IPX0	None
IPX1	Protect the equipment inside the enclosure against vertical water drips
IPX2	Protect the equipment against vertical water drips with the enclosure inclined by 15° in four directions, respectively
IPX3	Protect the equipment inside the enclosure against spraying water
IPX4	Protect the equipment inside the enclosure against splashing water
IPX4K	Protect the equipment inside the enclosure against splashing water with increased pressure
IPX5	Protect the equipment inside the enclosure against water jets
IPX6	Protect the equipment inside the enclosure against strong water jets
IPX6K	Protect the equipment inside the enclosure against strong water jets with increased pressure
IPX7	Protect the equipment inside the enclosure against the effects of temporary immersion in water
IPX8	Protect the equipment inside the enclosure against the effects of continuous immersion in water under conditions agreed upon by the interested parties
IPX9/IPX9K	Protect the equipment inside the enclosure against high pressure and high temperature water jets

Frequently Asked Questions

What is IP testing equipment and what types does KingPo offer?

IP testing equipment, also known as ingress protection test equipment, evaluates a product's resistance to solid objects and water ingress per IEC 60529, ISO 20653, and other standards. KingPo provides a full range including IPX1–IPX2 drip test devices, IPX3/IPX4 oscillating tube and handheld spray nozzles (121 × 0.5mm holes), IPX5/IPX6/IPX6K water jet nozzles (6.3mm and 12.5mm diameters), IPX7/IPX8 immersion tanks, IPX9/IPX9K high-pressure/high-temperature spray chambers (4 fan jet nozzles), dust chambers (IP5X/IP6X), and multi-function combined chambers for efficient lab testing in electronics, automotive, and lighting industries.

What is the IPX9K test and which products require it?

The IPX9K test is the highest-level waterproof rating, exposing products to high-pressure (80–100 bar), high-temperature (80 ± 5°C) water jets at 14–16 L/min using 4 fan-shaped nozzles (per IEC 60529 Figure 7 specs: nozzle radius R0.75 ± 0.01 mm, diameter 3 ± 0.01 mm, etc.). It simulates extreme cleaning conditions like industrial pressure washers. KingPo’s IPX9/IPX9K spray test chamber is ideal for automotive headlights, sensors, connectors, and road vehicle components requiring superior heat and pressure resistance.

What is the difference between IPX7 and IPX8 immersion testing?

IPX7 tests temporary immersion (typically 1m depth for 30 minutes) and suits consumer devices like smartphones and wearables. IPX8 requires continuous immersion at greater depths/times specified by the manufacturer, demanding higher sealing performance. KingPo offers IPX7/IPX8 tanks with electric hoists, thick tempered glass windows (for IPX7), high-pressure sealed vessels (up to 50m equivalent depth for IPX8), PLC touchscreen control, and precise timing for reliable, standards-compliant results.

How to choose the right KingPo IP waterproof testing equipment?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.Select based on your required IP rating: IPX1–IPX2 use drip equipment; IPX3–IPX4 use oscillating tubes or handheld nozzles (0.5mm holes); IPX5–IPX6 use jet nozzles (6.3mm/12.5mm); IPX7–IPX8 use immersion tanks; IPX9/IPX9K use high-pressure/hot spray chambers. KingPo provides open-type, enclosed, and 6-in-1 combined chambers with PLC + 7" touchscreen, adjustable flow/pressure, safety interlocks, and customization options—perfect for high-volume testing in electronics, automotive, and lighting sectors.

Why is KingPo’s core spray nozzle design widely adopted by industry leaders?

KingPo’s core spray nozzles, especially the IPX5/IPX6/IPX6K water jet nozzles (standard 6.3mm diameter for IPX5 & IPX6K, 12.5mm for IPX6 per IEC 60529), deliver precise flow rates (12.5 ± 0.625 L/min or 100 ± 5 L/min) and pressure control. This proven, standards-compliant design has been adopted by multiple major competitors and industry giants such as ESPEC, WESS, and others for their rain/spray test chambers, ensuring consistent, reliable waterproof performance verification across global labs and manufacturers.
