High-Accuracy Laser Testing Equipment โ IEC 60825-1-2-12 Beam Profiling & Power Measurement System
- Standard Compliance: IEC 60825-1-2-12 โ laser testing equipment for safety and performance validation

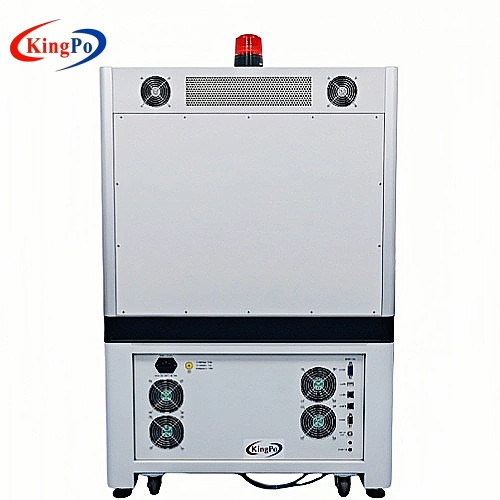

- Power Measurement: Centuari True RMS Power Meter Head with 10000 Hz recording and dual-function optical power/energy module

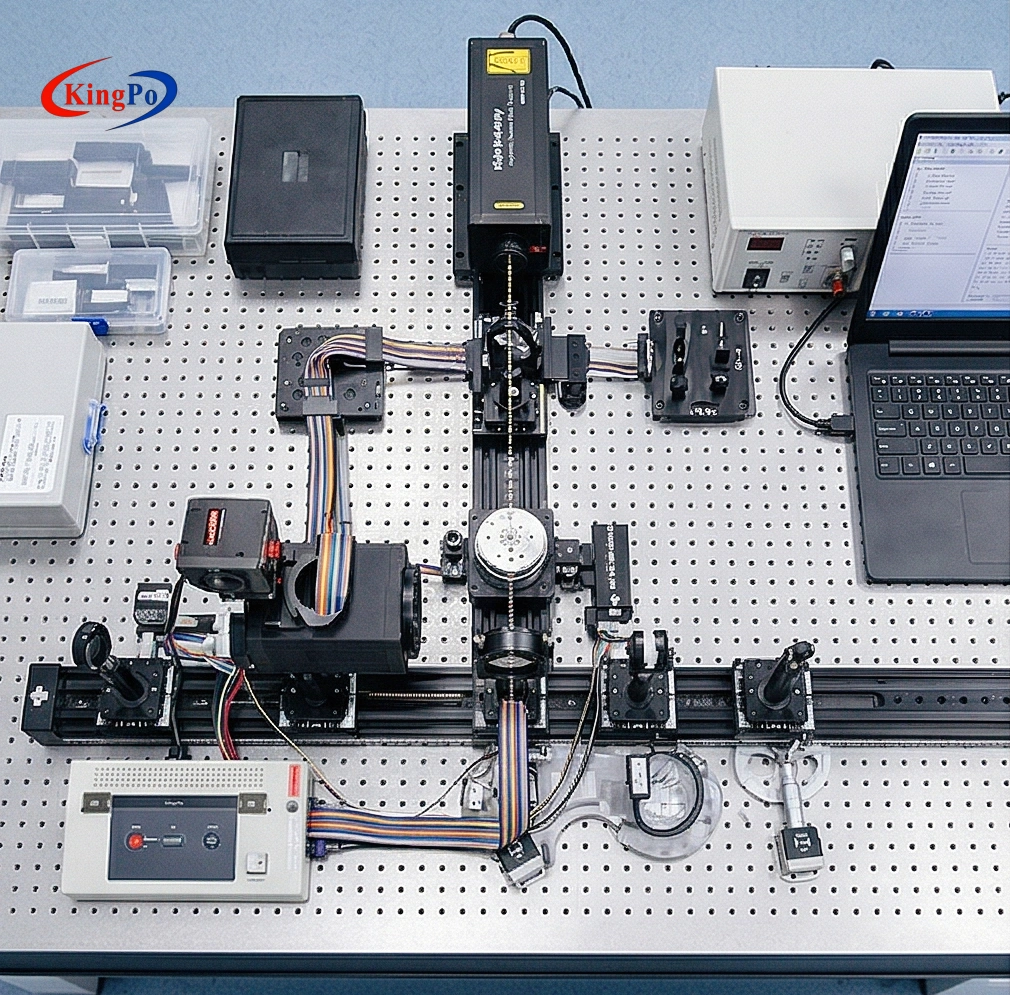

- Beam Profiling: BGS-USB3-SP932U Laser Beam Profiler for 2D/3D visualization, centroid dynamics and beam diameter analysis
- Energy Probes: PE10-C / PE25-C fast high-sensitivity probes with 0.15โ12 ฮผm range and up to 25 KHz response
- Opto-Mechanical: Motorized linear/rotary/lift stages, integrating sphere, attenuators and miniature spectrometer for full beam control
- MOQ: 1
- Delivery Period: 3 weeks
Laser Testing Equipment Description
Laser Testing Equipment โ IEC 60825-1-2-12 High-Accuracy Laser Cutting Engraving Marking System

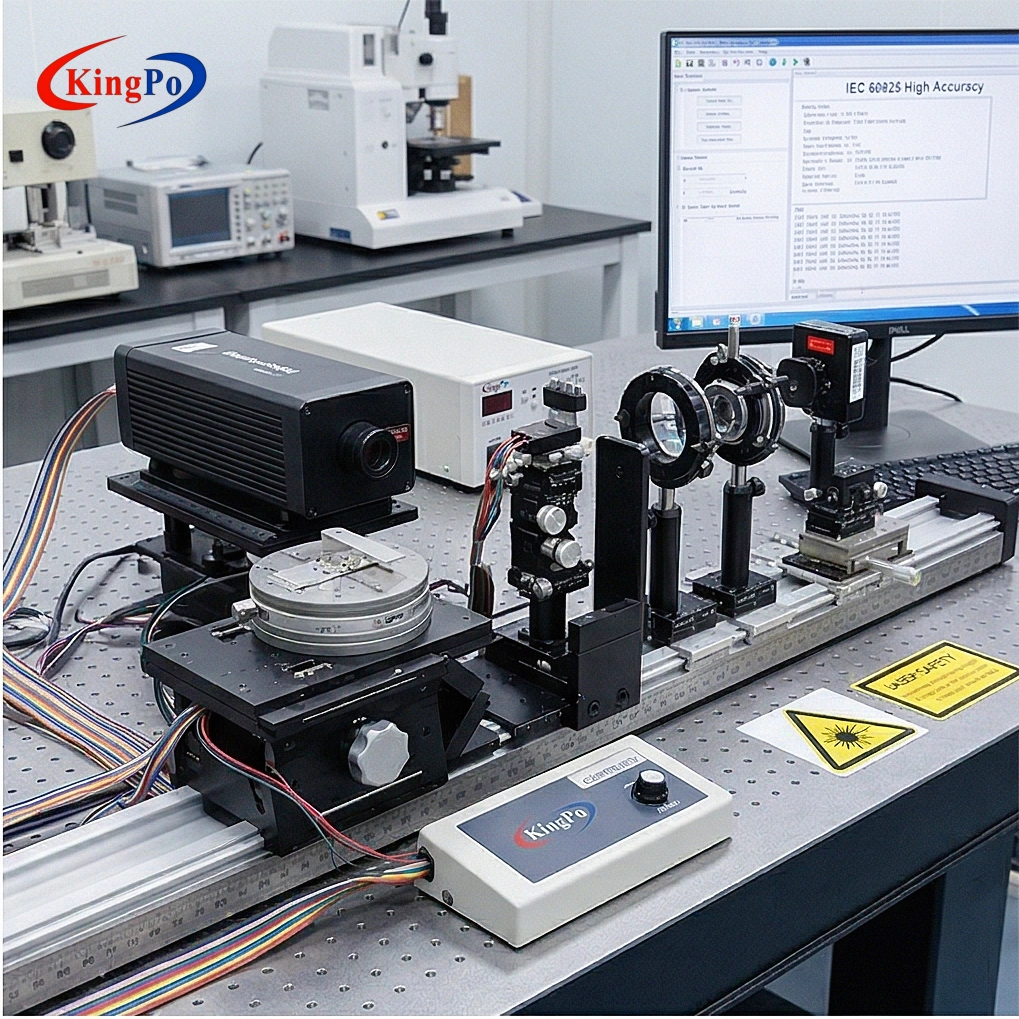

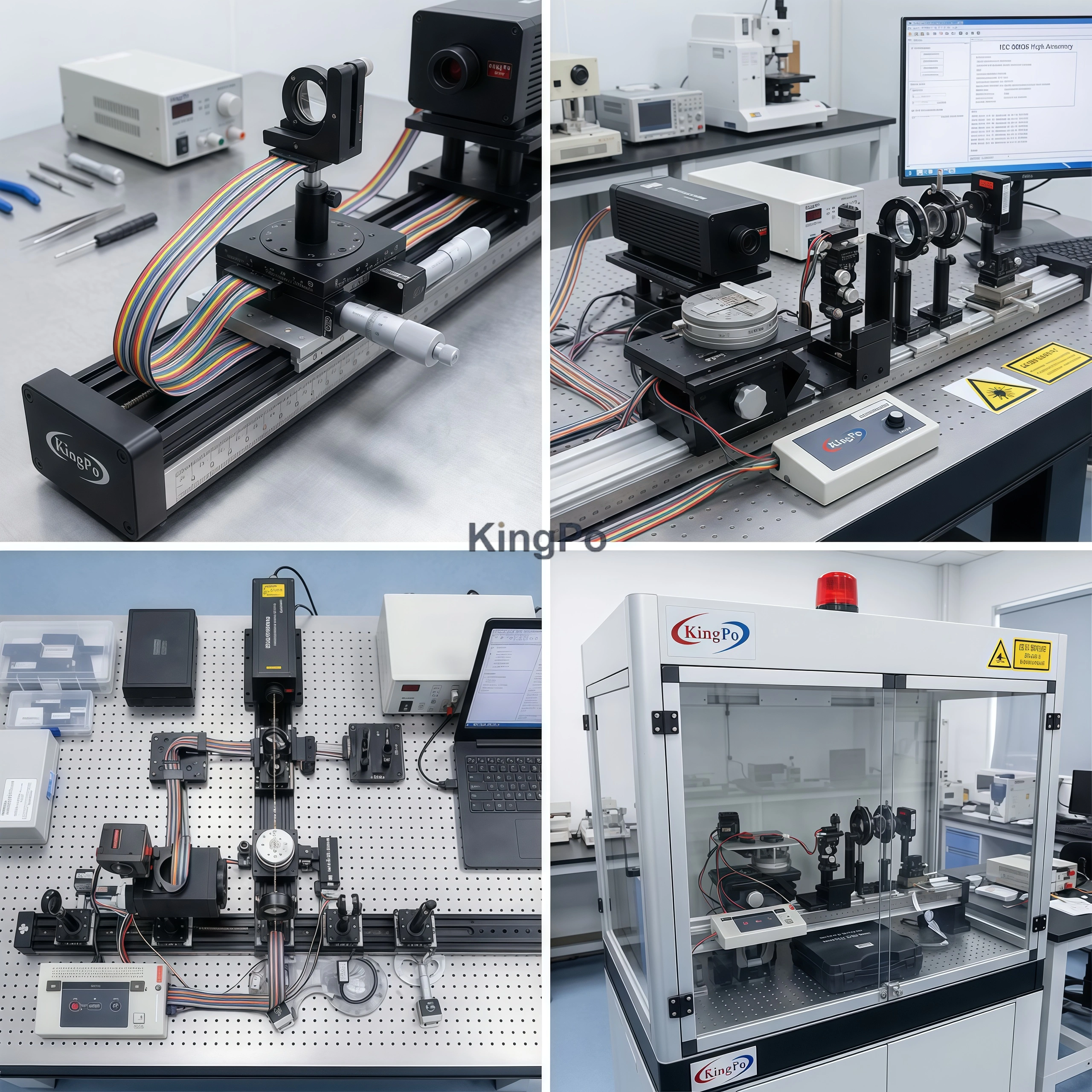

The Laser Testing Equipment is a state-of-the-art precision measurement system developed by KingPo to support high-accuracy laser cutting, engraving, and marking applications while fully complying with IEC 60825-1-2-12 safety standards. This laser testing equipment integrates advanced optical and metrology components, including the Centuari True RMS Power Meter Head (10000 Hz recording, dual-function power/energy measurement), BGS-USB3-SP932U Laser Beam Profiler (2048ร1536 pixels, 350โ1100 nm range), and fast energy probes (PE10-C / PE25-C) for comprehensive characterization of beam profile, power, energy, and spectral properties.
KingPo Factory Advantages
KingPo is an ISO9001 and ISO 17025 accredited manufacturer with over 15 years of experience in laser safety and precision testing equipment. We have delivered multiple IEC 60825-1-2-12 laser testing systems to manufacturers and labs in China, Europe, and Asia since 2022. All equipment includes ISO 17025 calibration certificates, on-site installation guidance, 1-year warranty (excluding consumables), and 48-hour response support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- Power Meter: Centuari module with 10000 Hz recording, RS232/GPIB/Ethernet interface, and functions like power/energy density, fill factor, baseline normalization
- Beam Profiler: BGS-USB3-SP932U with 3.45 ฮผm pixel size, 350โ1100 nm range, for 2D/3D profile, centroid dynamics, ellipticity, and beam diameter measurement
- Energy Probes: PE10-C (2 ฮผJโ10 mJ, 25 KHz max) and PE25-C (8 ฮผJโ10 J, 10 KHz max) with 0.15โ12 ฮผm response and high damage threshold

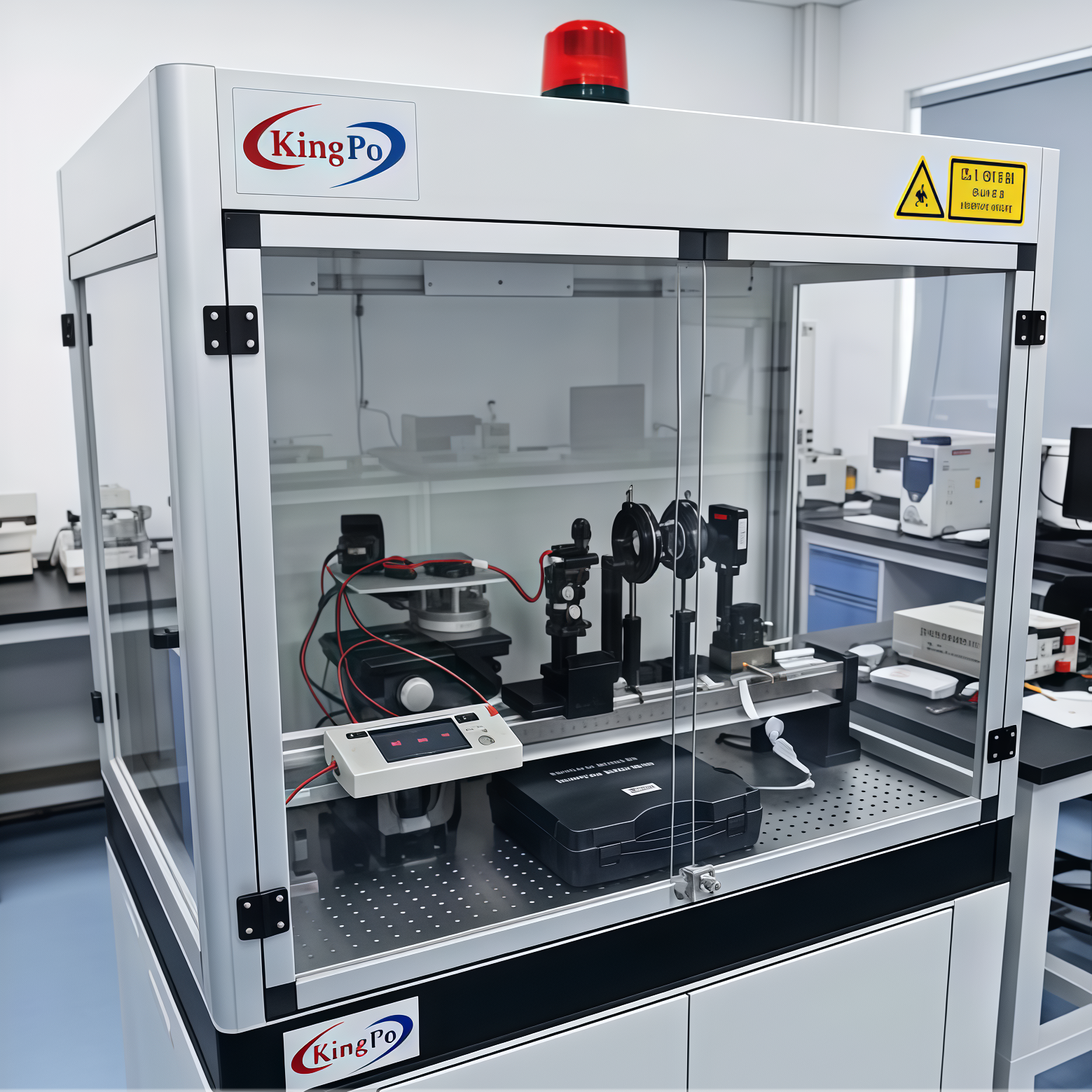

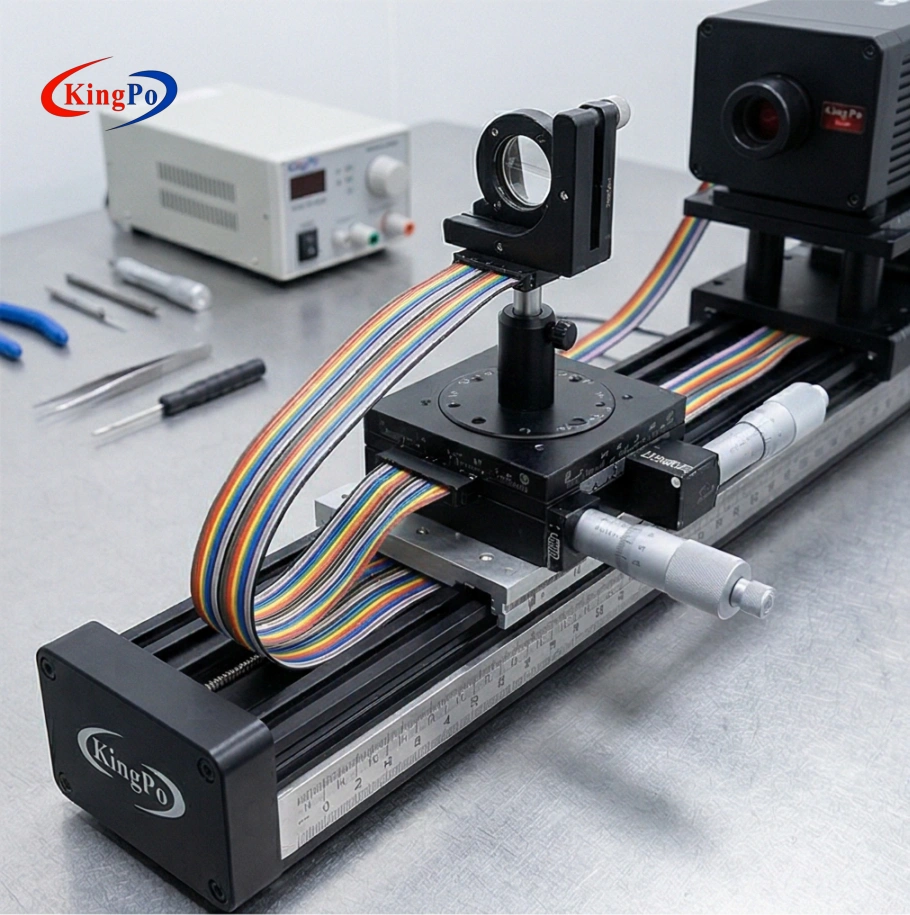

- Opto-Mechanical: Motorized linear/rotary/lift stages, manual rotation stages, integrating sphere (IS6-D-VIS), and attenuators (SAM-BB-V1) for beam control
- Spectrometer: SGM2020-VNIR miniature spectrometer (350โ1020 nm, 1.9 nm resolution) for spectral measurement of laser/LED sources
- Safety & Integration: Compliant with IEC 60825-1-2-12, supports large divergence angles and high-LIDT components
These elements ensure high accuracy and safety in laser applications.
Technical Parameters
Power, Energy and Beam Measurement Instruments
| No. | Product Model | Technical Index |
|---|---|---|
| 1 | Centuari Power Meter Head | True Absolute RMS, 10000 Hz recording, dual-function power/energy module |
| 2 | PD300-UV Power Meter Probe | 200-1100 nm, 10 mm aperture, 20 pWโ300 mW |
| 3 | PD300-IR Power Meter Probe | 700-1800 nm, 5 mm aperture, 5 nWโ300 mW |
| 4 | 3A Power Meter Probe | 0.19-20 ฮผm, 9.5 mm aperture, 10 ฮผWโ3 W |
| 5 | 50(150)A-BB-26-V1 Power Meter Probe | 0.19-20 ฮผm, 26 mm aperture, 40 mWโ150 mW |
| 6 | PE10-C Fast Energy Meter Probe | 0.15-12 ฮผm, ฯ12 mm, 2 ฮผJโ10 mJ, 25 KHz max |
| 7 | PE25-C Fast Energy Meter Probe | 0.15-3.0 ฮผm, ฯ24 mm, 8 ฮผJโ10 J, 10 KHz max |
| 8 | IS6-D-VIS-V1 Integrating Sphere | 0.4โ1.1 ฮผm, 20 ฮผWโ30 W, ยฑ60ยฐ divergence |
| 9 | FPS-1 Fast Photodetector Probe | 193-1100 nm, 1.5 ns rise time, 233 MHz bandwidth |
| 10 | BGS-USB3-SP932U Laser Beam Profiler | 350-1100 nm, 2048ร1536 pixels, 34.5 ฮผmโ5.3 mm beam size |
Opto-Mechanical Accessories
| No. | Product Model | Technical Index |
|---|---|---|
| 1 | RAOB20-1 Guide Rail | Length 2000 mm |
| 2โ33 | Full list of stages, mounts, lenses, sensors, and controllers (as per original spec) | Refer to detailed product brochure |
Primary Use Cases & Business Value
The laser testing equipment supports critical stages:
- Precision Manufacturing โ High-accuracy cutting, engraving, and marking validation
- Laser Safety Testing โ Beam profile, power, energy, and spectral measurement per IEC 60825
- R&D & Development โ Characterize laser sources for performance optimization and safety
- Quality Control โ Batch verification of laser output stability and marking consistency
- Certification Labs โ Generate data for IEC 60825-1-2-12 compliance
Procurement Benefits
Customizable configuration and high-precision components reduce setup time. Comprehensive documentation, installation support, and after-sales service ensure long-term reliability. This laser testing equipment enhances accuracy, supports safety claims, and minimizes compliance risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
Laser Testing Equipment Applications
- Industrial Laser Processing โ High-accuracy cutting, engraving, and marking
- Laser Safety Validation โ Beam profile, power, energy, and spectral measurement per IEC 60825
- R&D & Development โ Characterize laser sources for performance optimization and safety
- Quality Control โ Batch verification of laser output stability and marking consistency
- Certification Labs โ Compliance testing for IEC 60825-1-2-12 laser safety standards
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with IEC 60825-1-2-12 for high-accuracy laser testing. It evaluates beam profile, power, energy, and spectral characteristics to ensure safety and performance in laser cutting, engraving, and marking applications.
For detailed technical requirements, safety guidelines, and performance standards on laser products, refer to the IEC 60825 series overview published by the International Electrotechnical Commission.
Technical Inquiry for IEC 60825-1-2-12 Laser Testing Equipment
KingPo specializes in high-accuracy laser testing equipment. If you require precise measurement and safety validation for laser cutting, engraving, and marking systems according to IEC 60825-1-2-12, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- Precision Measurement โ Centuari power meter and beam profiler for accurate beam characterization
- Full Safety Compliance โ IEC 60825-1-2-12 standards for laser safety
- Factory Advantages โ MOQ 1 unit, 12-week delivery, 1-year warranty
- Complete Testing Support โ Pair with our laser safety test series
- Faster Certification โ Accurate data for IEC 60825 compliance
Take Action Now
Tell us your laser type, power range or specific test requirements โ our engineering team will reply with tailored recommendations within 24 hours.
