  • Standard Compliance: IEC60529 IPX3/IPX4 โ€“ IPX3 IPX4 test chamber
  • Oscillating Tube Radius: 400 mm
  • Swing Angle Range: ยฑ60ยฐ (IPX3), ยฑ180ยฐ (IPX4) selectable
  • Nozzles Aperture: ฯ†0.4 mm
  • Nozzles Distance: 50 mm
  • Flow Rate per Nozzle: 0.07 L/min ยฑ5%
  • Water Pressure: 80โ€“150 kPa
  • Turntable Rotate Speed: 1~5 rpm (adjustable, diameter 500 mm)
  • Flexing Speed: IPX3 ~4 s per cycle, IPX4 ~12 s per cycle
  • Test Time: 1โ€“999999 min (presettable)
  • Chamber Dimensions: Internal 1000 ร— 1000 ร— 1000 mm, external 1200 ร— 1500 ร— 1950 mm
  • MOQ: 1
  • Delivery Period: 25 working days
Products Categories
Vehicle Testing Equipment
IEC 62368 Test Equipment
Medical Test Equipment
Environmental Test Chamber
IP Testing Equipment
Battery Test Equipment
Flame Test Equipment
Electrical Safety Test Equipment
Cable Testing Equipment
Electric Motor Testing System
Audio Analyzer
Get A Free Quote
Contact Form

IPX3 IPX4 Test Chamber Description

IEC60529 IPx3/IPx4 Oscillating Tube Chamber , Ingress Protection Test Equipment IPx3/IPx4

The IPX3 IPX4 Test Chamber is a professional waterproof testing system manufactured by KingPo for evaluating moisture resistance and waterproof performance of automotive and electrical products. Designed in full compliance with IEC60529 IPX3/IPX4, this IPX3 IPX4 test chamber uses a precision oscillating tube (radius 400 mm) to simulate rain and spray conditions with adjustable flow rate, pressure, and turntable rotation.

KingPo Factory Advantages

KingPo is an ISO9001 and CE certified manufacturer specializing in IP and environmental testing equipment for automotive and electrical components. We have delivered multiple IEC60529 IPX3/IPX4 test chambers to leading manufacturers and accredited laboratories worldwide. All units include calibration certificates (additional cost), on-site installation guidance, 1-year warranty and 48-hour technical response from our Dongguan facility.

Professional Construction & Technical Precision

Key features include:

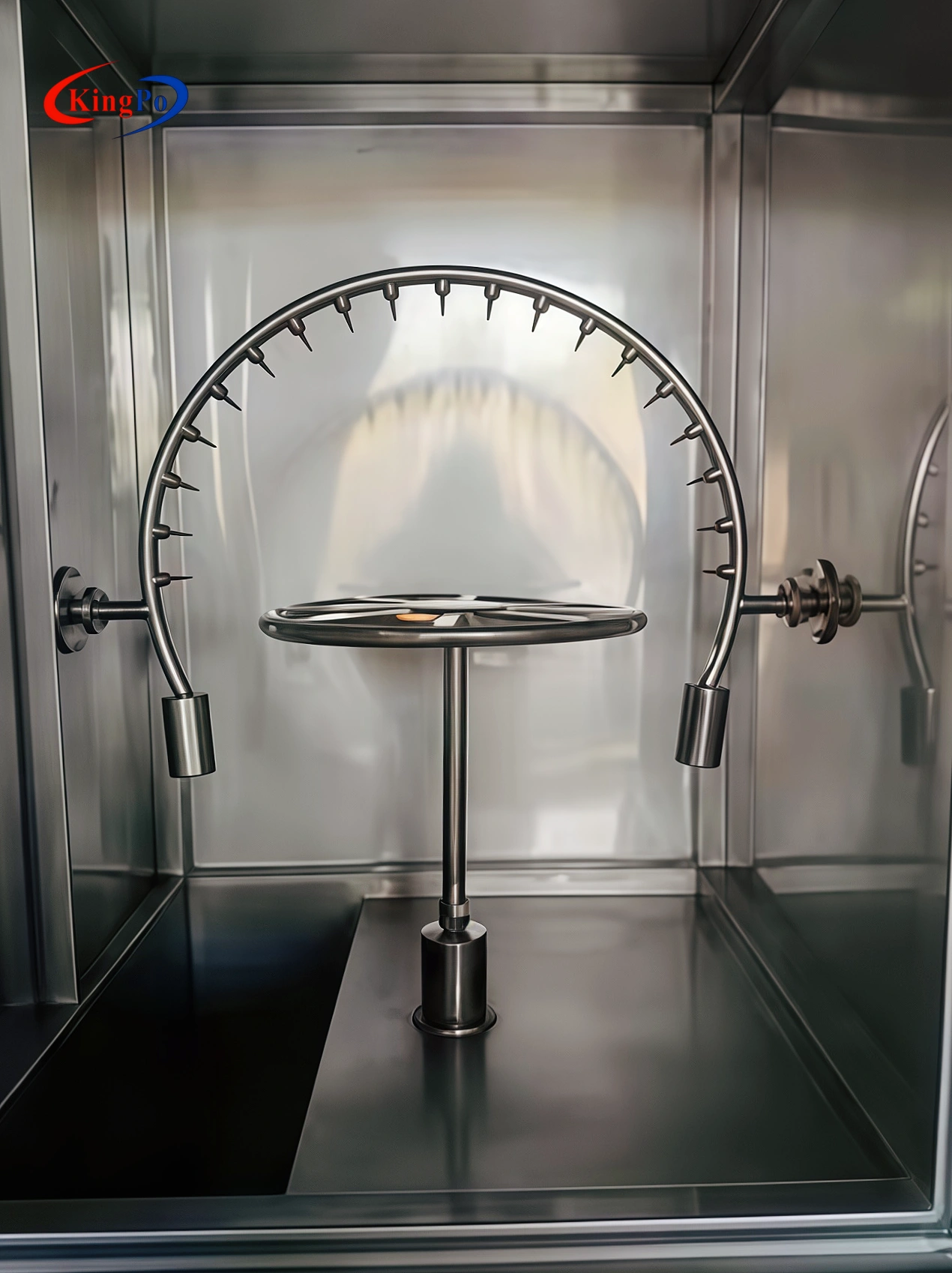

  • Precision oscillating tube (radius 400 mm) with nozzles ฯ†0.4 mm spaced at 50 mm
  • Adjustable swing angle (ยฑ60ยฐ for IPX3, ยฑ180ยฐ for IPX4)

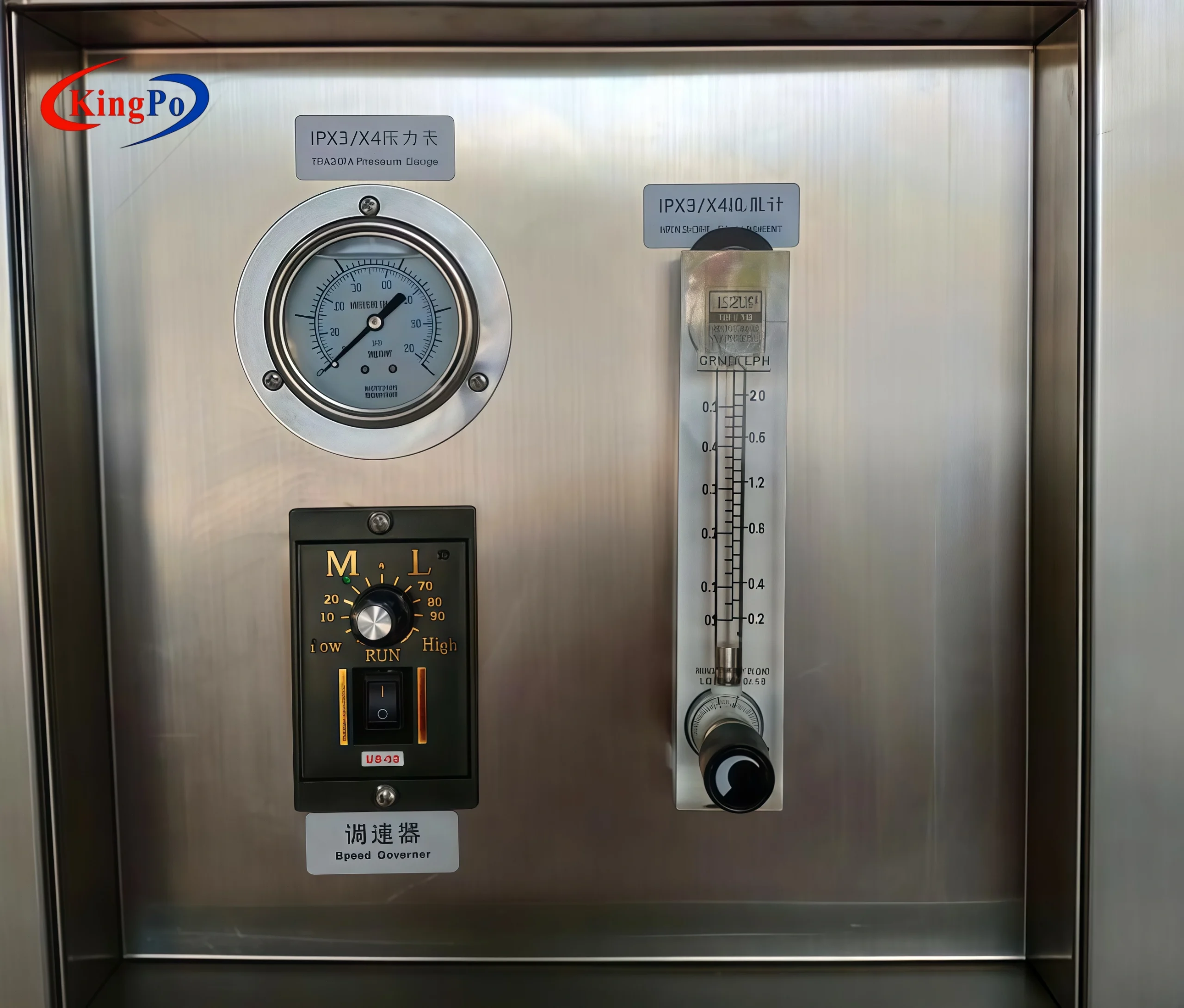

  • Closed-loop control of flow rate (0.07 L/min ยฑ5%) and pressure (80โ€“150 kPa)

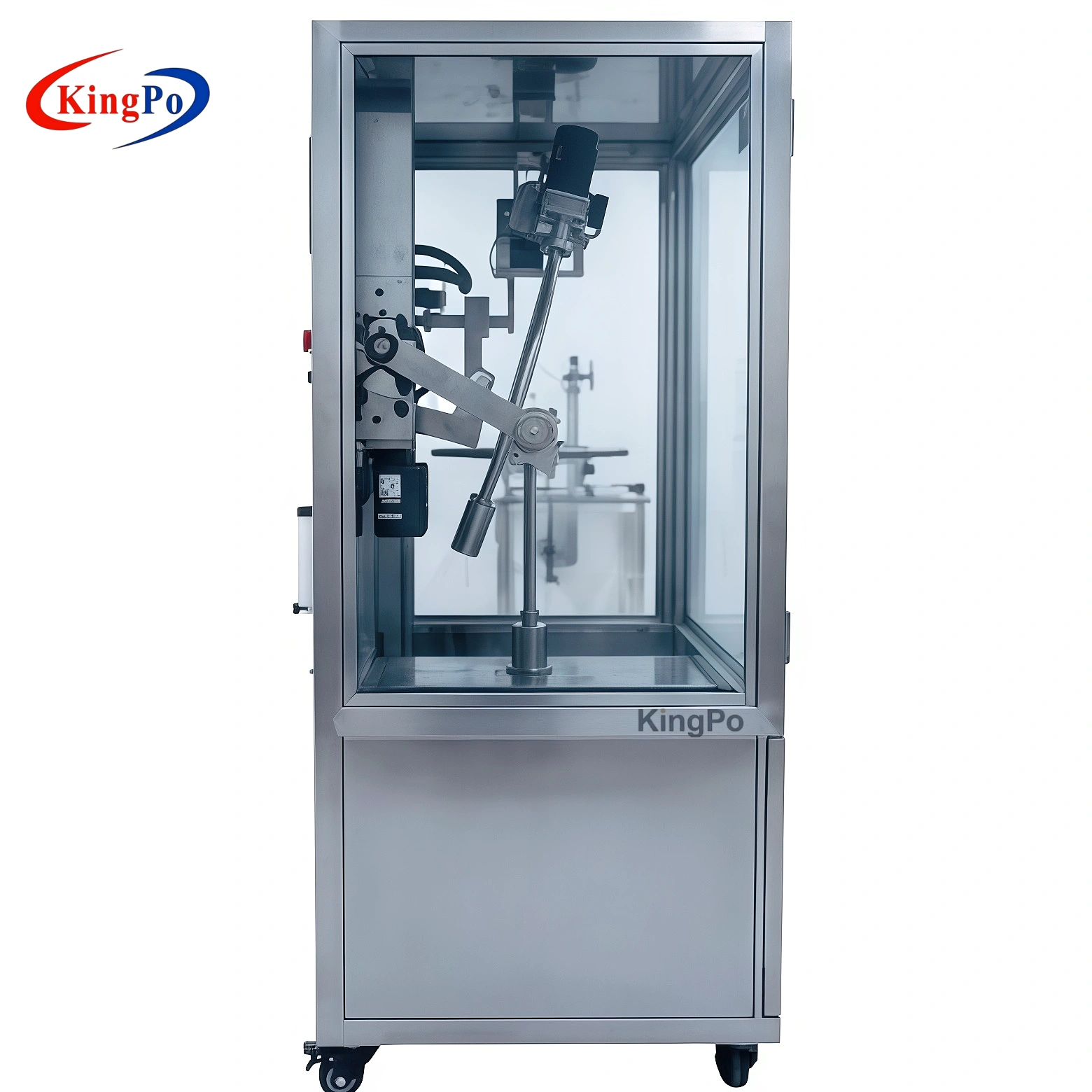

  • Turntable with adjustable speed (1~5 rpm) and 500 mm diameter
  • 7-inch color touchscreen for real-time monitoring of pressure, flow, speed and test time

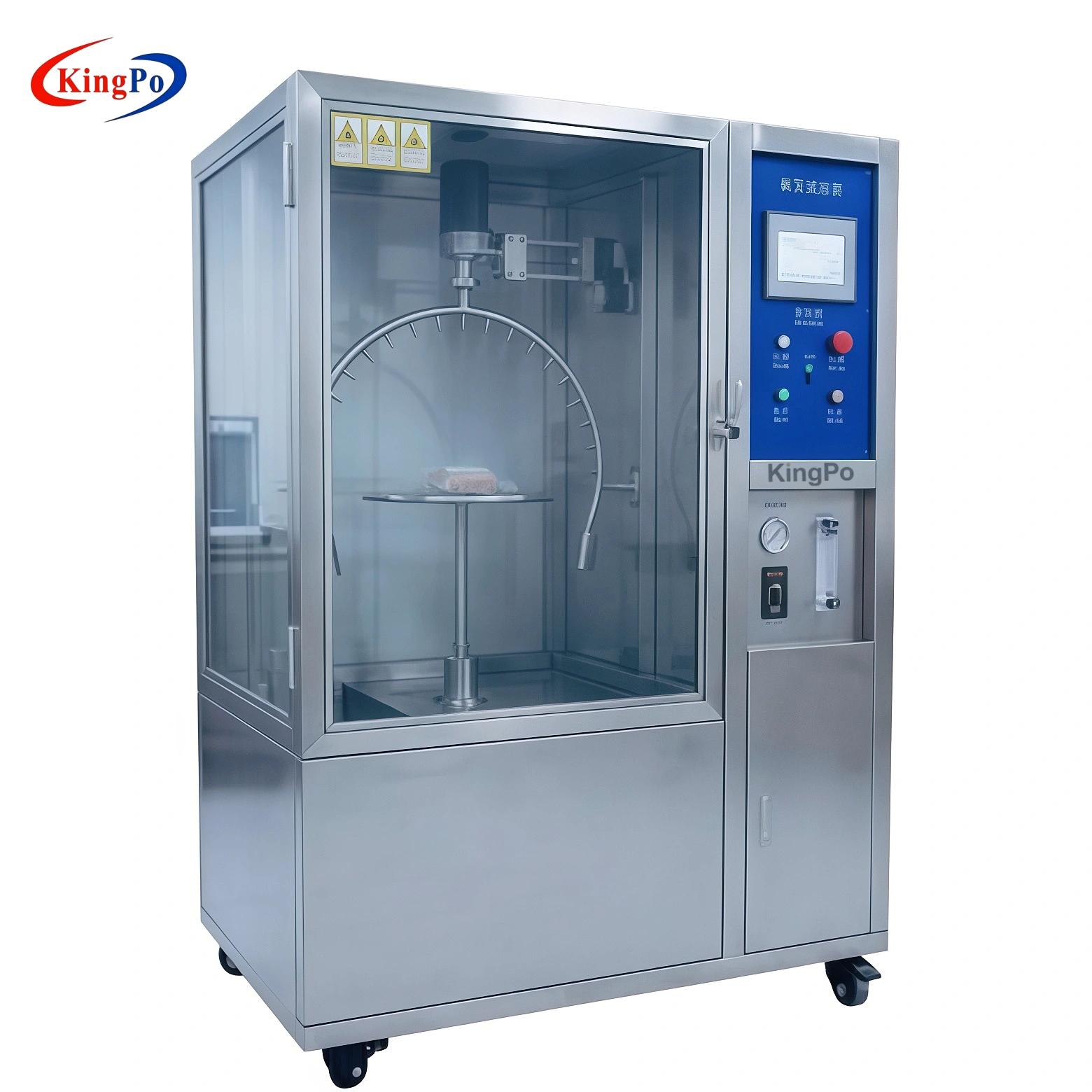

  • SUS304 stainless steel chamber with glass observation window

These elements ensure high accuracy, excellent repeatability and full compliance with IEC60529 requirements.

Technical Parameters

Core Test Parameters

Parameter Specification
Applicable Standard IEC60529 IPX3 / IPX4
Oscillating Tube Radius 400 mm
Swing Angle Range ยฑ60ยฐ (IPX3), ยฑ180ยฐ (IPX4)
Nozzle Aperture ฯ†0.4 mm
Nozzle Spacing 50 mm
Flow Rate per Nozzle 0.07 L/min ยฑ5%
Water Pressure 80โ€“150 kPa
Spray Distance 400 mm
Test Duration 1โ€“999999 min (presettable)

Chamber Construction & Control Parameters

Parameter Specification
Internal Chamber Size 1000 ร— 1000 ร— 1000 mm (Dร—Wร—H)
External Dimensions 1200 ร— 1500 ร— 1950 mm (Dร—Wร—H)
Turntable Diameter 500 mm
Turntable Rotate Speed 1~5 rpm (adjustable)
Control System PLC with 7-inch color touchscreen
Power Supply AC220V 50Hz



Primary Use Cases & Business Value

The IPX3 IPX4 test chamber supports critical stages:

  • Product Development โ€“ Validate waterproof design of new automotive and electrical components
  • Certification Testing โ€“ Generate data for IEC60529 IPX3/IPX4 compliance
  • Quality Control โ€“ Batch verification of moisture resistance in production
  • Failure Analysis โ€“ Identify water ingress risks under simulated rain and spray conditions

It improves product reliability, reduces field failures and accelerates certification for automotive and electrical parts.

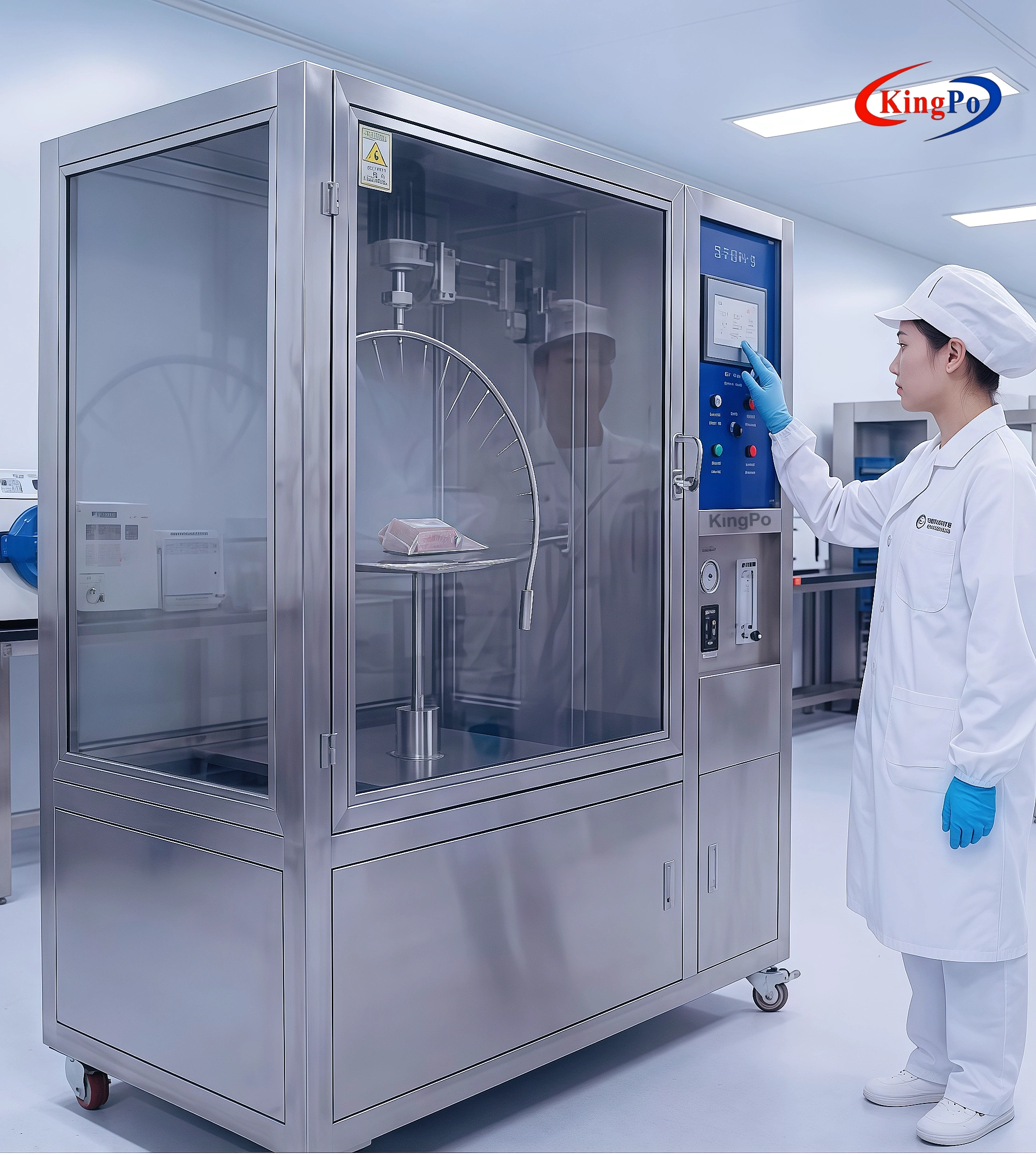

IPX3 IPX4 Test Chamber โ€“ KingPo Water Splash Test in Progress on Automotive Parts and Electrical Enclosures for IEC60529 IPX3 IPX4 Compliance Verification
IPX3 IPX4 Test Chamber โ€“ KingPo Water Splash Test in Progress on Automotive Parts

Procurement Benefits

Precision oscillating tube and closed-loop control deliver consistent, repeatable results with minimal operator intervention. Robust SUS304 construction ensures long-term reliability. This IPX3 IPX4 test chamber strengthens waterproof validation of automotive and electrical components, supports IEC60529 compliance and minimizes quality risks. Contact us today for your quote โ€“ we will respond within 24 hours with detailed technical specifications and pricing.

IPX3 IPX4 Test Chamber Applications

  • Automotive and Electrical Parts โ€“ Rain and spray waterproof testing per IEC60529 IPX3/IPX4
  • Headlights, Sensors and Connectors โ€“ Moisture resistance evaluation
  • Production Quality Assurance โ€“ Batch testing of IP-rated components
  • Certification Laboratories โ€“ Compliance verification for vehicle and electrical parts
  • R&D Validation โ€“ Optimization of sealing and waterproof design

Compliance & Regulatory Assurance

This equipment is strictly designed and manufactured in accordance with IEC 60529 IPX3/IPX4 for rain and spray testing. It simulates rain and spray conditions using a precision oscillating tube to evaluate moisture resistance and waterproof performance, thereby ensuring long-term reliability and safety in automotive and electrical applications.

For a comprehensive technical explanation of the IP Code system, including detailed requirements and test methods for IPX3 and IPX4, refer to the IP Code technical reference.

Technical Inquiry for IEC60529 IPX3 IPX4 Test Chamber

KingPo specializes in IP and environmental testing equipment. If you require precise rain and spray testing according to IEC60529 IPX3/IPX4 for automotive and electrical parts, our engineering team can provide customized configurations and technical support.

The Core Value We Deliver to You

  • Precision oscillating tube with adjustable swing angle and flow rate
  • 7-inch touchscreen for real-time monitoring and easy operation
  • Robust SUS304 chamber with 50 kg turntable capacity
  • Programmable test duration and automatic safety protection
  • Reliable compliance with IEC60529 IPX3/IPX4 standards

Take Action Now

Tell us your product types, required test profiles or test volume โ€” our engineering team will reply with tailored recommendations within 24 hours.

Submit Technical Inquiry

Related Videos

IPX3 IPX4 Test Chamber Detail Display

IPX3 IPX4 Test Chamber FAQs

What is the purpose of the IPX3 IPX4 Test Chamber?
The IPX3 IPX4 Test Chamber is designed to simulate rain and spray water exposure according to IEC60529 IPX3 and IPX4 requirements. It evaluates the ability of enclosures and electrical equipment to resist water ingress under defined conditions, helping manufacturers verify that products can withstand real-world moisture exposure such as rain, sprinkler systems, or car washes without compromising electrical safety or functionality.
What is the difference between IPX3 and IPX4 testing in this chamber?
IPX3 uses an oscillating tube with ยฑ60ยฐ swing angle to simulate light rain or dripping water, while IPX4 uses a wider ยฑ180ยฐ swing angle to simulate more severe spraying conditions. Both tests use the same precision nozzles (ฯ†0.4 mm) and flow rate (0.07 L/min ยฑ5%), but IPX4 applies water from a greater range of directions, making it a stricter waterproof verification for automotive and outdoor electrical components.
How many test cycles are typically performed?
The standard test performs 100 complete oscillation cycles (one complete oscillation = 2 ร— swing angle). The duration of each cycle is approximately 4 seconds for IPX3 and 12 seconds for IPX4, allowing repeatable and standardized evaluation of long-term water resistance.
What test liquid is used and why?
The test liquid is deionized water mixed with either 3% pure Arizona dust or 5% sodium to simulate realistic environmental conditions. This mixture replicates the slightly abrasive or saline water that automotive and outdoor electrical products may encounter in actual use, providing a more representative durability assessment.
What is the required water temperature range?
Water temperature is strictly controlled between 0 ยฐC and +4 ยฐC to simulate cold winter rain or ice-water splash conditions. Maintaining this low temperature is critical for accurate thermal shock simulation as required by the standard.
How is the spray distance and flow rate controlled?
The spray distance is fixed at 400 mm between the oscillating tube nozzles and the sample, with flow rate precisely regulated at 0.07 L/min per nozzle (ยฑ5%) through a closed-loop system using flow sensors, pressure sensors, PLC, and frequency converter. This ensures highly repeatable and standard-compliant test conditions.
Can the turntable speed and angle be adjusted?
Yes. The turntable rotation speed is adjustable from 1 to 5 rpm, and the oscillating tube angle can be set to either ยฑ60ยฐ (IPX3) or ยฑ180ยฐ (IPX4). This flexibility allows the chamber to meet both standard requirements and specific customer test protocols.
What safety features does the IPX3 IPX4 test chamber include?
The system is equipped with comprehensive safety protections including leakage protection, overload protection, short-circuit protection, and grounding protection. An emergency stop button and automatic water shortage alarm are also provided to ensure safe operation during long-duration testing.
What maintenance is recommended to ensure long-term accuracy and reliability?
Regular maintenance includes cleaning the oscillating tube nozzles and chamber interior, checking the integrity of seals and gaskets, verifying calibration of flow and pressure sensors, and inspecting the turntable drive mechanism. Annual full calibration by a certified laboratory is strongly recommended to maintain measurement traceability and test repeatability.
