IEC 60335-2-6 Figure 106 Spillage Solution Bottle

The IEC 60335-2-6 Figure 106 Spillage Solution Bottle is a dedicated test accessory for applying spillage solution during cooking appliance safety testing. It helps laboratories use a defined container instead of a general-purpose bottle, improving repeatability during IEC 60335-2-6 related spillage tests.

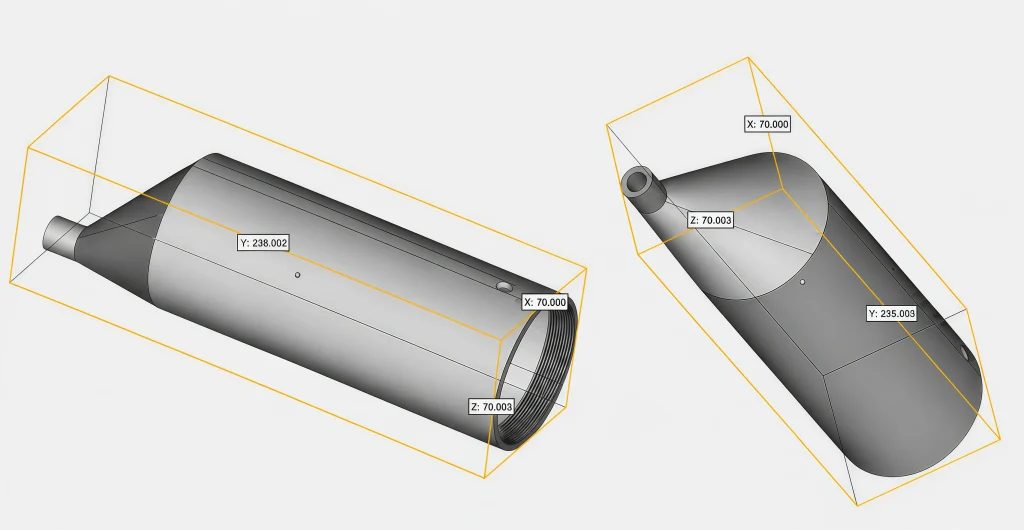

The polycarbonate bottle body allows users to observe the solution level and check the bottle condition during test preparation. This product is suitable for appliance manufacturers, third-party laboratories, certification preparation teams and quality control departments.

Applicable Standard and Test Method

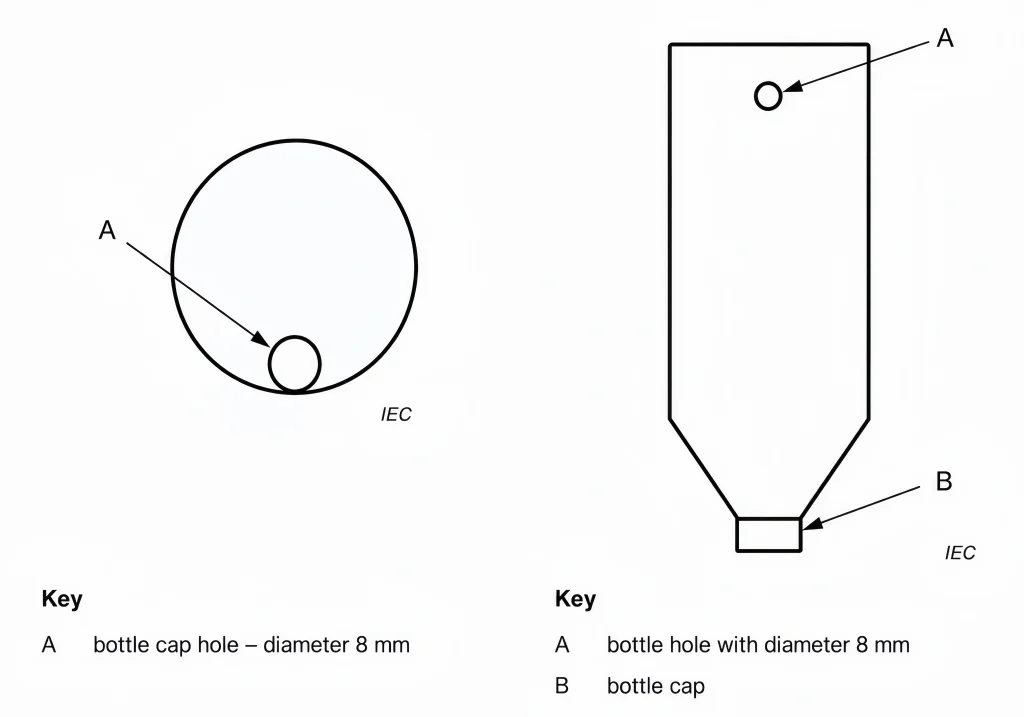

The Spillage Solution Bottle is designed for IEC 60335-2-6 related spillage testing of cooking appliances. The bottle cap and hole position correspond to Figure 106, while the complete bottle design refers to Figure 107.

During testing, the bottle is filled with the specified spillage solution according to the laboratory procedure. The solution is applied to the test area of the appliance using the bottle and cap configuration required by the applicable standard.

The final solution composition, application location, test condition, appliance operating state, observation method and acceptance criteria should follow IEC 60335-2-6, the applicable test clause and the laboratory quality procedure.

Technical Parameters

Standard and Product Information

Ordering and Use Information

Testing Principle

The IEC 60335-2-6 Figure 106 Spillage Solution Bottle is used to apply spillage solution to the specified area of a cooking appliance during testing. The bottle cap hole position and bottle structure influence how the solution is discharged during the test.

Using a bottle designed according to the standard figure helps laboratories reduce variation caused by inconsistent container shape, incorrect hole position or uncontrolled solution application.

The bottle itself does not determine the test result. Final evaluation depends on the complete test setup, including solution preparation, appliance condition, application position, test duration, observation method and acceptance criteria required by the applicable standard.

Applications and Use Cases

The IEC 60335-2-6 Figure 106 Spillage Solution Bottle is used in appliance safety laboratories and production quality control environments for spillage testing of cooking appliances.

Typical applications include:

• Spillage testing of cooking appliances according to IEC 60335-2-6
• Laboratory preparation for appliance safety certification
• Product development verification for cooking appliance design
• Quality control testing for appliance water or liquid exposure conditions
• Repeatable solution application during internal compliance testing
• Support for third-party laboratory test setup and documentation

Common Error Mitigation

Reliable spillage testing depends on the complete test procedure, not only the bottle itself. Incorrect solution preparation, improper cap configuration or inconsistent application method may affect test repeatability.

To reduce test variation, laboratories should avoid the following issues:

• Using a non-standard bottle or improvised container
• Using a cap with incorrect hole position
• Filling the bottle with the wrong solution or incorrect volume
• Applying the solution to the wrong appliance area
• Testing with a contaminated or damaged bottle
• Ignoring the required appliance operating condition
• Recording the result without following the applicable acceptance criteria

Operation and Test Notes

Before testing, users should confirm the applicable IEC 60335-2-6 clause, required solution type, filling volume, application location and appliance operating condition. The bottle should be clean and free from residue before the spillage solution is prepared.

The cap should be checked before use to confirm that the hole position is suitable for the intended test method. The bottle should be handled carefully to avoid deformation, contamination or accidental leakage during test preparation.
