EV Battery Pack Short Circuit Tester | External Short Circuit Test System

Professional Construction & Technical Precision

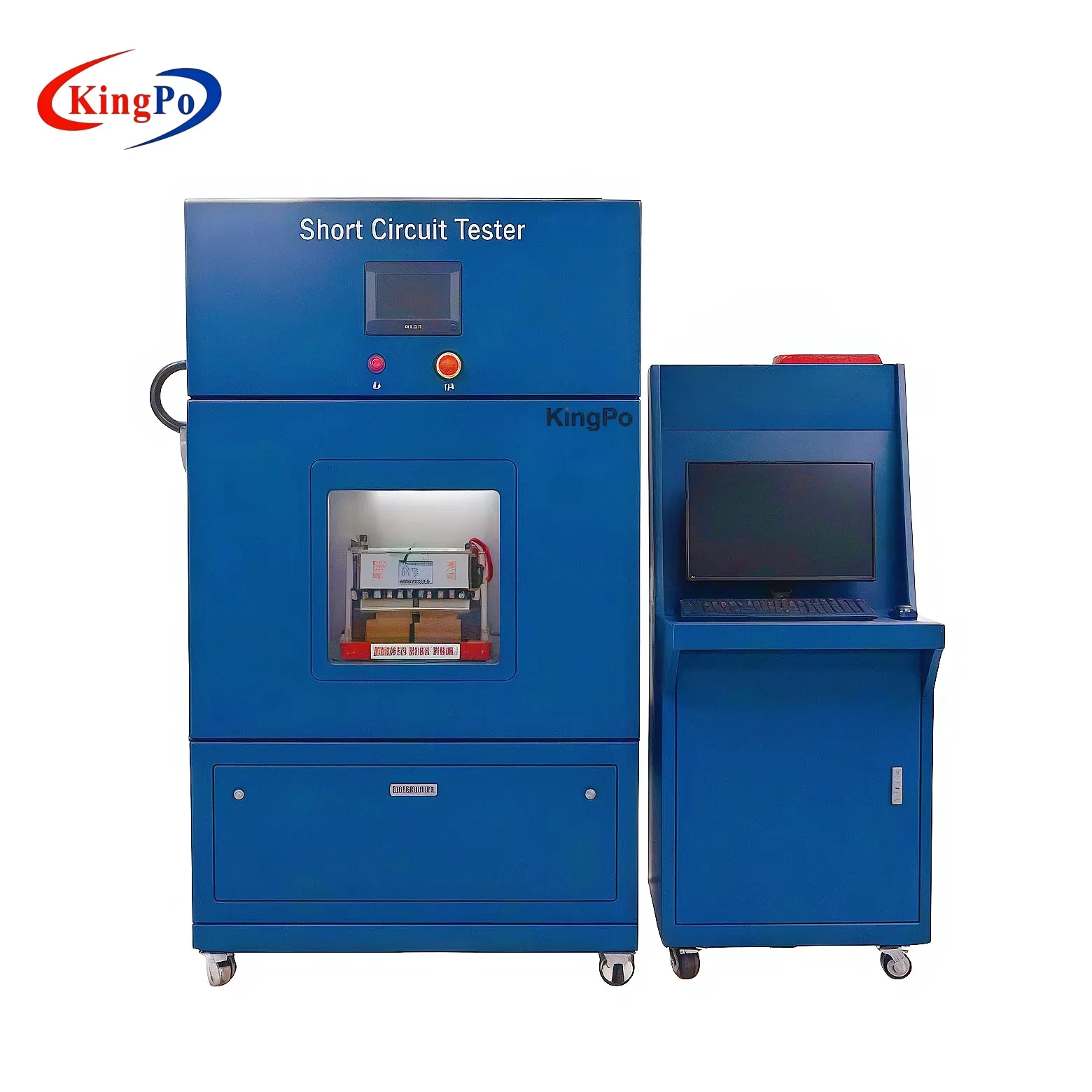

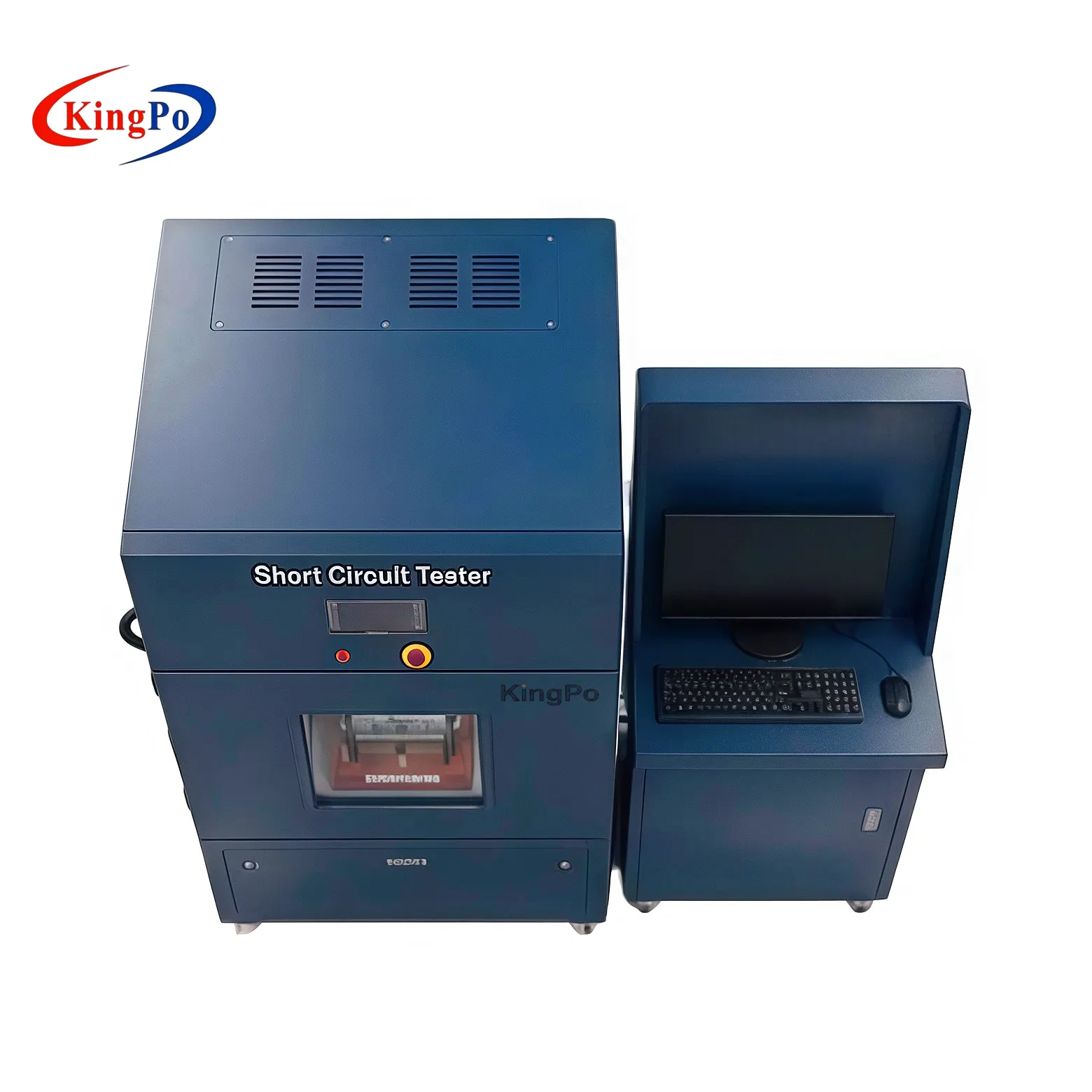

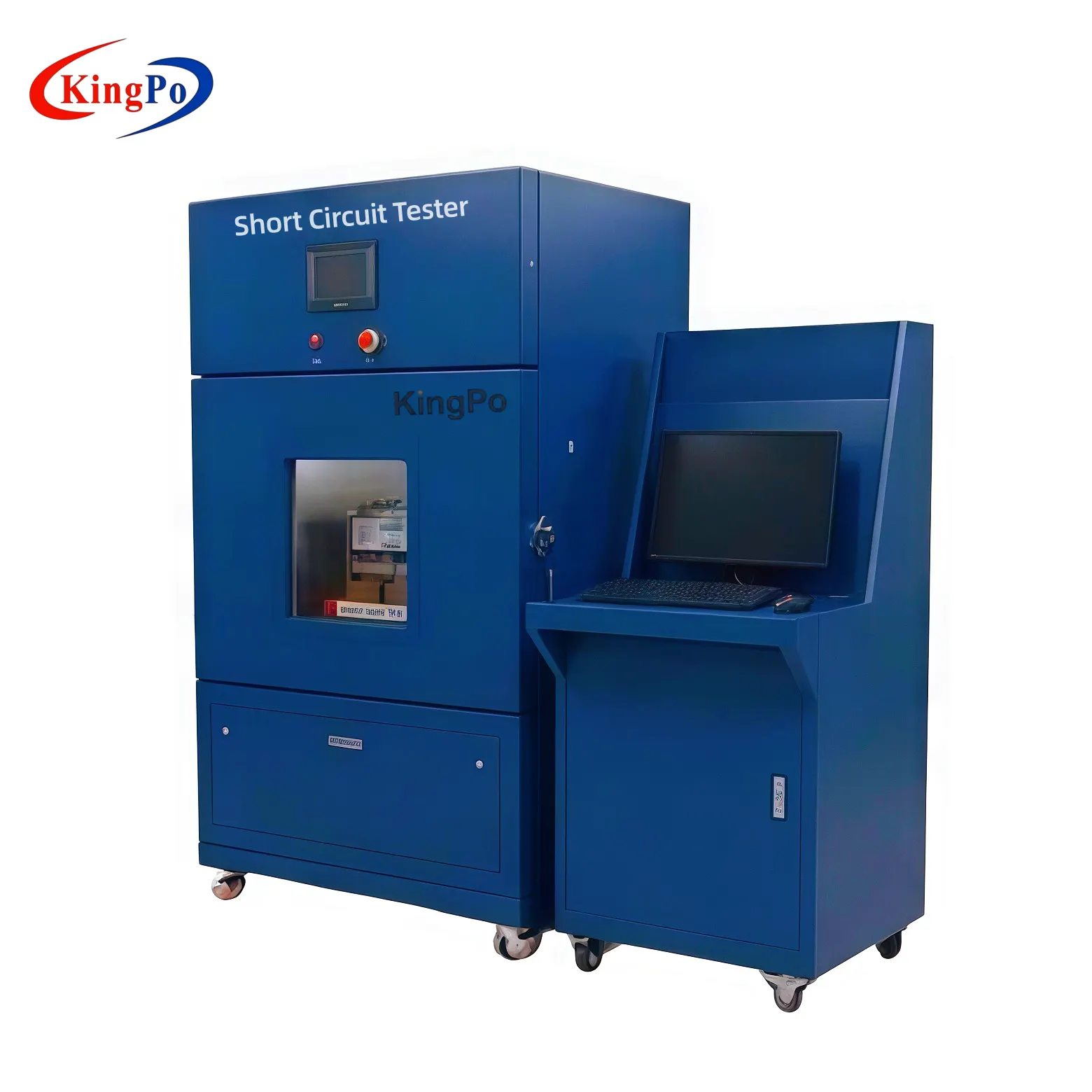

The EV Battery Pack Short Circuit Tester is built with industrial-grade robustness to safely handle destructive high-current testing. It features a reinforced explosion-proof test chamber and an advanced industrial-grade vacuum arc extinguishing device, which rapidly quenches arcs during 16000A disconnection, preventing contact fusion and ensuring the equipment remains safe and reusable even after extreme short-circuit events.

The electrical circuit employs ultra-low internal resistance (<1 mΩ) combined with precision closed-loop feedback control, delivering highly accurate and stable short-circuit currents up to 16000A. The high-speed data acquisition system captures transient phenomena at 100 Hz sampling rate, enabling millisecond-level recording of current peaks, voltage drops, and temperature surges. An integrated professional control software platform provides real-time multi-channel data visualization, historical trend analysis, alarm management, and one-click automated test report generation.

Testing Principle

The EV Battery Pack Short Circuit Tester creates a controlled external short circuit on the battery pack through an ultra-low resistance path (<1 mΩ). During the test, it continuously monitors key parameters in real time — including total voltage, individual cell voltages, current surge, and temperature rise at multiple strategic points.

This comprehensive evaluation accurately determines the battery pack’s ability to withstand extreme short-circuit conditions without triggering thermal runaway, fire, or explosion, while simultaneously validating the response speed and effectiveness of the Battery Management System (BMS) protection mechanisms.

Common Error Mitigation

To ensure accurate and safe testing results, please follow these best practices:

• Verify correct polarity and ensure secure, low-resistance clamping of test cables before initiating the test
• Always activate all protection systems and use remote control mode to maintain safe operator distance
• Select appropriate resistance values and test parameters strictly according to the relevant standard and battery specifications
• Maintain adequate ventilation around the equipment and monitor ambient temperature throughout the test
• Perform regular calibration of current, voltage, and temperature channels to guarantee measurement accuracy and traceability

Primary Use Cases & Business Value

The EV Battery Pack Short Circuit Tester is an indispensable tool for battery manufacturers and system integrators. It enables early identification of potential safety hazards, accurate validation of BMS protection strategies, optimization of pack structural design, and reliable demonstration of compliance with stringent international safety regulations.

This ultimately helps reduce the risk of field failures, accelerates product certification timelines, and builds greater confidence in high-safety EV battery systems.

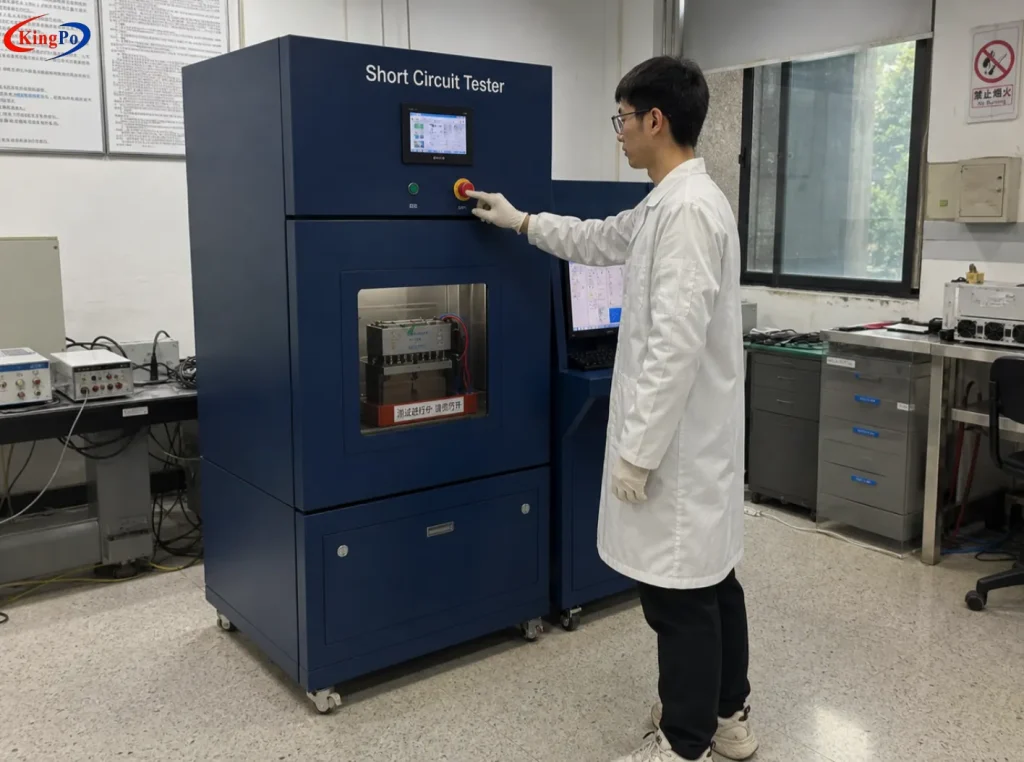

Industrial Applications & Lab Scenarios

This tester is widely used across the EV and energy storage industry, including:

• EV battery pack manufacturers — for safety validation and quality control during production
• New energy vehicle R&D centers — for battery pack design verification and optimization
• Third-party certification laboratories — for compliance testing under GB, IEC, and other international standards
• Battery module and pack integration companies — for incoming material inspection and system-level testing
• Quality control and safety validation departments — for routine batch testing and failure analysis

Strategic Procurement Advantages & Global Support

• High current capability up to 16000A with ultra-low internal resistance and multiple layers of safety protection

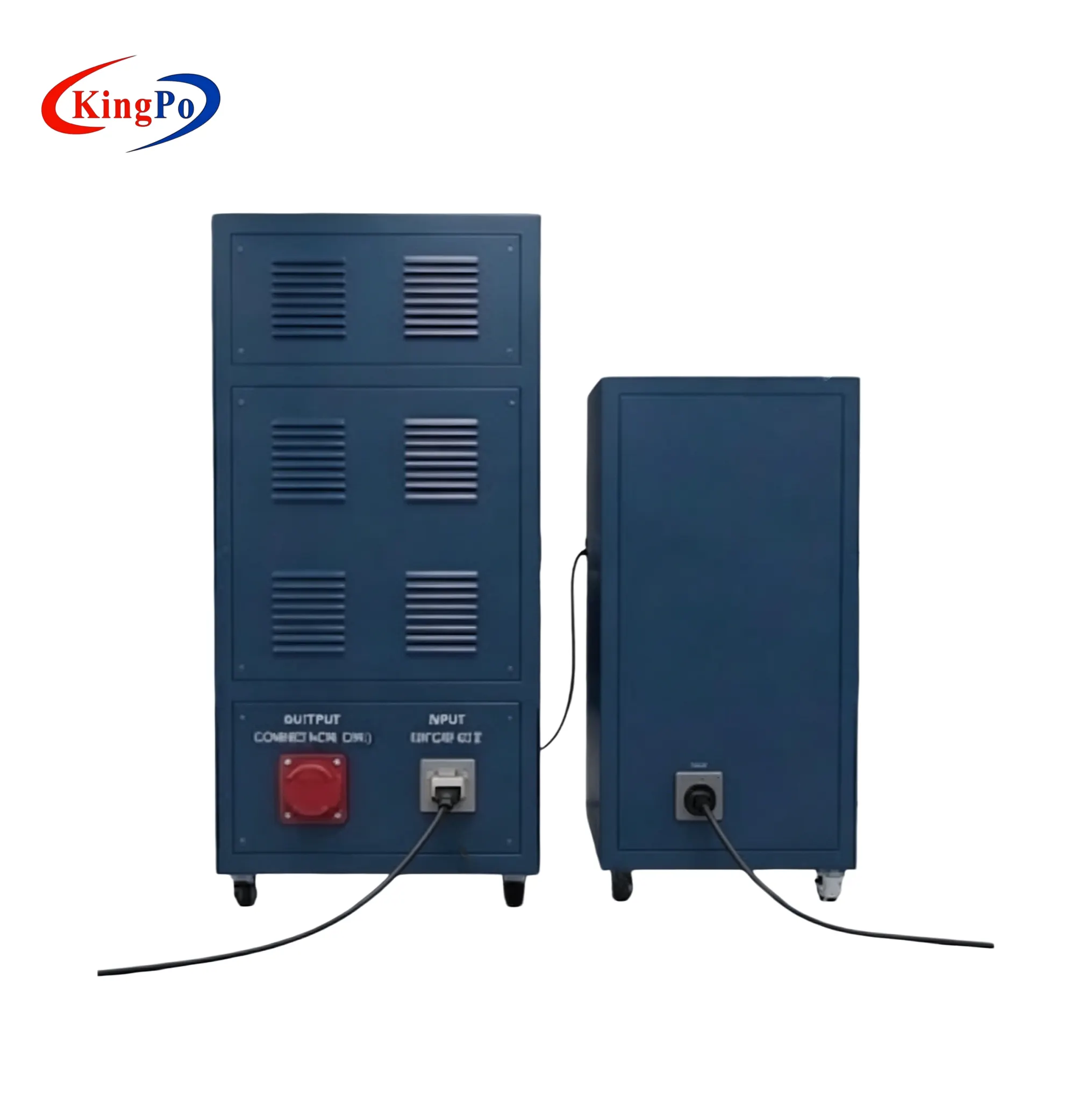

• Multi-mode remote control (touchscreen + remote PC + wireless) with real-time video monitoring
• High-speed 100 Hz data acquisition with professional analysis and automated reporting tools
• Robust construction featuring explosion-proof chamber and vacuum arc extinguishing technology
• Manufactured under ISO 9001, ISO 14001, ISO 45001 and CE certified quality system
• One-year warranty with responsive lifetime technical support from our Dongguan facility
