KingPo has completed the delivery of customized UL 1017 test fixtures to Intertek for the testing of vacuum cleaners, blower cleaners, and household floor finishing machines.
The delivered fixtures include a test frame with a polished composition-tile floor and a checkerboard step and base fixture. The fixtures were supplied according to the specified requirements of UL 1017 11th Edition,supporting controlled and repeatable test setup preparation for appliance safety testing.
This delivery reflects KingPo’s experience in providing standard-based customized test fixtures for professional laboratory applications.
Project Snapshot
| Item | Project Information |
|---|---|
| Client | Intertek |
| Supplied Equipment | Customized UL 1017 Test Fixtures |
| Application | Testing of vacuum cleaners, blower cleaners, and household floor finishing machines |
| Applicable Standard | UL 1017 11th Edition |
| Key Components | Test Frame; Checkerboard Step and Base |
| Relevant Clauses | Section 7.2.8; Section 7.2.18, Figure 7.1 |
| Frame Dimension | 1500 × 1500 × 50 mm |
| Floor Surface | Polished composition-tile floor |
Project Overview
The project included dedicated UL 1017 test fixtures: a test frame with a polished composition-tile floor and a checkerboard step and base fixture.
These fixtures are used to reproduce defined physical test conditions for vacuum cleaners, blower cleaners, and household floor finishing machines. In appliance safety testing, stable test surfaces, accurate fixture dimensions, and repeatable test setups are essential for supporting consistent laboratory evaluations.
KingPo supplied the fixtures with attention to dimensional accuracy, surface preparation, structural stability, and pre-shipment inspection, ensuring that the delivered components are suitable for repeated professional laboratory use.
Supplied Equipment
| Supplied Item | Applicable Requirement | Key Description |
|---|---|---|
| Test Frame | UL 1017 11th Edition, Section 7.2.8 | 1500 × 1500 × 50 mm frame, including polished composition-tile floor |
| Checkerboard Step and Base | UL 1017 11th Edition, Section 7.2.18, Figure 7.1 | Checkerboard step and base fixture for UL 1017 appliance testing |
Application Background
UL 1017 applies to vacuum cleaners, blower cleaners, and household floor finishing machines. For laboratories performing appliance safety testing, purpose-built fixtures are required to reproduce the physical conditions specified by the standard and to reduce variation during repeated tests.
The supplied test frame provides a defined polished composition-tile floor surface for appliance operation and movement-related evaluations. The checkerboard step and base fixture supports the configuration referenced in UL 1017 Section 7.2.18, Figure 7.1, allowing the laboratory to conduct relevant tests under consistent conditions.
Why Customized Test Fixtures Matter
In appliance safety testing, the accuracy of a fixture can directly affect test consistency. Even a simple-looking mechanical fixture may require controlled dimensions, stable construction, appropriate surface treatment, and repeatable positioning.
For this Intertek project, KingPo manufactured the supplied fixtures according to the specified UL 1017 clauses and figure requirements. The purpose was to provide practical, durable, and standard-aligned test fixtures that can support daily laboratory testing work.
KingPo’s Engineering Approach
For this delivery, KingPo focused on the following key requirements:
Design based on the specified requirements of UL 1017 11th Edition
Accurate dimensions for the 1500 × 1500 × 50 mm test frame
Integration of polished composition-tile floor surface
Checkerboard step and base configuration according to UL 1017 Section 7.2.18, Figure 7.1
Stable structure suitable for repeated laboratory use
Practical fixture design for sample handling and test operation
Pre-shipment inspection covering appearance, dimensions, and usability
Project Delivery Value
The delivered UL 1017 test fixtures are intended to support laboratory testing involving vacuum cleaners, blower cleaners, and household floor finishing machines under specified standard conditions.
The delivered fixtures help create a defined testing environment for appliance safety evaluation, supporting efficient laboratory workflow and standardized product testing.This case also reflects KingPo’s experience in producing customized mechanical test fixtures…
Key Benefits
Key benefits of this delivery include compliance with UL 1017 11th Edition requirements, coverage of Section 7.2.8 and Section 7.2.18, Figure 7.1, a 1500 × 1500 × 50 mm test frame with polished composition-tile floor, a checkerboard step and base fixture for standardized test configuration, and durable construction for repeated professional laboratory use.
Case Summary
KingPo delivered customized UL 1017 test fixtures to Intertek for the testing of vacuum cleaners, blower cleaners, and household floor finishing machines. The supplied equipment includes a 1500 × 1500 × 50 mm test frame with polished composition-tile floor, manufactured according to UL 1017 11th Edition Section 7.2.8, and a checkerboard step and base fixture according to UL 1017 Section 7.2.18, Figure 7.1. These fixtures support controlled and repeatable appliance safety testing in a professional laboratory environment.
Related Capabilities
KingPo provides customized test fixtures and appliance safety testing equipment according to specific standard clauses, fixture drawings, sample dimensions, and laboratory testing requirements. Related capabilities include UL 1017 test fixtures, appliance safety test equipment, mechanical durability test fixtures, stability and movement test fixtures, floor care appliance testing fixtures, and customized laboratory test systems.
Related Standards and Applications
This case is mainly related to UL 1017 11th Edition. Depending on the required product category and test clause, KingPo can also support customized fixture development according to selected UL, IEC, ISO, ASTM, and customer-defined testing requirements.
The delivered UL 1017 test fixtures are suitable for laboratory testing applications involving vacuum cleaners, blower cleaners, household floor finishing machines, floor care appliances, household cleaning appliances, appliance safety evaluation, product certification testing, third-party laboratory testing, and in-house quality control testing.
Technical Notes and FAQ
How were the UL 1017 requirements translated into physical test fixtures?
For this project, the fixture design was developed based on the specified requirements of UL 1017 11th Edition. The test frame was manufactured with a 1500 × 1500 × 50 mm structure and integrated with a polished composition-tile floor surface. The step and base fixture was produced according to the configuration referenced in UL 1017 Section 7.2.18, Figure 7.1, so that the laboratory could reproduce the required physical test setup in a controlled and repeatable manner.
What aspects are important when manufacturing UL 1017 test fixtures?
For standard-based mechanical test fixtures, dimensional accuracy, surface consistency, structural rigidity, stable positioning, and ease of repeated operation are all important. In this delivery, KingPo focused on the frame dimensions, floor surface preparation, step-and-base structure, overall mechanical stability, and practical usability for laboratory testing.
Why is the polished composition-tile floor surface specified for the test frame?
The polished composition-tile floor provides a defined test surface for evaluations involving appliance operation, movement, and interaction with the floor. Using a controlled surface helps reduce variation between repeated tests and supports more consistent laboratory evaluation under the applicable UL 1017 test conditions.
How does the step and base fixture support UL 1017 related testing?
The step and base fixture is used to reproduce the physical configuration referenced in UL 1017 Section 7.2.18, Figure 7.1. Its purpose is to provide a standard-aligned mechanical setup for testing vacuum cleaners, blower cleaners, and household floor finishing machines under specified conditions.
What inspection work was carried out before shipment?

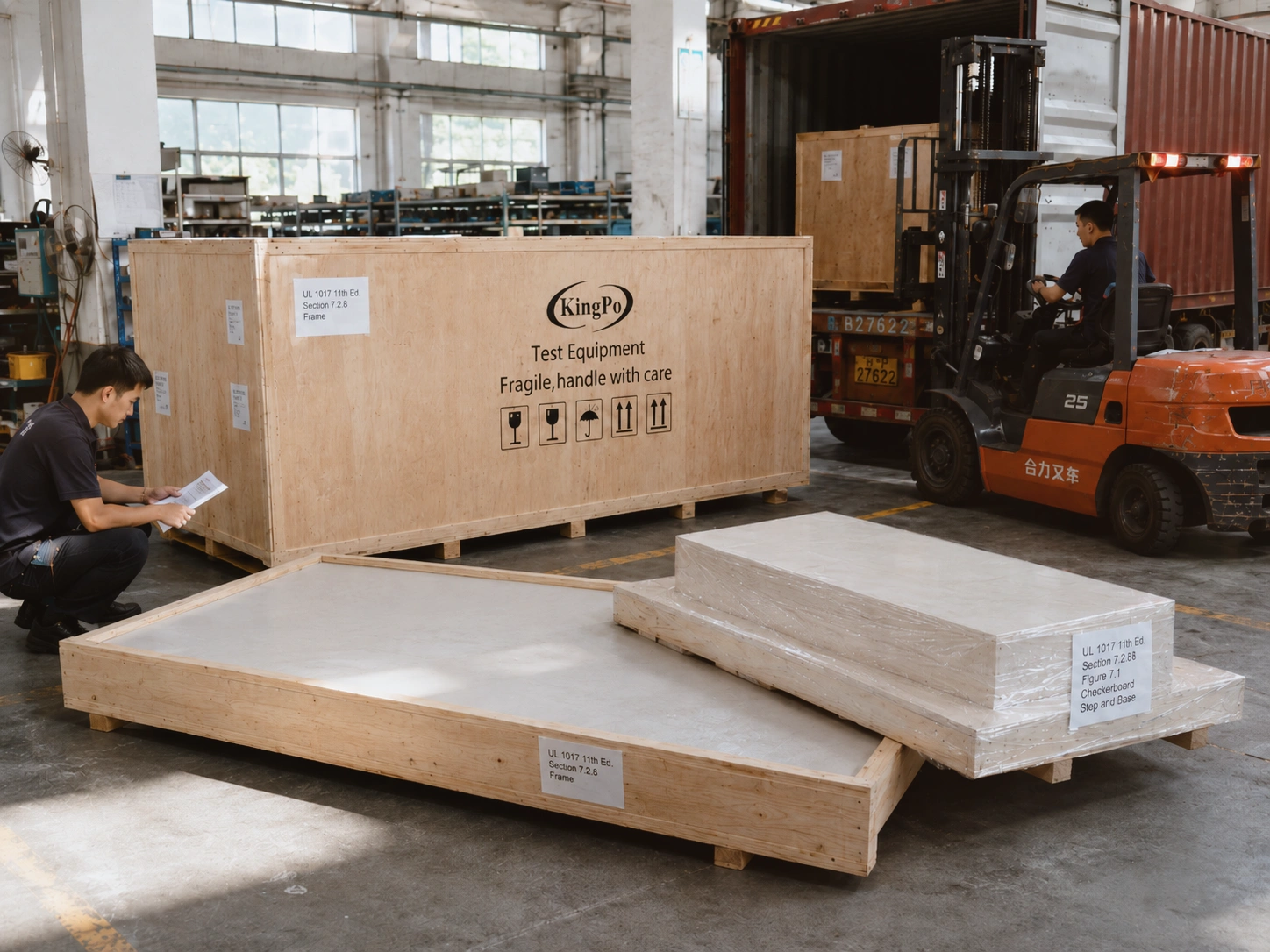

Before shipment, KingPo conducted pre-shipment checks covering appearance, key dimensions, structural condition, surface preparation, usability, and packaging protection. These checks help ensure that the fixtures are ready for transportation, installation, and repeated use in a professional laboratory environment.
Are these fixtures equivalent to certification or approval?
No. The supplied fixtures are customized test equipment manufactured according to specified standard clauses and project requirements. They are intended to support laboratory test setup preparation and do not represent a certification result, product approval, or authorization by any standards organization.
What information is usually required for customized test fixture projects?
For customized fixture projects, it is helpful to confirm the applicable standard, clause number, figure or drawing reference, sample dimensions, intended test method, laboratory layout, material requirements, and any special handling or installation conditions. These details allow the fixture design to better match the actual testing scenario.
Can KingPo provide similar fixtures for other appliance safety standards?
Yes. KingPo can develop customized mechanical test fixtures and laboratory test equipment according to specific clauses, drawings, product types, and testing requirements under selected UL, IEC, ISO, ASTM, and customer-defined standards.
