Mandrel Winding Tester – IEC 60851-3 & IEC 60601 Annex L.3.2 Enameled Wire Insulation Test Equipment

IEC 60851-3 Mandrel Winding Tester | Enameled Wire Winding Test Apparatus

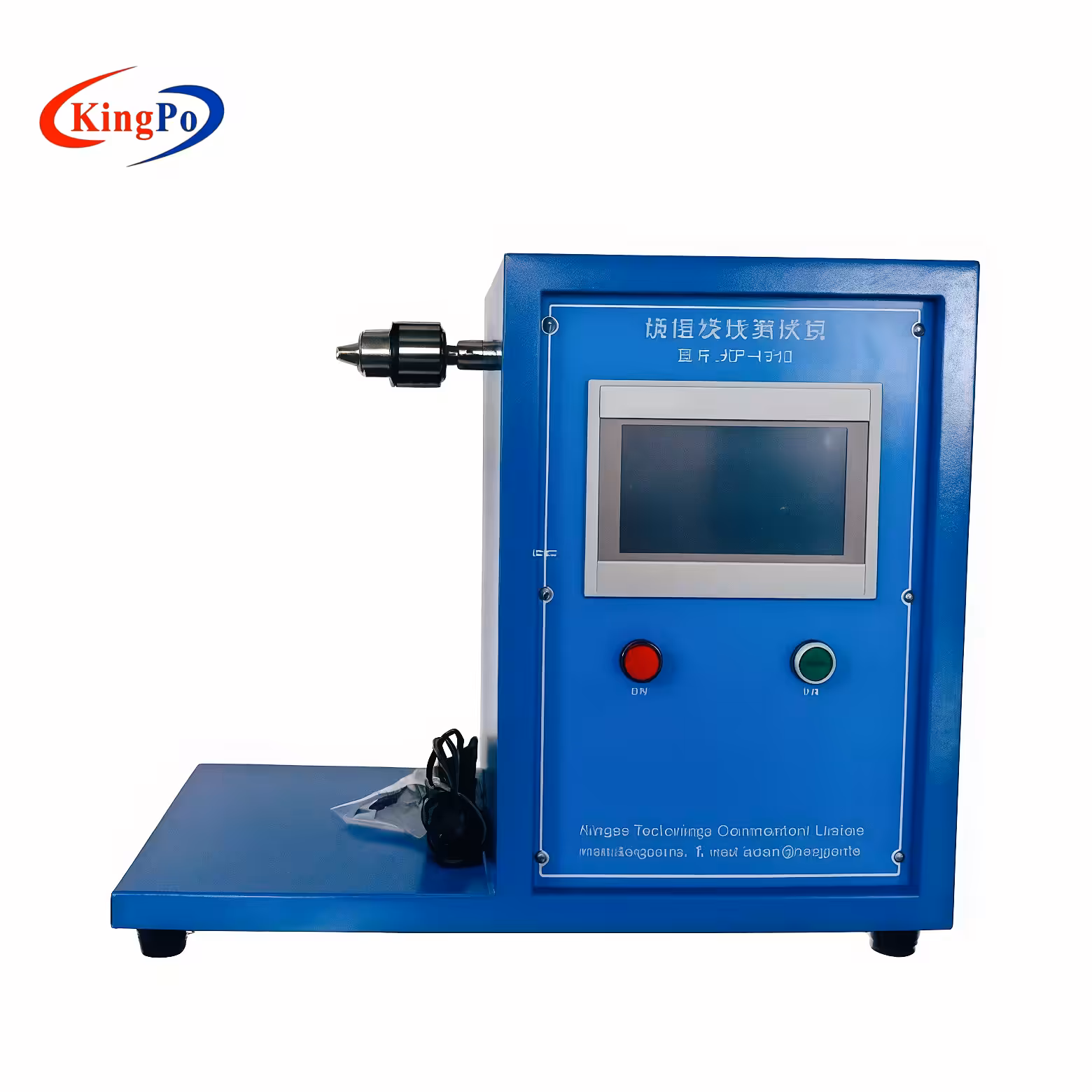

The IEC 60851-3 Mandrel Winding Tester is a professional, high-precision test apparatus manufactured by KingPo for evaluating the mechanical properties and insulation integrity of enameled winding wires. It performs the standardized mandrel winding test by subjecting the wire to controlled tension while winding it around mandrels of specified diameters. This critical test assesses the wire’s flexibility, adherence of the enamel coating, and resistance to cracking or peeling under mechanical stress — requirements defined in IEC 60851-3 and widely referenced in medical electrical equipment standard IEC 60601 Annex L.3.2.

Standard:IEC 60851-3-clause 5.1.1

Technical Parameters

The Mandrel Winding Tester features a rigid and stable mechanical frame combined with a high-precision ball screw drive system and servo motor for smooth, vibration-free operation. Interchangeable mandrels are made of hardened and polished high-grade steel to ensure flawless surface quality that prevents damage to the delicate enamel coating. The advanced tension control system utilizes high-accuracy load cells and closed-loop feedback, delivering stable and repeatable tension up to 118 MPa with minimal fluctuation.

The user-friendly PLC control system with a large color touchscreen allows operators to easily set tension, winding speed, number of turns, and test sequences. Every unit undergoes comprehensive factory calibration and performance verification to guarantee consistent, reliable test results across various wire specifications and production environments.

Testing Principle

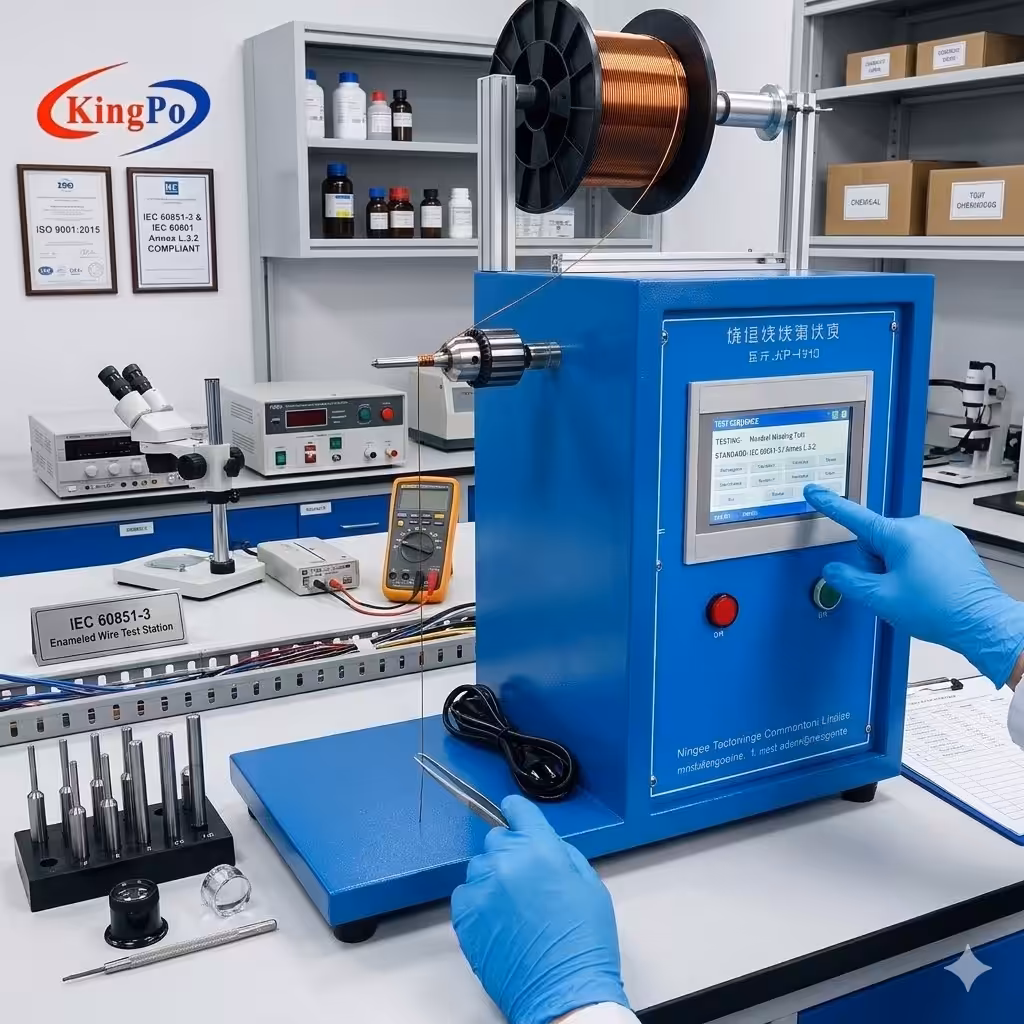

The test specimen is wound under precisely controlled tension around a mandrel of the diameter specified by the relevant standard. After completing the required number of turns, the wire is carefully removed and subjected to visual inspection, often combined with electrical tests (such as high-voltage breakdown or continuity checks) to detect any cracks, peeling, or loss of adhesion in the enamel insulation. This procedure effectively simulates the mechanical stresses the wire will experience during actual coil winding, coil forming, and operation, providing a reliable assessment of the enamel coating’s flexibility and adherence.

Common Error Mitigation

Always select the mandrel diameter and tension value strictly according to the wire size and applicable standard before starting the test. Ensure the wire is straight, free from twists, and properly clamped to avoid irregular winding. Maintain a steady, constant speed without sudden acceleration or deceleration. After winding, inspect the specimen under adequate magnification and proper lighting for micro-cracks or insulation damage. Regular calibration of the tension sensor and drive system is essential to maintain measurement accuracy, especially for high-precision applications.

Primary Use Cases & Business Value

The IEC 60851-3 Mandrel Winding Tester is indispensable for enameled wire manufacturers, transformer and motor producers, medical equipment developers, and certification laboratories. It enables early detection of insulation weaknesses, helps optimize wire coating formulations, reduces production defects and field failures, and ensures full compliance with international safety standards. This ultimately leads to higher product reliability, lower warranty costs, and faster time-to-market for safety-critical applications such as medical devices, automotive motors, and industrial transformers.

Industrial Applications & Lab Scenarios

• Enameled wire manufacturers — routine mechanical property verification and quality control
• Transformer and motor winding factories — process validation and production quality assurance
• Medical electrical equipment R&D — compliance with IEC 60601 Annex L.3.2
• Independent certification bodies — type testing and CB Scheme documentation
• Quality assurance departments — incoming wire inspection and final product validation
