IP Code Waterproof Rain Test Chamber โ IEC 60529 IPX1 to IPX6 Ingress Protection Test Equipment

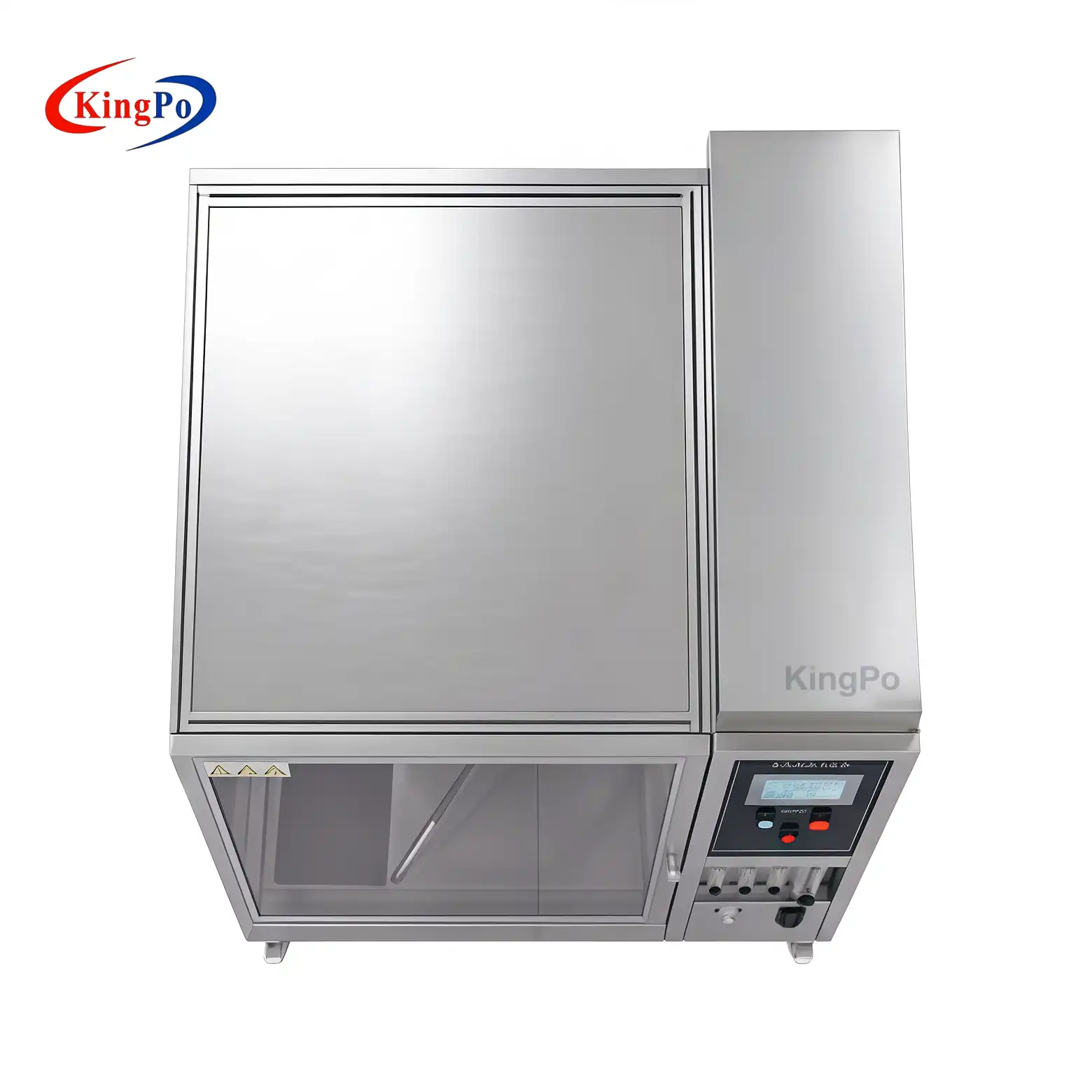

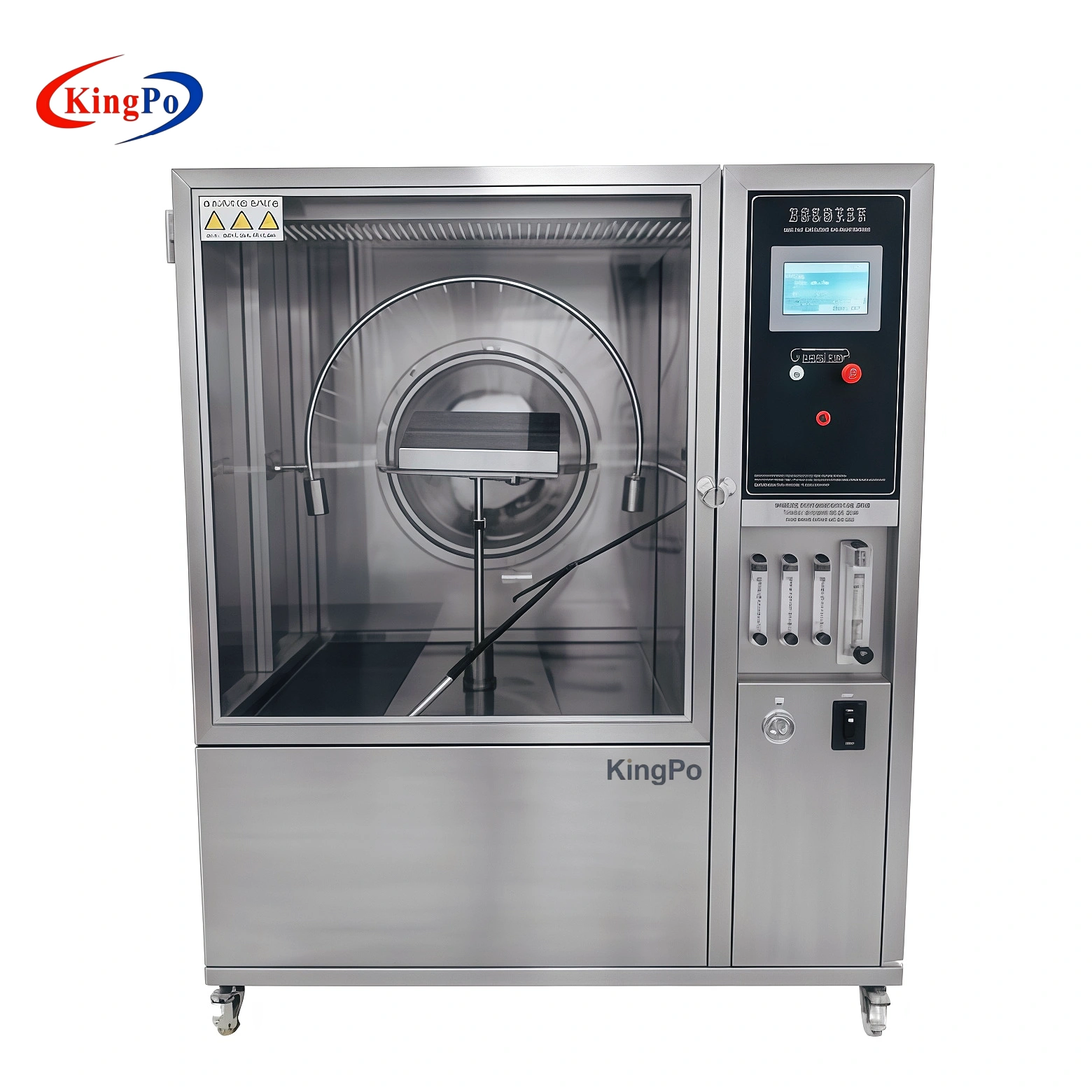

Professional multi-function ingress protection test equipment designed to perform the full range of waterproof tests defined in IEC 60529. The system integrates a large drip board for IPX1/IPX2, oscillating tubes (R200/R400) for IPX3/IPX4, and high-pressure nozzles for IPX5/IPX6, enabling precise evaluation of enclosure sealing performance for luminaires, electrical products and automotive components.

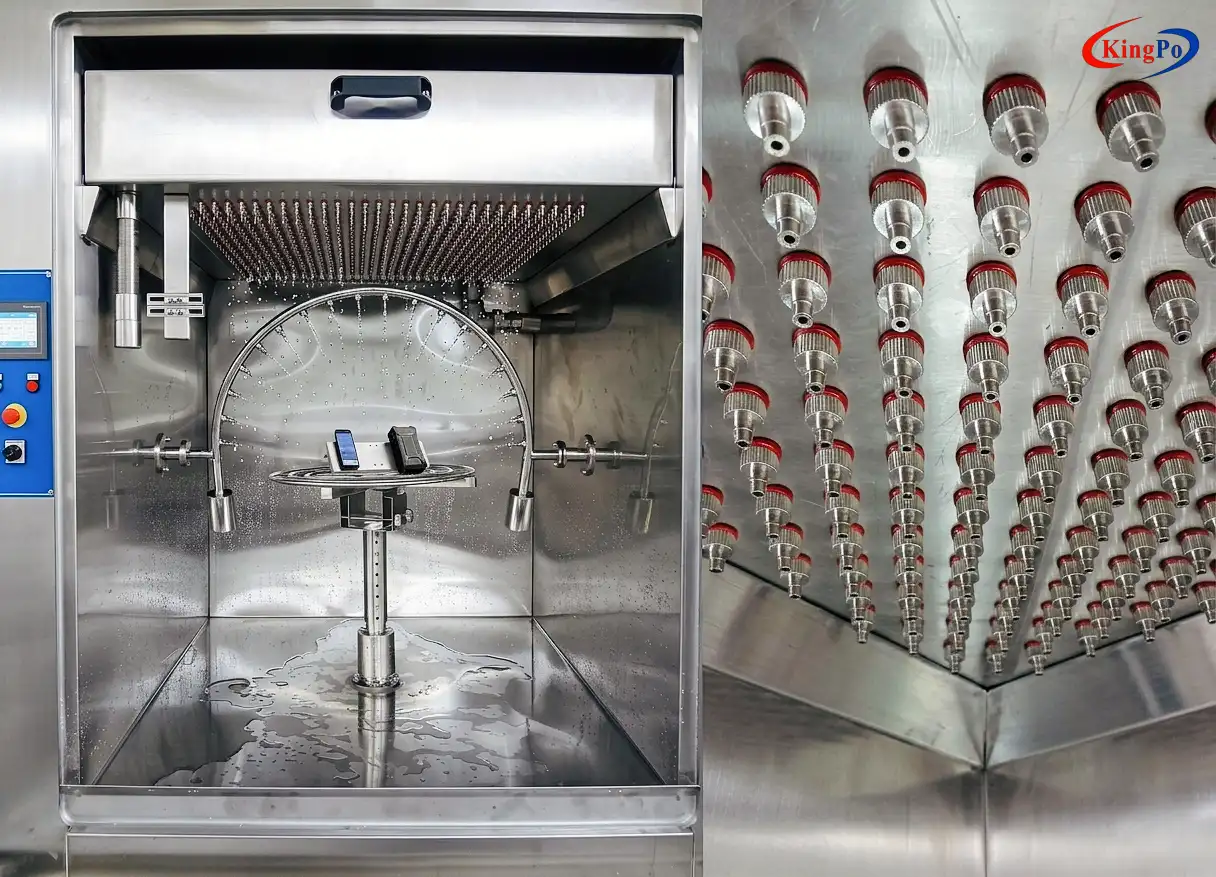

- IPX1/IPX2: 800 ร 800 mm drip board with adjustable drip rate (1 mm/min or 3 mm/min)

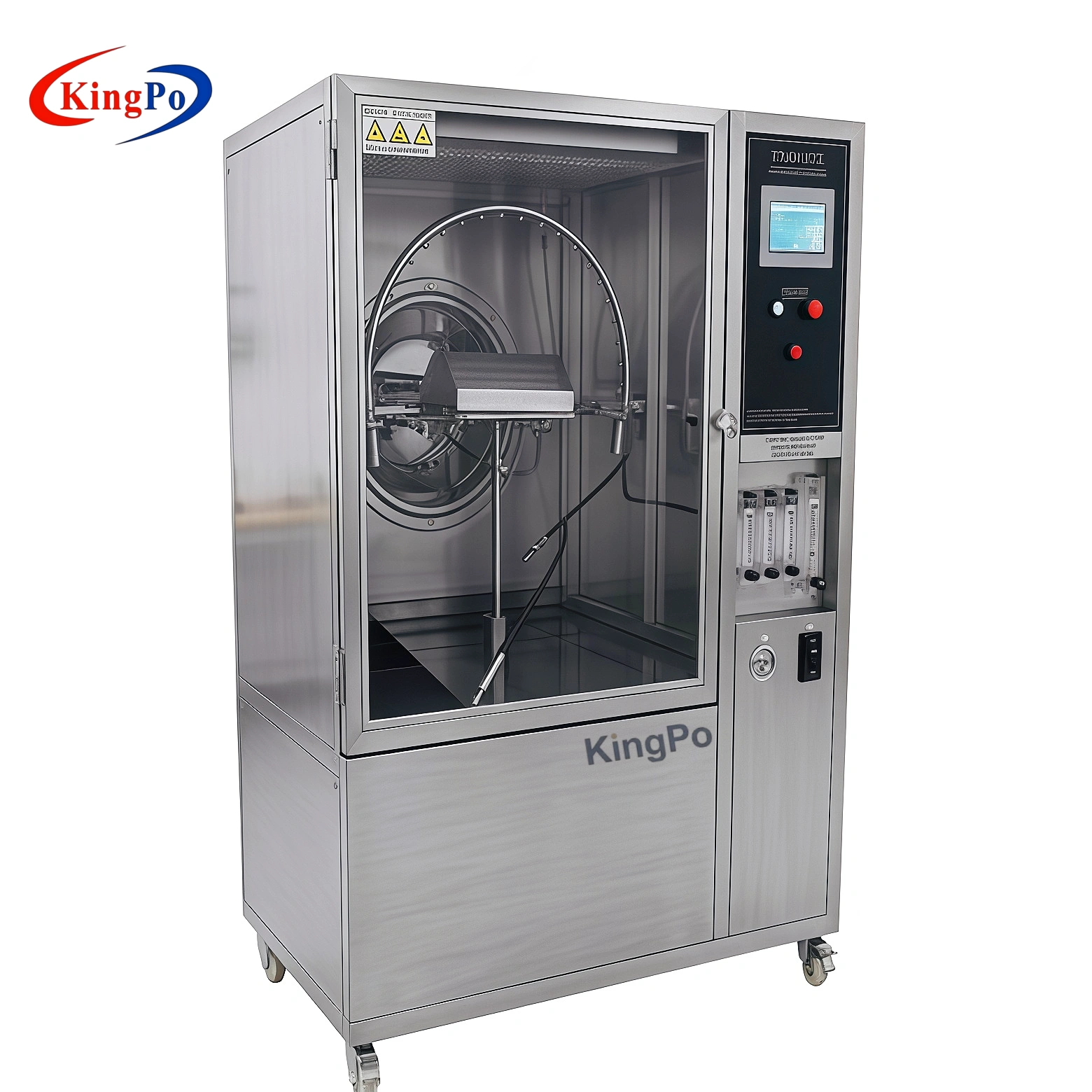

- IPX3/IPX4: Oscillating tubes R200 and R400, swing angle 120ยฐ (IPX3) or 350ยฐ (IPX4)
- IPX5: 6.3 mm nozzle, flow rate 12.5 ยฑ 0.62 L/min
- IPX6: 12.5 mm nozzle, flow rate 100 ยฑ 5 L/min
- Control System: PLC with color touchscreen for programmable sequences and real-time monitoring
- Internal Volume: 1000 ร 1000 ร 1000 mm
- Standards Compliance: IEC 60529 (IPX1โIPX6), IEC 60598-1, IEC 60884-1
- MOQ: 1
- Delivery Period: 25 working days
IP Code Waterproof Description
IP Code Waterproof IPX2 IPX3 IPX4 IPX5 IPX6 Rain Test Chamber
The IP Code Waterproof Rain Test Chamber is a professional multi-function ingress protection test system manufactured by KingPo. It is designed to perform the complete series of waterproof tests defined in IEC 60529, from IPX1/IPX2 dripping water to IPX5/IPX6 powerful water jets.
The system integrates a large drip board for IPX1/IPX2, oscillating tubes (R200 and R400) for IPX3/IPX4, and high-pressure nozzles for IPX5/IPX6, all in one compact and efficient unit. It is widely used for testing luminaires, electrical enclosures, automotive components and outdoor equipment. The PLC-controlled system with color touchscreen enables precise adjustment of drip rate, swing angle, flow rate and test duration, ensuring repeatable and traceable results that meet strict certification requirements.
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer specializing in ingress protection and environmental testing equipment. We have delivered numerous IP Code Waterproof Rain Test Chambers to leading manufacturers, certification laboratories and testing organizations worldwide. All units include calibration certificates (additional cost), on-site installation guidance, a full one-year warranty and rapid technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- 800 ร 800 mm drip board with adjustable drip rate for IPX1/IPX2
- Oscillating tubes (R200 and R400) with precise swing angles for IPX3/IPX4
- High-pressure nozzles (6.3 mm for IPX5, 12.5 mm for IPX6) with accurate flow control
- Robust SUS304 stainless steel construction and tempered glass observation window

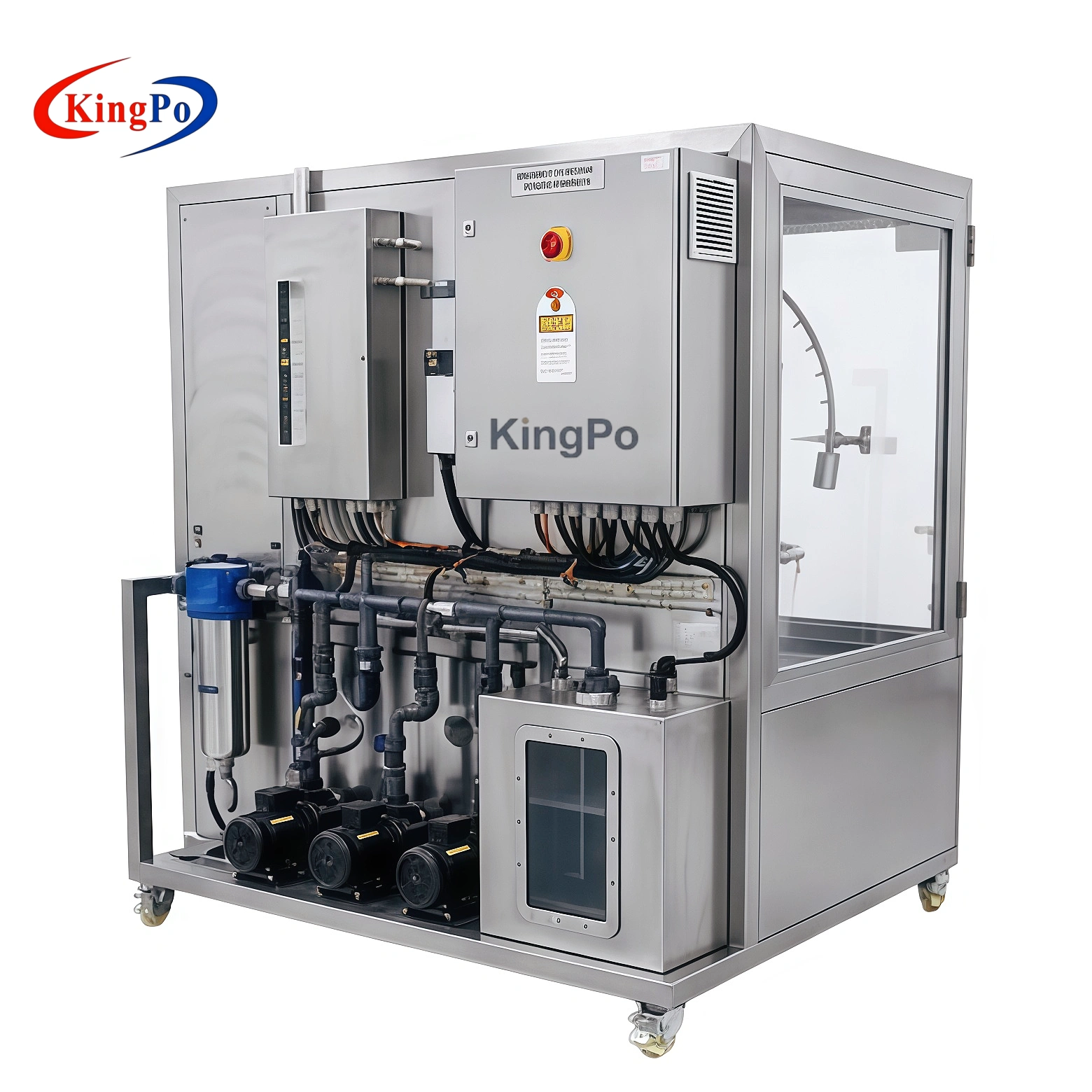

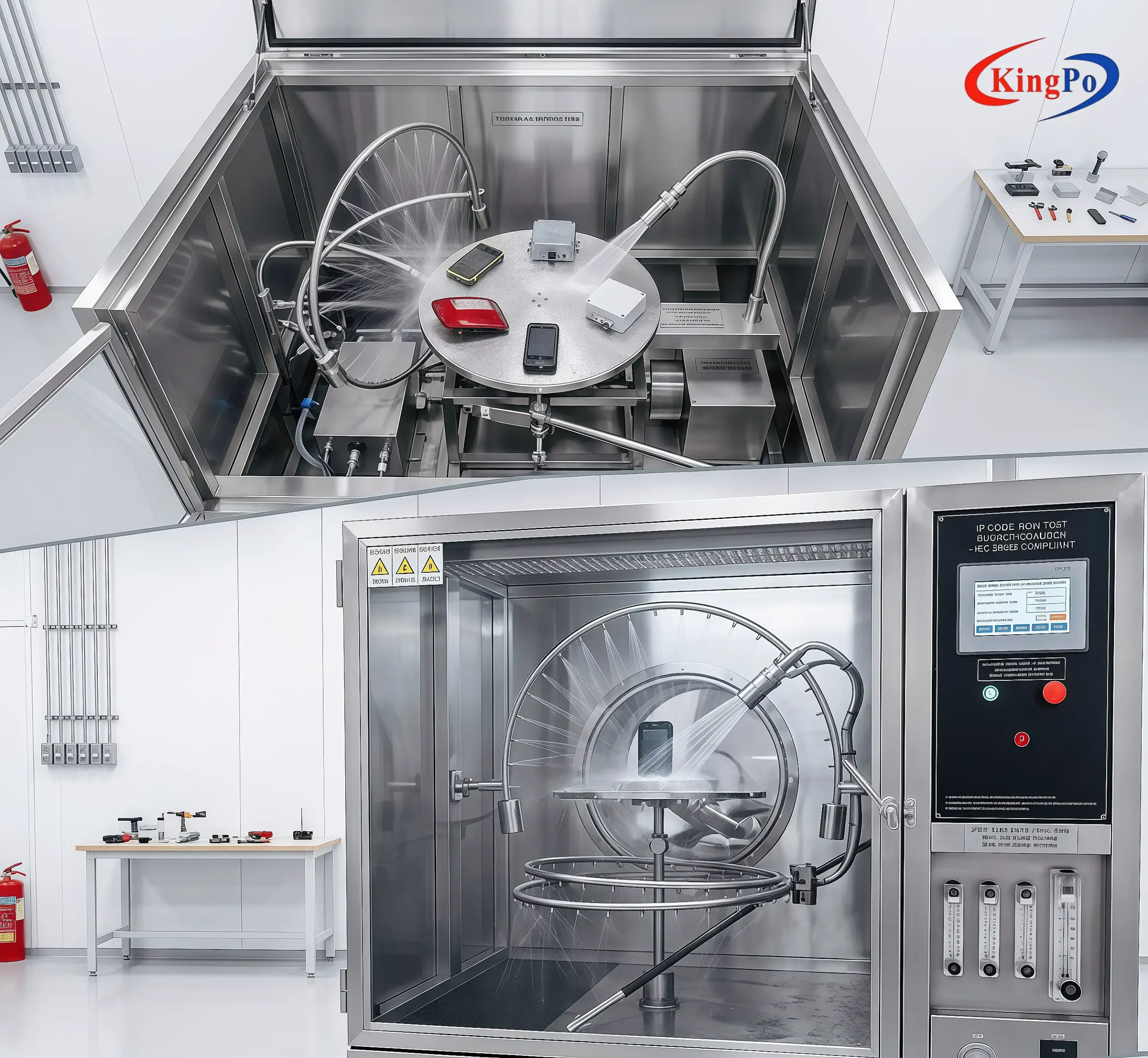

- PLC + color touchscreen controller for programmable test sequences and real-time monitoring
- Comprehensive safety protections including leakage, overload and short-circuit protection
These technical elements ensure high accuracy, excellent repeatability and full compliance with IEC 60529 requirements.
Technical Parameters
Core Test Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Drip Board Area (IPX1/IPX2) | 800 ร 800 mm | Adjustable drip rate 1 mm/min (IPX1) or 3 mm/min (IPX2) |
| Oscillating Tubes (IPX3/IPX4) | R200 and R400 | Swing angle 120ยฐ (IPX3) or 350ยฐ (IPX4), user-defined option available |
| IPX5 Nozzle Diameter | 6.3 mm | Flow rate 12.5 ยฑ 0.62 L/min per IEC 60529 |
| IPX6 Nozzle Diameter | 12.5 mm | Flow rate 100 ยฑ 5 L/min per IEC 60529 |
| Internal Volume | 1000 ร 1000 ร 1000 mm | Suitable for most luminaire and electrical products |
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Control System | PLC with color touchscreen | Real-time monitoring of flow, pressure and test cycles |
| Power Supply | AC 380V 50 Hz | Stable industrial power requirement |
| Safety Protections | Leakage, overload, short-circuit, water shortage | Comprehensive safety interlocks |
The IP Code Waterproof Rain Test Chamber supports critical stages:
- Product Development โ Validate waterproof design of new luminaires, electrical enclosures and automotive components
- Certification Testing โ Generate data for IEC 60529 compliance
- Quality Control โ Batch verification of ingress protection in production
- Failure Analysis โ Identify water ingress paths under different spray conditions
It improves product reliability, reduces field failures and accelerates certification for waterproof products.
Procurement Benefits
Integrated multi-function design with precise flow and pressure control delivers consistent, repeatable results with minimal operator intervention. Robust stainless steel construction ensures long-term reliability. This IP Code Waterproof Rain Test Chamber strengthens ingress protection validation, supports IEC 60529 and minimizes quality risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
IP Code Waterproof Applications
- Luminaires and Lighting Products โ Full IPX1 to IPX6 waterproof testing
- Electrical and Electronic Enclosures โ Ingress protection verification
- Automotive Components โ Water resistance testing of sensors and connectors
- Outdoor Equipment โ Durability evaluation under rain and spray conditions
- Certification Laboratories โ Compliance testing per IEC 60529
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with IEC 60529 for ingress protection testing (IPX1 to IPX6). It provides a controlled environment to accurately simulate dripping water, spraying, splashing and powerful jetting conditions for precise evaluation of enclosure protection performance, thereby ensuring long-term reliability and safety in electrical, automotive and industrial applications.
For further details on the IP Code system and testing methodology, please refer to the UL IP Code Waterproof standards .
Calibration certificates are available at additional cost. Regular verification of flow rate, pressure and temperature is recommended to maintain traceability.
Technical Inquiry for IP Code Waterproof
KingPo specializes in ingress protection and environmental testing equipment. If you require precise IPX1 to IPX6 testing for luminaires, electrical products or automotive components, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- Integrated IPX1 to IPX6 testing in one compact chamber
- Oscillating tubes R200 and R400 for flexible IPX3/IPX4 testing
- Precise drip rate, oscillating tube and high-pressure nozzle control
- PLC touchscreen for easy programming and real-time monitoring
- Robust SUS304 stainless steel construction with safety protections
- Reliable compliance with IEC 60529 and related standards
Tell us your product types, required IP rating or test volume โ our engineering team will reply with tailored recommendations within 24 hours.
