USB Type-C Physical Layer Test System – IEC 62680-1-2 & IEC 62680-1-3 Compliance Testing Solution
USB Type-C Physical Layer Test System provides full compliance testing for USB Type-C cables, connectors, PD3.1, USB4 and Type-C protocol per IEC 62680-1-2 & IEC 62680-1-3, ensuring EU universal charger directive readiness.
- Standards Coverage: Covers EN IEC 62680-1-2 (USB Power Delivery) and EN IEC 62680-1-3 (USB Type-C Cable and Connector)
- Regulatory Support: Designed to assist compliance with EU Directive (EU) 2022/2380 for universal chargers
- Test Scope: Includes Type-C connector/cable specifications, Power Delivery protocol, and interoperability testing
- Applicable Products: Suitable for smartphones, tablets, laptops, headphones, portable speakers, and other portable electronic devices
- Test Items: Covers PD3.1, PD2.0/PD3.0, Type-C functional testing, Source Power testing, and DP Alt Mode
- Cable Types Supported: Type-C to Type-C, Type-C to Legacy, adapters, receptacles, and raw cables
- Documentation: Provides standard interpretation and structured testing guidance
- MOQ: 1 set
- Delivery Time: 30 working days
USB Type-C Physical Layer Test System Description
USB Type-C Physical Layer Test System – IEC 62680-1-2 & IEC 62680-1-3 Compliance Tester
The USB Type-C Physical Layer Test System is a comprehensive compliance test solution manufactured by KingPo, designed to verify USB Type-C cables, connectors, power delivery (PD) and protocol performance. Fully compliant with IEC 62680-1-2 (USB Power Delivery) and IEC 62680-1-3 (USB Type-C Cable and Connector Specification), this system supports PD3.1 merged CTS, USB4 Gen2/Gen3, Type-C functional testing, source power test, QC test and DP Alt Mode test, ensuring readiness for the EU universal charger directive (mandatory from Dec 28, 2024).
In smartphones, tablets, laptops, earbuds, power banks and other USB Type-C devices, physical layer compliance is critical to ensure safe fast charging, data transfer and interoperability. The KINGPO USB Type-C Physical Layer Test System addresses this by providing one-stop testing for Type-C to Type-C cables, legacy cables, adapters, receptacles and raw cables, allowing manufacturers, testing labs and certification bodies to verify compliance with global standards (CE, UL, CB Scheme, CCC) and the revised EU RED directive.
This system features merged CTS for PD3.1, high-precision protocol analysis and robust hardware, delivering repeatable, certification-grade results for USB Type-C physical layer validation.
USB Type-C Compliance Testing Solution IEC 62680-1-2 / IEC 62680-1-3

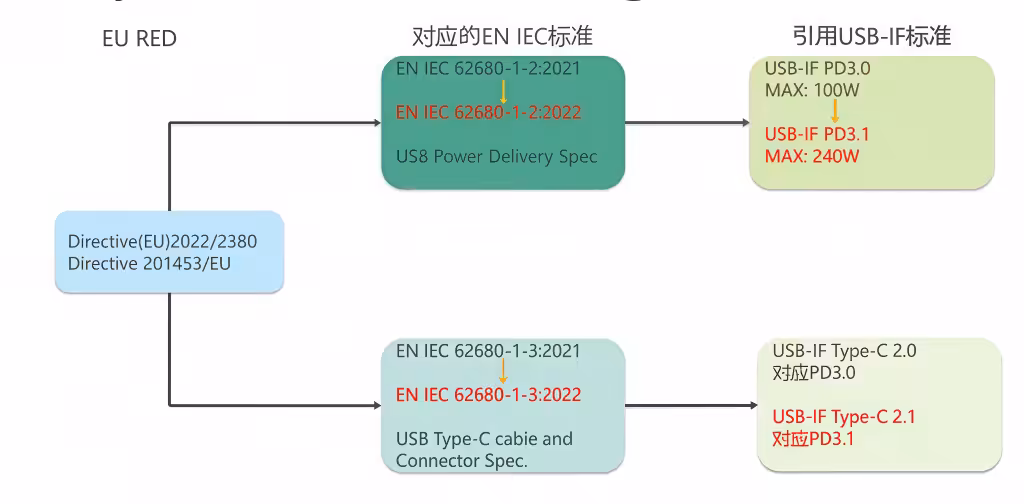

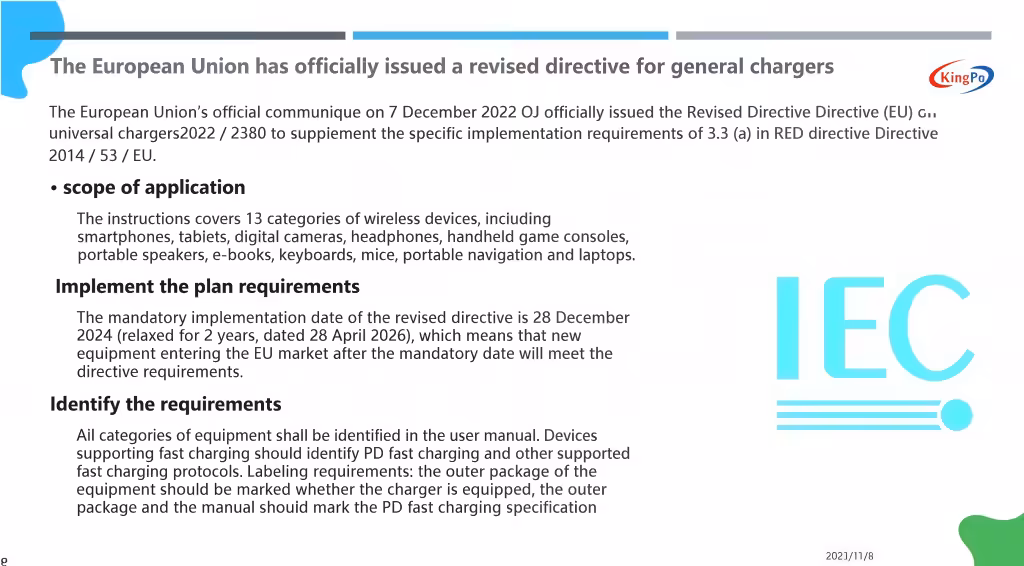

EU Universal Charger Directive Revision Directive (EU) 2022/2380, published Dec 7, 2022, supplements RED Article 3.3(a) to unify charging ports and reduce e-waste.
Scope Applies to 13 categories of portable devices: smartphones, tablets, cameras, earbuds, game consoles, speakers, e-readers, keyboards, mice, navigation devices, laptops, etc.
Implementation Mandatory from Dec 28, 2024 (extended to Apr 28, 2026 for some). All new devices entering the EU market after this date must use USB Type-C and comply with IEC 62680-1-2 (PD) & IEC 62680-1-3 (Type-C).
Labeling Requirements
- User manual: state if charger is included, supported fast-charge protocols (e.g., PD)
- Packaging: indicate charger presence and PD fast-charge specs (power, voltage/current)
KingPo Solution Our USB Type-C Physical Layer Test System fully supports IEC 62680-1-2 & IEC 62680-1-3 testing (PD3.1, USB4, Type-C cable/connector/protocol). Ready for EU directive compliance.

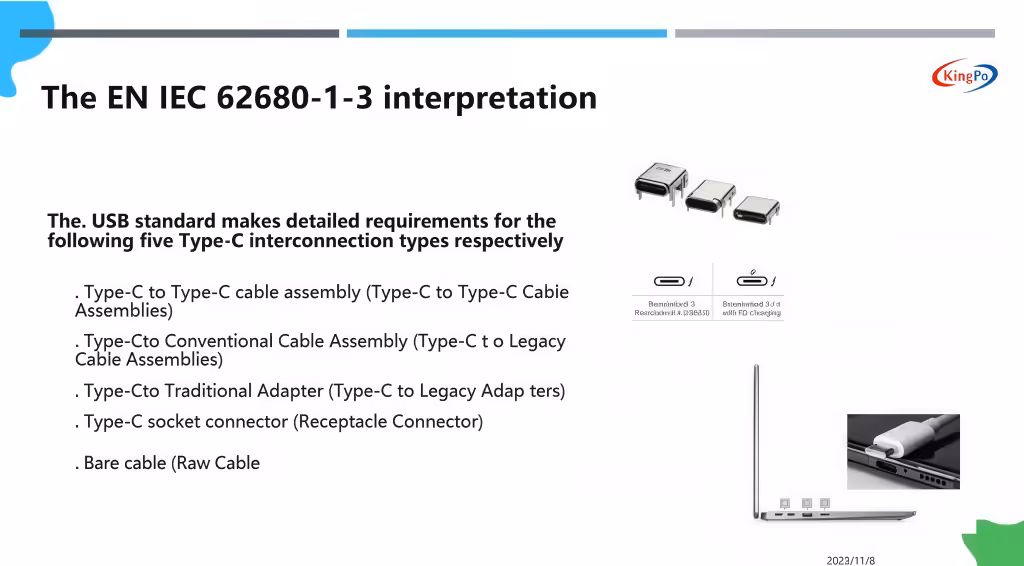

The EN IEC 62680-1-3 interpretation
- Type-C to Type-C cable assembly (Type-C to Type-C Cable Assemblies)
- Type-Cto Conventional Cable Assembly (Type-C t o Legacy Cable Assemblies)
- Type-Cto Traditional Adapter (Type-C to Legacy Adap ters)
- Type-C socket connector (Receptacle Connector)
- Bare cable (Raw Cable)
The EN IEC 62680-1-3 interpretation

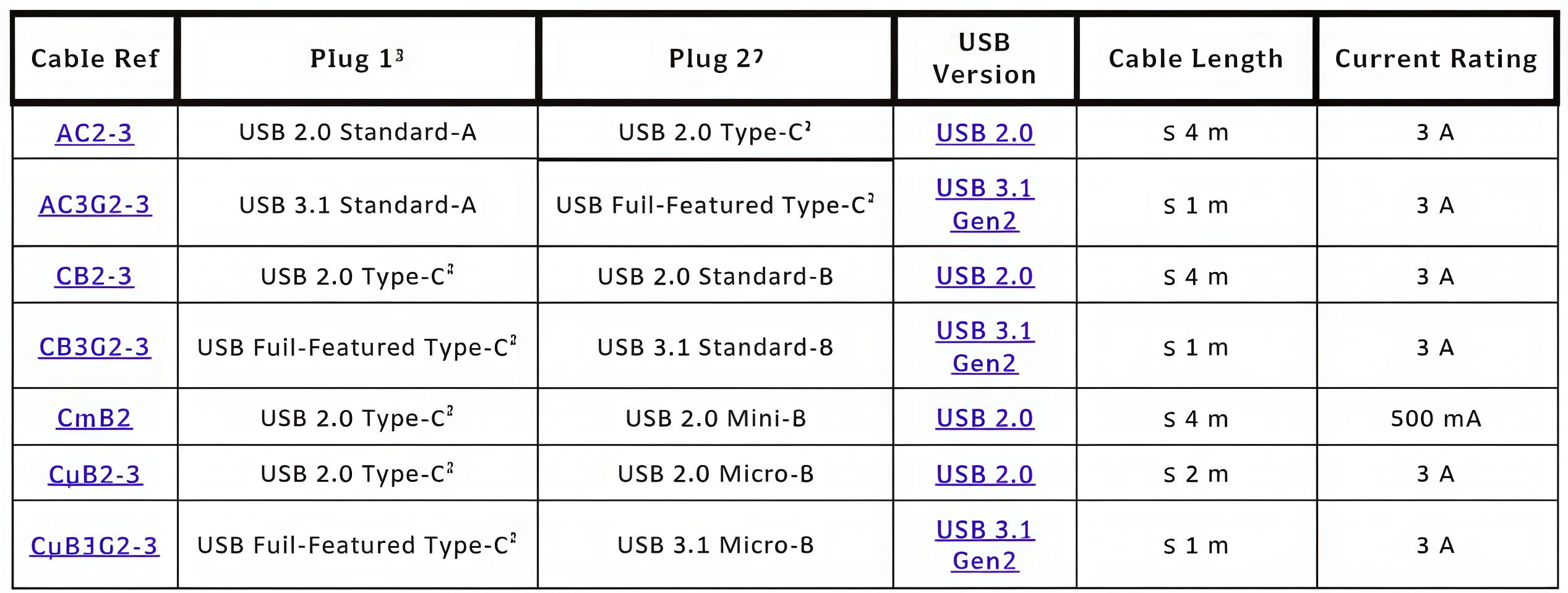

USB Type-C Standard cable Assembly Specification Type-C to Type-C Cable assembly (Type-C to Type-C Cable Assemblies)
The EN IEC 62680-1-3 interpretation
USB Type-C® Connectors and Cable Assemblies CTS Test Group B-3
WE ARE READY FOR EN IEC 62680-1-3

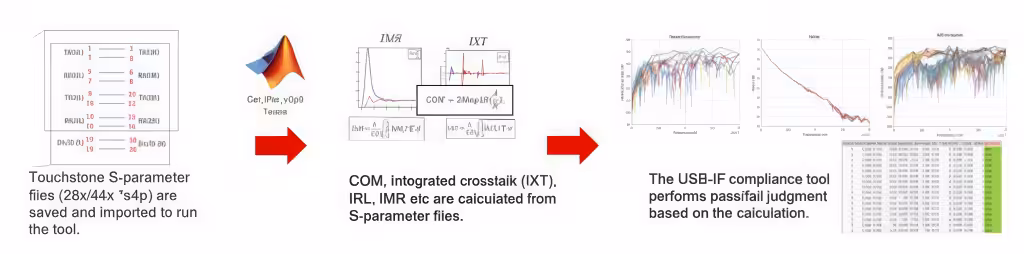

The USB-IF compliance protocol

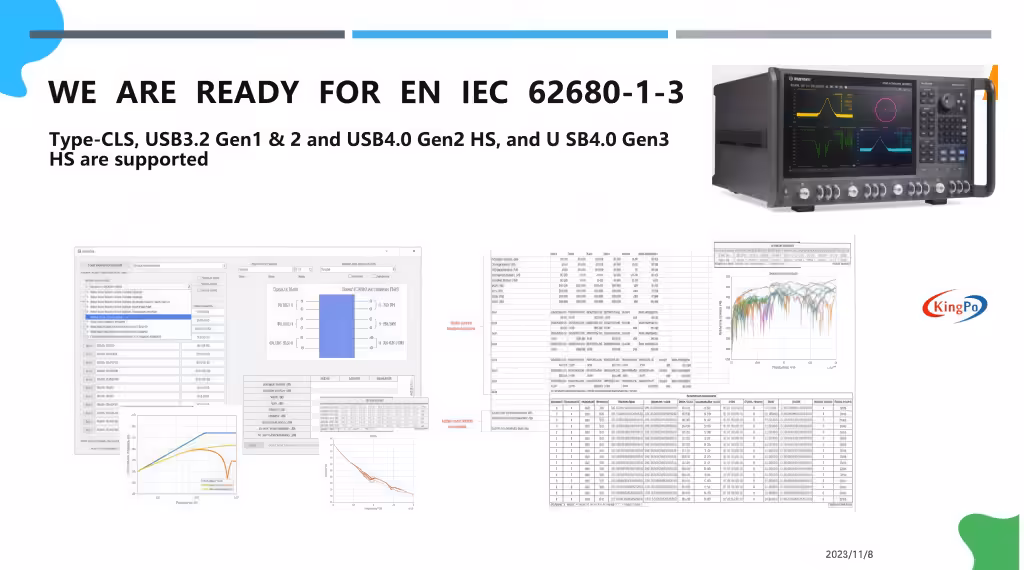

WE ARE READY FOR EN IEC 62680-1-3
Type-CLS, USB3.2 Gen1 & 2 and USB4.0 Gen2 HS, and U SB4.0 Gen3 HS are supported
The EN IEC 62680-1-2 interpretation

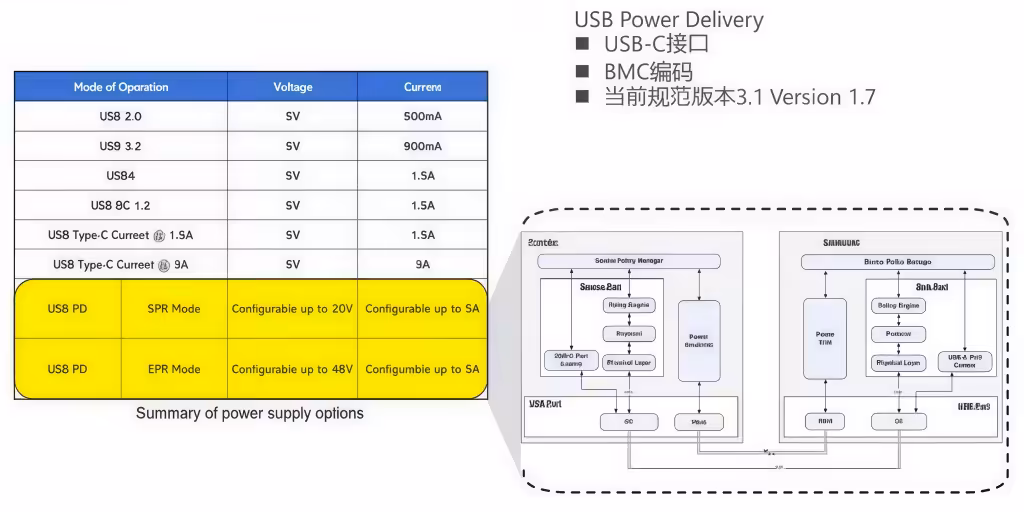

USB PD Evolution
The EN IEC 62680-1-2 interpretation
USB Power Delivery Product standard test items
The EN IEC 62680-1-2 interpretation
GRL USB Type-C ® Power Delivery Test Analyzer EPR
The EN IEC 62680-1-2 interpretation

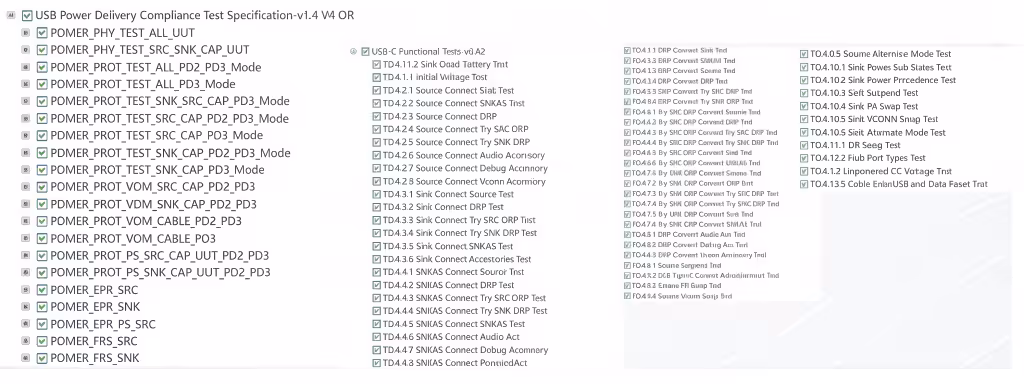

USB PD 3.1 The Merged CTS test item
Primary Use Cases & Business Value
The system supports key stages:
- R&D Compliance Validation — Test Type-C/PD/USB4 designs for EU directive readiness
- Certification Reporting — Labs generate data for IEC 62680-1-2/1-3 & EU RED submissions
- Production QC — Manufacturers verify batch compliance and fast charging specs
- Failure Analysis — Investigate charging/data issues in returned products
It helps deliver compliant devices, reduce market risks and accelerate EU certification.
Compliance & Regulatory Assurance
Fully compliant with IEC 62680-1-2 & IEC 62680-1-3 USB Type-C physical layer requirements. Aligned with CE, UL, CB Scheme, CCC and EU universal charger directive (Dec 2024). Regular calibration recommended.
USB Type-C Physical Layer Test System Technical
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Applicable Standards | IEC 62680-1-2 & IEC 62680-1-3 | USB Power Delivery and Type-C specifications |
| Regulatory Reference | EU Directive (EU) 2022/2380 | Universal charger requirements |
| Test Focus | Type-C connectors, cables, and Power Delivery | Includes protocol and interoperability testing |
| Supported Test Items | PD3.1, PD2.0/PD3.0, Type-C Functional, Source Power, DP Alt Mode | Based on common compliance test suites |
| Cable & Connector Types | Type-C to Type-C, Type-C to Legacy, Adapters, Receptacles, Raw Cable | Broad coverage of interconnection types |
| Target Products | Smartphones, tablets, laptops, audio devices, portable electronics | Devices subject to EU USB Type-C requirements |
| Deliverables | Testing plan, standard interpretation, test item list | Customized according to product category |
| Customization | Supported | Scope can be adjusted based on specific product |
Technical Inquiry for USB Type-C Physical Layer Test System
KingPo provides USB Type-C compliance testing plans tailored to different product categories and cable configurations. Our team can assist with scope definition, test item selection, and compliance strategy. For detailed information or customized proposals, please contact us.
The Core Value We Deliver
- Structured compliance guidance based on IEC 62680-1-2 and IEC 62680-1-3
- Support for EU USB Type-C regulatory requirements
- Suitable for both new development and product updates
- Flexible scope to match different product and cable types
- Professional technical support for test planning and standard interpretation
USB Type-C Physical Layer Test System Applications
- Consumer Electronics – Smartphones, tablets, laptops, earbuds, power banks
- USB Type-C Manufacturers – Cables, connectors, chargers, PD controllers
- Certification Labs & QA – Third-party and in-house IEC 62680-1-2/1-3 testing
- Global Safety Certifications – Supports CE, UL, CB Scheme, CCC by verifying Type-C/PD compliance
- Related Scenarios – EU universal charger directive readiness, fast charging validation
USB Type-C Physical Layer Test System FAQs
