Three Vertical Bar Testing Equipment โ IEC62368 Three Vertical Bar Signal Generator for TV Safety Testing
Three Vertical Bar Testing Equipment (KP-6215) generates three vertical bar video signals for CVBS, YPbPr, HDMI interfaces per IEC62368, supporting PAL/NTSC and HD/4K formats for TV testing.
- Standard Compliance: IEC62368 & IEC60107-1 โ Direct reference for three vertical bar signal generation
- Interfaces: CVBS, YPbPr, HDMI โ multiple output types
- Video Formats: PAL/NTSC, HD (up to 1920x1080p 60Hz), 4K (3840×2160 30p)
- Controls: Touch screen, navigation keys, digital keyboard for easy operation
- MOQ: 1
- Price: To be quoted
- Standard Packaging: Safety carton pack or plywood box
- Delivery Period: 15 days typical
- Payment Method: T/T
- Supply Capacity: 100 units/month
Products Categories
Get A Free Quote
Three Vertical Bar Testing Equipment Description
Three Vertical Bar Testing Equipment โ IEC62368 Three Vertical Bar Signal Generator
The Three Vertical Bar Testing Equipment (KP-6215) is a video signal generator manufactured by KingPo, designed for digital TV testing. It produces three vertical bar signals for CVBS, YPbPr, and HDMI interfaces per IEC62368 and IEC60107-1:1997 3.2.1.3, supporting PAL/NTSC, HD, and 4K formats to meet TV safety and EMC test requirements.
KingPo Factory Advantages
ISO9001 & CE-certified manufacturer with global exports. KingPo provides precise, calibration-supported video generators for IEC62368 testing, backed by responsive technical support and fast customization. This equipment helps TV manufacturers meet safety standards, reduce test failures, and cut compliance costs through efficient, multi-format signal generation.
Professional Construction & Technical Precision
Key features include:
- Signal Interfaces: Y/CVBS, Pb, Pr, HDMI โ versatile analog/digital output
- Video Formats: PAL/NTSC, 1280x720p 60Hz, 1920x1080p 60Hz, 3840×2160 30p โ full HD/4K support
- Controls: Touch screen display, navigation/digital keys โ intuitive parameter setting
- Audio Output: L/R channels โ complete video/audio test signals
- Operation: Preview, play/stop functions โ user-friendly with anti-interference shielding
These ensure accurate, repeatable three vertical bar signal generation.
ย Front panel description
- 1 System display:Display the system control software interface, with a touch screen function, for setting the selection of the system signal, the video format, and the setting of the digital TV modulation signal parameters.
- 2key:It is composed of navigation keys (up and down, etc.), digital keyboard and function keys to facilitate users to operate and control the software.
- 3 Rear panel description
- 4USB joggle:Easy for users to connect to the mouse, keyboard, U disk and other external devices.
- 5power key:The control system switches and switches.
- 1System display:Display the system control software interface, with a touch screen function, for setting the selection of the system signal, the video format, and the setting of the digital TV modulation signal parameters.
- 2key:It is composed of navigation keys (up and down, etc.), digital keyboard and function keys to facilitate users to operate and control the software.
- 3 Rear panel description
- 4USB joggle:Easy for users to connect to the mouse, keyboard, U disk and other external devices.
- 5power key:The control system switches and switches.
- 1The Y / CVBS, Pb, and Pr interfaces
- The output interface of analog TV composite signal and chromatic component signal, where Y / CVBS interface outputs composite signal (CVBS) when the signal formats are PAL and NTSC, and the luminance signal in chromatic signal (Y) in other formats.
- 2L, R joggle
- Audio output interfaces, L and R represent the left and right channels, respectively.
- 3HDMI joggle
- Digital video signal output interface.
- 4System peripherals interface
- Easy for users to connect to the monitor, mouse, keyboard, U disk and other external devices.
- 5System power supply interface and switch
- Connect and control the system power supply.
- Methods of system software
Primary Use Cases & Business Value
The Three Vertical Bar Testing Equipment supports key stages:
- TV Safety Testing โ Generate signals for enclosure durability and hazard assessment
- EMC Testing โ Provide test patterns for electromagnetic compatibility validation
- Production QC โ Verify display performance in TV manufacturing lines
- Failure Analysis โ Investigate signal-related issues in returned TVs
It helps deliver compliant TV products, reduce certification delays, and improve manufacturing efficiency.
Compliance & Regulatory Assurance
Fully compliant with IEC62368 and IEC60107-1:1997 requirements for three vertical bar signals. Aligned with CE, UL, CB Scheme, CCC for TV equipment. Regular calibration recommended.
Procurement Benefits
Fast setup, detailed compliance documentation, and strong after-sales support. Accelerate IEC62368 TV certification, improve test accuracy and quality control, and minimize risks of non-compliance penalties or product recalls. Contact us today for your Three Vertical Bar Testing Equipment quote โ weโll respond within 24 hours with pricing, stock status, and technical details tailored to your needs.
Three Vertical Bar Testing Equipment Technical
| Parameter | Specification |
|---|---|
| Model Number | KP-6215 |
| Standards | IEC62368, IEC60107-1:1997 3.2.1.3 |
| Interfaces | CVBS, YPbPr, HDMI |
| Video Formats | PAL/NTSC, HD (1280x720p 60Hz to 1920x1080p 60Hz), 4K (3840×2160 30p) |
| Audio Outputs | L/R channels |
| Controls | Touch screen, navigation/digital keys, USB |
| Certifications | ISO9001, CE |
| MOQ | 1 unit |
| Price | To be quoted |
| Standard Packaging | Safety carton pack or plywood box |
| Delivery Period | 15 days typical |
| Payment Method | T/T |
| Supply Capacity | 100 units/month |
| Warranty | 1 year |
| Origin | China (KingPo manufacturer) |
Get Free Quote of Three Vertical Bar Signal IEC62368 Three Vertical Bar Signal.RDL-100 video signal generator
We provide high-precision Three Vertical Bar Testing Equipment direct from KingPo factory, ensuring reliable IEC62368 TV test signal generation.
The Core Value We Deliver to You
- Multi-Format Support โ PAL/NTSC, HD, 4K for comprehensive testing
- High Precision โ Accurate three vertical bar signal with preview function
- Factory Advantages โ MOQ 1 unit, 15-day delivery, 1-year warranty, ISO9001 & CE
- Complete Testing Support โ Pair with our TV series for full checks
- Faster Certification โ Reduce test failures, accelerate compliance
Take Action Now โ Submit inquiry in 30 seconds for best price, stock status, and technical support within 24 hours!
Three Vertical Bar Testing Equipment Applications
- Digital TV Testing โ Safety and EMC signal generation
- Display Performance Validation โ Three vertical bar pattern for luminance/calibration
- Production Line QC โ Batch testing of TV signal processing
- Certification Labs & QA โ Third-party IEC62368 testing
- Global Certifications โ Supports CE, UL, CB Scheme, CCC by verifying TV reliability
Technical Indicators
| interface type | project | scope | metric |
| CVBS | intensity level | (0~700)mV | ยฑ(2%X+6mV) |
| Color level | (0~885.1)mV | ยฑ(2%X+6mV) | |
| chrominance phase | (0~360)ยฐ | ยฑ2ยฐ | |
| YPbPr | Brightness signal output level (Y) | (0~700)mV | ยฑ(2%X+6mV) |
| Chromatic difference signal output level (Pb, Pr) | (-350~350)mV | ยฑ(2%X+6mV) |

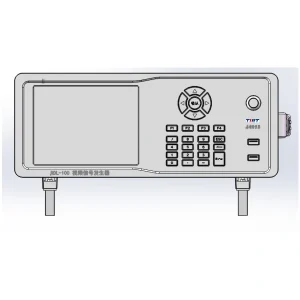

Front Panel Description
1. System display
Display the system control software interface, with a touch screen function, for setting the selection of the system signal, the video format, and the setting of the digital TV modulation signal parameters.
2. key
It is composed of navigation keys (up and down, etc.), digital keyboard and function keys to facilitate users to operate and control the software.
3. USB joggle
Easy for users to connect to the mouse, keyboard, U disk and other external devices.
4. power key
The control system switches and switches.

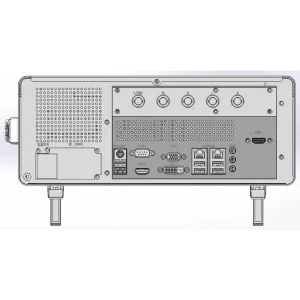

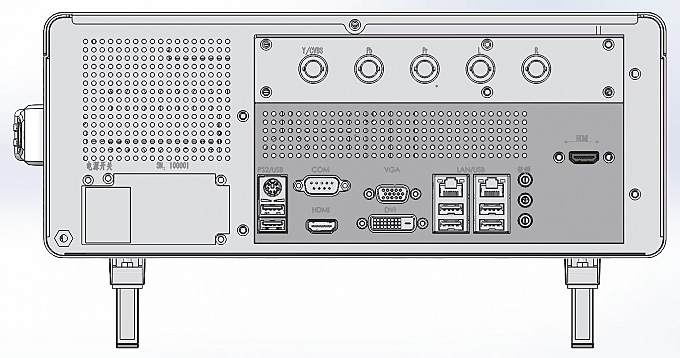

Rear Panel Description
1. The Y / CVBS, Pb, and Pr interfaces
The output interface of analog TV composite signal and chromatic component signal, where Y / CVBS interface outputs composite signal (CVBS) when the signal formats are PAL and NTSC, and the luminance signal in chromatic signal (Y) in other formats.
2. L, R joggle
Audio output interfaces, L and R represent the left and right channels, respectively.
3. HDMI joggle
Digital video signal output interface.
4. System peripherals interface
Easy for users to connect to the monitor, mouse, keyboard, U disk and other external devices.
5. System power supply interface and switch
Connect and control the system power supply
Three Vertical Bar Testing Equipment Detail Display
How does the Three Vertical Bar Testing Equipment generate HD signals?
How does the Three Vertical Bar Testing Equipment generate HD signals?
It supports 1920x1080p 60Hz format through HDMI, ensuring clear three vertical bar patterns for TV display calibration.
Can this equipment test both PAL and NTSC formats?
Yes โ the touch screen allows quick switching between PAL/NTSC for global TV market compliance testing.
What if my TV test requires 4K signals โ is it compatible?
Absolutely โ it outputs 3840x2160 30p for ultra-HD three vertical bar testing on modern displays.
How accurate is the signal level for luminance testing?
Intensity level 0โ700mV ยฑ(2%+6mV), providing precise white bar reference for TV safety assessments.
What is the MOQ and delivery time for the Three Vertical Bar Testing Equipment?
MOQ 1 unit; delivery typically 15 days, making it easy to start TV testing quickly.
What warranty and support does KingPo offer?
1-year warranty plus lifetime technical support for long-term reliability.
How does this equipment help reduce TV test failures?
Preview and play functions allow signal verification before testing, minimizing errors in EMC and safety evaluations.
Can the equipment be used for custom video formats in R&D?
Yes โ flexible pixel sampling and audio controls allow adaptation for specific TV prototype tests.
How long does a typical TV signal test cycle take?
Setup and signal generation is quick (seconds per format), saving lab time compared to manual methods.
How to get a quote or sample for the Three Vertical Bar Testing Equipment?
Submit the inquiry form or email [email protected] for pricing and fast support.
