Odor Test Chamber โ High-Temperature Gas Test Chamber for Odor Detection
Odor Test Chamber โ high-temperature gas test chamber designed for odor detection and evaluation of electrician, electronics, automotive electrical materials, agricultural products and leather under controlled high-temperature conditions, with forced hot air circulation and precise temperature regulation.
- Standard Compliance: GB/T 2423.2-2001, GJB 150.3-1986, IEC 68-2-2, QJQ 11052-2010, MS 300-34, GB/T 18885-2009, QB/T 2725-2005, GB 18401-2003 โ odor test chamber
- Temperature Range: Ambient ยฑ20โ to +200โ
- Heating-up Time: โค60 min
- Temperature Regulation Method: Forced hot air circulation ventilation mode
- Temperature Fluctuation: โค0.4โ (โค100โ), โค0.8โ (โค200โ)
- Temperature Deviation: โคยฑ1.5โ (โค100โ), โคยฑ2โ (โค200โ)
- Inner Chamber Material: Stainless steel SUS201/8K mirror plate
- Outer Shell Material: Double galvanized plates with surface spray treatment
- Control System: Programmable controller with 7-inch color touchscreen
- MOQ: 1
- Delivery Period: 35 working days
Odor Test Chamber Description
Accurate Control Odor Testing Equipment , Odour Measurement Equipment

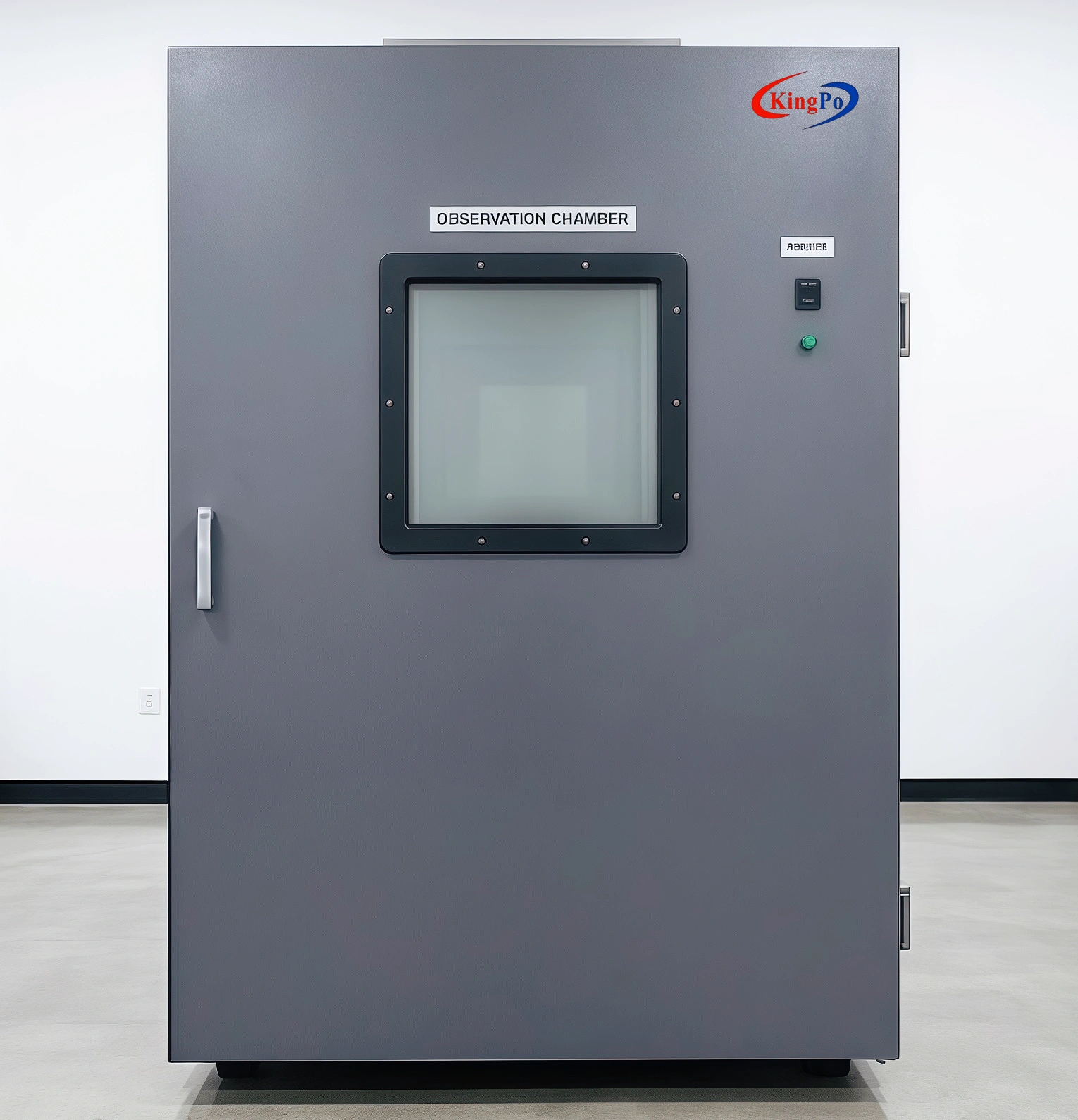

The Odor Test Chamber is a professional high-temperature gas test chamber manufactured by KingPo for accurate odor detection and evaluation of various materials including automotive interiors, leather, textiles, electrical components and agricultural products. It provides a controlled high-temperature environment with forced hot air circulation to simulate real usage conditions and detect volatile organic compounds and odor emissions.
KingPo Factory Advantages
KingPo is an ISO9001 and CE certified manufacturer specializing in environmental and odor testing equipment. We have delivered multiple odor test chambers to leading automotive OEMs, textile manufacturers and accredited laboratories worldwide. All units include calibration certificates (additional cost), on-site installation guidance, 1-year warranty and 48-hour technical response from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- Precise temperature control from ambient ยฑ20โ to +200โ with fluctuation โค0.4โ (โค100โ) and โค0.8โ (โค200โ)
- Forced hot air circulation ventilation system for uniform temperature distribution in the gas test chamber
- SUS201/8K mirror stainless steel inner chamber and double galvanized outer shell with spray treatment
- Programmable controller with 7-inch color touchscreen for easy operation and data recording
- Low-odor volatile materials and full-welded sealing to minimize background odor interference
- Optional external standard gas control for more stable and scientific odor test results
These elements ensure high accuracy, excellent repeatability and reliable odor measurement performance.
Technical Parameters
Core Test Parameters
| Parameter | Specification |
|---|---|
| Temperature Range | Ambient ยฑ20โ to +200โ |
| Temperature Fluctuation | โค0.4โ (โค100โ), โค0.8โ (โค200โ) |
| Temperature Deviation | โคยฑ1.5โ (โค100โ), โคยฑ2โ (โค200โ) |
| Heating-up Time | โค60 min (ambient to +200โ) |
| Test Duration | 0โ999999 min (presettable) |
| Control Method | Programmable controller with touchscreen |
| Parameter | Specification |
|---|---|
| Inner Chamber Material | Stainless steel SUS201/8K mirror plate |
| Outer Shell Material | Double galvanized plates with surface spray treatment |
| Insulation Material | High-density fiberglass cotton |
| Working Environment Temperature | 0~+40โ |
| Power Supply | AC380V 3 phases 4 lines + protective earth wire |
The odor test chamber supports critical stages:
- Product Development โ Evaluate odor emissions of new automotive interiors, leather and textiles
- Certification Testing โ Generate data for GB/T 18885, QB/T 2725 and QJQ 11052-2010 compliance
- Quality Control โ Batch verification of odor performance in production
- Failure Analysis โ Identify sources of unpleasant odors under high-temperature conditions
It improves product quality, reduces customer complaints and accelerates certification for odor-sensitive materials.
Procurement Benefits
Accurate temperature control and forced hot air circulation deliver consistent, repeatable results with minimal operator intervention. Low-odor materials and robust construction ensure long-term reliability. This odor test chamber strengthens odor evaluation of automotive and textile products, supports multiple national and international standards and minimizes quality risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with GB/T 2423.2-2001, GJB 150.3-1986, IEC 68-2-2 and other odor-specific standards including QJQ 11052-2010, MS 300-34, GB/T 18885-2009, QB/T 2725-2005 and GB 18401-2003. It provides a controlled high-temperature environment for accurate odor detection and measurement, thereby ensuring product quality and safety in automotive, textile and electrical applications.
For detailed technical requirements on high-temperature testing methods, refer to the IEC 68-2-2 standard overview published as a technical reference.
Technical Inquiry for Odor Test Chamber
KingPo specializes in environmental and odor testing equipment. If you require accurate high-temperature odor detection and measurement for automotive interiors, leather, textiles or electrical materials, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- Precise temperature control from ambient ยฑ20โ to +200โ with forced hot air circulation
- Low-odor volatile materials and full-welded sealing to minimize background interference
- 7-inch color touchscreen for easy operation and data recording
- Optional external standard gas control for more stable and scientific odor test results
- Reliable compliance with multiple national and international odor testing standards
Take Action Now
Tell us your material types, required temperature range or test volume โ our engineering team will reply with tailored recommendations within 24 hours.

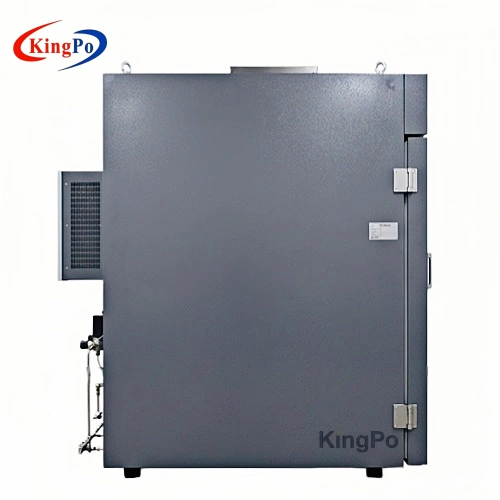

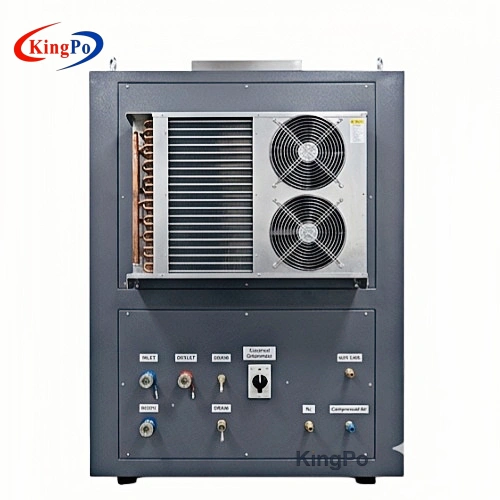

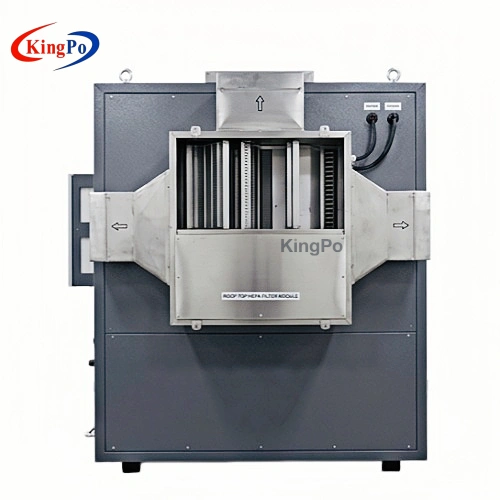

Odor Test Chamber Detail Display
