Box Compression Tester โ ISO 12048 Carton and Package Compression Test Machine
Box Compression Tester delivers ISO 12048 compliant carton and package compression validation for packaging OEMs and testing laboratories.
- Max Force: 20 kN / 50 kN
- Load Cells: 4 high-accuracy cells with 1/250,000 resolution
- Control: Dual system โ Windows PC + 7″ touchscreen
- Drive: Servo motor with double ball-screw guide rods
- Test Area (LรWรH): 1000ร1200ร1000 mm / 1300ร1500ร1500 mm
- Compression Stroke: 0โ1000 mm / 0โ1500 mm
- Speed: 0.1โ200 mm/min adjustable
- Standards Compliance: ISO 12048
- Safety: E-Stop, overload protection, upper/lower limit switches
- MOQ: 1
- Delivery Period: 15 working days
Box Compression Tester Description
Box Compression Tester For Carton Packaging Compressive Strength Testing
The Box Compression Tester is a professional, high-precision mechanical test system manufactured by KingPo. It is specifically engineered to evaluate the compression strength, deformation behavior and stacking performance of corrugated cartons, honeycomb boxes, paper cans, plastic drums and other transport packaging under controlled load conditions in accordance with ISO 12048.
Why This Box Compression Tester Meets the Needs of OEMs and Certification Laboratories๏ผ
- For packaging manufacturers and accredited testing laboratories, the key requirement is repeatable, high-accuracy compression and stacking data that directly supports product design validation, quality control and third-party certification. This tester meets these demands with its dual-control system (Windows PC + 7″ touchscreen), four high-resolution load cells (ยฑ0.5% precision), servo-driven double ball-screw mechanism and automatic safety interlocks. It enables simultaneous compression, deformation and stacking tests on full-size packages while generating traceable reports, helping OEMs reduce material costs, minimize transit damage and accelerate market approval.
KingPo Factory Advantages
KingPo is an ISO 9001 and CE certified manufacturer specializing in packaging and material testing equipment. With years of experience serving global packaging OEMs, certification laboratories and logistics companies, we have delivered numerous Box Compression Testers worldwide. Every system undergoes rigorous factory calibration and is supplied with comprehensive documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:

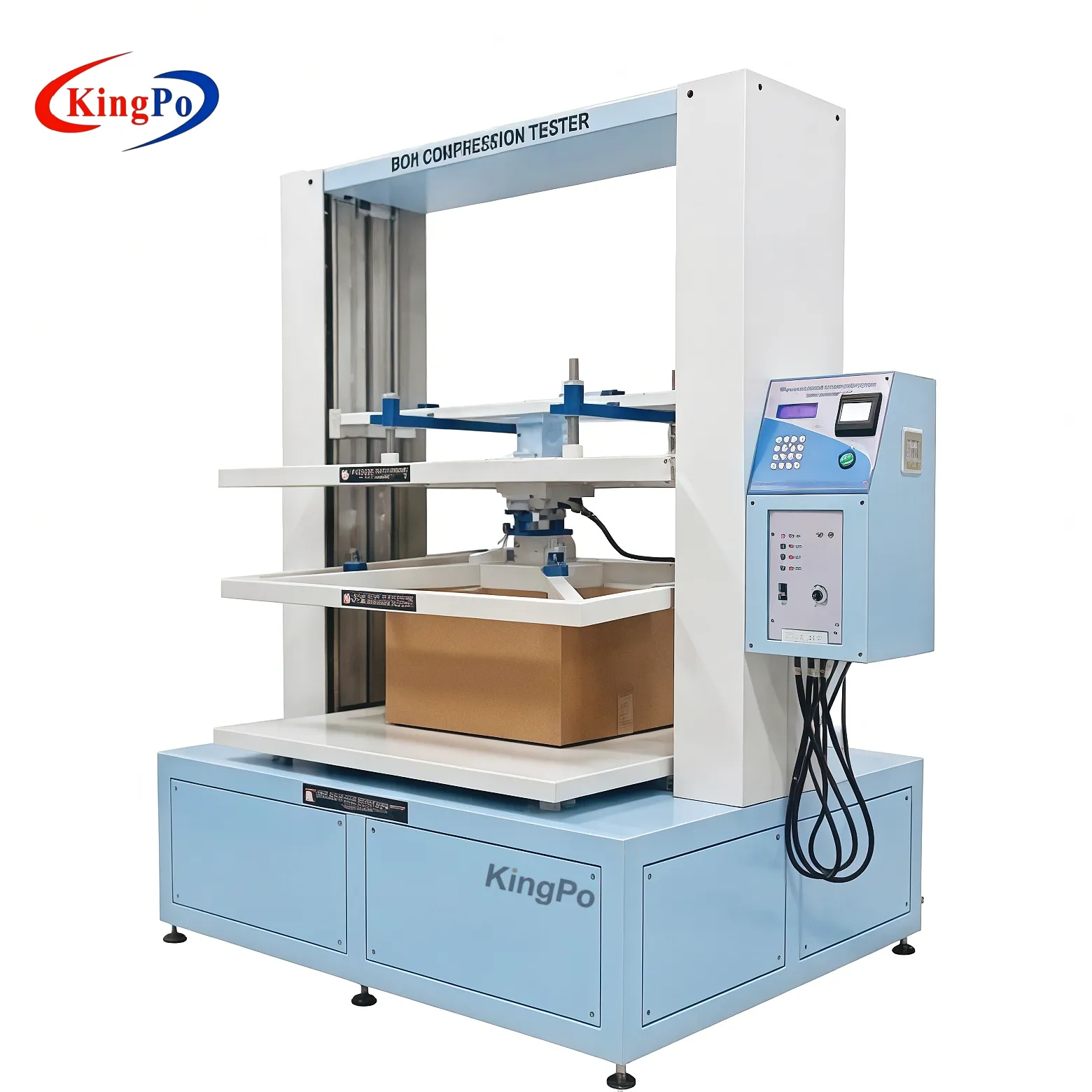

- Four high-accuracy load cells with 1/250,000 resolution and ยฑ0.5% precision
- Servo motor and double ball-screw guide rods for smooth, high-efficiency transmission

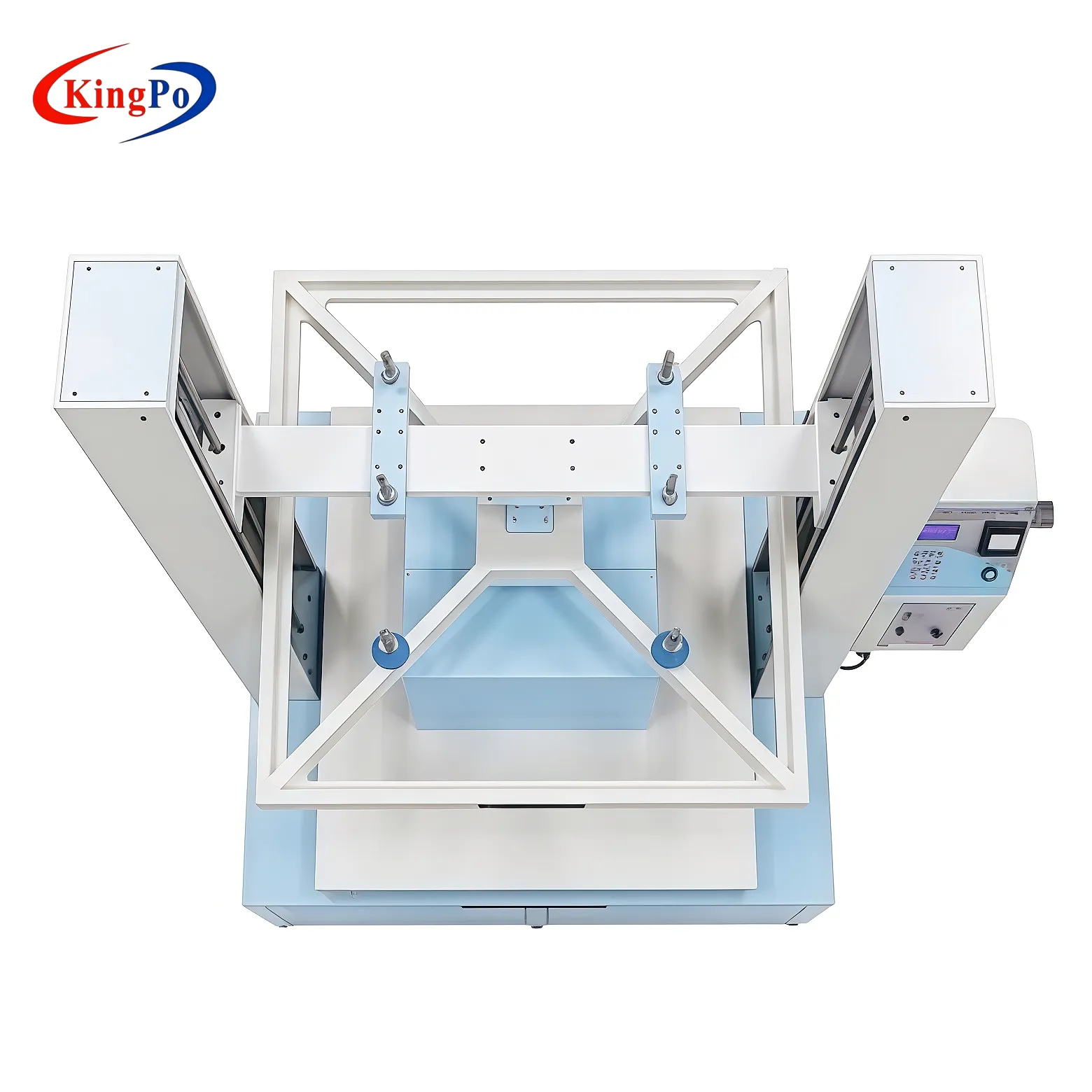

- Dual control system (Windows PC software + 7″ touchscreen) with real-time data display
- Adjustable test speed (0.1โ200 mm/min) and programmable test methods
- Robust frame with precision-aligned compression plates for superior parallelism
- Comprehensive safety protections including E-Stop, overload and limit switches
These technical elements ensure high accuracy, excellent repeatability and full compliance with ISO 12048 requirements.
Technical Parameters
Core Test Parameters
| Parameter | 20 kN Model | 50 kN Model | Remark / Notes |
|---|---|---|---|
| Maximum Force | 20 kN (2000 kg / 4409 lb) | 50 kN (5000 kg / 11023 lb) | 4 load cells for highest accuracy |
| Load Precision | ยฑ0.5% | ยฑ0.5% | 1/250,000 resolution |
| Effective Test Area | 1000 ร 1200 ร 1000 mm | 1300 ร 1500 ร 1500 mm | Suitable for full-size cartons and drums |
| Compression Stroke | 0โ1000 mm | 0โ1500 mm | Adjustable for different package heights |
| Test Speed | 0.1โ200 mm/min | 0.1โ200 mm/min | Programmable via touchscreen or PC |
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Control System | Dual โ Windows PC + 7″ touchscreen | Real-time monitoring software |
| Drive System | Servo motor + double ball-screw guide rods | High transmission accuracy and low noise |
| Power Supply | AC 220 V, 50 Hz (550 W / 900 W) | Stable industrial power |
| Dimensions (LรWรH) | Approx. 2150 ร 1200 ร 2350 mm | Approx. 2450 ร 1500 ร 2350 mm |
| Weight | Approx. 670 kg | Approx. 1000 kg |

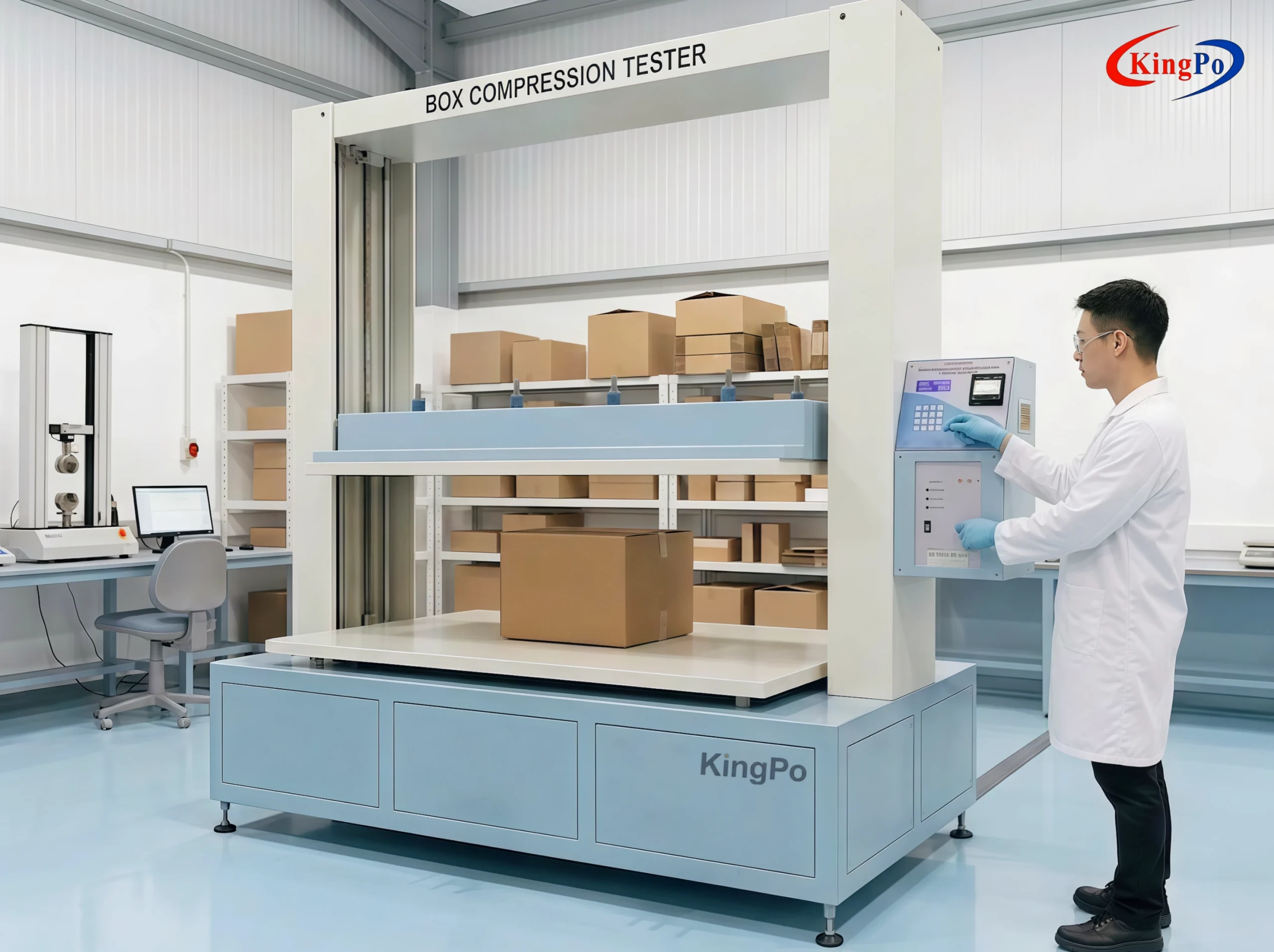

The Box Compression Tester supports critical stages in product development and quality assurance. Packaging engineers use it to validate carton strength and stacking performance. Certification laboratories rely on its precise load control to generate traceable data for ISO 12048 compliance. Production teams perform batch verification to prevent transit damage. The equipment also enables failure analysis by replicating exact compression stresses, helping manufacturers optimize material usage and reduce packaging costs.
Procurement Benefits
Integrated dual-control system with servo-driven precision and automatic safety features delivers consistent, repeatable results with minimal operator intervention. Robust industrial-grade construction ensures long-term reliability and low maintenance costs. This Box Compression Tester strengthens package integrity validation and minimizes quality risks, ultimately reducing damage claims and accelerating time-to-market for reliable transport packaging.
Box Compression Tester Applications
- Corrugated Cartons and Honeycomb Boxes โ Compression, deformation and stacking strength verification
- Transport Packaging โ Paper cans, paper boxes, container drums and plastic drums
- Logistics and E-commerce Packaging โ Performance evaluation under real distribution conditions
- Certification Laboratories โ Traceable data generation per ISO 12048
- R&D and Quality Assurance Departments โ Material optimization and structural integrity evaluation
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with ISO 12048 for compression and stacking testing of transport packaging. It provides a controlled environment to simulate real-world stacking loads and transit conditions for accurate evaluation of package mechanical performance, thereby ensuring long-term reliability and safety in logistics and e-commerce applications.
For comprehensive technical guidance on packaging compression testing methodology, please refer to the latest edition of ISO 12048.
Calibration certificates are available at additional cost. Regular verification of load accuracy, speed and parallelism is recommended to maintain traceability.
Technical Inquiry for Box Compression Tester
KingPo specializes in packaging and material testing equipment. If you require precise ISO 12048 compression testing for cartons or transport packaging, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- Dual-control system (PC + 7″ touchscreen) for flexible operation
- Four high-accuracy load cells with ยฑ0.5% precision
- Servo-driven double ball-screw mechanism for smooth, repeatable testing
- Programmable compression, deformation and stacking test methods
- Comprehensive safety protections including E-Stop and overload
- Full compliance with ISO 12048
Tell us your package size, required force capacity or test standard โ our engineering team will reply with tailored recommendations within 24 hours.
